Using Virtualbox to manage legacy gba flashcarts

Discussion in 'GBA - Hardware, Devices and Utilities' started by how_do_i_do_that, Jan 20, 2011.

  1. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    This tutorial will be about installing and configuring a flashcart to work with your Virtualbox of Windows XP on a Windows 7 x64 box.
    Specifically a Elink2 flashcart to work on a VM of Windows XP.


    That is this thing
    [​IMG]

    First thing you will need to do is put the cart into a GBA/SP/micro and turn on the GBA/SP/micro. Connect the usb to the Elink flashcart and connect the other end to the computer.

    [​IMG]

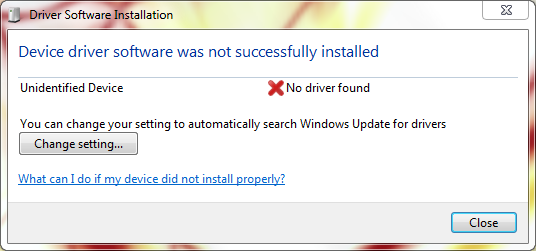

    Once you do that, The Windows 7 usb manager will spit out an error like this:
    [​IMG]
    You can ignore this, we do not care at the moment what windows 7 says about it. Leave your stuff plugged in and don't mess with it.

    You will now start up your Virtualbox into Windows XP.
    [​IMG]

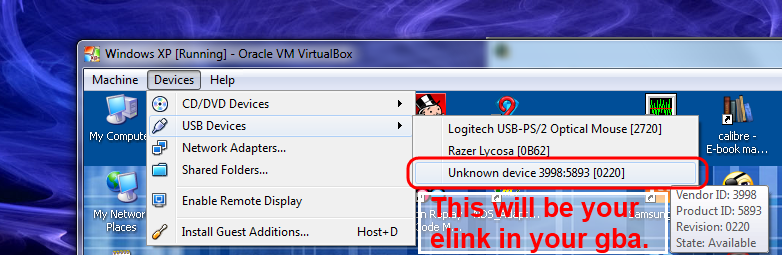

    Now we need to identify the Elink2 flashcart like so. This is what mine is identified as, it should be the only Unidentified USB device in the list.
    [​IMG]

    Do not try and add the usb device to the VM yet, you will get a hardware lock error. Shut down the VM machine, but leave the VM manager window open.

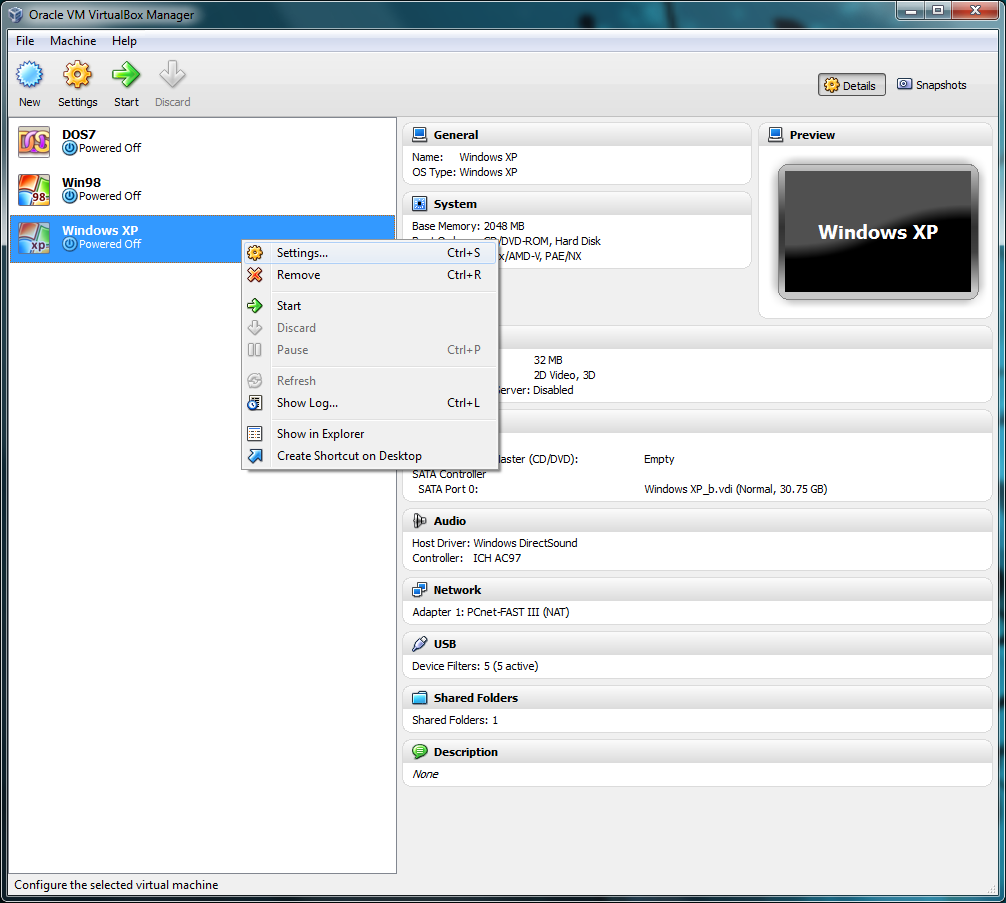

    Now goto the settings on the VM of Windows XP.
    [​IMG]

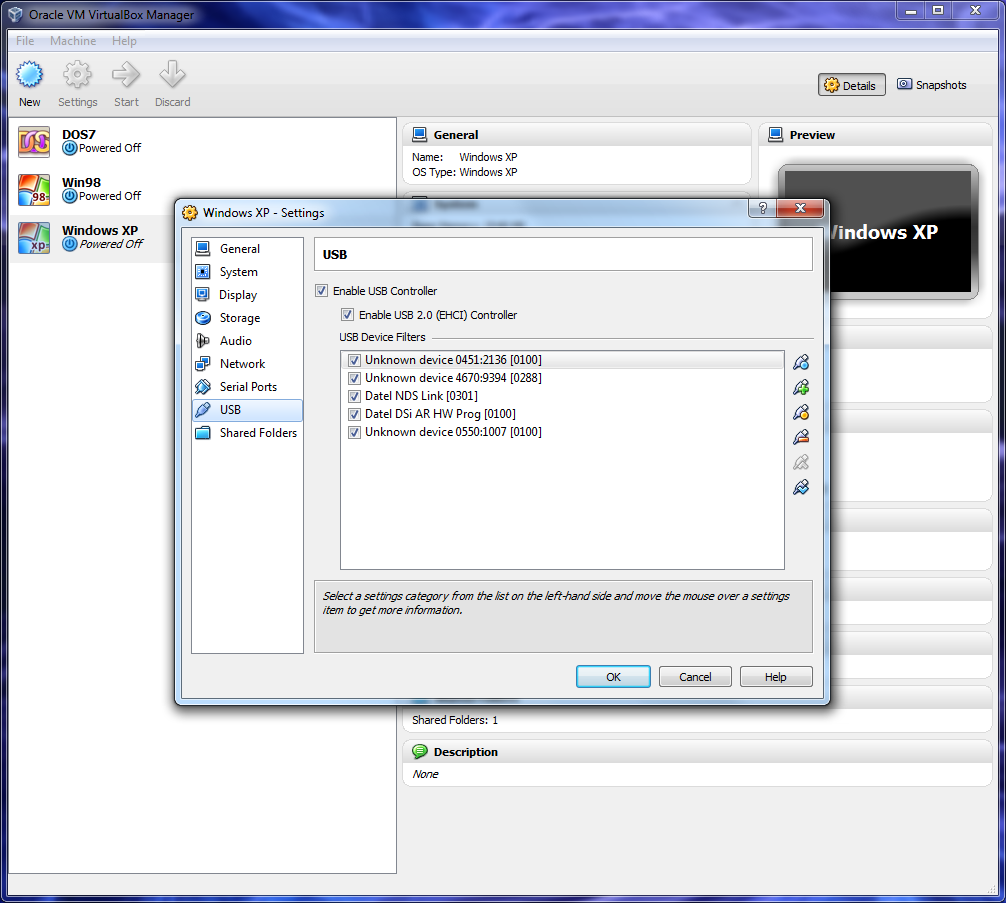

    Now goto the USB settings on the VM of Windows XP.
    [​IMG]

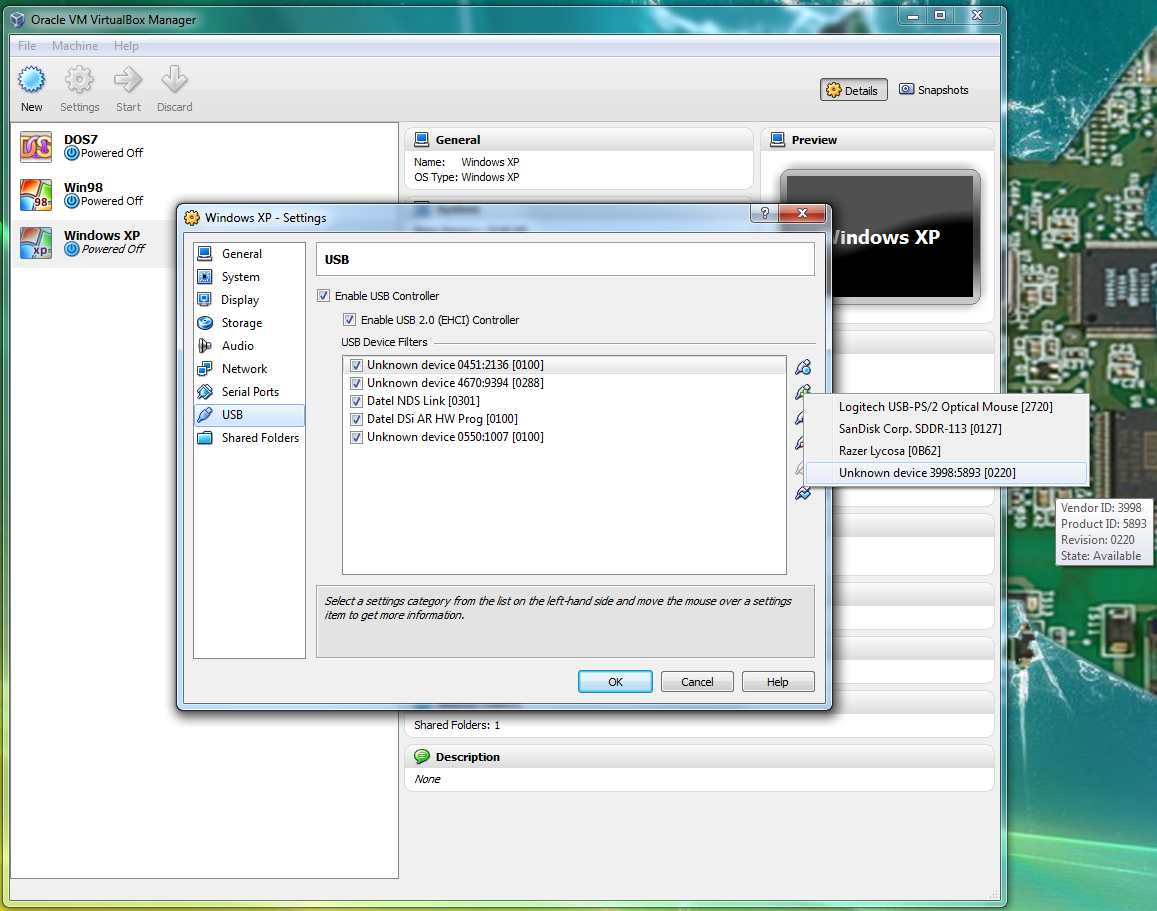

    Left click on the add usb device icon (that is the one with the green plus sign) and pick the unknown device we saw earlier.
    [​IMG]

    [​IMG]

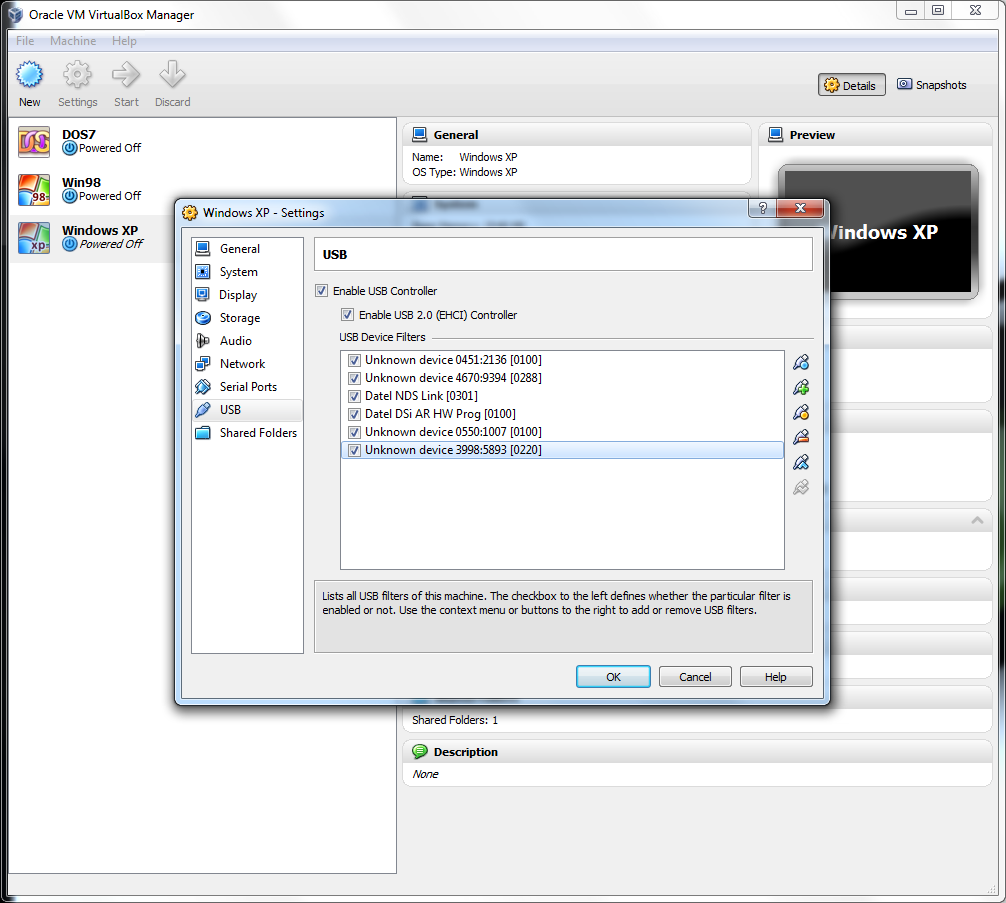

    Once you added the unknown usb device to the list, save the settings by clicking on the OK button. You can now disconnect the usb from the elink flashcart. Do not turn off the GBA/SP/micro yet.

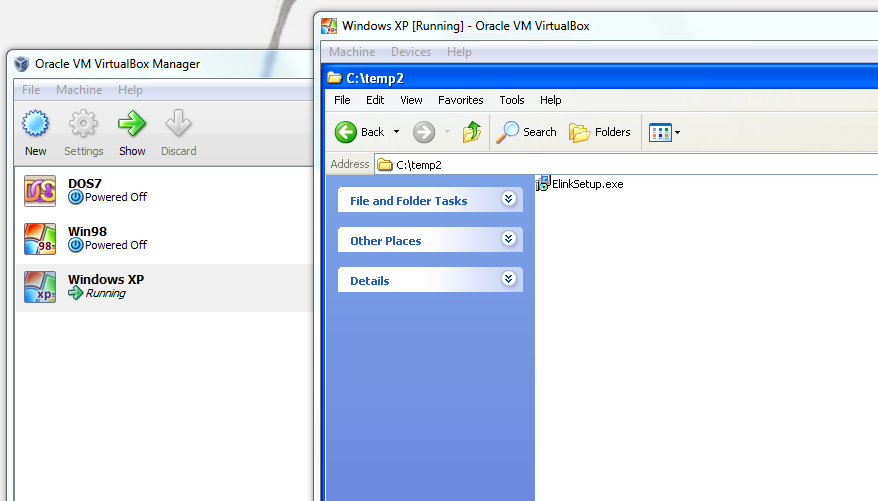

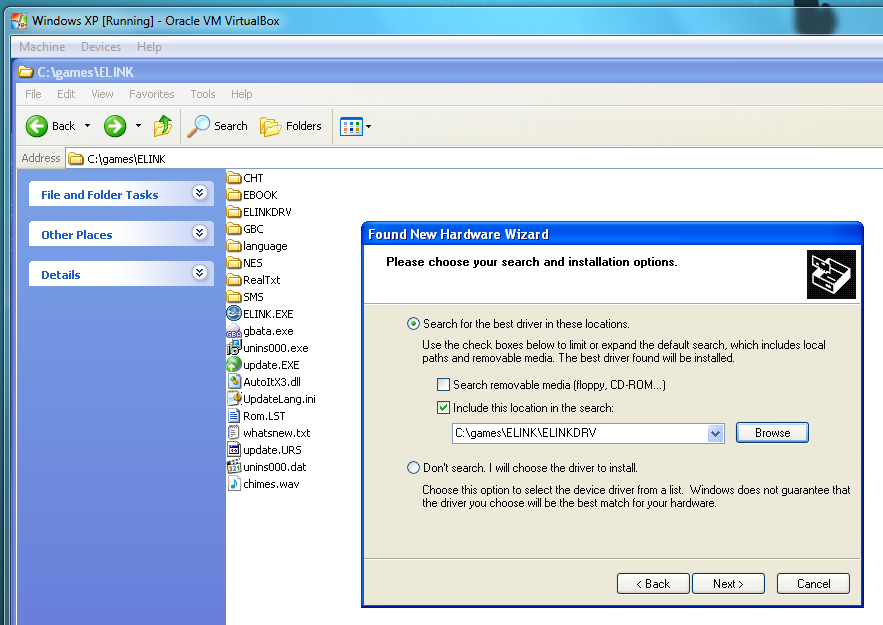

    Start up the VM of Windows XP again. You will need to download the Elink2 Client installer at the bottom of the page. I download and installed the v6 fould at the bottom of the page. You can pick up the file from here. Make sure your VM of Windows XP has a guest network setup already set up. Download the file to the desktop or whatever folder in Windows XP you want. Then install the program to your VM of Windows XP. I changed the install path on mine to C:\games\ELINK instead of the Program Files folder. I did this so I know where the drivers are path to the drivers being C:\games\ELINK\ELINKDRV. You need to know this path when installing the drivers.

    [​IMG]

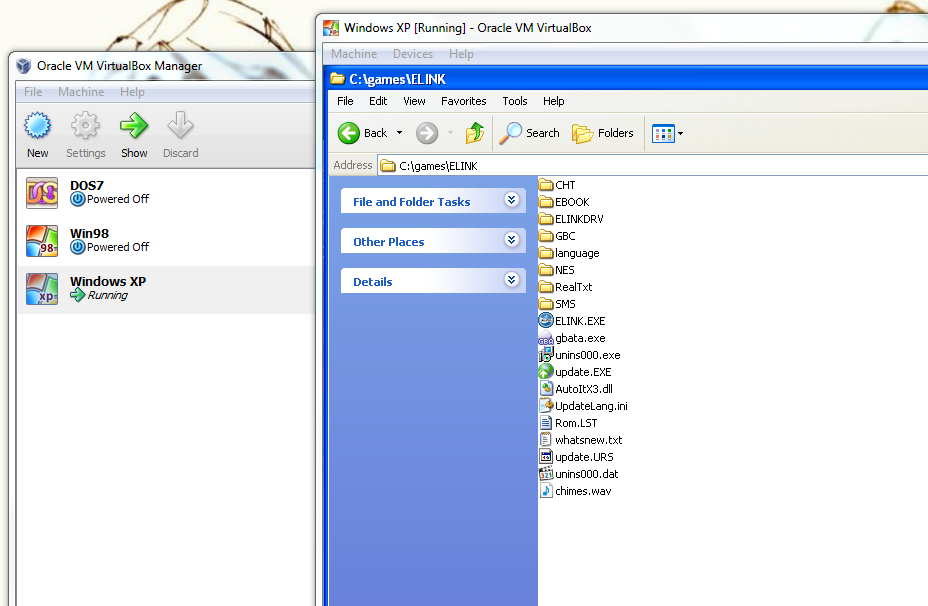

    Now plug the usb cable back into the elink2 flashcart. Virtualbox should now have possession of the unknown usb device, that means you can now use the flashcart with the VM of Windows XP. If it doesn't, shutdown and exit out of Virtualbox, then you will need to kill Virtualbox and the VBoxSVC service from the task manager from Windows 7. Then start Virtualbox up again. Once you plug in the usb cable into the elink flashcart, the XP hardware plug and play installer will kick in. Install the device manually and give the path to the drivers where you installed it to. Mine happens to be C:\games\ELINK\ELINKDRV.

    [​IMG]

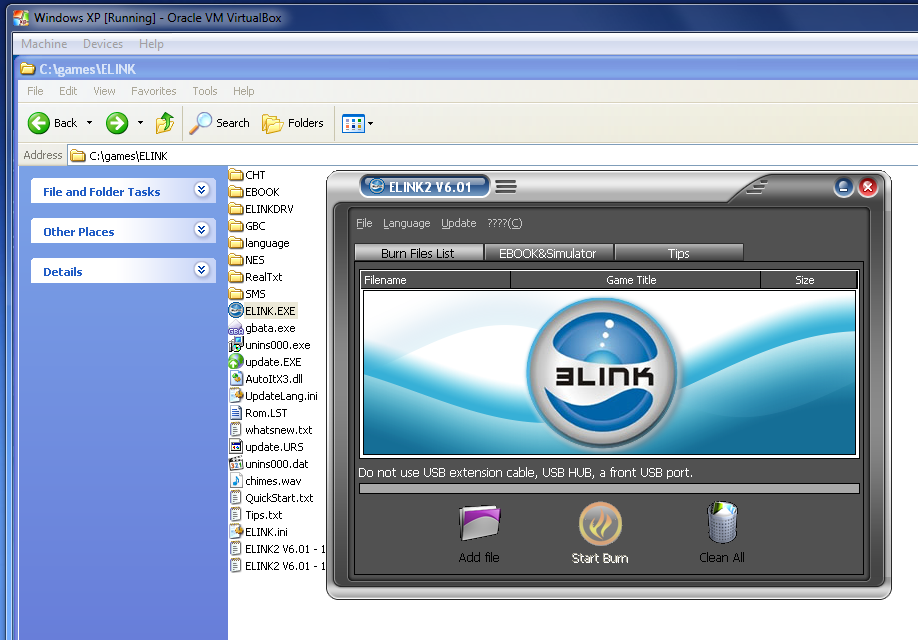

    After you start up the Elink client program, it should look like this:
    [​IMG]

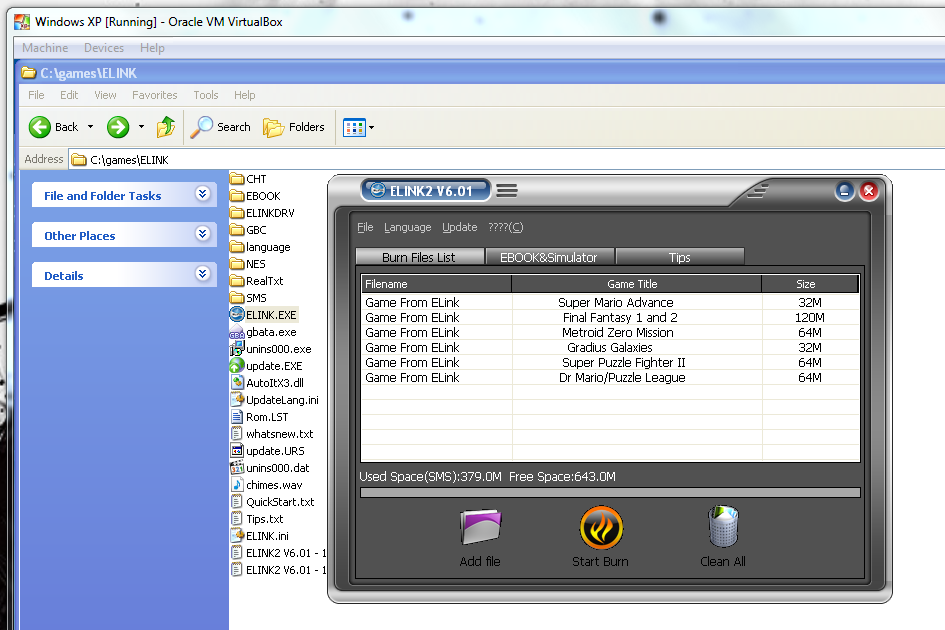

    Now turn off the GBA/SP/micro and turn it back on. Your Elink client program should now pick up and read the contents of your elink flashcart.

    [​IMG]

    [​IMG]

    From here you can add/remove your games like you would on a real Windows XP box.

    As for what flashcarts are supported, any pure NOR flashcart that requires drivers work can be set up to work under Virtualbox. Flashcarts like the EZ-Flash III which has an onboard NOR+NAND setup don't work under a VM, it has 2 USB ID under VM which don't install properly.


    Don't bug me about "will it work with [insert a gba flashcart here] under VM" question, ESPECIALLY if you haven't already tried it and just want an answer. You will be ignored or worse.

    pelago and Margen67 like this.


  2. Minox

    Supervisor Minox Spytech Employee

    Joined:
    Aug 27, 2007
    Messages:
    5,616
    Country:
    Sweden
    I'd say it works just fine for me on my EZ Flash III, it may just be the fact that I'm not using Virtualbox to achieve this result. Microsoft Virtual PC may not be the best software out there, but for things like this it's more than enough and works pretty good overall.

    I'm not 100% sure about this, but I do think I also remember positive results from back when I tried in Vmware Workstation.

  3. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    It varries on what VM your using.

    I'm not using a bootleg copy of Virtual PC or VMWare, just whatever is available for free.

    The main reason is that I use Virtualbox is that it is that it runs the same way with my linux box and mac box, so I don't have to make a new virtual disk for each box I am on.

  4. DanTheManMS

    Member DanTheManMS aka Ricochet Otter

    Joined:
    Jun 2, 2007
    Messages:
    4,325
    Location:
    Georgia
    Country:
    United States
    This seems amazing, if it works. I will definitely give this a go for my Flash2Advance Ultra cart in the near future, which is one of the main reasons I'm still hanging onto my antique XP desktop.

    Thanks so much for the guide.

  5. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    Some flashcarts don't mix with others on the same system. In those cases you would have to make a seperate VM to use them in, otherwise you got driver priority issues.

    There are flashcart drivers that don't work nicely on the same system as the F2A/U, don't remember which at the moment.


    Also works with EZ-Flash II (using EZ-Flash III drivers in I/II mode)
    Warning: Spoilers inside!


    The trick was figuring out you had to add the USB IDs before you start the VM or you get errors trying to capture and use them through the usb system of Virtualbox.

  6. Schlupi

    Member Schlupi Gbatemp's Official Earthbound Maniacâ„¢

    Joined:
    Aug 31, 2007
    Messages:
    3,985
    Location:
    Rozen Queen Co, Chicago Branch
    Country:
    United States
    I am trying to get my F2AUltra working under VirtualBox. I can't seem to get it working at all. I install the drivers, as if on a real XP system, and they are recognized. Then when I try to go the the program it does not work. No USB or driver error.


    I restarted the VPC and it won't even let me connect it anymore. when go to Devices it says

    Failed to connect the Unkown USB device to... Console Schlupi XP.


    Result Code:
    E_INVALIDARG (0x80070057)
    Component:
    HostUSBDevice
    Interface:
    IHostUSBDevice {173b4b44-d268-4334-a00d-b6521c9a740a}
    Callee:
    IConsole {515e8e8d-f932-4d8e-9f32-79a52aead882}



    I did the same exact thing I did on my sister's XP and it worked on there.

    I am curious as to how to get this working... been trying ALL WEEK last week since I got this damn card. I have to walk a mile to get to my sister's XP... I wish I could get this working.

    Any help would be appreciated.

    EDIT: And now when I add the USB device in the manager, it won't even show up while running the VPC. I can't capture it. I am so confused. :/

  7. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    you tried attaching the usb device after you started the virtualbox.

    means you didn't add the usb device when the VM was off.

  8. Schlupi

    Member Schlupi Gbatemp's Official Earthbound Maniacâ„¢

    Joined:
    Aug 31, 2007
    Messages:
    3,985
    Location:
    Rozen Queen Co, Chicago Branch
    Country:
    United States
    You are right! I did it in the right order and it worked! Sweet! I finally was able to test out Ruby Version after charging my F2AUltra in my SP for the past few days it it DOES have a rechargable battery! The RTC is now working, it didn't at first.

    Thank you so much for all your help. You have helped me with all my GBA cart questions and I have had almost everything resolved.

    Last thing is I am STILL trying to figure out the Savestate buttons... Maybe they are broken.

    I am glad I can now flash carts on my Windows 7, and have a fully functional VPC XP.

  9. disc_over

    Newcomer disc_over Newbie

    Joined:
    Mar 2, 2011
    Messages:
    2
    Country:
    Spain
    Hi there, I've registered just to help anyone with these legacy carts

    Windows 7 & F2A-EZ USB cable
    I had no problems by manually instaling driver but had to use an alternative F2A Writer that does not use .dll (I don't know where I've got it, few years ago)

    It works! I thought it was not going to work at first, I admit...

    Locate it in Devices, install a new controller, select the downloaded and unzipped folder, and finally the .INF file. It complains (as usual) non-WDM driver. Next, next, and it will be recognized! and in working state! No VirtualMachines, no XP mode.

    Next time you plug in a GBA, it will change as "Flash2Advance U-linker V.10" under Device Manager.

    I've verified the program, by CRC checking a ROM already installed, and it looks good.

    Hope it helps.

    THE LINK TO DRIVER AND PROGRAM: http://www.megaupload.com/?d=PBDWIRIE

  10. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    They are already on filetrip.

  11. ronfar23x

    Newcomer ronfar23x Member

    Joined:
    May 13, 2010
    Messages:
    17
    Country:
    United States
    Excellent guide! I actually got my old EZFA 256 rtc working on my Vista 64 machine. This should be stickied!

    Margen67 likes this.
  12. DJ88

    Newcomer DJ88 Newbie

    Joined:
    Sep 14, 2011
    Messages:
    3
    Country:
    United States
    Awesome guides. Thanks to you I got my new EZ Flash III working on my iMac using virtualbox.

  13. juantendo8

    Newcomer juantendo8 Member

    Joined:
    Sep 11, 2009
    Messages:
    17
    Country:
    United States
    I've followed the guide but I just can't seem to get this to work for my X-rom. I downloaded the X-rom 1.0 drivers from filetrip but when I direct my X-rom linker to that driver, it says that it won't work for some reason. Any advice that you could spare?

  14. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    If your not getting it to work, it means you didn't add the usb id to the list under usb device filter in settings before trying to install the drivers.

  15. pin

    Member pin GBAtemp Regular

    Joined:
    Apr 21, 2009
    Messages:
    144
    Country:
    United Kingdom
    Hi,

    I've followed the tutorial and get my flashcard t(flash2advance) to show up under Xp, but when I go the linker software and try to connect it the device becomes disabled and dissapears from the system. If I shutdown powerwriter and restart the GBA micro it reapears - grrrrr. ANy ideas anyone? Ta

  16. how_do_i_do_that
    OP

    Member how_do_i_do_that Blue Wizard is about to die.

    Joined:
    May 16, 2008
    Messages:
    4,805
    Country:
    Antarctica
    Your probably using a usb port that doesn't supply it's own power. I use a usb hub to deal with that.

    Ports on the back usually have power supplied.

  17. pin

    Member pin GBAtemp Regular

    Joined:
    Apr 21, 2009
    Messages:
    144
    Country:
    United Kingdom
    No it's a laptop and connected directly. Think the card may be borked as Nintendo logo etc is distorted even

  18. snoopdog

    Newcomer snoopdog Newbie

    Joined:
    Apr 7, 2010
    Messages:
    5
    Country:
    Canada
    i know this is an old post but maybe someone is still here that can help me out i did the virtual box running everything working right but im using ezf advance 256m and i got the drivers installed but now when i try and run the ezfa_client it can't find the XceedZip.dll but its in the same path as the EZFA_Clint.exe

  19. The Real Jdbye

    Member The Real Jdbye D:

    Joined:
    Mar 17, 2010
    Messages:
    8,575
    Location:
    Doing your mom
    Country:
    Norway
    Is that one of the carts that doesn't have a menu that appears when you boot it? If it is then the Nintendo logo would be distorted if the ROM flashed onto it has an invalid header.

  20. albertar

    Member albertar GBAtemp Regular

    Joined:
    Jan 5, 2015
    Messages:
    164
    Country:
    United States
    I'm using virtual box right now because i don't know hot to load windows xp or get windows xp mode to work on windows 7 with windows virtual pc. I'm wondering if anyone could help me put games onto my ez flash iii. My problem is that when i plug my ez flash iii into the ez writer ii and then i plug the ez writer to my laptop via usb, it doesn't show up in either windows xp or windows 7, and yes I already added the USB on virtual box.

    Although it identifies in windows xp, it asks if I would like to install it in which I say yes and then nothing really happens because it's not connected to the internet.

    Is there something that I need to install in order to make my ez flash iii show up on my virtualbox so that I could use the ez manager to put games in it?
