USB Loader(s) Not Finding My USB

[InaBuild]

So I Just Installed New cIOS(ES) From Wii.guide One Thing Tho Its No More Detecting my USB

Some Programs Like WiiXplorer Detect it and POSTLoader, and HBC But That's it

One Thing to clarify first USB Port 0 Is Broken The USB White thingy popped off with a USB so my only choice is the 1 Port

CFG, USB GX, WFL All Don't Detecting Except For Postloader

Spoiler: Syscheck

SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: PAL
System Menu 4.3E (v514)
Priiloader installed
Drive date: 02.13.2007
Homebrew Channel 1.1.0 running on IOS58

Console ID: 150967332
Console Type: Wii
Shop Channel Country: United Kingdom (110)
Boot2 v4
Found 114 titles.
Found 51 IOS on this console. 8 of them are stubs.

IOS3 (rev 65280): Stub
IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 54321): Trucha Bug, ES Identify, Flash Access, NAND Access
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 54321): Trucha Bug
IOS31 (rev 3608): Trucha Bug, ES Identify, NAND Access
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 54321): Trucha Bug, ES Identify, NAND Access
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120, Info: rev 4889): No Patches
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 54321): Trucha Bug
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 54321): Trucha Bug
IOS80 (rev 6944): Trucha Bug, NAND Access
IOS202[60] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS222[38] (rev 65535, Info: Hermes-v55.1): Trucha Bug, ES Identify, NAND Access, USB 2.0
IOS223[37] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS224[57] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS236[36] (rev 65535, Info: rev 3351): Trucha Bug, ES Identify, NAND Access
IOS249[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS250[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS251[38] (rev 65535, Info: d2x-v10beta52): Trucha Bug, ES Identify, NAND Access
IOS254 (rev 65281): BootMii
BC v6
MIOS v10
Report generated on 12/31/2022.



[Sypherone]

The cIOS 249 (base57) and cIOS (base56) only support port 0 (lower one) to play Wii games. By using the new USB Loader GX version r1280, you can also try to play Wii games from SDCard. GC games can be played from both ports as the loader e.g. nintendont uses IOS 58 with standart USB 2.0 Support.

As the IOS 58 supports both ports, your only change by using a external drive on the backports is using a cIOS 251 or 252 with base 58. Check here for details.



[InaBuild]

The cIOS 249 (base57) and cIOS (base56) only support port 0 (lower one) to play Wii games. By using the new USB Loader GX version r1280, you can also try to play Wii games from SDCard. GC games can be played from both ports as the loader e.g. nintendont uses IOS 58 with standart USB 2.0 Support.

As the IOS 58 supports both ports, your only change by using a external drive on the backports is using a cIOS 251 or 252 with base 58. Check here for details

I Don't How Much I Need To Thank You Thanks For That Tip!



[CoolMe]

One Thing to clarify first USB Port 0 Is Broken The USB White thingy popped off with a USB so my only choice is the 1 Port

What "popped off" exactly? Are you using a sd to usb adaptor or usb flash drive? As there's nothing to pop off & the port is pretty sturdy (unless the pins are bent inside..etc.)
Btw, you can change the setting in USBLoaderGX (or Wiiflow lite) where the drive is connected (like port 0 or 1). Though you will have issues running Wii games if you change it to port 1.



[The Real Jdbye]

So I Just Installed New cIOS(ES) From Wii.guide One Thing Tho Its No More Detecting my USB

Some Programs Like WiiXplorer Detect it and POSTLoader, and HBC But That's it

One Thing to clarify first USB Port 0 Is Broken The USB White thingy popped off with a USB so my only choice is the 1 Port

CFG, USB GX, WFL All Don't Detecting Except For Postloader

Spoiler: Syscheck

SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: PAL
System Menu 4.3E (v514)
Priiloader installed
Drive date: 02.13.2007
Homebrew Channel 1.1.0 running on IOS58

Console ID: 150967332
Console Type: Wii
Shop Channel Country: United Kingdom (110)
Boot2 v4
Found 114 titles.
Found 51 IOS on this console. 8 of them are stubs.

IOS3 (rev 65280): Stub
IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 54321): Trucha Bug, ES Identify, Flash Access, NAND Access
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 54321): Trucha Bug
IOS31 (rev 3608): Trucha Bug, ES Identify, NAND Access
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 54321): Trucha Bug, ES Identify, NAND Access
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120, Info: rev 4889): No Patches
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 54321): Trucha Bug
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 54321): Trucha Bug
IOS80 (rev 6944): Trucha Bug, NAND Access
IOS202[60] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS222[38] (rev 65535, Info: Hermes-v55.1): Trucha Bug, ES Identify, NAND Access, USB 2.0
IOS223[37] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS224[57] (rev 65535, Info: Hermes-v55.1): Trucha Bug, NAND Access, USB 2.0
IOS236[36] (rev 65535, Info: rev 3351): Trucha Bug, ES Identify, NAND Access
IOS249[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS250[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS251[38] (rev 65535, Info: d2x-v10beta52): Trucha Bug, ES Identify, NAND Access
IOS254 (rev 65281): BootMii
BC v6
MIOS v10
Report generated on 12/31/2022.

If you can't use port0, you need to use d2x beta53, which has support for both ports (keep everything else the same, just reinstall 249-251 with same base IOS as before but using beta53)

The cIOS 249 (base57) and cIOS (base56) only support port 0 (lower one) to play Wii games. By using the new USB Loader GX version r1280, you can also try to play Wii games from SDCard. GC games can be played from both ports as the loader e.g. nintendont uses IOS 58 with standart USB 2.0 Support.

As the IOS 58 supports both ports, your only change by using a external drive on the backports is using a cIOS 251 or 252 with base 58. Check here for details.

Not true, IOS58 is for USB 2.0 support natively (which cIOS already support) it has nothing to do with both ports, you need d2x beta53 for that.



[InaBuild]

What "popped off" exactly? Are you using a sd to usb adaptor or usb flash drive? As there's nothing to pop off & the port is pretty sturdy (unless the pins are bent inside..etc.)
Btw, you can change the setting in USBLoaderGX (or Wiiflow lite) where the drive is connected (like port 0 or 1). Though you will have issues running Wii games if you change it to port 1.

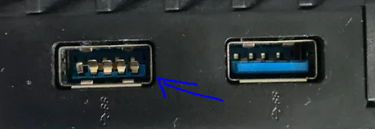

It Was Just Like This

Post automatically merged: Jan 6, 2023

If you can't use port0, you need to use d2x beta53, which has support for both ports (keep everything else the same, just reinstall 249-251 with same base IOS as before but using beta53)

Not true, IOS58 is for USB 2.0 support natively (which cIOS already support) it has nothing to do with both ports, you need d2x beta53 for that.

Isn't Base 58 Enough?



[XFlak]

It may be tough to dig up but I'm pretty certain there was/is a version of cfg usb loader that uses port1 and should work with recommended cios's instead of being forced to use v10 beta53 alt

Edit: found it
https://gbatemp.net/threads/getting-port-1-to-work-with-config-loader.280673/post-3482298



[Sypherone]

If you can't use port0, you need to use d2x beta53, which has support for both ports (keep everything else the same, just reinstall 249-251 with same base IOS as before but using beta53)

Not true, IOS58 is for USB 2.0 support natively (which cIOS already support) it has nothing to do with both ports, you need d2x beta53 for that.

What is not true? The IOS 58 is the official Nintendo IOS with USB 2.0 support. That supports nativ any USB port on Wii and WiiU. This IOS checks in descending order 3,2,1,0 for a plugged drive. E.g. Nintendont uses only this IOS and every port can be used to play GC games.

Basicly d2x-v10-r52 supports only the one port number 0. And the d2x has a extra modul implemented called "mini ehci" that should give higher transferrates, but is not supported by all drives.

BUT as workaround if you have issues, and you use a cIOS with base 58, you gain higher drive compatibility and both ports are supported. You may try, set loader IOS to 58 (or to cIOS 151(base58)) and the game cIOS to cIOS 151(base58). And plug the drive to port 1.

This way some users including myself using the vWii drive in port 1 and WiiU drive in port 0. Because otherway around you will face drive recognizen issues. Check here or here or here or here.

And i wouldnt recommend beta53 as its to incompatible and facing other issues. So better using the workaround.

Isn't Base 58 Enough?

You may tell us if it works or not without the beta53-alt. By trying using the latest builds of USBLGX (1272, 1272 mod7 or 1280). And setting loader cIOS to 58 or 151(base58) and the global game cIOS to 151(base58).



[The Real Jdbye]

What is not true? The IOS 58 is the official Nintendo IOS with USB 2.0 support. That supports nativ any USB port on Wii and WiiU. This IOS checks in descending order 3,2,1,0 for a plugged drive. E.g. Nintendont uses only this IOS and every port can be used to play GC games.

Basicly d2x-v10-r52 supports only the one port number 0. And the d2x has a extra modul implemented called "mini ehci" that should give higher transferrates, but is not supported by all drives.

BUT as workaround if you have issues, and you use a cIOS with base 58, you gain higher drive compatibility and both ports are supported. You may try, set loader IOS to 58 (or to cIOS 151(base58)) and the game cIOS to cIOS 151(base58). And plug the drive to port 1.

This way some users including myself using the vWii drive in port 1 and WiiU drive in port 0. Because otherway around you will face drive recognizen issues. Check here or here or here or here.

And i wouldnt recommend beta53 as its to incompatible and facing other issues. So better using the workaround.


You may tell us if it works or not without the beta53-alt. By trying using the latest builds of USBLGX (1272, 1272 mod7 or 1280). And setting loader cIOS to 58 or 151(base58) and the global game cIOS to 151(base58).

Every official Nintendo IOS supports both ports (it would be silly to have 2 ports if the console could only use one), this is no different in IOS58, but IOS and cIOS are not the same thing, cIOS use a lot of custom sysmodules and the USB backup loading functionality is very much custom. So it doesn't work the way you think.



[InaBuild]

What is not true? The IOS 58 is the official Nintendo IOS with USB 2.0 support. That supports nativ any USB port on Wii and WiiU. This IOS checks in descending order 3,2,1,0 for a plugged drive. E.g. Nintendont uses only this IOS and every port can be used to play GC games.

Basicly d2x-v10-r52 supports only the one port number 0. And the d2x has a extra modul implemented called "mini ehci" that should give higher transferrates, but is not supported by all drives.

BUT as workaround if you have issues, and you use a cIOS with base 58, you gain higher drive compatibility and both ports are supported. You may try, set loader IOS to 58 (or to cIOS 151(base58)) and the game cIOS to cIOS 151(base58). And plug the drive to port 1.

This way some users including myself using the vWii drive in port 1 and WiiU drive in port 0. Because otherway around you will face drive recognizen issues. Check here or here or here or here.

And i wouldnt recommend beta53 as its to incompatible and facing other issues. So better using the workaround.


You may tell us if it works or not without the beta53-alt. By trying using the latest builds of USBLGX (1272, 1272 mod7 or 1280). And setting loader cIOS to 58 or 151(base58) and the global game cIOS to 151(base58).

I'm using a normal wii
RVL-1 Not a Vwii



[Sypherone]

That doesnt matter if its a Wii or vWii, technical they are same.

Every official Nintendo IOS supports both ports (it would be silly to have 2 ports if the console could only use one), this is no different in IOS58

IOS are like driver to let the Software communicate with the hardware. Instead of upgrading, Nintendo choosed to put every new IOS in a new slot (Some also updated) for compatibilty reasons.

Nearly every IOS has USB support for all ports for sure. But only USB 1.0 and has compared to USB 2.0 very slow transferspeeds.

While most IOS versions have a USB module, it is limited to USB1, and its I/O throughput make some applications next to unusable when using USB mass storage devices, others have annoyingly long loading times.

Source Wiibrew IOS 58

Transferspeed USB protocols :

• USB 1.0 (1996): 12 MBit/s* – 1,5 Megabyte/s
• USB 1.1 (1998): 12 MBit/s – 1,5 Megabyte/s
• USB 2.0 (2000): 480 MBit/s – 60 Megabyte/s
• USB 3.0 (2008): 5 GBit/s – 0,625 Gigabyte/s
• USB 3.1 (2013): 10 GBit/s – 1,25 Gigabyte/s

but IOS and cIOS are not the same thing, cIOS use a lot of custom sysmodules and the USB backup loading functionality is very much custom

The IOS is Nintendos original. By patching these with a d2x patch homebrew capabilitys will be added by implementing different moduls. Including the module "mini ehci" for higher transferspeed, as e.g. IOS 56/57 only support USB 1.0 , with EHCI the USB 2.0 support will be added. But EHCI is a own USB 2.0 standard created by Intel, which requires a licence for using it. While the official USB standard is a result of a consortium of Apple, Microsoft, Intel, Texas instruments, HP and others.

This cIOS (custom IOS) are put into higher slots that Nintendo dont overwrite them and therefore they also have the highest version number.



[InaBuild]

That doesnt matter if its a Wii or vWii, technical they are same.

Oh Ok

Post automatically merged: Jan 7, 2023

If you can't use port0, you need to use d2x beta53, which has support for both ports (keep everything else the same, just reinstall 249-251 with same base IOS as before but using beta53)

Not true, IOS58 is for USB 2.0 support natively (which cIOS already support) it has nothing to do with both ports, you need d2x beta53 for that.

The V10 Beta35 d2x-v10-beta53-alt?
