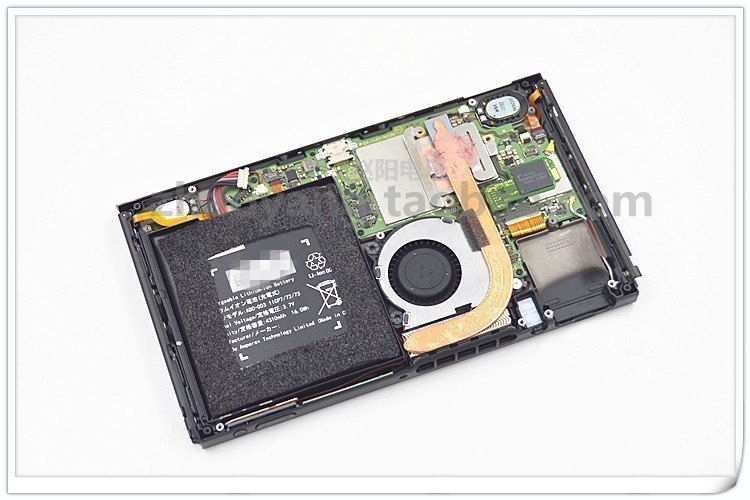

    Someone has claimed to taken apart a switch. Looks neat. and tiny.

    Apparently it's considered a leak coming from foxconn, the manufacturer in china.

    Warning: Spoilers inside!

    http://tieba.baidu.com/p/4988497063?red_tag=1794578248

    http://tieba.baidu.com/p/4988497063?red_tag=1794578248

    Edit:

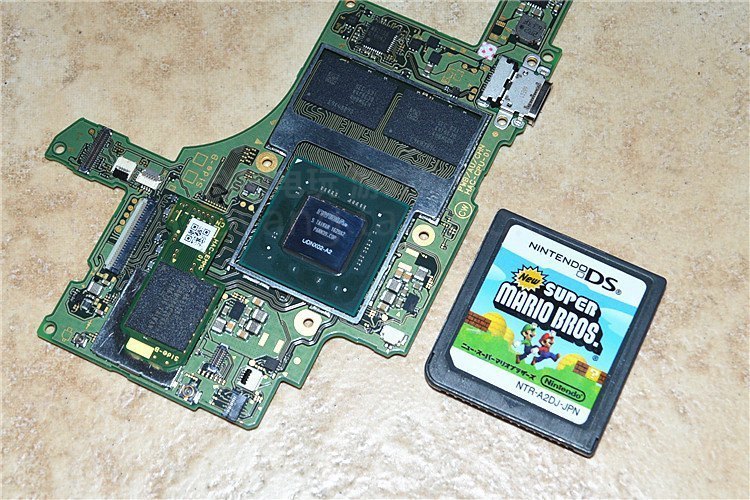

    "More high res pictures
    https://tieba.baidu.com/p/4988526087?red_tag=2061787100

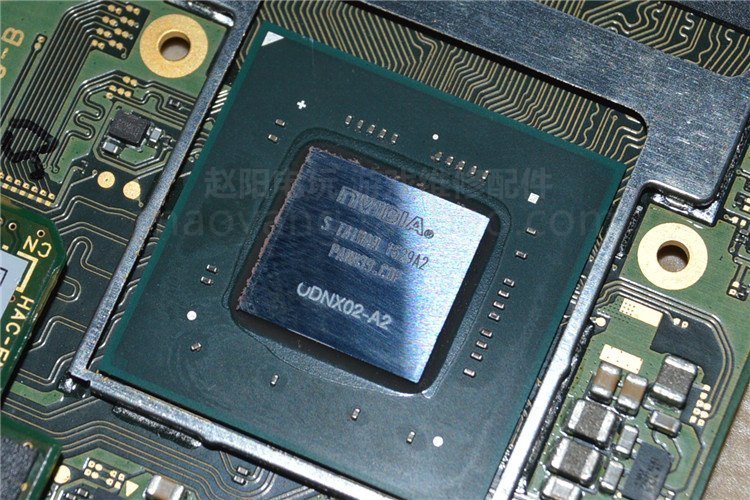

    • Date code is "1629" in addition to the A2 designation.
    • This means 2016 Week 29 which is around July 2016.
    • UDNX02-A2 is another code printed.
      • This seems to confirm that this IS a custom chip for Nintendo. Considering the Switch was codenamed Nintendo NX during its development.
    Warning: Spoilers inside!
    More pictures (https://tieba.baidu.com/p/4988500850?red_tag=2053941465)
