SD Card Corrupted

By kinglear, Dec 25, 2020 1,852 19 0

  1. kinglear

    OP kinglear Newbie
    Newcomer
    Level 1

    Joined:
    Dec 25, 2020
    Messages:
    6
    Country:
    France
    Hello,

    I have a Nintendo Switch jailbreak with Caffeine (for just over a year) with a 256 GB microSD.

    I sometimes had problems with the microSD (in FAT32). My PC (Windows) couldn't read its content and asked me to format it.
    I repaired several times the errors in cmd.exe with the command chkdsk /f
    I had no more worries afterwards. Everything was working well.

    However, today it doesn't work anymore.

    When I start my Switch, I run Pegascape and then boot to EmuMMC Then, the screen stays frozen for several minutes on the blue Atlas Kosmos screen for long minutes to finish on a black screen. I think the problem comes from the microSD. I can read its contents on Linux Ubuntu.

    I also have a problem with the battery level indicator.

    Thanks in advance

  2. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    Have you tried checking to see if the SD card is fake or not?

  3. Waicol

    Waicol Member
    Newcomer
    Level 4

    Joined:
    Nov 11, 2018
    Messages:
    29
    Country:
    Afghanistan
    Try running your CFW with another sd card, copy everything except the Nintendo folder. If it fails too the sd slot inside your switch could be damaged, it's prone to damage but it's replaceable.

  4. kinglear

    OP kinglear Newbie
    Newcomer
    Level 1

    Joined:
    Dec 25, 2020
    Messages:
    6
    Country:
    France
    This is a real microSD Sandisk sold and shipped by Amazon.

    Can I try with a 32GB microSD?

    Last edited by kinglear, Jan 9, 2021
  5. Waicol

    Waicol Member
    Newcomer
    Level 4

    Joined:
    Nov 11, 2018
    Messages:
    29
    Country:
    Afghanistan
    Of course, be sure to format it to fat32 (if you use that) before placing your cfw files.

  6. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    Amazon has sold plenty of fakes to other users on this site before so I don't believe yours to be an exception unless you have tested the card to be fake.

    kinglear and Memoir like this.
  7. BenjiC

    BenjiC Newbie
    Newcomer
    Level 1

    Joined:
    Jan 11, 2021
    Messages:
    1
    Country:
    Mexico
    Something similar happened to me, only the last time the memory was write-protected and I have not been able to repair it, it is possible that they are damaged files within atmosphere, I did the memory health tests and it shows that there are no errors
    sorry for my bad english as a translator

  8. Purple_Shyguy

    Purple_Shyguy GBAtemp Maniac
    Member
    Level 10

    Joined:
    Nov 8, 2008
    Messages:
    1,364
    Country:
    Think this is happening to me.

    My switch is freezing, crashing constantly, generally slow. I run CHKDSK and it finds files.

    Is my SD just dying?

  9. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    I would recommend using FakeFlashTest to double check the results of CHKDSK.

  10. Purple_Shyguy

    Purple_Shyguy GBAtemp Maniac
    Member
    Level 10

    Joined:
    Nov 8, 2008
    Messages:
    1,364
    Country:
    My SD card died shortly after I posted that.

    So I set up another SD card I had laying around and that ones doing the same thing!!! I find it hard to believe I have two dying SD cards at the same time. I have another one in the mail. Taken over a week to deliver :hateit:

  11. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member
    GBAtemp Patron
    Level 21

    Joined:
    Mar 17, 2010
    Messages:
    20,442
    Country:
    Norway
    Maybe your SD reader is bad.

  12. Purple_Shyguy

    Purple_Shyguy GBAtemp Maniac
    Member
    Level 10

    Joined:
    Nov 8, 2008
    Messages:
    1,364
    Country:
    Yep. Opened it up today. 2 ripped off pins on the motherboard. So I guess I probably fried my memory card which had nothing wrong with it at all.

  13. kinglear

    OP kinglear Newbie
    Newcomer
    Level 1

    Joined:
    Dec 25, 2020
    Messages:
    6
    Country:
    France
    I was unable to open or format the 256GB microSD from Windows. Every time I inserted the card, my PC crashed.

    However, I was able to do it on Linux Ubuntu by using slow formatting (with data deletion).
    Then I switched back to Windows to use guiformat and then H2testw.

    My microSD card seems to have no problem.


    Attached Files:

    Last edited by kinglear, Jan 30, 2021
  14. sudeki300

    sudeki300 GBAtemp Advanced Fan
    Member
    Level 5

    Joined:
    Nov 20, 2004
    Messages:
    783
    Country:
    i used to have a lot of issues with my sdcard becoming corrupted when first getting the switch, in the end i started mounting the sdcard instead of always removing it from the switch. never had an issue since.

  15. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    Well did you try the other suggestion earlier in the thread by trying to boot CFW with another SD card? It could potentially be a hardware issue which is harder to fix.

  16. kinglear

    OP kinglear Newbie
    Newcomer
    Level 1

    Joined:
    Dec 25, 2020
    Messages:
    6
    Country:
    France
    My Switch is patched and the system version is 4.1.0. So I proceeded to the hack with Caffeine.
    I prepared the files for my microSD with SDSetup. Then, I configured the primary and secondary DNS settings of my Wi-Fi connection for PegaScape.
    On the PegaScape page, I select the hbmenu icon then a window appears and says "Success".
    Then, I stay blocked when I have to press the Album icon.

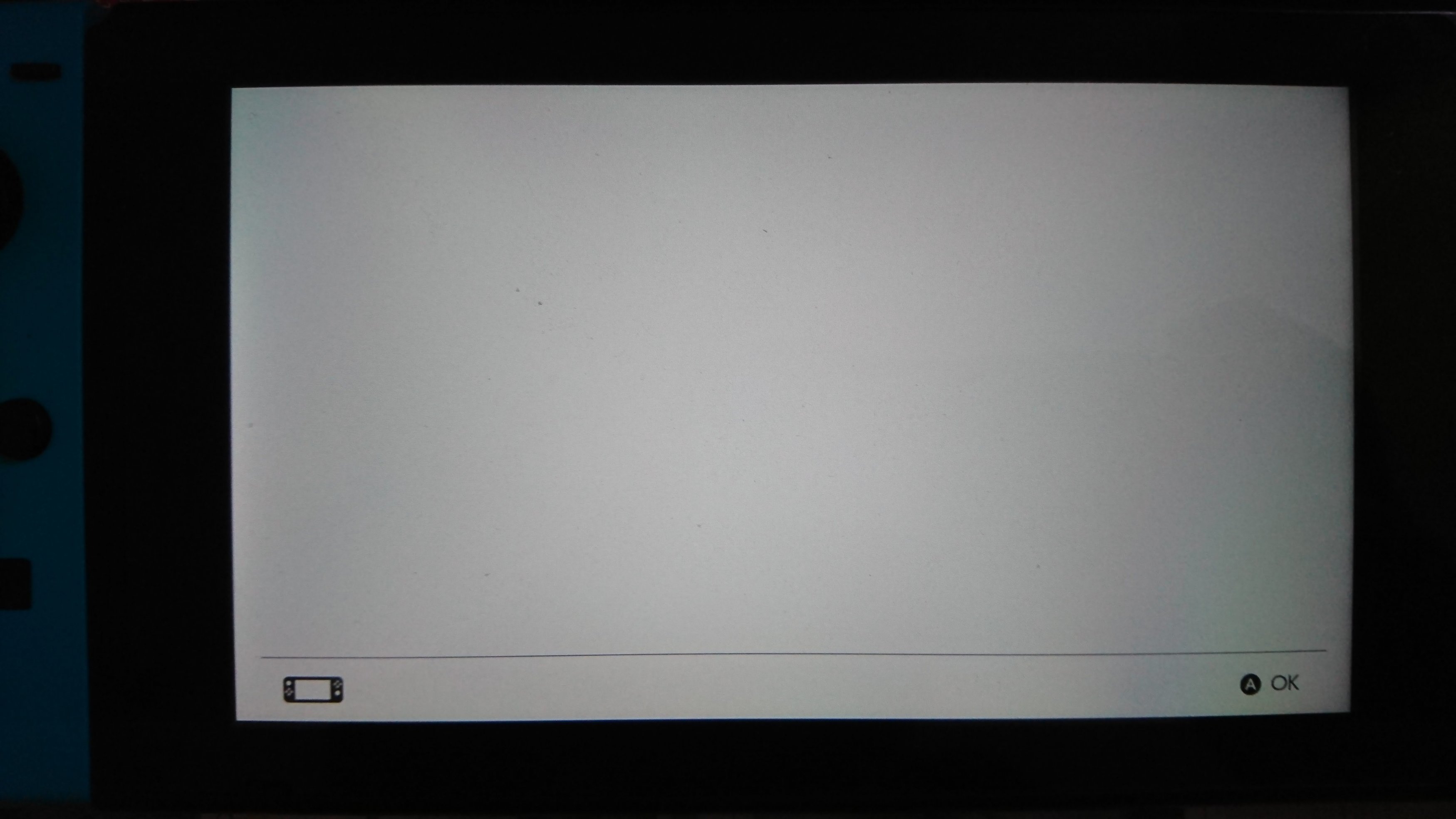

    The screen stays white for more than 10 minutes.
    hbmenu does not load.


    Attached Files:

    Last edited by kinglear, Jan 31, 2021
  17. BigOnYa

    BigOnYa Sofa King Normal
    Member
    Level 5

    Joined:
    Jan 11, 2021
    Messages:
    791
    Country:
    United States
    You can use "AOMEI Partition Assistant" to fix this, in the future, minus pc crash.

    kinglear likes this.
  18. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    Although I do not use Pegascape, I did read over the instructions on how to set it up an the guide states that if your console white screens, you should perform a manual shutdown (i.e. hold power for 15 seconds) and to try again.

  19. kinglear

    OP kinglear Newbie
    Newcomer
    Level 1

    Joined:
    Dec 25, 2020
    Messages:
    6
    Country:
    France
    I've tried several times but it doesn't work.

  20. Draxzelex

    Draxzelex GBAtemp Legend
    Member
    Level 20

    Joined:
    Aug 6, 2017
    Messages:
    14,009
    Country:
    United States
    Are your CFW files up to date?
