ps5 wifi cap value.

[Adamski1952]

Hi all.
Hope someone can help
I'm trying to eradicate a short on a EDM-010. The short is after the 5v 3v chip TLV62090RGTR on the back of f7002. I have been advised that it may be a cap on the underside of the wifi chip.

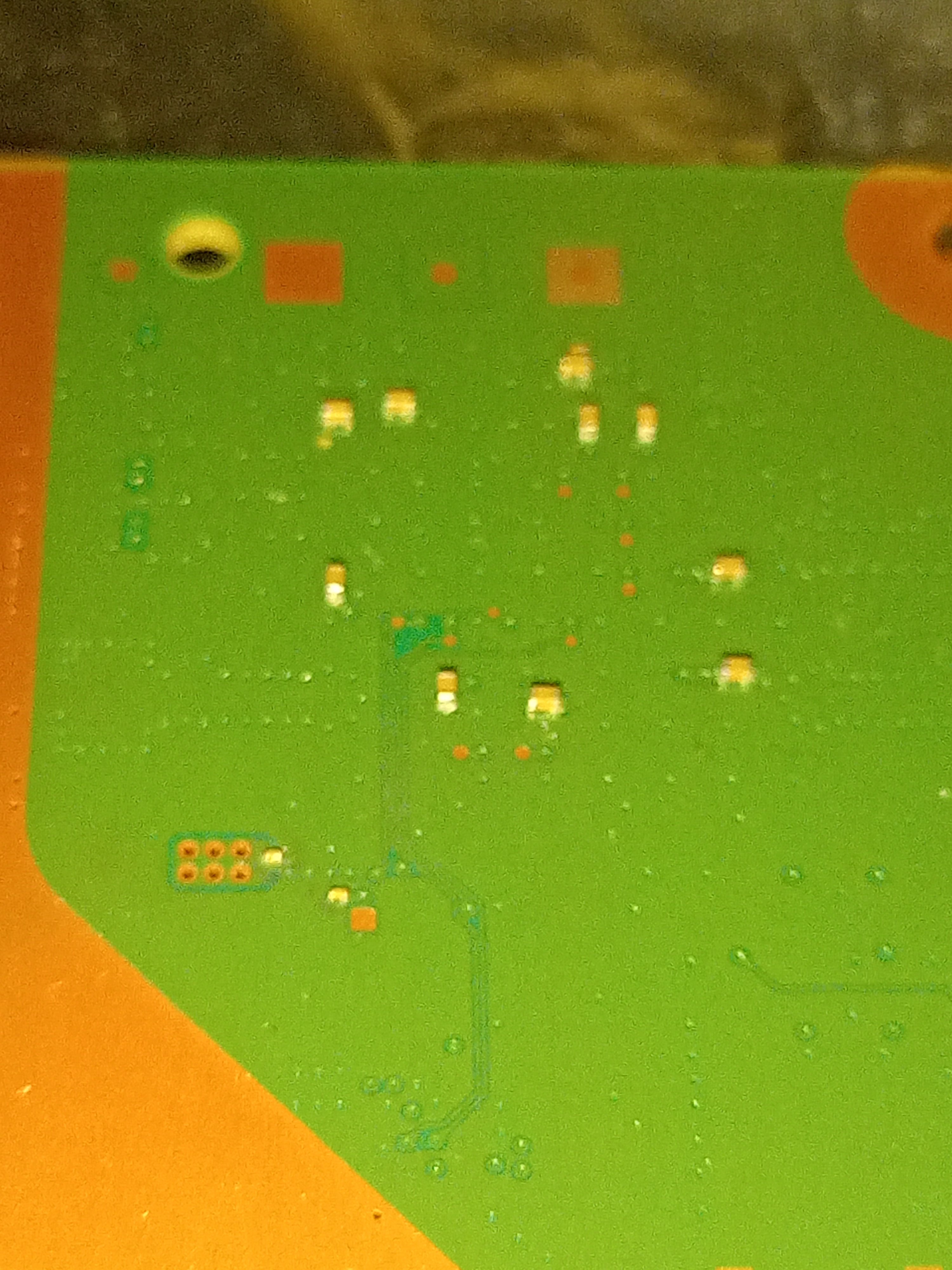

Does anyone know the value of the caps there are 10 altogether

Post automatically merged: Dec 21, 2024

Found out they are 10uf 0402.Removed four that were shorted but short is still there.



[EZ209]

Hi all.
Hope someone can help
I'm trying to eradicate a short on a EDM-010. The short is after the 5v 3v chip TLV62090RGTR on the back of f7002. I have been advised that it may be a cap on the underside of the wifi chip.
Does anyone know the value of the caps there are 10 altogether View attachment 476772

Post automatically merged: Dec 21, 2024

Found out they are 10uf 0402.Removed four that were shorted but short is still there.

how about the 2 small ones ???



[stetofix]

Both little caps are 1000PF (0,001µF) X7R 0201 10% 50V.

Before removing caps on the backside of the Wifi, I would check if one of them is getting warm by injecting 1V.
