Nintendo switch OLED alt point for modchip install

[vailon_yg]

https://gbatemp.net/threads/switch-oled-teardown-v1-v2.600550/post-9662729
see above link.



[mvmiranda]

https://gbatemp.net/threads/switch-oled-teardown-v1-v2.600550/post-9662729
see above link.

https://gbatemp.net/threads/switch-oled-teardown-v1-v2.600550/page-21#post-9662741

Replied in here!



[Chimech0]

Guys how do I align the emmc back? I keep getting it wrong. When i press the power button the mopchip immediately goes green and there is no display. I am using 0.1mm enameled wire for all the points except dat0 gnd and 3.3v. For dat0 im using 0.01mm jumper wire. Is it too thin?

Once you get green light, you are golden. Just connect the daughterboard and stick the microSD with the files (boot.dat, payload, etc)



[aete]

I have install the hwfly chip for the switch oled but the chip will have red light about 3 sec thn ntg happen does any body knw what is the problem?



[aete]

the nand include CLK, CMD, RST, and dat0 right?



[kerelenko]

I asked stethix of possible causes and he said that there is a lose connection. So might be helpful to check your solder points.



[slslasher]

I have install the hwfly chip for the switch oled but the chip will have red light about 3 sec thn ntg happen does any body knw what is the problem?

same issue as u, i have checked all points, there are no shorts. all points are with the correct value. can it be the hwfly lite chip?



[kerelenko]

For those who were successful in their oled install, did you use hwfly or original sx chips?



[Rodel]

For those who were successful in their oled install, did you use hwfly or original sx chips?

i use sx lite chips



[aete]

I'm using hwfly core not hwfly lite



[kerelenko]

Then we still don't have successful install on OLED using hwfly chips?



[akachu]

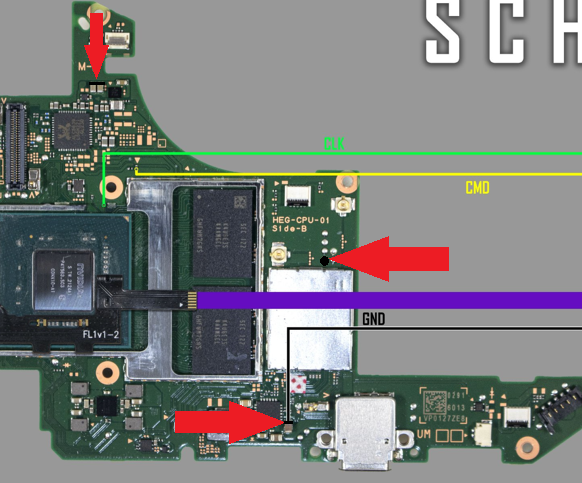

GUYS GUYS GUYS the gnd for sx core is not there in the diagram sthetix posted! Is it not needed?



[mvmiranda]

GUYS GUYS GUYS the gnd for sx core is not there in the diagram sthetix posted! Is it not needed?

Yes it is! GND is ALWAYS needed, mate!
You can use any GND spot. Including the ones he mentioned for the Lite.

I've marked some for you...



[akachu]

Yes it is! GND is ALWAYS needed, mate!
You can use any GND spot. Including the ones he mentioned for the Lite.

I've marked some for you...
View attachment 286211

Thanks alot! XD



[slslasher]

found out the reason why mine is red light!

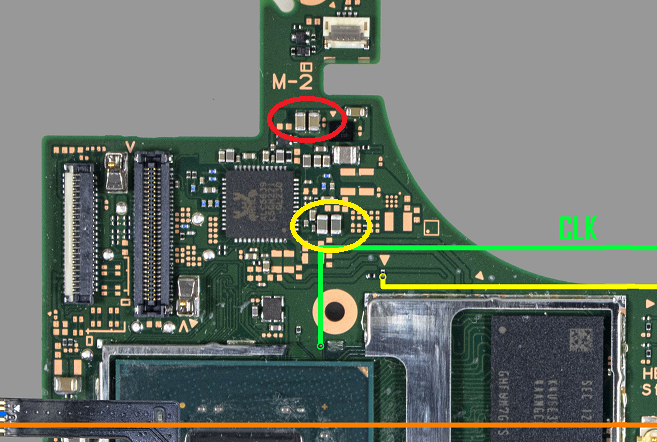

Guys always double check the wiring, I connected to the yellow one instead of the red for power supply since it looks so similar, cant believe it took me 2 days to find out this mistake.



[mvmiranda]

found out the reason why mine is red light!

Guys always double check the wiring, I connected to the yellow one instead of the red for power supply since it looks so similar, cant believe it took me 2 days to find out this mistake.

It's really easy to "mess up" when we're too focused on "fixing it"
Sometimes we need to take 2 steps back to see the bigger picture!
I'm glad you found the issue!
Way to go, mate!



[slslasher]

It's really easy to "mess up" when we're to focused on "fixing it"
Sometimes we need to take 2 steps back to see the bigger picture!
I'm glad you found the issue!
Way to go, mate!

thanks! yes, i really never suspect the 3.3v point



[doom95]

thanks! yes, i really never suspect the 3.3v point

That's why we measure, there's not too many points.. it's just tougher to make conclusions about data or clock signals



[akachu]

guys help, I installed everything and the chip blinks then turns green but there is no display…
Tested with another display same thing



[slslasher]

guys help, I installed everything and the chip blinks then turns green but there is no display…

U need to put in ur sd card with the latest hekate/atmosphere file
