Hardware Nintendo Switch - Missing pad m92t36 chip - pin 34

  • Thread starter Thread starter magneh
  • Start date Start date
  • Views Views 3,245
  • Replies Replies 0
  • Likes Likes 1

magneh

New Member
Newbie
Joined
Feb 25, 2020
Messages
3
Reaction score
1
Trophies
0
Age
43
XP
82
Country
Luxembourg
Hello all!

I dont have much hope for this, but maybe someone here can help :)

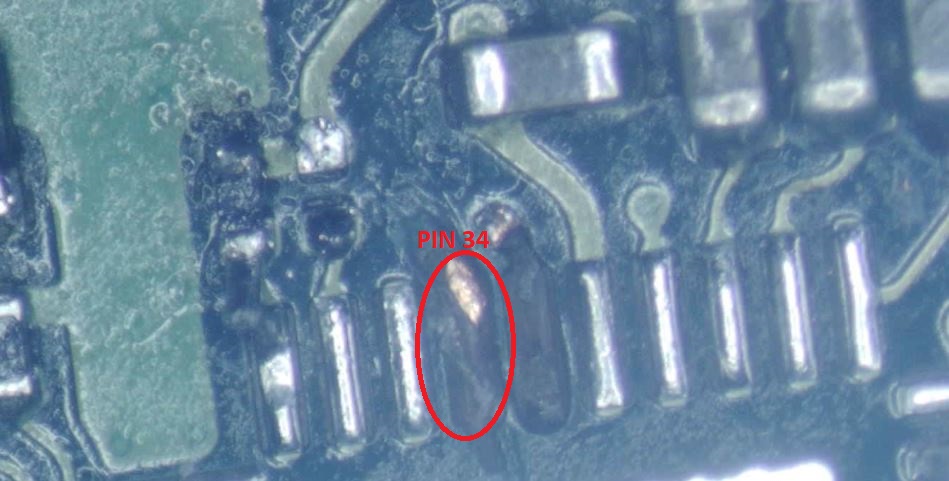

I have a dead switch which had a bad m92t36 IC chip. IC was burned, had a hole and one of the pins burned away.
Tried to dig a bit but only thing that came up is a ground pad...

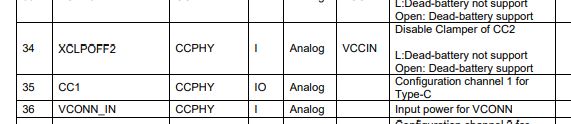

If I check the BM92T30MWV-datasheet, pin 34 is named XCLPOFF2, which doesnt help much.
Its a VCCIN type, I could run a jumper wire but I dunno where to...

PIN35 is also gone but this one still has something left to run a wire.

Is there any hope for this ? or just get a new board?

Thanks for any inputs
