Hardware New 3DS LL Home Button doesn't work

[Naxane]

I've tested the following contacts and they all work, I've tested the connection for the ribbon cable off of the zif pins when the button is pushed down, are there any other test points I should check? The button, ribbon cable (existing and new one I bought just in case), and zif all work, I'm thinking it's something further upstream but I'm not familiar with this hardware. Any advice most appreciated.

Post automatically merged: Jul 13, 2024

Checked the mic, that's not working either.



[Naxane]

So I have a multimetre and I've been performing continuity tests. As I mentioned above they all work as expected but I can't seem to find any other connections outside of these. The points marked green are ground and their continuity tests positive to the charging port and SD card shell (nominally).

Has anyone done a sand down and mapped the tracings of the new 3ds xl?



[GoodFellas]

Take a look at this
https://gbatemp.net/threads/new-3ds-xl-home-button-doesnt-work.658326/



[worm28]

If all else fails you can try this. https://github.com/hax0kartik/rehid/releases



[zxr750j]

No solution but you might get something out of it.



[Naxane]

No solution but you might get something out of it.

Yeah I have the same broken functionality, I think this is an issue not with the zifs but perhaps power delivery to the components? I'm not sure as I'm not well versed in microelectronics and I'm hesitent to do anything destructive with my console.



[Naxane]

I don't suppose anyone has since found a fix for this issue?



[GoodFellas]

I don't suppose anyone has since found a fix for this issue?

Have you tried this?



[Naxane]

Have you tried this?

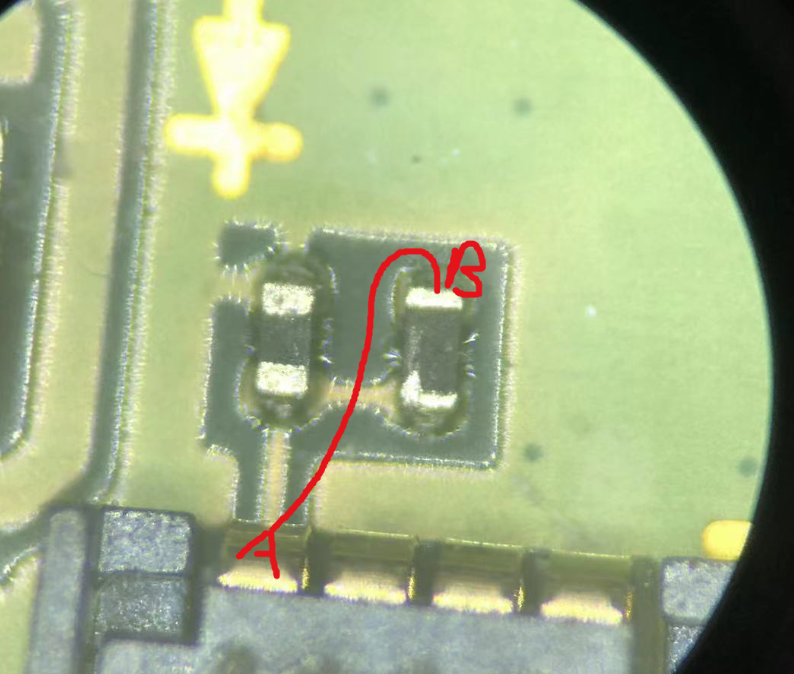

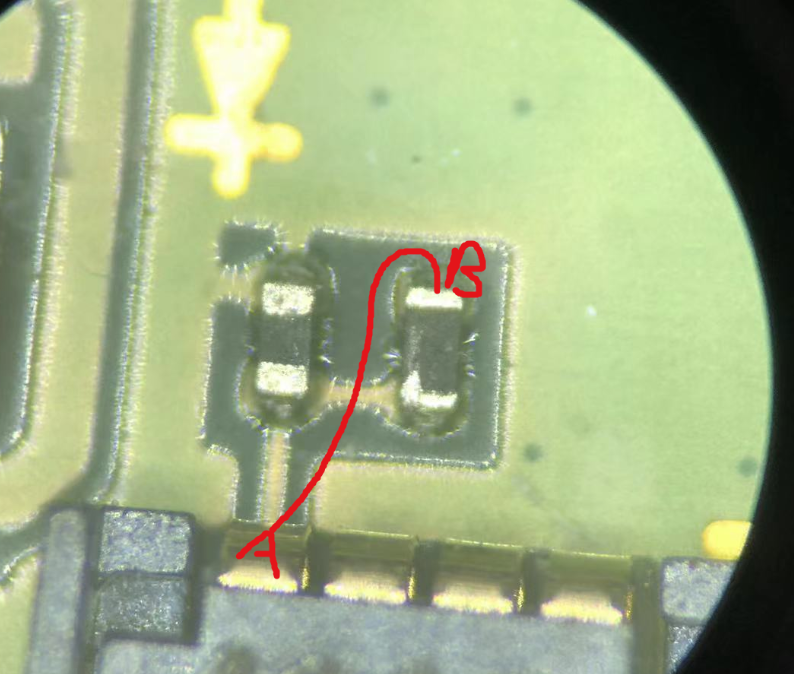

View attachment 541382

I'm not quite sure what you're referring to, are you saying I should bridge the component or test for continuity?



[GoodFellas]

I'm not quite sure what you're referring to, are you saying I should bridge the component or test for continuity?

bridge



[Naxane]

bridge

I've removed the zifs and ordered replacements, I'll post an update here once I've got it working (or royally messed it all up)
