Need help for reviving a dead Hynix console with de_fuse

[neverendsDull]

Got my hands on a black console with no signal output. Tried UDPIH with no luck, tear it apart and found Hynix MLC inside, so I believe the only way is de_fuse.

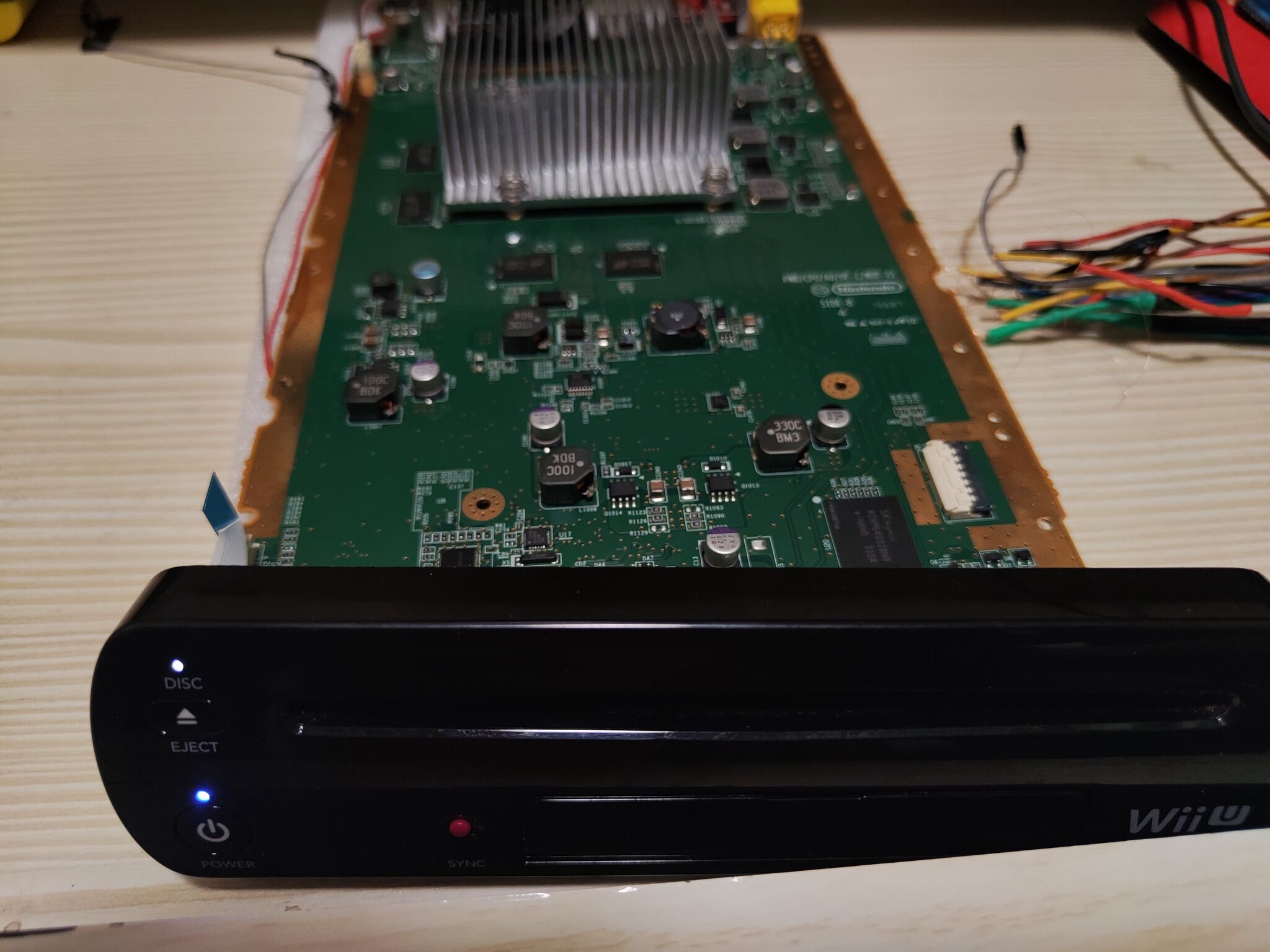

Managed the soldering part, check the continuity with multimeter and all wire are fine. Boot it up with pico connected to PC and the de_fuse seemed works but no minute menu showing...

Here is the logs

Spoiler: de_fuse log

[pico] Changed state: WIIU_STATE_POWERED_OFF -> WIIU_STATE_NEEDS_DEFUSE
Starting... 3224:0
Results:
01
02
03
04
05
08
09
0a
0b
0c
0d
0e
13
14
15
18
1b
1c
1d
1e
00
00
Error code: 00
Starting... 3224:1
Results:
01
02
03
04
05
08
09
0a
0b
0c
0d
0e
13
14
15
18
1b
1c
1d
25
00
00
Error code: 00
Starting... 3223:0
Results:
Winner! 0xf369
01
02
03
04
05
08
09
0a
0b
0c
0d
0e
13
14
15
18
1b
1c
1d
1e
1f
25
88
89
8a
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
81
00
80
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
81
00
80
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
81
00
80
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
81
00
80
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
81
00
80
0f
8f
0f
00
80
01
81
00
80
01
81
00
80
01
81
00
80
01
81
0f
8f
0f
00
01
81
00
80
01
81
00
80
01
81
00
80
01
[pico] Changed state: WIIU_STATE_NEEDS_DEFUSE -> WIIU_STATE_DEFUSED
[pico] Changed state: WIIU_STATE_DEFUSED -> WIIU_STATE_MONITORING
020701FLAG84FLAG84CF%10(MEM2MEM0]]01mm01]^04]^08efa282d9010210010210]]04mm01mm02mm03mm04mm05mmfff00fcafff00fcafaf00fcafff00fcafaf00fcafff00f

The output stopped here:

^08efa282d9010210010210]]04mm01mm02mm03mm04mm05mmfff00fcafff00fcafaf00fcafff00fcafaf00fcafff00f

Tried eject and power button, only 4-sec power down works, the screen will then output:

[pico] Changed state: WIIU_STATE_MONITORING -> WIIU_CHECK_IF_POWERED_OFF
[pico] Changed state: WIIU_CHECK_IF_POWERED_OFF -> WIIU_STATE_POWERED_OFF

minute is the latest v1.1, I also tried jan-hofmeier's branch, the result is the same. Also tried unplugged and plugged 3V3 with no change. The pico is an unofficial one, but it can boot UDPIH and recovery menu.
I attached the fan and cover the CPU heatsink back, it just feel warm in an A/C room. Btw the DISC indicator is on, no idea if this is related. And I used a 2GB SD card, should I try a 1GB one?

Post automatically merged: Aug 25, 2024

I connected the disc drive back, now the DISC indicator is off when powered on, but all other things are the same... de_fuse stopped at

^08efa282d9010210010210]]04mm01mm02mm03mm04mm05mmfff00fcafff00fcafaf00fcafff00fcafaf00fcafff00f

Solid purple power indicator, no HDMI output.
Any help?



[SDIO]

What is it doing if it is not defused (Pico not powered)? Does it blink blue? Could be bad dram



[neverendsDull]

What is it doing if it is not defused (Pico not powered)? Does it blink blue? Could be bad dram

With no pico, the console will be on with solid blue indicator, two disc drive sounds then no HDMI output.



[neverendsDull]

What is it doing if it is not defused (Pico not powered)? Does it blink blue? Could be bad dram

Based on the troubleshooting part on shinyquagsire23's github page:

If the final line is 0x1E and the error code is 0x00, that is an invalid SD card. Invalid SD cards seem to hang boot0.

So I brought another two 1G SD cards and the results are the same, no more "Error code: 00" this time but it still stopped before showing minute.
Can it be a faulty SD card slot? But if I remove fw.img from SD the indicator will flash in orange, so it is reading the file...
I am stuck here....

Seems there are some extra 00 01 81 in the output compared to the standard log given...
