1. lordofthereef

    lordofthereef GBAtemp Advanced Fan
    Member

    Joined:
    Dec 9, 2013
    Messages:
    873
    Country:
    United States
    I can do that for you, if ya like. Shoot me a pm.

  2. Elusivo

    Elusivo Shinobu Molester
    Member

    Joined:
    Jun 21, 2013
    Messages:
    474
    Country:
    Portugal
    Ok, i got myself a few separate pogo pins and some battery springy 3 pins thingies, hopefully the pins are spaced the same as the 3dsxl pcb contact pads or else i'll go with the pogo pins.

    So they will for sure give a better handling and contact than bare wires pushing against the pads, but still, any ideas on how to secure them in place? I can see myself holding them in place with my hands, but it just sounds tiring and not so reliable lol

    Edit: ok, just opened my 3dsxl and found out that a 3 pin phone sim socket that i took from an old mobile will give me just the correct spacing and it does make nice contact with the pcb pads, now still thinking on how to effortlessly hold it in place ._.

    pelago likes this.
  3. tyons

    tyons GBAtemp Advanced Fan
    Member

    Joined:
    Jul 11, 2012
    Messages:
    656
    Country:
    Italy
  4. Elusivo

    Elusivo Shinobu Molester
    Member

    Joined:
    Jun 21, 2013
    Messages:
    474
    Country:
    Portugal
    oh tks, i actually read that post, but i din open the spoiler before... only saw the pics now ...

    hmmm i do have some predrilled pcbs... maybe i'll also try it...

    Another question, since both the usb card reader and the 3ds have their own power source, do we really need to connect the ground wire between the 3ds and card reader? It seems superfluous to me... no?

    Update: lol trying to do this without closing the case is too frustrating, tho i think i managed to have good contact using the mobile sim jack thing and tape ^^ just being stubborn i din use the ground wire, got a couple blue screens with different error codes, but having to hold the battery is too tiring :P i'll have to try the pogo pins way another time when i have patience, or, maybe i'll just use the 3dslink, which will still take a few weeks to arrive...

  5. escherbach

    escherbach GBAtemp Regular
    Member

    Joined:
    Dec 26, 2013
    Messages:
    271
    Country:
  6. escherbach

    escherbach GBAtemp Regular
    Member

    Joined:
    Dec 26, 2013
    Messages:
    271
    Country:
    Duct tape?

    (Wouldn't recommend for individual wires, but you'll have a firmer contact with the sim pins)

  7. lordofthereef

    lordofthereef GBAtemp Advanced Fan
    Member

    Joined:
    Dec 9, 2013
    Messages:
    873
    Country:
    United States
    Cyan and cearp like this.
  8. cearp

    cearp 瓜老外
    Developer

    Joined:
    May 26, 2008
    Messages:
    8,224
    Country:
    Tuvalu
    very infuriating! glad you didn't give up

    lordofthereef likes this.
  9. Cyan

    Cyan GBATemp's lurking knight
    Former Staff

    Joined:
    Oct 27, 2002
    Messages:
    22,691
    Country:
    France
    I'm glad you finally found the issue :)
    You did so many tests!

    looks like european users can't see that ebay link, or the page is no longer online.

    lordofthereef likes this.
  10. cearp

    cearp 瓜老外
    Developer

    Joined:
    May 26, 2008
    Messages:
    8,224
    Country:
    Tuvalu
    works for me, in europe :)

    the listing name is 'ALL IN 1 USB 2.0 Multi Card Reader SD XD MMC MS CF SDHC TF Micro/Mini SD M2 SDHC'

  11. Cyan

    Cyan GBATemp's lurking knight
    Former Staff

    Joined:
    Oct 27, 2002
    Messages:
    22,691
    Country:
    France
    From France:
    I often have this message for items from ebay.com (usa)

  12. cearp

    cearp 瓜老外
    Developer

    Joined:
    May 26, 2008
    Messages:
    8,224
    Country:
    Tuvalu
    ooh, yeah i can see it but it says it doesn't ship to where i am now, (uk)
    interesting that i can see it yet you cannot, in the 'excluded' countries part of the shipping details, france and the uk both are there...

    ridiculous, it comes from china, no real limitations are there, the seller chooses to limit it.
    i see this on amazon.com vs .co.uk, sometimes a cd from japan, from the same seller, will be cheaper to buy in $USD, and more expensive in £GBP on the uk site, and they won't let you order the american priced one to the uk, even though it comes from japan, and the true shipping cost is probably the same. but regardless of the shipping cost on amazon, the price is different, very annoying.

    -edit, this link will work for you, same item - it seems to be, different listing etc.
    http://www.ebay.co.uk/itm/USB-2-0-A...aphy_MemoryCardReaders_RL&hash=item2ebc86d885

  13. Moquedami

    Moquedami GBAtemp Fan
    Member

    Joined:
    Nov 16, 2006
    Messages:
    376
    Country:
    Argentina
    Hi,
    I'm trying to fix a 3dslink brick with a nand backup i made, but i broke the DAT0 spot while soldering.
    Anyone knows from an alternative spot?

  14. lordofthereef

    lordofthereef GBAtemp Advanced Fan
    Member

    Joined:
    Dec 9, 2013
    Messages:
    873
    Country:
    United States
    I just did one of these for another user. Took me ten minutes, from the point of opening a brand new XL (with 4.4.0 on it!)

    I guess all the practice helped. ;)

    For those who need it done, I am happy to help you out.

    cearp likes this.
  15. sashka69

    sashka69 Member
    Newcomer

    Joined:
    Dec 24, 2013
    Messages:
    15
    Country:
    Gambia, The
    Hi. Ive got almost the same bad situation. I lost my solder pad on CLK.

    DOES ANYBODY KNOWS AN ALTERNATIVE SOLDER POINT ON AN 3DSXL FOR CLK ???

    You would be my hero, because my gateway card (with original gw-soft) bricked my 3dsxl 3 days ago.

  16. olfa

    olfa GBAtemp Regular
    Member

    Joined:
    Nov 19, 2013
    Messages:
    138
    Country:
    Bolivia
    a nearly solderless (on the 3ds side at least) alternative
    here http://imgur.com/gallery/9OHjU
    can someone maybe build some kit like that and sell it ?

    the-green and cearp like this.
  17. damysteryman

    damysteryman I am too busy IRL these days...
    Member

    Joined:
    Oct 4, 2007
    Messages:
    1,214
    Country:
    You know, I was actually thinking of doing that myself :P

    But then again it is not like I own enough spare parts from dead electronics to make them :lol:
    Maybe I will leave it up to someone else haha

    Also, as far as SD readers are concerned, this one definitely works, it worked for me:
    http://dx.com/p/kawau-world-s-small...tf-sd-sdhc-usb-2-0-card-reader-keychain-25558
    It is about $4, and has a very tiny PCB too. I ripped out its tiny PCB and soldered it to an SD adapter I had already made for my mod, turning it into a usb adapter :D

    Now, here is an idea I have, I have not tried it yet, but it SHOULD be small enough to actually fit INSIDE of a 3DS XL (not sure about regular 3DS though). So, using this, and maybe a micro-usb socket, you could make a really clean mod with sd reader and usb port all-in-one on your 3DS XL, making backup and restore as simple as using a single MicroUSB-to-USB cable, as opposed the the rather fiddly messing-with-sd-adapters-and-readers that seems to be the trend atm. That is what I think anyway.

  18. inian

    inian Member
    Newcomer

    Joined:
    Dec 10, 2013
    Messages:
    30
    Country:
    Hello

    I'm one of the "lucky" ones with bricked 3ds XL from R4i card.
    For three days I'm trying to restore my NAND without success. I have tried with three different cable types, with different SD adapters also. Also i have tried about 6 different card readers and several PCs. The best result i have so far is - on the two of the card readers Windows sees unformatted drive but when try to read or write it says "device not ready". I'm trying with win32diskimager and usb image tool.
    The error on 3ds screen when i'm powering with card reader attached to PC is
    errcode 00F800FE
    00000000 00000000
    00000400 00000000
    but i'm sure that cmd is not connected to clk

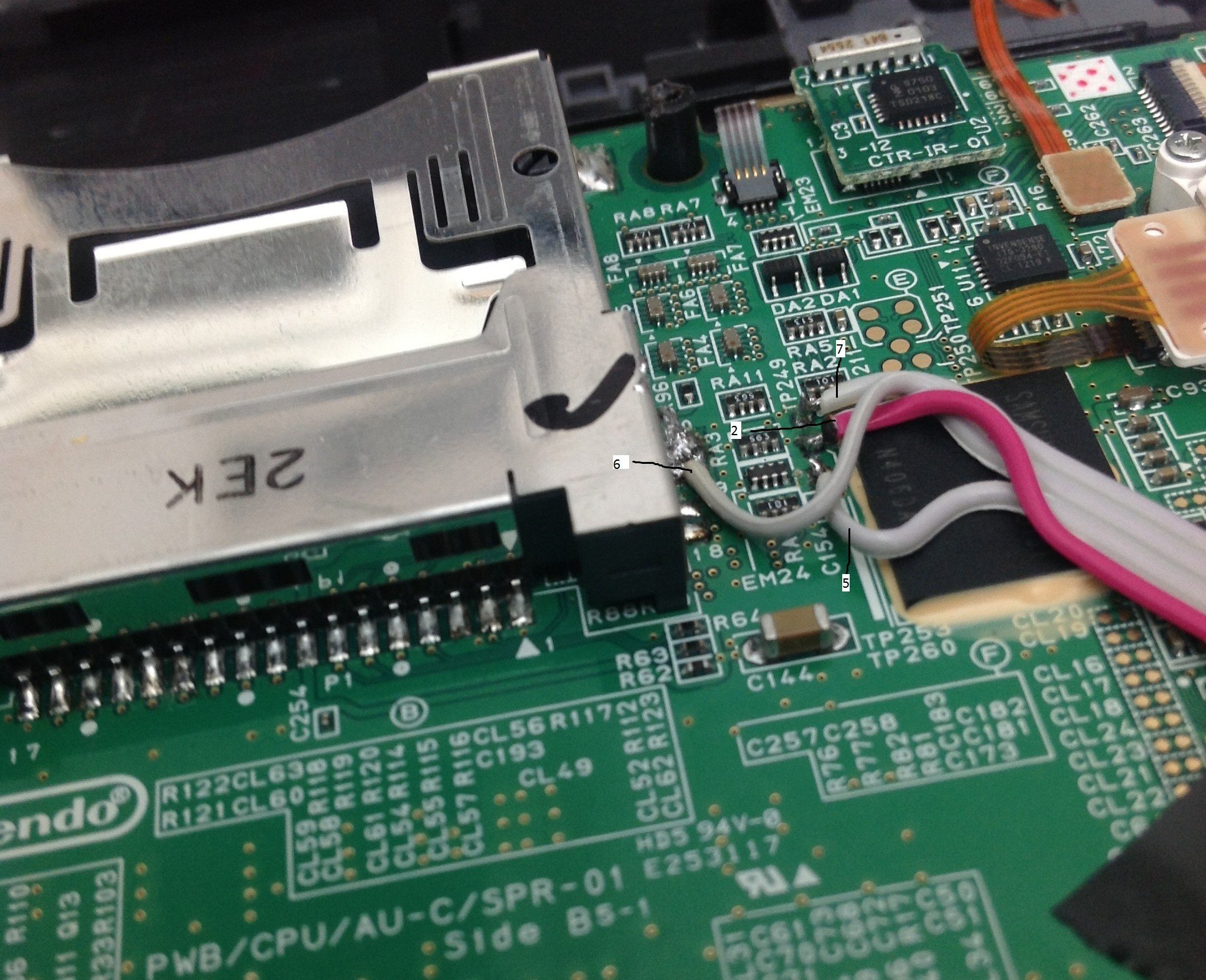

    Actually, I'm attaching photo of my current cable with numbers of SD pins that each cable is attached to.

    I'm starting to think that you can't restore NAND if the 3ds is bricked from flash card.
    Any ideas?


    cearp likes this.
  19. lordofthereef

    lordofthereef GBAtemp Advanced Fan
    Member

    Joined:
    Dec 9, 2013
    Messages:
    873
    Country:
    United States
    Do yourself a favor. BUY THE READER that I had linked. Seriously. Do it. DO IT.

  20. inian

    inian Member
    Newcomer

    Joined:
    Dec 10, 2013
    Messages:
    30
    Country:
    Yes, i did this two days ago :) The problem is that it will arrive after three weeks maybe. Also after trying so many different card readers i really doubt that this one will do the miracle for me...
