[laptop users] HDD caddy replacement for ODD.

Discussion in 'Computer Hardware, Devices and Accessories' started by DinohScene, Sep 18, 2016.

  1. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    Any laptop users here that changed their ODD with one of these?
    [​IMG]

    I've recently ordered one as I never use me DVD drive (nor can I use it as I had to tape it shut since the frame was cracked)

    Anyway, anyone that has one has any experiences with it and is it possible to RAID1 it?

  2. migles

    migles Mei the sexiest bae

    Member
    GBAtemp Patron
    migles is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    7,073
    4,755
    Sep 19, 2013
    Saint Kitts and Nevis
    my dad works for nintendo.
    that's really neat. i never thought doing this.. (that you could remove the optic drive and insert an hdd enclosure)
    i guess it's the same thing as in the desktops, the optic drive uses a sata plug\interface...

    as for raid, don't you need a supporting motherboard? or the OS takes care of that?

    in case you wouldn't be able to use raid, how about getting a SSD and replace it with your current internal hdd?

  3. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    ODDs in lappies indeed use the SATA interface so it's really easy to replace it yep.

    I honestly have no clue if it's the hardware that does it or the software...
    I suspect the hardware tho...

    No money for an SSD.
    Got a spare 320GB drive laying around for now.
    Besides, next year or in 2018, I'll have a new laptop which probably will come with an SSD anyway.

  4. lethalcrayonz

    lethalcrayonz Advanced Member

    Newcomer
    62
    9
    Mar 15, 2016
    as long as you have purchased one that is the same size as your laptops original dvd drive it will work. ive done it to my laptop because i installed a 500gb ssd internally and then just put a spare 250gb i had laying around in the optical slot works flawlessly i just removed the face plate from my odd and used that on the new hard drive bay and it looks like nothing has changed

    DinohScene likes this.
  5. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    Sweet.
    I've already planned to use it as a 2nd drive to store data on there.

  6. lethalcrayonz

    lethalcrayonz Advanced Member

    Newcomer
    62
    9
    Mar 15, 2016
    one thing to note is the laptops ODD is usually only sata 2 resulting in slower hard drive speeds.

  7. a9lh-1user

    a9lh-1user GBAtemp Fan

    Member
    329
    131
    Apr 1, 2016
    Gambia, The
    I use them on my Thinkpads also as on my Mac book pro and all of them are working well ;)
    (look at the spec's which SATA you can use, everything else is easy)

    DinohScene likes this.
  8. Originality

    Originality Chibi-neko

    Member
    5,353
    782
    Apr 21, 2008
    London, UK
    That's only significant for SSDs. HDDs don't even saturate SATA2 speeds, let alone SATA3, so there will not be any noticeable difference in speed based off SATA interface.

  9. VinsCool

    VinsCool Scrambled Mind

    Member
    GBAtemp Patron
    VinsCool is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    12,095
    29,479
    Jan 7, 2014
    Canada
    Another World
    Woah looks pretty nice. I would totally see advantages of using one of those on my laptop.

  10. migles

    migles Mei the sexiest bae

    Member
    GBAtemp Patron
    migles is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    7,073
    4,755
    Sep 19, 2013
    Saint Kitts and Nevis
    my dad works for nintendo.
    hey @DinohScene forgot to ask, can you easily swap HDD in the caddy? or you require screws and is supposed to be fixed?
    do you have to remove the whole caddy or there is a eject button or something?

  11. raulpica

    raulpica With your drill, thrust to the sky!

    Supervisor
    11,041
    7,361
    Oct 23, 2007
    Italy
    PowerLevel: 9001
    Haven't seen many laptops with RAID support (except huge, costly stuff), so I wouldn't expect it. Just use some neat differential backup utility to save your important stuff automagically ;)

  12. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    Literally ordered it like 4 hours ago ;p
    No, their fixed into place and aren't supposed to be hotswappable.


    Thought as much.
    Well using it as a JBOD isn't bad either.
    At least I can free up some space on me main drive.

    raulpica likes this.
  13. Originality

    Originality Chibi-neko

    Member
    5,353
    782
    Apr 21, 2008
    London, UK
    I've seen some Lenovo laptops sporting it (it could fit up to 3 drives, however the ODD slot didn't support RAID in that particular case). I've also seen several mid-high end desktop replacement laptops support it (like my old Packard Bell). Although personally I don't think RAID is needed if you just have a SSD primary and HDD secondary for cheap storage. Then again, personally I would no longer use HDDs in any laptop - portability and movement kill them too frequently.

  14. raulpica

    raulpica With your drill, thrust to the sky!

    Supervisor
    11,041
    7,361
    Oct 23, 2007
    Italy
    PowerLevel: 9001
    Amen, I've jumped on SSDs for my family's laptops as soon as prices were decent. Best choice ever. I can literally crash the laptops on the ground now without breaking anything (except maybe the screen).

    Originality and KazoWAR like this.
  15. azublazer

    azublazer GBAtemp Regular

    Member
    149
    58
    Feb 3, 2015
    United States

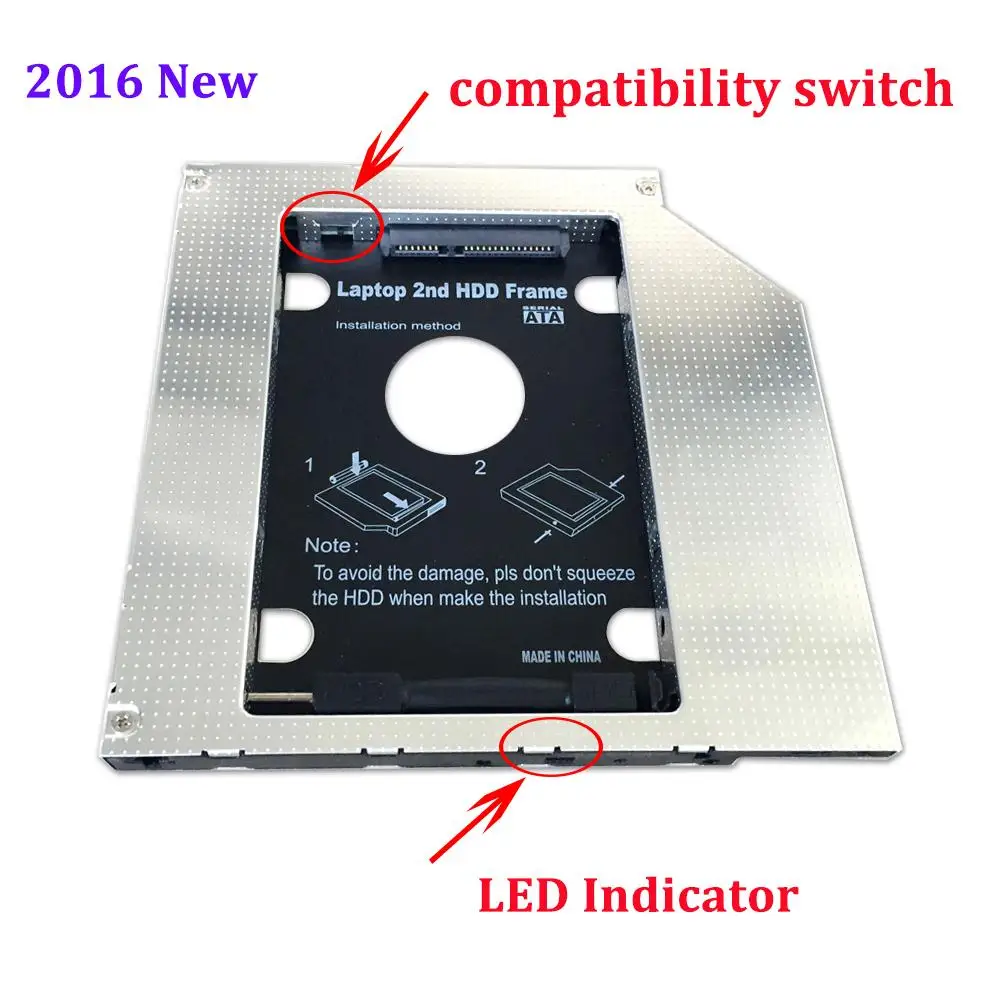

    Make sure to have this switch at the top in the correct position or your computer won't shut down when you try to turn it off. I had a tough time figuring it out my first time installing a second SSD. Haha.

    [​IMG]

    DinohScene likes this.
  16. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    I never had that problem in all honesty.
    I've replaced the HDD with a 500 GB HDD less then half a year after I got it and later replaced it with a HHD.
    Always took the thing with me everywhere I went.

    I'll deffo have a look for that.
    Is it inside the laptop or on the HDD caddy?

  17. azublazer

    azublazer GBAtemp Regular

    Member
    149
    58
    Feb 3, 2015
    United States
    It should be on the caddy itself. Right inside the top, next to where you attach the hdd to the caddy itself. Here's a more full picture:

    [​IMG]

    DinohScene likes this.
  18. XAIXER

    XAIXER Supreme Kaiser

    Member
    172
    120
    Mar 11, 2016
    Canada
    The Ends of Eternity
    I ripped out my laptop's disk drive and threw in an HDD. Not lots of uses for disks these days.

  19. DinohScene
    OP

    DinohScene Feed Dino to the Sharks

    Member
    GBAtemp Patron
    DinohScene is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    16,573
    13,221
    Oct 11, 2011
    Antarctica
    В небо
    Cheers!
    I'll deffo check it.

  20. Jayro

    Jayro MediCat USB and Mini Windows 10 Developer

    Member
    GBAtemp Patron
    Jayro is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,228
    2,865
    Jul 23, 2012
    United States
    Octo Canyon
    In my particular case, my laptop's ODD SATA controller was SATA I, while the HDD controller was a SATA II, and nowhere in the BIOS were any RAID options. Even if there were, two RAIDed SATA I speed SSDs wouldn't get you anywhere too quickly with that much of a bottleneck. Barely any faster than a 7200RPM mechanical HDD.
