Help with mini dvd-r

Discussion in 'Nintendo GameCube' started by TimeMaster, Mar 19, 2019.

  1. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    A few weeks ago I succesfully installed a XenoGC modchip in my gamecube. I haven't had any mini dvd-r's to burn games on so I've been using full size dvd r's in the meantime (With the pot set to 152) and it works fine, recently I bought these https://www.amazon.ca/DVD-R-1-46Gb-Mini-10pcs-Cake/dp/B001CJMDZ8/ and I tried burning a game on it. (Twlight Princess, the same game I burnt on one of my full size discs and it worked) but the gamecube refuses to boot it. I get an error everytime I boot it and it's frustrating. I don't see any reason why it shouldn't work. I burnt it exactly the same way using imgburn. The disc is the right type, it should be compatible. Does anyone know if there's anything I can do? Thanks

    EDIT: Here's the gamecube working a with a full size dvd-r and not working with my mini dvd-r. Both have the same game burned, twlight princess.
    Green Joy-Con D-Pad Shells for Nintendo Switch

    Last edited by TimeMaster, Mar 19, 2019
  2. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Hello.:)

    Original GC Games works ?
    Did you burn the mini DVD-R 4x or better is 2x ?

    TimeMaster likes this.
  3. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    Original Gc games work, and I tried burning the mini dvd-r at 4x but imgburn said my drive only supported 2x for this type of disc so I burnt it at 2x

  4. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria

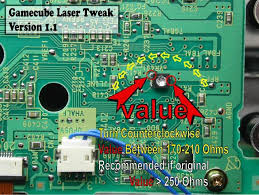

    Then you have the option to adjust the POT from the Laser again.
    But i´m afraid that the DVD-rs are maybe not compatilbe (the DYE and manufacturer is important).

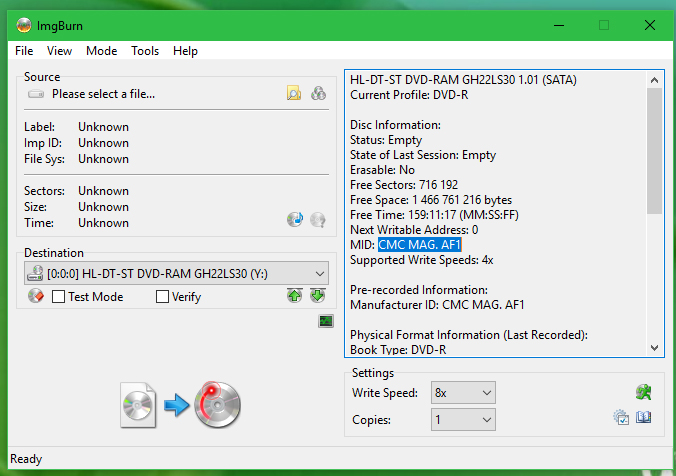

    Please check it when you start IMGBURN,write from image,put in an dvd-r:

    Unbenauu8u8nnt-2.

  5. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada

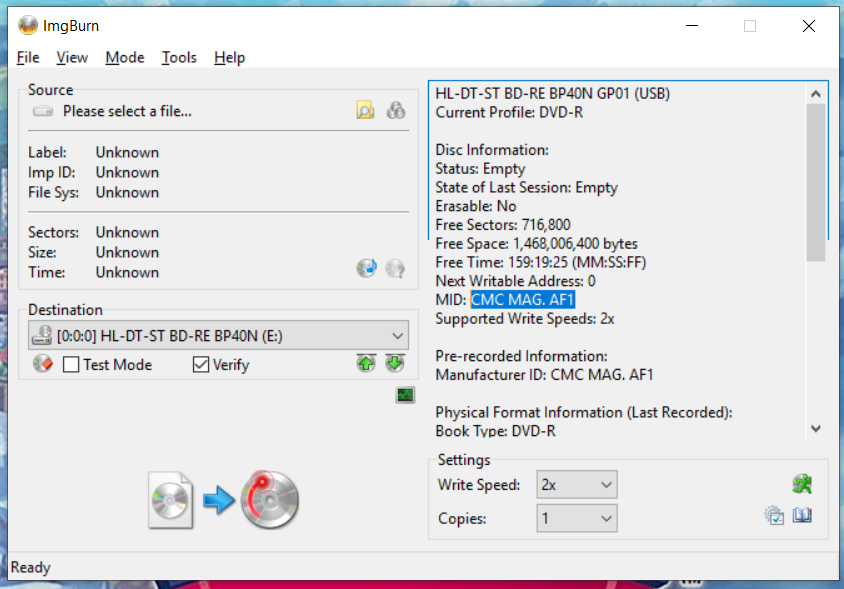

    Here's what it shows when I put one of my blank mini dvd-r in imgburn like you said. See anything wrong?


    Attached Files:

  6. MAXLEMPIRA

    MAXLEMPIRA Legends are Made from True Stories...

    Member
    6
    Jun 24, 2012
    Mexico
    Kanto <- Hyrule -> Unova
    Maybe you'll have to replace the lens or adjust the potentiometer to correct the error


    TimeMaster likes this.
  7. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    I have adjusted it and the lens works fine. the resistence is roughly at 151ohms (which I believe to be the lowest you should go) and it reads original discs fine. Reads the big dvd+r's fine. Just won't read these mini dvd-r's. My unit is a DOL-101

    MAXLEMPIRA likes this.
  8. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Thats Ok,mine was from an Verbatim miniDVD-R who works on the gamecube.
    Do i understand it right that you can burn with 2x speed ?

    Then i think you have to adjiust the POT.

    By the way,when you start your burned miniDVD-R please can you look sideways into the Gamecube to look at the Xeno Modchip LED (RED or ORANGE).

    TimeMaster and MAXLEMPIRA like this.
  9. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    What would you reccomend to adjust it too? It's already around 151ohm resistance. I have a DOL-101 if that helps. And I just checked. And yes I Can burn with 2x speed. But it's only allowing me to burn 2x speed also. I can't burn any faster than 4x on the mini dvd-r, which is fine I dont mind burning at 2x. And The light is indeed orange. As always when it succesfully patches (Which it has every boot so far, if not the big dvds would not be working) Thanks!

  10. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Sadly then it could only be the miniDVD-Rs.:sad:

    The problem is that the label from the Manufacturer is right,but maybe the DYE or the laminiation underside from the miniDVD-R isn´t.CMC MAG AF.1 is right but maybe the production is different.My Verbatim miniDVD-Rs are about 3 years old.:unsure:
    The best was RITEK in the past but they are very rare and near impossible to get.I only recommend you to get 1 package of Verbatims if possible.An alternative are TDK but i have no idea if they work today.:(

  11. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    That sucks, I paid about 15 usd for 10 of these mini DVD-r’s :( I found a 5 pack of ritek mini dvdr’s for about 19.50 usd. Would you say that’s worth it?

  12. Hanafuda

    Hanafuda GBAtemp Addict

    Member
    11
    Nov 21, 2005
    United States
    Try burning with a different drive if you have one (for example, if you have a laptop). Your burner might be working fine on fullsize disks but not the mini's.

    It's a longshot, but there aren't many issues you haven't eliminated already. Either its the media itself, the laser pot (which I reeally don't like messing with unless absolutely necessary), or its the burner. Your use of Imgburn shouldn't be an issue if the fullsize disk burns are working.

    alexander1970 likes this.
  13. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Thats a good one.:D

    Yes,they are very expensive.I paid also apprentice´s due until it works for me.If the price is not hurting you,YES definetly.You have fun with soldering a Modchip,adjusting POT,for that result YES.:yay:

  14. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    I have a laptop, however it doesn’t have an internal disc drive. I’m using an external disc drive and it’s the only one I have. Thanks for the suggestion tho

    — Posts automatically merged - Please don't double post! —

    Thanks! Kinda wish I could get 10 instead of 5 for that price though. There’s these ones I also found but I wouldn’t be sure if they actually work or not. Here’s the link if you wanna look at them but I’d bet their just as good as useless. Thanks :) https://rover.ebay.com/rover/0/0/0?more=https%3A%2F%2Fwww.ebay.ca%2Fulk%2Fitm%2F172224270188

  15. nitrostemp

    nitrostemp GBAtemp Maniac

    Member
    5
    Mar 15, 2009
    TimeMaster likes this.
  16. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    That’s great, except their sold out haha

    — Posts automatically merged - Please don't double post! —

    Do you think it’s possible to work if I try lowering the pot a little lower? It’s currently around 151 like I said but if I try around 100 maybe it could read these discs I have? Thanks

  17. Hanafuda

    Hanafuda GBAtemp Addict

    Member
    11
    Nov 21, 2005
    United States
    I had very good results with “Philips Duplicator Grade” mini dvd-r, sold in a 50 disk cakebox. No sellers anymore on Amazon, but there are other places that might have them. I went through 100 disks of these with only a couple coasters, which were the result of my burner being worn out. (that’s how I learned to suggest trying a different disk drive before giving up)

    My GC with xenogc reads these easily, with no pot tweaks.

    Last edited by Hanafuda, Mar 19, 2019
  18. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Its a trial and error.Try 1/2an mm turns,very careful,test,turn again,test,and so on,maybe it works.:)

    ggrgr.


    I´ll read and look around but Verbatim or Ritek are no longer available on amazon.com.
    If you have a chance to buy from amazon.de or amazon.co.uk there are:

    https://www.amazon.co.uk/s?k=verbatim+dvd-r+1,4gb&ref=nb_sb_noss

    https://www.amazon.de/Verbatim-Rohl....4gb&qid=1553034358&s=gateway&sr=8-2-fkmrnull


    Good luck.:)

    TimeMaster likes this.
  19. TimeMaster
    OP

    TimeMaster GBAtemp Regular

    Member
    5
    Jun 11, 2017
    Canada
    I have a multimeter so I'm able to see my exact value :) It's around 151 which has been working fine. There's no chance increasing it to 170 would help it read these discs, are there?

    alexander1970 likes this.
  20. alexander1970

    alexander1970 GBA Fan

    Member
    10
    Nov 8, 2018
    Austria
    Austria
    Gamecube Lasers are as known very picky.
    There is NO GENERAL VALUE that you can use on all gamecubes.It depends how old/"burned-out" the laser is,maybe micro scratches.....you see not easy.I can tell you from my personal experience,i had many Gamecubes (purple/black/white) and NONE of them had the same setting.I go there,tear the GC apart and make it as i described above.And all of them worked fine.I´ll never use a multimeter.:D only careful little steps by turning the screw with instant test.I´ll also make it with XBOX Classic and Dreamcast drives.And as you discribed,your GC Laser is fine while reading Games and normal DVD-Rs.A dying laser don´t do this.And thats what me thinking of your non compatible miniDVD-Rs.:unsure:

    But this is exactly what makes fun about modding/hacking consoles.:yay:

    The hint to try another burner was great,please check it if possible.

    TimeMaster likes this.
