Help Needed: Console Won’t Boot After Modchip Install and Capacitor Replacement

[flacojr007]

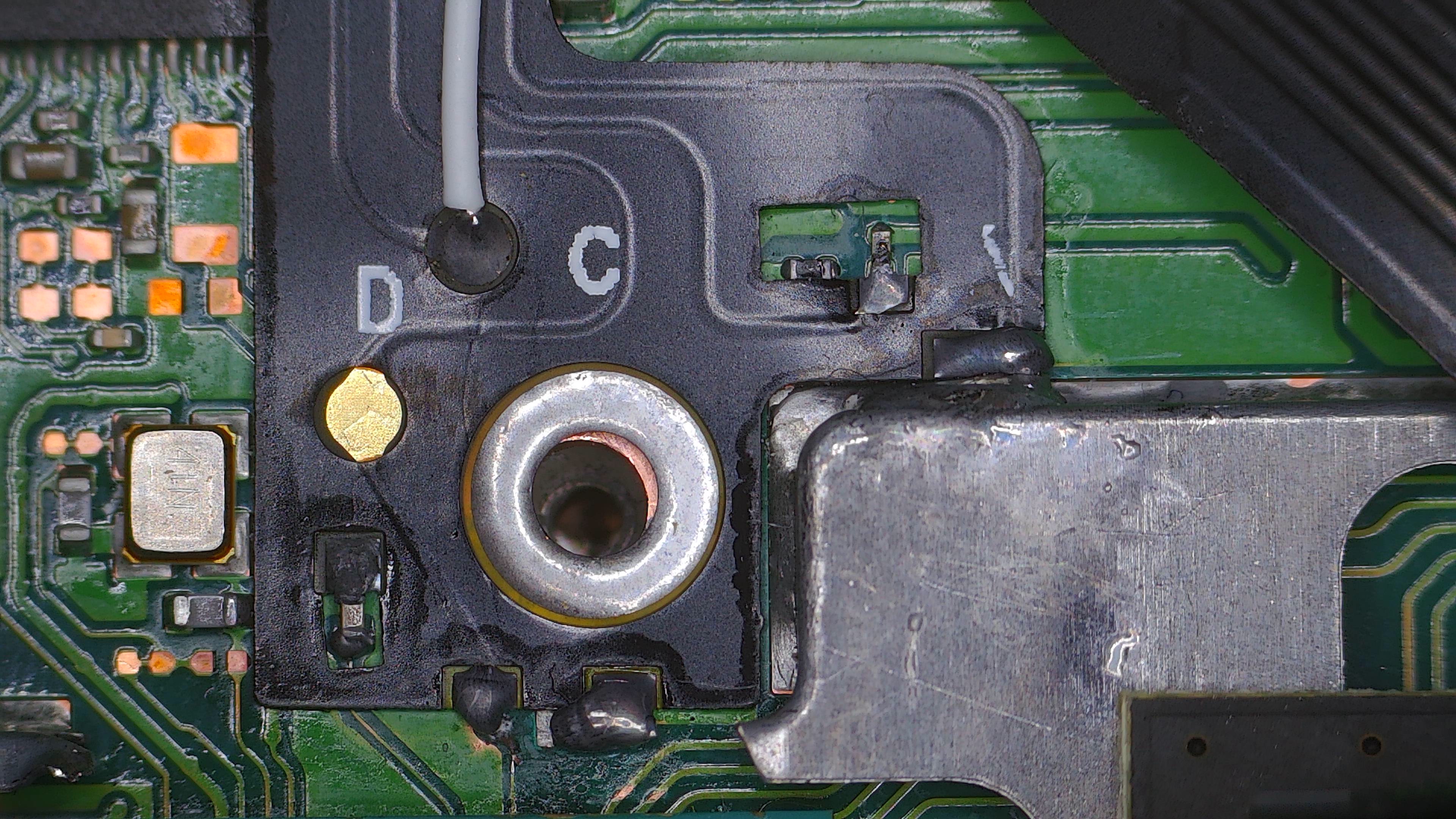

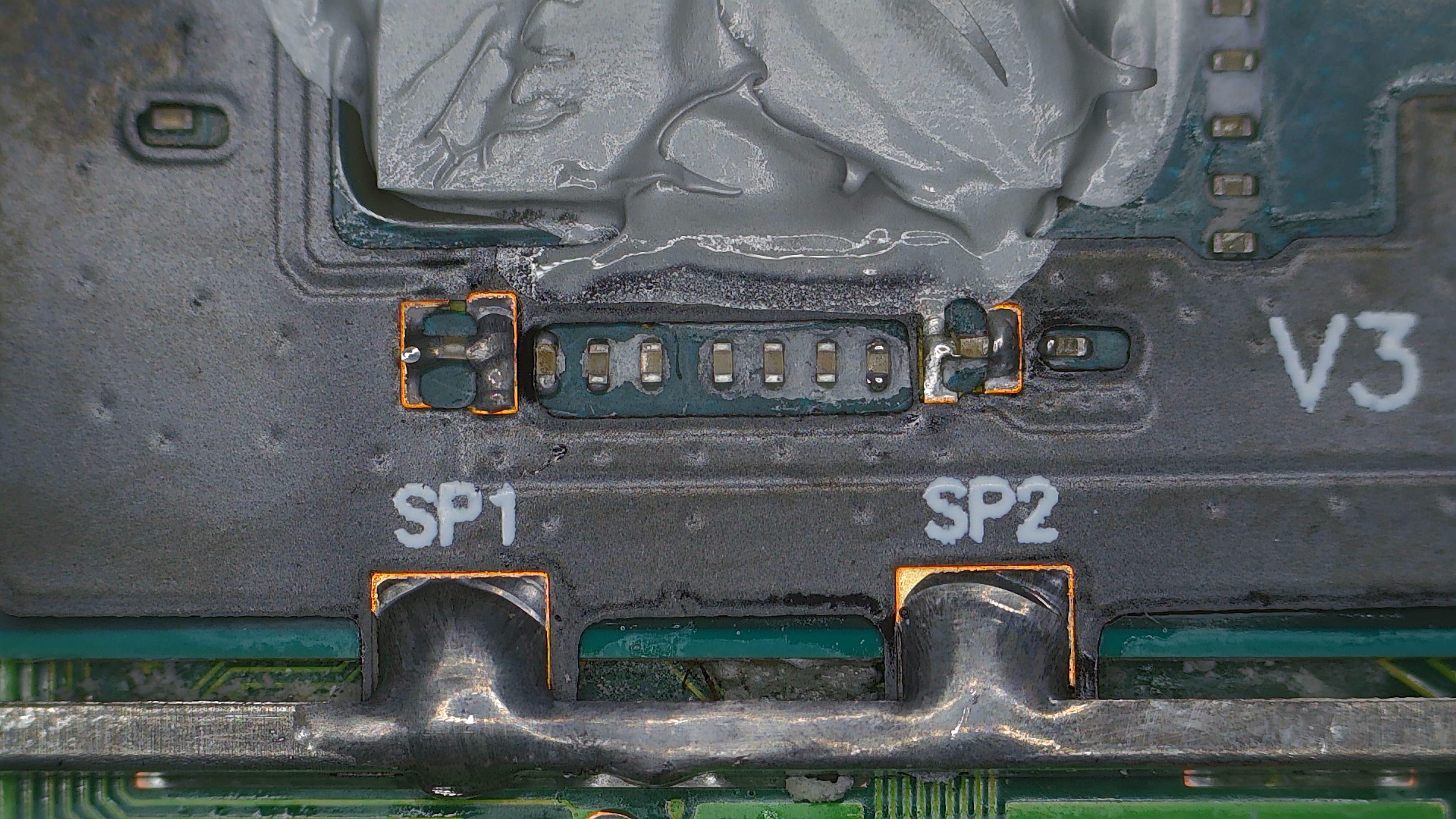

On my first attempt to install the modchip, it didn’t work, but the console still booted into OFW. After removing the modchip, the console purple-screened and then stopped turning on completely. This week, I installed a new modchip but accidentally knocked off one of the APU CMDs and the CMD under solder point D for the CLK flex cable as seen in picture 2. I replaced both with 0201 1UF 105M 6.3V capacitors. After reassembling the console partially, the chip stays solid blue, blinks yellow three times, and the screen remains black.



[PhyChris]

IMO you should clean it a bit more for better pics and buy some new solder as that stuff looks cheap
I hope you get it fixed bro.



[flacojr007]

IMO you should clean it a bit more for better pics and buy some new solder as that stuff looks cheap
I hope you get it fixed bro.

it looks like that because i ultrasonic cleaned the board. i believe the soldering points are good



[slimeinacloak]

IIRC I had a OLED purple screen and replacing the CMD resistor fixed the issue, from my experience the *== error can appear from many different issues so there isnt a specific fix when it happens.
I agree with PhyChris you definetely need new solder and flux.
