HAI-Priiloader, A Bootloader For VC Injects

[awesomeee]

The location of fw.img is dependent on the id for the inject.

Do you know how to figure out the ID? Or is it always random



[Karlmann]

Do you know how to figure out the ID? Or is it always random

Do you know how to figure out the ID? Or is it always random

C:\ProgramData\JNUSToolDownloads\Rhythm Heaven Fever [VAKE01]\code
This directory contains the fw.img downloaded by teconmoon injector.
You will need the location on the Wii U to replace with the patched version.
To patch fw.img use my fork of nfs2iso2nfs https://github.com/ymweiss/nfs2iso2nfs



[awesomeee]

To patch fw.img use my fork of nfs2iso2nfs https://github.com/ymweiss/nfs2iso2nfs

Almost done! What command do i use?

Post automatically merged: Mar 24, 2025

Bad news, i used the -patch option and even replacing all fw.imgs didnt work. Input does not register in priiloader

Post automatically merged: Mar 24, 2025

Nevermind i bricked my wiiu sadly by replacing each

Its not your fault @Karlmann dont worry it was my stupidity



[Karlmann]

Almost done! What command do i use?

Post automatically merged: Mar 24, 2025

Bad news, i used the -patch option and even replacing all fw.imgs didnt work. Input does not register in priiloader

Post automatically merged: Mar 24, 2025

Nevermind i bricked my wiiu sadly by replacing each

Its not your fault @Karlmann dont worry it was my stupidity

I think your only option to recover is restoring a nand backup with hardware unless you had ISFShax installed



[MysticStarlight]

@awesomee I'm sorry that happened to you (we already talked about this through dms, if anyone is reading this). Consider getting a Raspberry Pi Pico 2 (W) and try UDPIH and see if that works. Next time install ISFSHax!!

To patch fw.img use my fork of nfs2iso2nfs https://github.com/ymweiss/nfs2iso2nfs

Do I use this to apply the ssl.ips patch that you posted earlier?



[awesomeee]

@awesomee I'm sorry that happened to you (we already talked about this through dms, if anyone is reading this). Consider getting a Raspberry Pi Pico 2 (W) and try UDPIH and see if that works. Next time install ISFSHax!!

Do I use this to apply the ssl.ips patch that you posted earlier?

Planning to get a verified hardmodder to repair it. Costs 30$. In about 2 weeks ill ship it to them. Hopefully all goes well!

And ill be moving on from this. Learned my lesson



[GaryOderNichts]

Consider getting a Raspberry Pi Pico 2 (W) and try UDPIH and see if that works.

UDPIH cannot work if the OSv10 fw.img doesn't boot, which is the case here.



[Karlmann]

@awesomee I'm sorry that happened to you (we already talked about this through dms, if anyone is reading this). Consider getting a Raspberry Pi Pico 2 (W) and try UDPIH and see if that works. Next time install ISFSHax!!

Do I use this to apply the ssl.ips patch that you posted earlier?

On closer inspection, the ssl.ips is invalid. Some offsets in the ELF header mismatch with their associated binaries. Do not use it.

Post automatically merged: Mar 24, 2025

Planning to get a verified hardmodder to repair it. Costs 30$. In about 2 weeks ill ship it to them. Hopefully all goes well!

And ill be moving on from this. Learned my lesson

I should have at least specified system titles to have prevented this issue. I apologize for the miscommunication and do not modify system titles (excluding OSv0 and OSv1 due to those being for backward compatibility)



[awesomeee]

I should have at least specified system titles to have prevented this issue. I apologize for the miscommunication and do not modify system titles (excluding OSv0 and OSv1 due to those being for backward compatibility)

I accept your apology. Luckily it should be fixable with some De_fuse modchip. Next time i try this ill be sure to test it on some safe environment



[awesomeee]

UDPIH cannot work if the OSv10 fw.img doesn't boot, which is the case here.

Any idea if the pull request “sleep” could fix this? It seems to connect before the console turns on, maybe code could be executed before it fails booting?



[GaryOderNichts]

Any idea if the pull request “sleep” could fix this? It seems to connect before the console turns on, maybe code could be executed before it fails booting?

UDPIH exploits a flaw in the OS contained within the fw.img. It cannot work if the fw.img is broken.



[awesomeee]

@Karlmann
Alrighty for future reference can you please specify where the files go? Thanks in advance!

Ill consider trying this again on something like ISFSHax / REDNand to make sure nothing goes wrong.



[Karlmann]

@Karlmann
Alrighty for future reference can you please specify where the files go? Thanks in advance!

Ill consider trying this again on something like ISFSHax / REDNand to make sure nothing goes wrong.

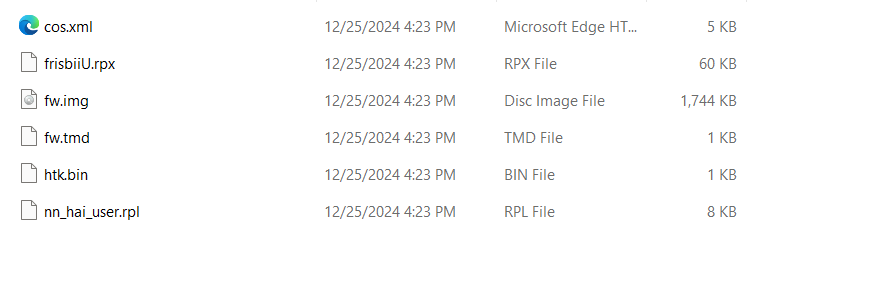

The code directory for any VC title must contain the following files.
Due to the issue where the ES calls do not work due to issues with the HAI-IOS kernel, I am changing my approach. At a high level, this approach consists of replacing the standard OHCI1 module with the one from HAI-IOS. I hope to get the gamepad to work with physical discs and titles loaded from USB loaders.



[awesomeee]

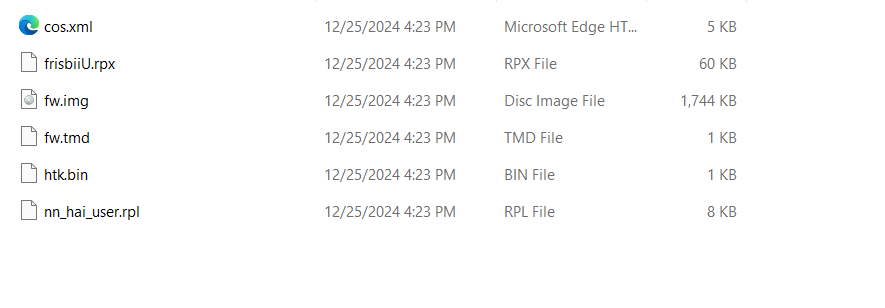

View attachment 495734The code directory for any VC title must contain the following files.
Due to the issue where the ES calls do not work due to issues with the HAI-IOS kernel, I am changing my approach. At a high level, this approach consists of replacing the standard OHCI1 module with the one from HAI-IOS. I hope to get the gamepad to work with physical discs and titles loaded from USB loaders.

Alrighty! Thanks a ton! This should help clarify stuff. Dont feel too bad about it, keep up the great work!

This should help prevent bricks aswell.



[MysticStarlight]

Due to the issue where the ES calls do not work due to issues with the HAI-IOS kernel, I am changing my approach. At a high level, this approach consists of replacing the standard OHCI1 module with the one from HAI-IOS. I hope to get the gamepad to work with physical discs and titles loaded from USB loaders.

Does this mean that Wii VC injects would now boot under the ''normal'' mode of the vWii instead of ''HAI'' while only using the HAI-IOS's OHCI1 module?



[awesomeee]

Post deleted



[Karlmann]

Does this mean that Wii VC injects would now boot under the ''normal'' mode of the vWii instead of ''HAI'' while only using the HAI-IOS's OHCI1 module?

Correct.
Any setup would be running with some cIOS layer to ensure any request to load an IOS reloads this cIOS. Additionally, with Riivolution's source being available, a modified version of Riivolution should work when a minimal cIOS layer is applied to IOS 37.



[awesomeee]

Additionally, with Riivolution's source being available, a modified version of Riivolution should work when a minimal cIOS layer is applied to IOS 37.

Does your HAI-Riivolution github have anything to do with this?



[isitover]

Interesting project. This could be the next big thing.



[Karlmann]

Does your HAI-Riivolution github have anything to do with this?

The github repository does not have any changes from the Riivolution source. The only thing I did with it was attempting to have Riivolution work on HAI-IOS, which was unsuccessful. This would have addressed Riivolution not being usable for Wii VC titles legitimately purchased before the eshop closed.
based on the primary HAI-IOS implementation consisting of kernel modifications, it would be more practical to have Riivolution work with USB loaders than to have Riivolution work with HAI-IOS.
