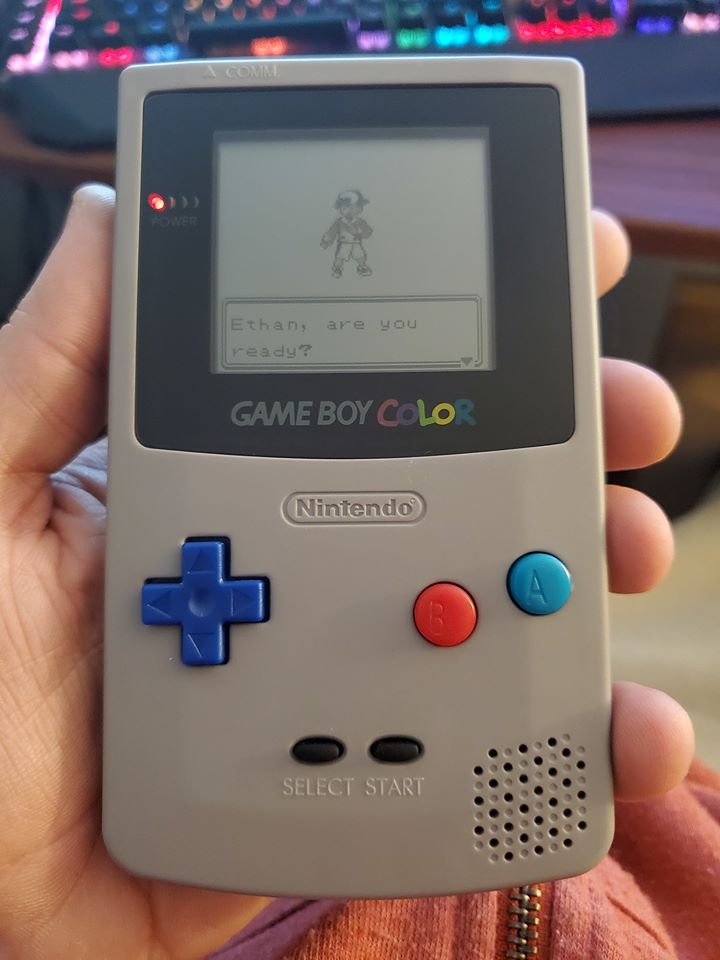

    So far, I've been upgrading my Gameboy systems with new shells, new IPS v2 screens, glass lenses, rechargeable batteries, new pads, and new buttons. So far, I've gotten the Gameboy Color's shell swap done along with the buttons and the glass lens, but the IPS screen and rechargeable battery parts are still on their way here.

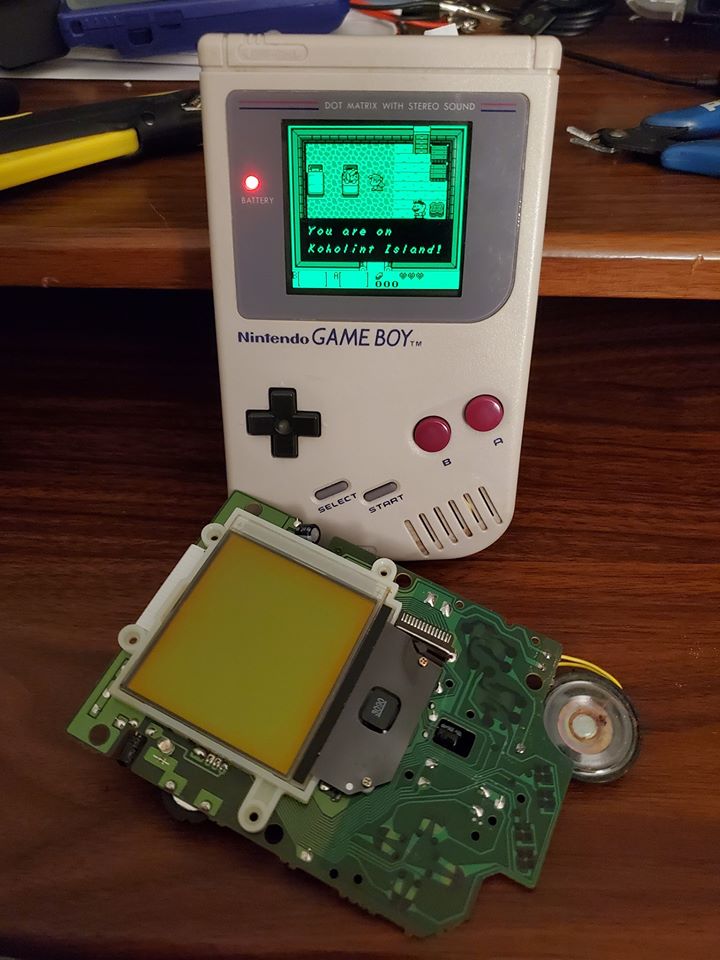

    Now the DMG got it's IPS screen, but is waiting on it's replacement shell, buttons, pads, and battery parts. I basically just threw the IPS screen inside the old shell for a test run, and to see it in action. Besides the usual upgrades, I'm also going a step further with the DMG ad adding a wireless charging pad inside. Might do an amplifier and pro-sound mod later down the road, but those aren't major priorities for me just yet.

    Each one of these bad boys will be getting an EZ-Flash Jr flash cart to compliment them, with only my favorite childhood games on them, along with ROM hacks, homebrew, PD ROMS, and test programs. I'm keeping the old parts, in case anyone needs a system repaired with working OEM parts.

    As more of the parts come in for these projects, I'll keep adding to this thread with more progress pictures. Later on, I'll be doing an AGB-001 (The OG GBA) with these mods, along with an AGS-001 (GBA SP).

    90565082_631797207677149_6183707515495120896_o.jpg 90969839_631797231010480_133121115475148800_o.jpg

    LonelyPhantom and alexander1970 like this.
  2. Shadow#1

    Shadow#1 Wii & 3DS Softmod Expert
    Member

    Joined:
    Nov 21, 2005
    Messages:
    7,224
    Country:
    United States

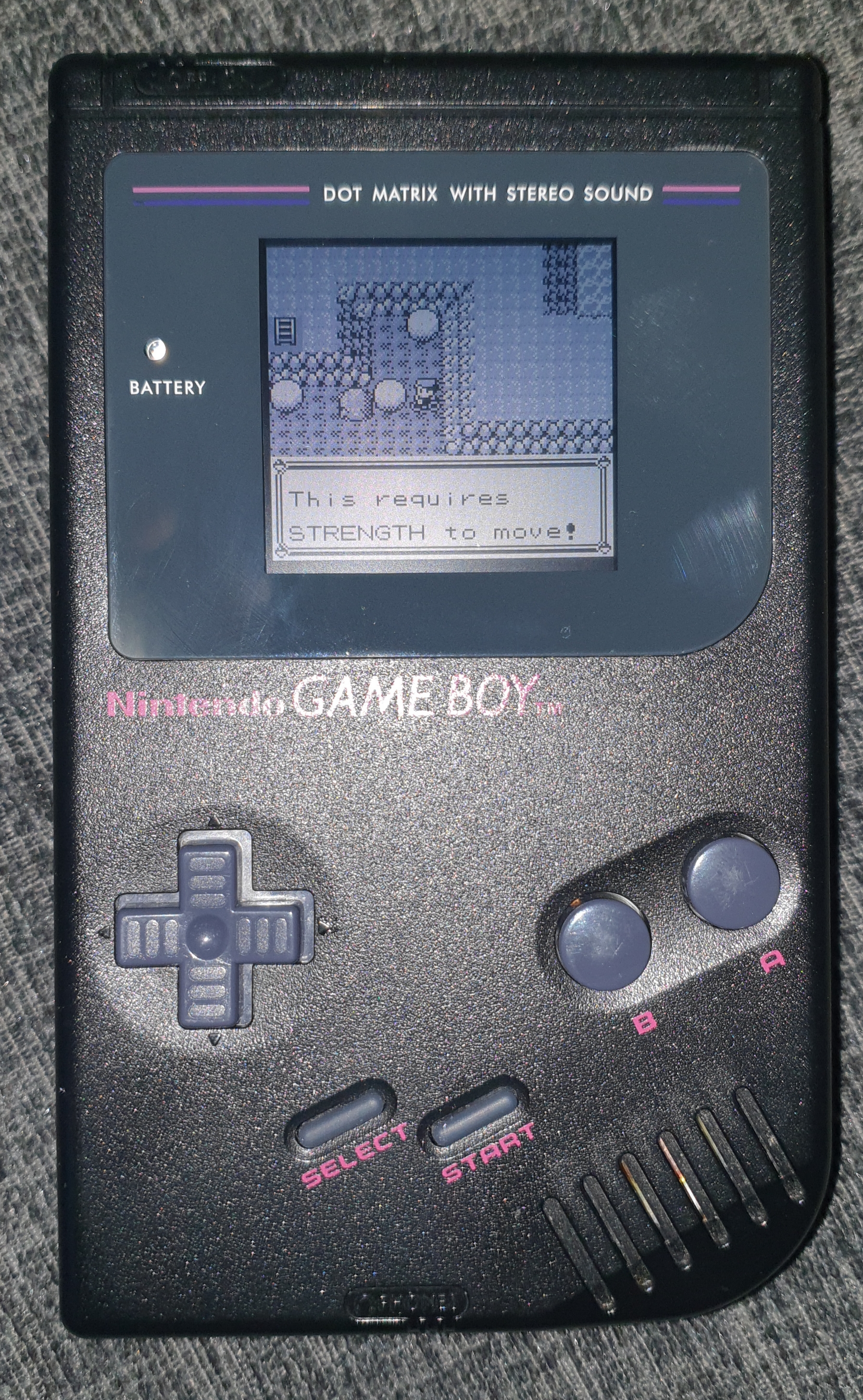

    Nice here is mine[​IMG]

    alexander1970 and Jayro like this.
  3. Jayro

    OP Jayro MediCat USB and Mini Windows 10 Developer
    Member

    Joined:
    Jul 23, 2012
    Messages:
    7,499
    Country:
    United States
    That smokey clear shell and red buttons look really nice!

    alexander1970 likes this.
  4. Shadow#1

    Shadow#1 Wii & 3DS Softmod Expert
    Member

    Joined:
    Nov 21, 2005
    Messages:
    7,224
    Country:
    United States
    Thanks

    alexander1970 likes this.
  5. Jayro

    OP Jayro MediCat USB and Mini Windows 10 Developer
    Member

    Joined:
    Jul 23, 2012
    Messages:
    7,499
    Country:
    United States
    My shell is here, and everything is transferred over nicely! Used superglue for the screen to stay in place. Just waiting on the battery parts now!


  6. MockyLock

    MockyLock GBAtemp Regular
    Member

    Joined:
    Apr 21, 2011
    Messages:
    215
    Country:
    France
    Hello here !
    Where did you buy your IPS screen please ?

    Jayro likes this.
  7. Jayro

    OP Jayro MediCat USB and Mini Windows 10 Developer
    Member

    Joined:
    Jul 23, 2012
    Messages:
    7,499
    Country:
    United States
  8. gamesquest1

    gamesquest1 Nabnut
    Moderator

    Joined:
    Sep 23, 2013
    Messages:
    14,971

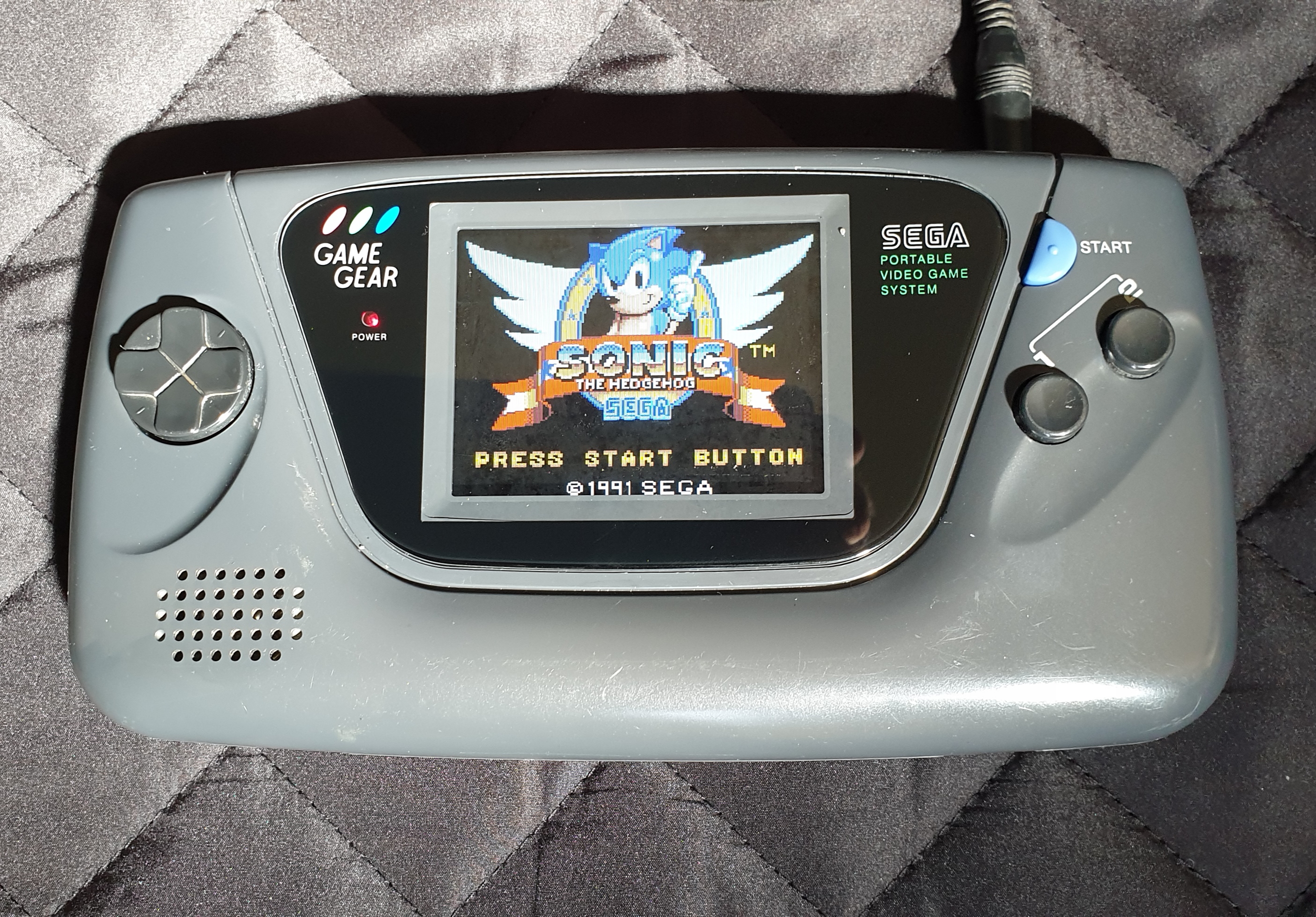

    take it everyone decided this would be a great time to put new screens in gameboys :rofl:, I just went with the cheapo option, screen is slightly smaller but not really that noticable unless you have it side by side with an original gameboy, now to get around to installing the lynx and game gear screens 20200326_091629.jpg

    Jayro likes this.
  9. Jayro

    OP Jayro MediCat USB and Mini Windows 10 Developer
    Member

    Joined:
    Jul 23, 2012
    Messages:
    7,499
    Country:
    United States
    Still looks great. I just decided to jump on the new IPS V2 screen, since reviews can't find any flaws in it. It looks and performs amazingly, and in the classic greenish-yellow that I LOVE.

  10. Jayro

    OP Jayro MediCat USB and Mini Windows 10 Developer
    Member

    Joined:
    Jul 23, 2012
    Messages:
    7,499
    Country:
    United States

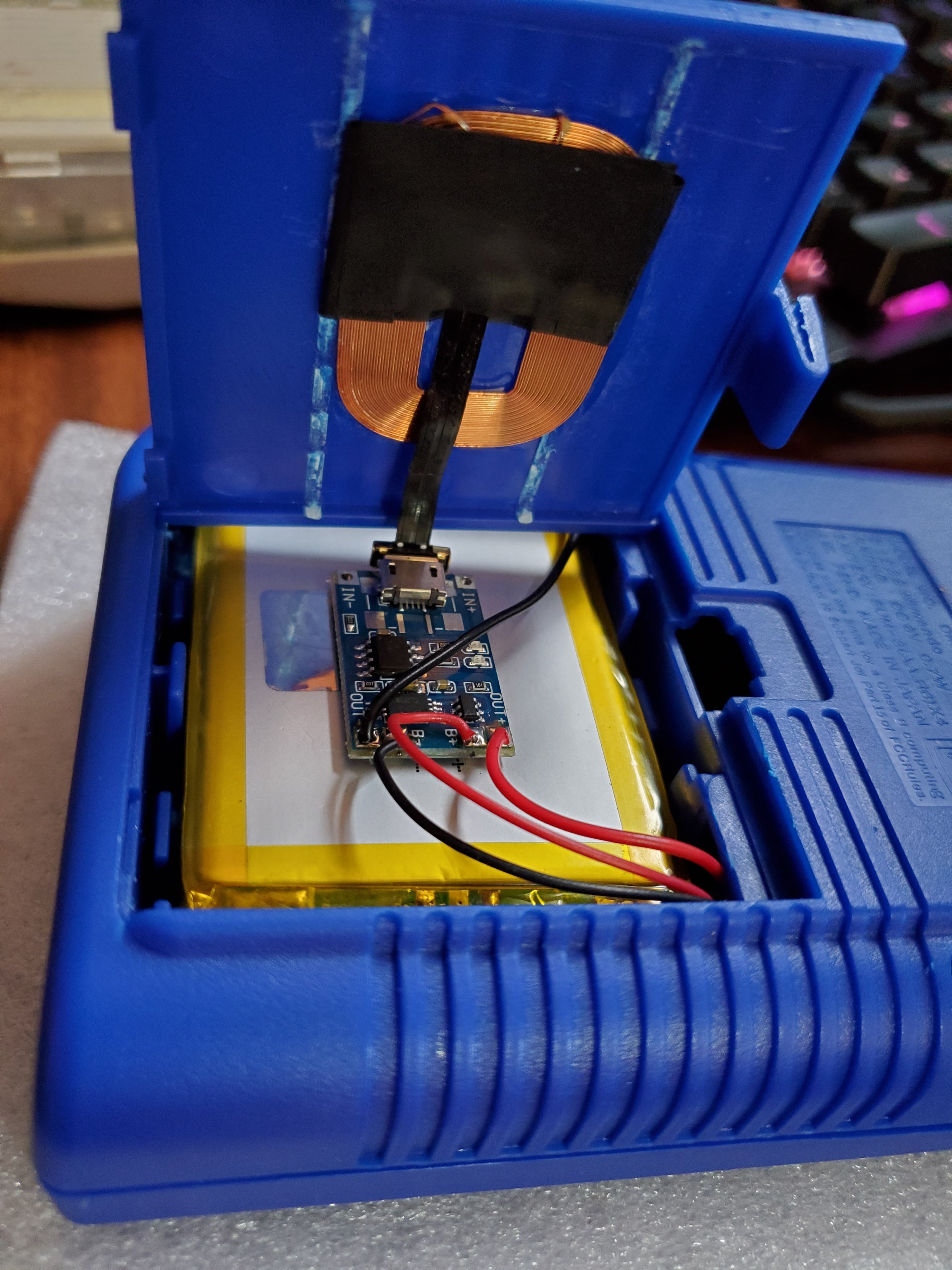

    Just got the wireless charger, charging circuit, and 2000mAh battery all wired up. I've really missed soldering. That wraps up this Gameboy build.
