Homebrew Extract channel/banner animation stuff from ISOs

[mario32]

Hi!!! So I'm doing some basic messing with CustomizeMii and it lets you use a WAD file as a base for the animation. Every Wii game has animation that apparently works similarly -- however of course this is loaded from the ISO and just displayed in the Disc Channel, so there is no WAD to drag in.

How can I basically get the icons, animation file, etc. from an ISO and import them into CustomizeMii like I could a standalone channel's WAD file?
Thanks!!



[captainbob321]

I Thought You Can Use CRAP v3.3b/WiiGSC to Create Game WADs, then Open The WADs in the Wads Folder (in the CRAP v3,3b Folder), then Get the BRLTYs, and BRLANs, PNGs, then Open a Static Base WAD, Then Replace All of the PNGs, BRLANs, BRLYTs?

Post automatically merged: Jan 31, 2023

You Know What? Let me Explain it For Ya:

Step 1: Download, Extract, Then Open CRAP v3.3b

Step 2: If This Appears, Then Click OK

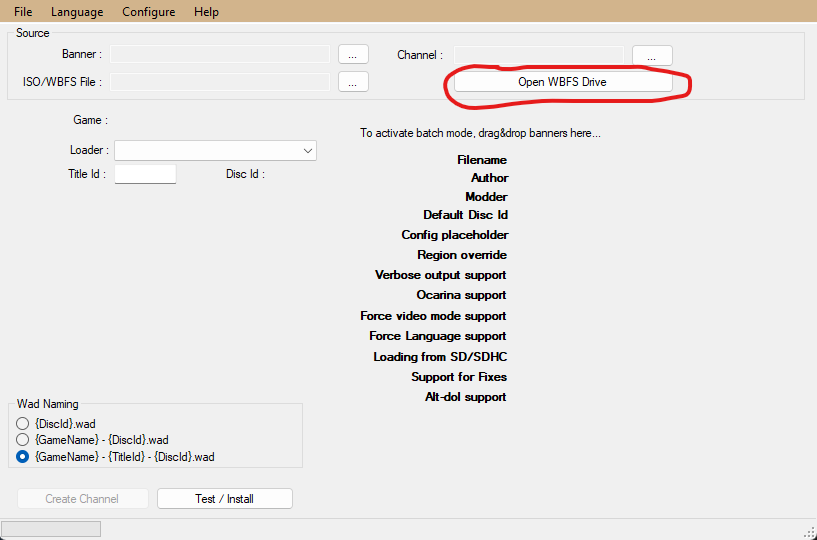

Step 3: Click "Open WBFS Drive", The "ISO/WBFS File" Button is Optional, But I Recommend "Open WBFS Drive"

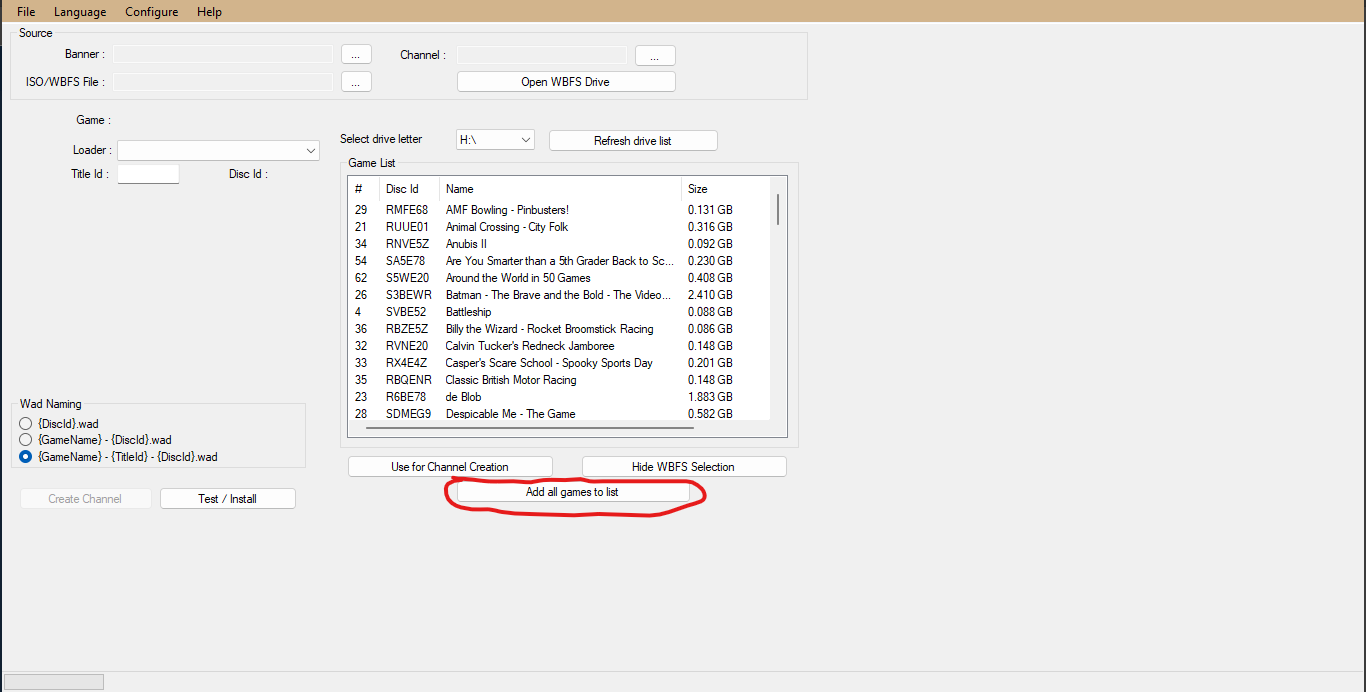

Step 4: Select a USB or SD Card. (My USB is H , Then Click "Add all games to list"

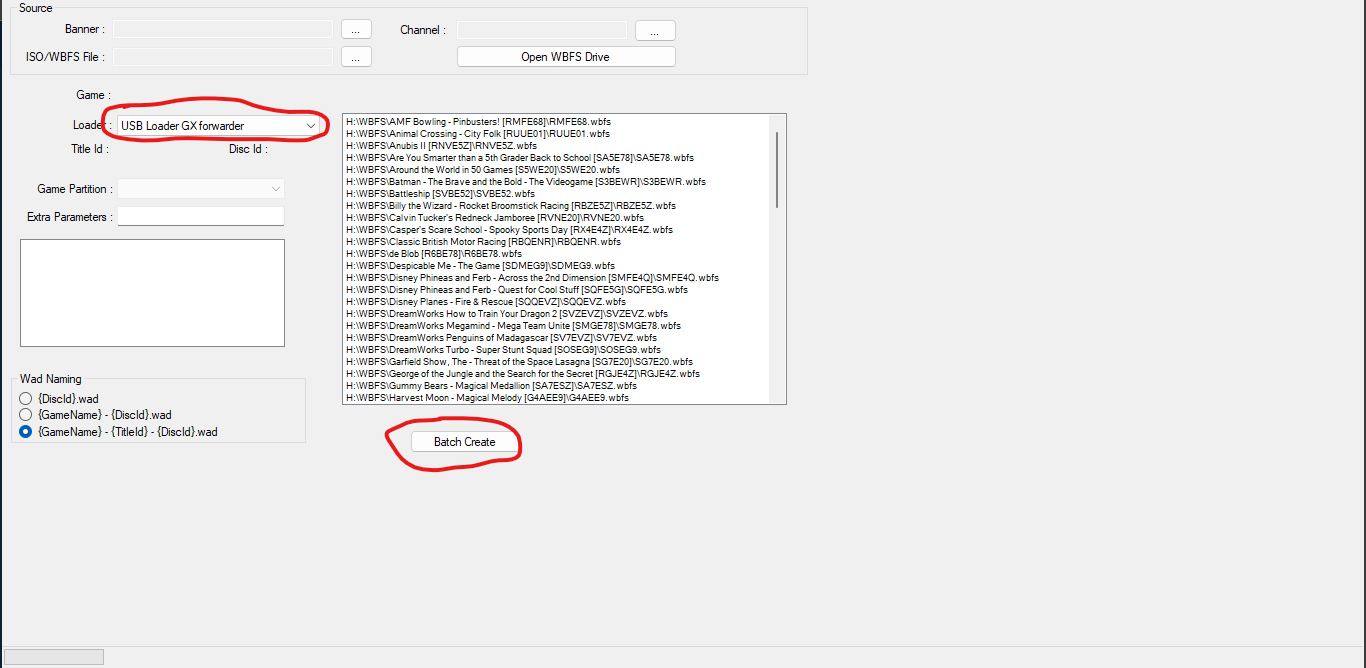

Step 5: Pick Any Loader in the Loader Section (I Prefer USB Loader GX), Then Click on "Batch Create"

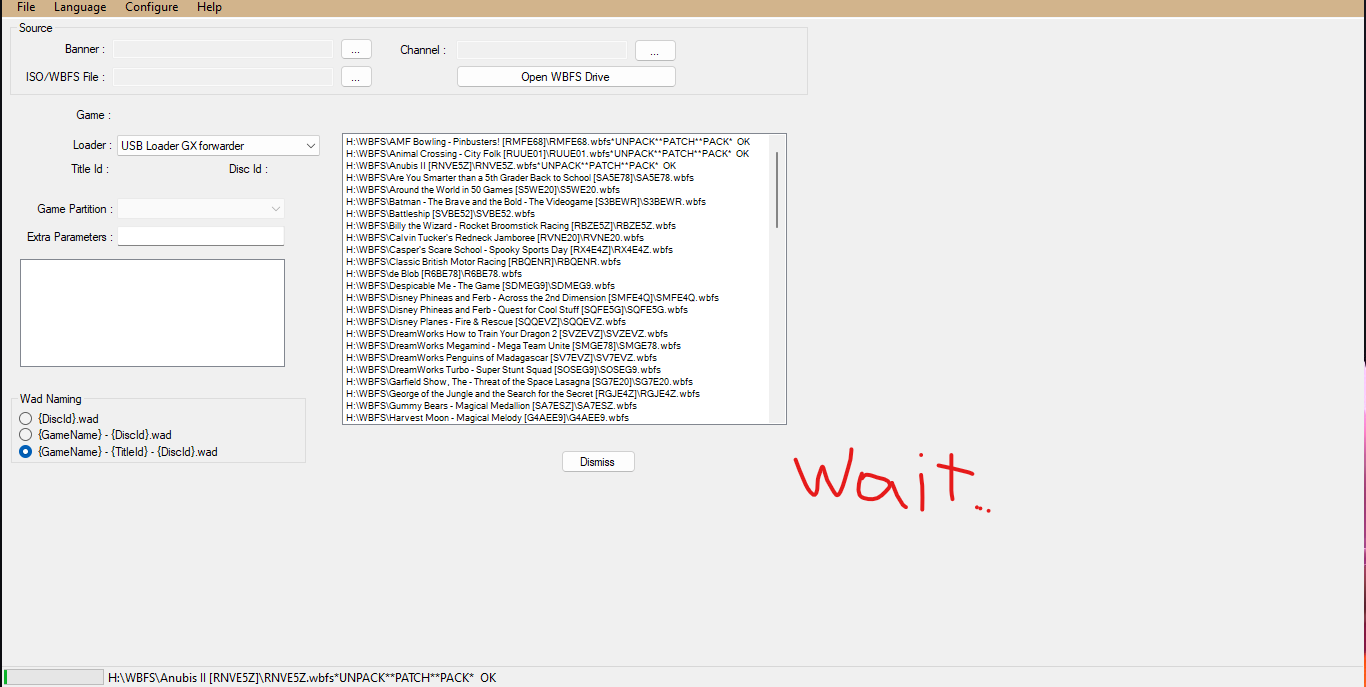

Step 6: Wait...

NOTE: If You Get This Error:

,Then Ignore It.

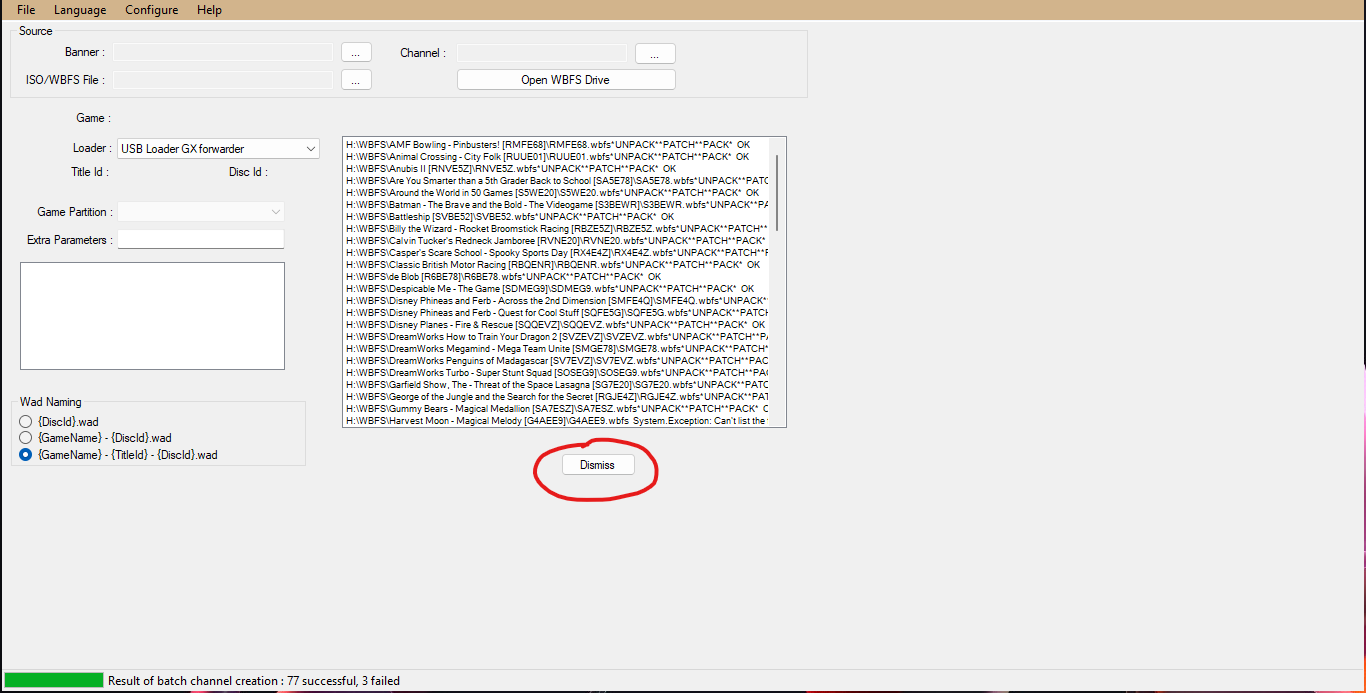

Step 7: When It's Completed, Click "Dismiss"

Step 8: Click on the Wads Folder, then Click on a Game WAD (I'm Using Rayman Raving Rabbids as an Example)

Step 9: Click on "Extract" in the Layouts Tab (Do the Same with the BRLANs, Audios and PNGs)

Step 10: Then Create a Folder for Your Extracted Files

Step 11: Open the "StaticBase" WAD in CustomizeMii, Then Replace the BRLYTs and BRLANs, then Delete the Original PNGs, Then Add the Extracted PNGs, Then Replace the Audio (by Going to the Options Tab, Click on "Browse" in the New Sound Section, Click on "Load Audio File")

Step 12: If You Want to Loop the Audio, Then Click on the "Options" Tab, Then the "Browse" Button on the New Sound Section, then "Convert to BNS", Then Select "Browse" in the "Audio" Section, Then "Enter Manually", Then Leave it to 0

Step 13: Then, Go to the "Title" Tab, Put the Names: "Rayman Raving Rab..." in the "All Languages" Section, Then "Rayman contre Les..." in the French Section, Then "ラビッツ・パーティー" in the Japanese Section, Then Click "Create Channel"

Hope This Helped!
