Hacking Question Emmc module broke during formatting

Adikirak

Active Member
OP
Newcomer
Joined
Feb 26, 2016
Messages
25
Trophies
0
Age
28
XP
116
Country
Brazil
Initially, I apologize for my English. I'm using google translator.

Well I installed an Sx core on an Arista V1 Switch.

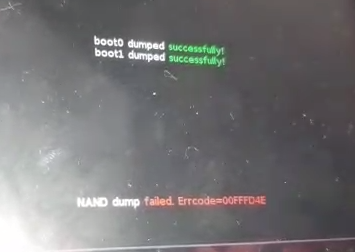

When trying to perform the NAND backup procedure when it reaches 20%, it accused the error 00fffd4e by the Sx OS System, however the backup of boot0, boot1, was done successfully.
In several attempts, I managed to backup the sys partition of that same Switch, but when trying to backup the user in 12% it gave the same error.
I swapped and tried several microSD cards in both Fat32 and Exfat.
I changed the microSD module, I changed the modchip and the problem continued.
I even tested the backup by Hekate itself using SX OS (Options> payloads) and the errors appeared in the same place, in the case of Hekate the error was 00BEE000.
A few moments ago I tried to format the system, after about 2 hours in about 39% the Switch system gives the error 2002-3537 and when pressing the power button, the switch does not return to life.
The Sx core flashes blue and then a light blue tint, which means that the emmc module has not been found.

I need more information on how to proceed.
I have already tested inject in another emmc module the backup that I have, but without success, when trying to start the system or perform a hardreset the switch presents me with an error 2002-4686.

Is there a tool or something I can do like 3ds?
I speak of the Ctrnand process.
If anyone has tips or more information, I thank you from the heart.
Below are some images of the problems identified.


Attachments

  • 1a550131-af9d-4307-95d6-fdb4af342c37.png
    465.1 KB · Views: 153
  • 62a80881-5d82-4465-a13a-4490d4389efe.png
    940.9 KB · Views: 145
  • Capturar.PNG
    89.2 KB · Views: 165
  • Like
Reactions: mvmiranda

ps786

Well-Known Member
Newcomer
Joined
May 1, 2017
Messages
46
Trophies
0
Age
42
XP
128
Country
United States
So you were able to at least start the nand backup previously but now NS wouldn’t even load pass green led?

How good are your solder points? I have seen issue where people didn’t press flex ribbon when solder. It cause ribbon pull up caps very slightly as solder melted. Especially if you use a fat tip or leave it in contact more than 1~2 seconds at time. Although it looks like a good contact, caps only making intermittent contact to the pcb underneath.

Last edited by ps786,
  • Like
Reactions: mvmiranda

Adikirak

Active Member
OP
Newcomer
Joined
Feb 26, 2016
Messages
25
Trophies
0
Age
28
XP
116
Country
Brazil
So you were able to at least start the nand backup previously but now NS wouldn’t even load pass green led?

How good are your solder points? I have seen issue where people didn’t press flex ribbon when solder. It cause ribbon pull up caps very slightly as solder melted. Especially if you use a fat tip or leave it in contact more than 1~2 seconds at time. Although it looks like a good contact, caps only making intermittent contact to the pcb underneath.
sorry, the pics:


Attachments

  • WhatsApp Image 2020-10-17 at 13.35.11.jpeg
    WhatsApp Image 2020-10-17 at 13.35.11.jpeg
    269.7 KB · Views: 156
  • WhatsApp Image 2020-10-17 at 13.35.12.jpeg
    WhatsApp Image 2020-10-17 at 13.35.12.jpeg
    273.8 KB · Views: 133
  • WhatsApp Image 2020-10-17 at 13.35.28 (1).jpeg
    WhatsApp Image 2020-10-17 at 13.35.28 (1).jpeg
    263.4 KB · Views: 149
  • WhatsApp Image 2020-10-17 at 13.35.28.jpeg
    WhatsApp Image 2020-10-17 at 13.35.28.jpeg
    259.6 KB · Views: 142
  • WhatsApp Image 2020-10-17 at 13.35.44.jpeg
    WhatsApp Image 2020-10-17 at 13.35.44.jpeg
    285 KB · Views: 130
  • WhatsApp Image 2020-10-17 at 13.35.45.jpeg
    WhatsApp Image 2020-10-17 at 13.35.45.jpeg
    257.5 KB · Views: 129
  • WhatsApp Image 2020-10-17 at 13.35.46.jpeg
    WhatsApp Image 2020-10-17 at 13.35.46.jpeg
    268.5 KB · Views: 131
  • WhatsApp Image 2020-10-17 at 13.35.50.jpeg
    WhatsApp Image 2020-10-17 at 13.35.50.jpeg
    255 KB · Views: 145
  • Like
Reactions: mvmiranda

DragarX

Well-Known Member
Member
Joined
Apr 26, 2016
Messages
104
Trophies
0
Age
29
XP
193
Country
Australia
How are the connection from the emmc to the modchip, and the moddchip to the motherboard emmc connector? There's a good chance these may not be seated correctly, but also a chance that once of these connectors are broken.

  • Like
Reactions: mvmiranda

Adikirak

Active Member
OP
Newcomer
Joined
Feb 26, 2016
Messages
25
Trophies
0
Age
28
XP
116
Country
Brazil
How are the connection from the emmc to the modchip, and the moddchip to the motherboard emmc connector? There's a good chance these may not be seated correctly, but also a chance that once of these connectors are broken.


they are functional, I tested another emmc at least the other emmc and the modchip are good, I don't know the original emmc, but I believe it is good, since during formatting, the console was not touched.


DragarX

Well-Known Member
Member
Joined
Apr 26, 2016
Messages
104
Trophies
0
Age
29
XP
193
Country
Australia
they are functional, I tested another emmc at least the other emmc and the modchip are good, I don't know the original emmc, but I believe it is good, since during formatting, the console was not touched.
The connector on the switch motherboard is usually where the problems lie.
Your solder points are fine, although usually that would cause issues with booting, not emmc.

Are you doing a full nand backup or just the system partition?


Helidwarf

Well-Known Member
Newcomer
Joined
Sep 24, 2016
Messages
77
Trophies
0
Age
27
XP
581
Country
Italy
I had this issue, its a faulty SD card, mine errored with the same escape code using a kingstone 128GB but worked flawlessly with a Samsung EVO 256GB.

Try another SD.


DragarX

Well-Known Member
Member
Joined
Apr 26, 2016
Messages
104
Trophies
0
Age
29
XP
193
Country
Australia
I had this issue, its a faulty SD card, mine errored with the same escape code using a kingstone 128GB but worked flawlessly with a Samsung EVO 256GB.

Try another SD.
I didn't even think of that as I've used the cheapest and slowest cards around and never had issues with backing up anything.


Adikirak

Active Member
OP
Newcomer
Joined
Feb 26, 2016
Messages
25
Trophies
0
Age
28
XP
116
Country
Brazil
The connector on the switch motherboard is usually where the problems lie.
Your solder points are fine, although usually that would cause issues with booting, not emmc.

Are you doing a full nand backup or just the system partition?


i tested another emmc, and nothing.
but I will look at the connector of the Switch module.

I had this issue, its a faulty SD card, mine errored with the same escape code using a kingstone 128GB but worked flawlessly with a Samsung EVO 256GB.

Try another SD.

it can't be the SD, I tested the backup before on 6 different microsds.
and always gave the error in the same place, 20%
