EDM 020 Fan connector traceback

[dandylionking]

Hi everyone just wondering if anyone knows where the 3 pins on the fan connector traceback to as i've just had a console come in with a super glued fan connector, the fan spins constantly and the pads are too badly damaged to repair so just wondering if theres a point i can traceback to, to get PWM back as clearly its just on constant.

Thanks



[jkyoho]

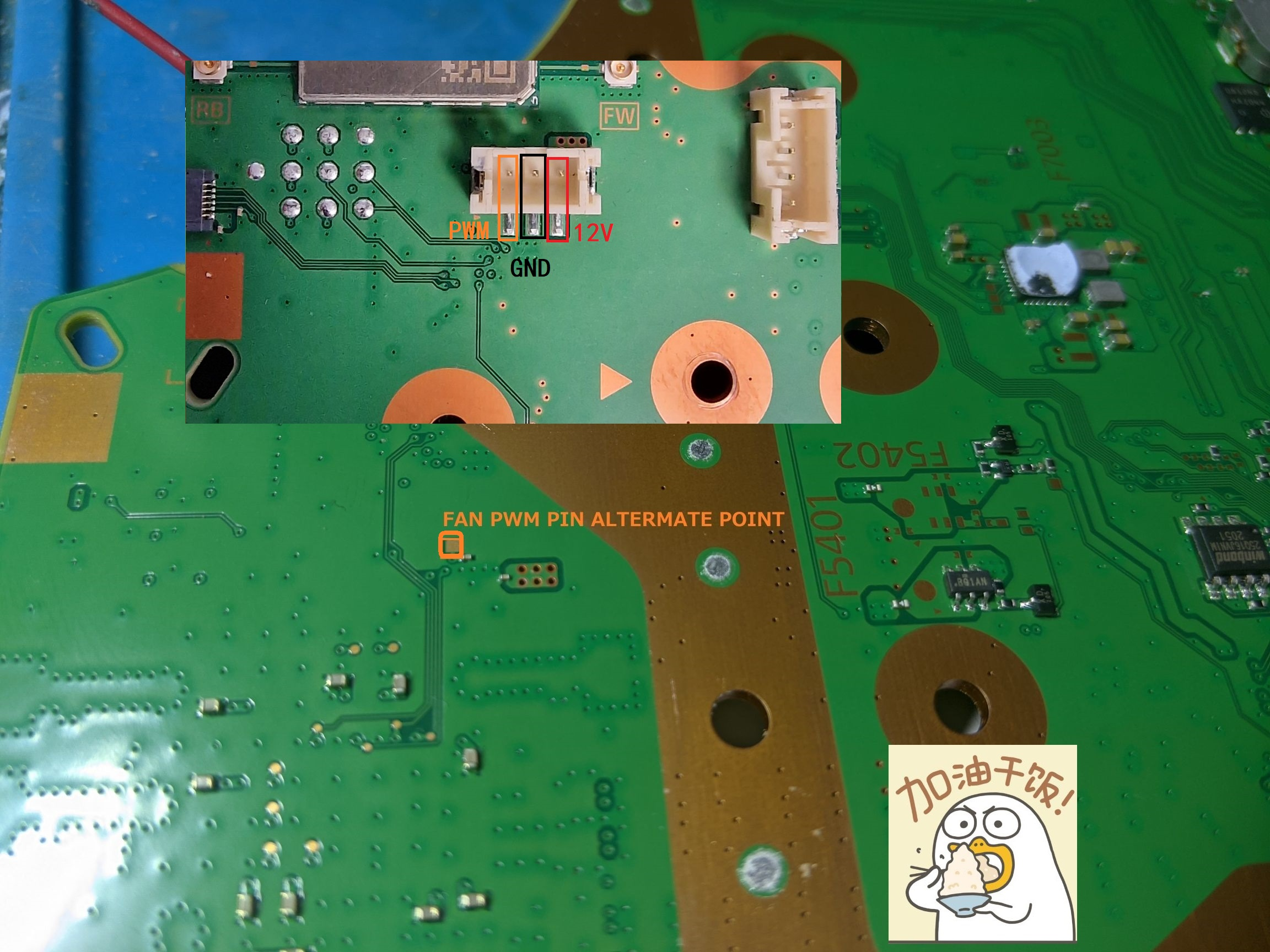

this is for EDM-010 board, I dont think there are any change from this to EDM-020. you can take a picture of the back of wifi module area and compare the location where the PWM test point from this picture



[Otofont]

Since the fan is spinning constantly, it seems like the PWM control isn't functioning correctly. Without a schematic, it's tough to provide exact trace points, but you might want to look for test points or alternative solder pads on the motherboard that connect to the same lines as the fan connector. If you have access to a multimeter, you could try tracing the continuity from the connector pins to other points on the board.

Hope this points you in the right direction and good luck with the repair!



[dandylionking]

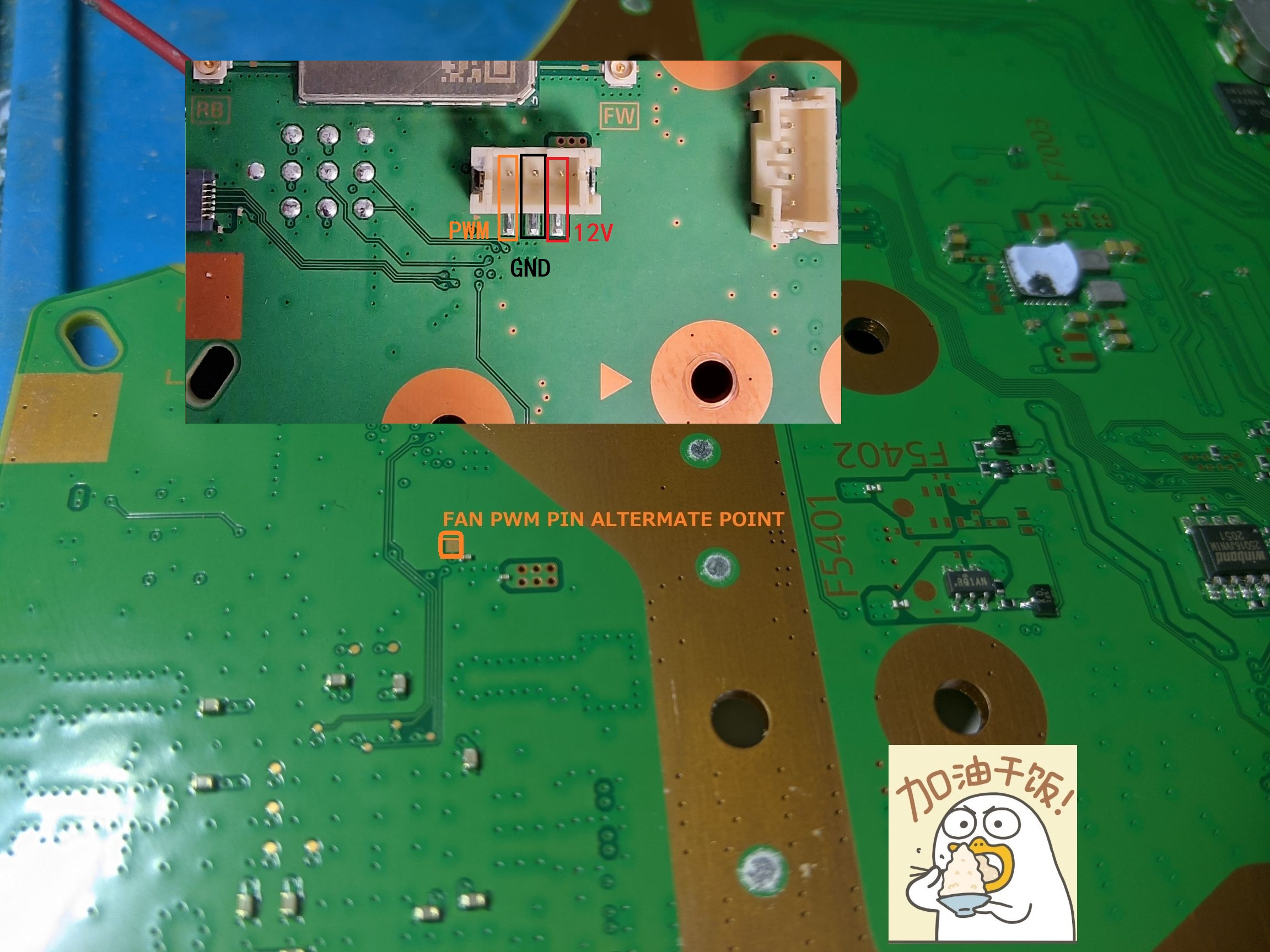

View attachment 414697this is for EDM-010 board, I dont think there are any change from this to EDM-020. you can take a picture of the back of wifi module area and compare the location where the PWM test point from this picture

You are as always a legend, thanks for the help



[jkyoho]

There should not be a short on that test point, so you mess up something
