e-Manual editing

Discussion in '3DS - ROM Hacking, Translations and Utilities' started by Uwabami, Jun 7, 2016.

Thread Status:
Not open for further replies.
  1. Uwabami
    OP

    Uwabami GBAtemp Advanced Fan

    Member
    614
    582
    Feb 4, 2014
    Germany
    Hi,

    This has been asked before, but the thread was really old and the links didn't work anymore.

    I would like to translate a Japanese Game Manual to English, and I'm looking for the right tool. I did find a working converter for *.bclim files to png, but I have yet to find a decent editor for the *.bclyt files.

    EveryFileExplorer seems to have some early support for it, but it only renders white pages for me and I can't edit anything.

    Are there good tools for this out there?

    Thanks!

    Last edited by Uwabami, Feb 2, 2017
    Ryccardo likes this.


  2. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    I'm gonna bump this thread, because I've got a similar problem.
    I want to inject a guide into a snes injection that has no manual.
    Could I just get a manual from some other game, and inject it in?
    And if I can, how do I edit it..
    I've got the manual extracted right now, I just don't know how to edit it.

  3. PabloMK7

    PabloMK7 Red Yoshi! ^ω^

    Member
    1,784
    1,091
    Feb 21, 2014
    Spain
    Yoshi's Island
    If you only want to change the text, I think it is stored on a msbt file.

    Mr.ButtButt likes this.
  4. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    I only have:
    DecryptedManual.bin
    Manual.bcma

    and inside the Manual.bcma with EFE, there's like 5 .arc files..
    i cant find a msbt file..

  5. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    Inject a Manual to a .3DS .CIA who have absolutely no manual is not that hard
    [​IMG] [​IMG] [​IMG]
    I injected the manual of Ace Attorney Trilogy as a test.

    To edit a manual, you need to have a decrypted Manual.bcma.
    Then extract it with DarcTool, you will get some arc (darc, actually) files:
    - BcmaInfo.arc
    - Common_texture.arc
    - EUR_en_index.arc
    - EUR_en_large.arc
    - EUR_en_small.arc
    - EUR_fr_index.arc
    - EUR_fr_large.arc
    - EUR_fr_small.arc
    (Maybe many more, depend on the manual).

    Then decompress them with LZ10 Decompression (use 3DS Explorer) and re-extract them with DarcTool again.
    Now you have your extracted Manual, but I never tried to edit one, so I don't know much on this.

    You can also create a blank manual with the SDK ManualTool editor, but find it yourseld (blablabla that chaos site, blablabla)...
    [​IMG]

    Last edited by Asia81, Jan 4, 2017
    tiduscrying and Mr.ButtButt like this.
  6. Uwabami
    OP

    Uwabami GBAtemp Advanced Fan

    Member
    614
    582
    Feb 4, 2014
    Germany
    You can extract assets like images and re-use them, but I never managed to decompile a finished manual. You will have to re-make it.

  7. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    This is why we love you, Asia!
    Thank you so much!

  8. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    So, I tried to rebuild the .cia with the manual, and when i load the game, it displays the "a problem has occurred please turn off the power" screen. Idk if im injecting the manual wrong? or what, but I'm not sure what to do..

  9. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    Okay, actually, I'm just a dumbass and installed the game on an o3ds.
    However, when I load it up on a N3ds, the manual doesn't show up, so I must be injecting it wrong..
    Mind sharing, how you injected yours, @Asia81 ?

  10. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    First, idk what CFW / Hack you're running, but don't forget Gateway can't load decrypted manual/dlplay partitions, Luma is your best choice.

    https://github.com/Asia81/HackingToolkit3DS/releases
    Download and install if not already did.

    Idk if I will explain well, so ask if you don't undertsand something.
    Extract them in 2 separated folders to be more clear (something like Test1 and Test2).
    This is what I do when I need folder to do a work or do some quick test.
    Then extract 2 .cia / .3ds (1 with the manual you want extract, so the other with no manual, so the one you want inject the manual on it).
    Extract them in 2 separated folders to be more clear (something like Test1 and Test2).
    This is what I do when I need folder to do a work or do some quick test.
    Warning: Spoilers inside!
    Let's say Test1 is the folder with the extracted CIA with manual, and Test2 the folder with the extracted CIA without manual.

    Once both are extracted, just take the ExtractedManual folder (NOT the bin files) from Test1, paste it in Test2...
    Then rebuild Test2. That's all.
    Idk if I can be more clear x)
    Actually it's just a copy-paste of the ExtractedManual from 1 game to other, then rebuild.
    My rebuild option should detect the Manual when rebuild.

    Rebuild the CIA a first time without the manual and another time after injected the manual, you will can see CustomManual.bin, and the CIA is not the same size.

    Last edited by Asia81, Jan 5, 2017
    Mr.ButtButt likes this.
  11. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    I'm having a little trouble following..
    I rebuilt the snes game with the manual transferred over, then I rebuilt it again after the custom manual file popped up, and there's still no manual?

  12. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    send a screenshot of your folder?

  13. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    I'm currently making a diagram, of the steps I took, please hold.

    — Posts automatically merged - Please don't double post! —


    This is my process..

    If you can't see the Image clearly, just save and zoom in, I had to downscale a little, or the picture would be too big.

    Last edited by Mr.ButtButt, Jan 5, 2017
  14. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    ahhhhhhhhh

    — Posts automatically merged - Please don't double post! —

    I forgot to say you need also take the HeaderNCCH1.bin with the ExtractedFolder.
    Then the inject should work.

    — Posts automatically merged - Please don't double post! —

    @Mr.ButtButt Did you see my edit? Not sure.

    Mr.ButtButt likes this.
  15. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    no, actually I didn't! Thanks for pointing it out lol
    I'll try again now!

  16. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States

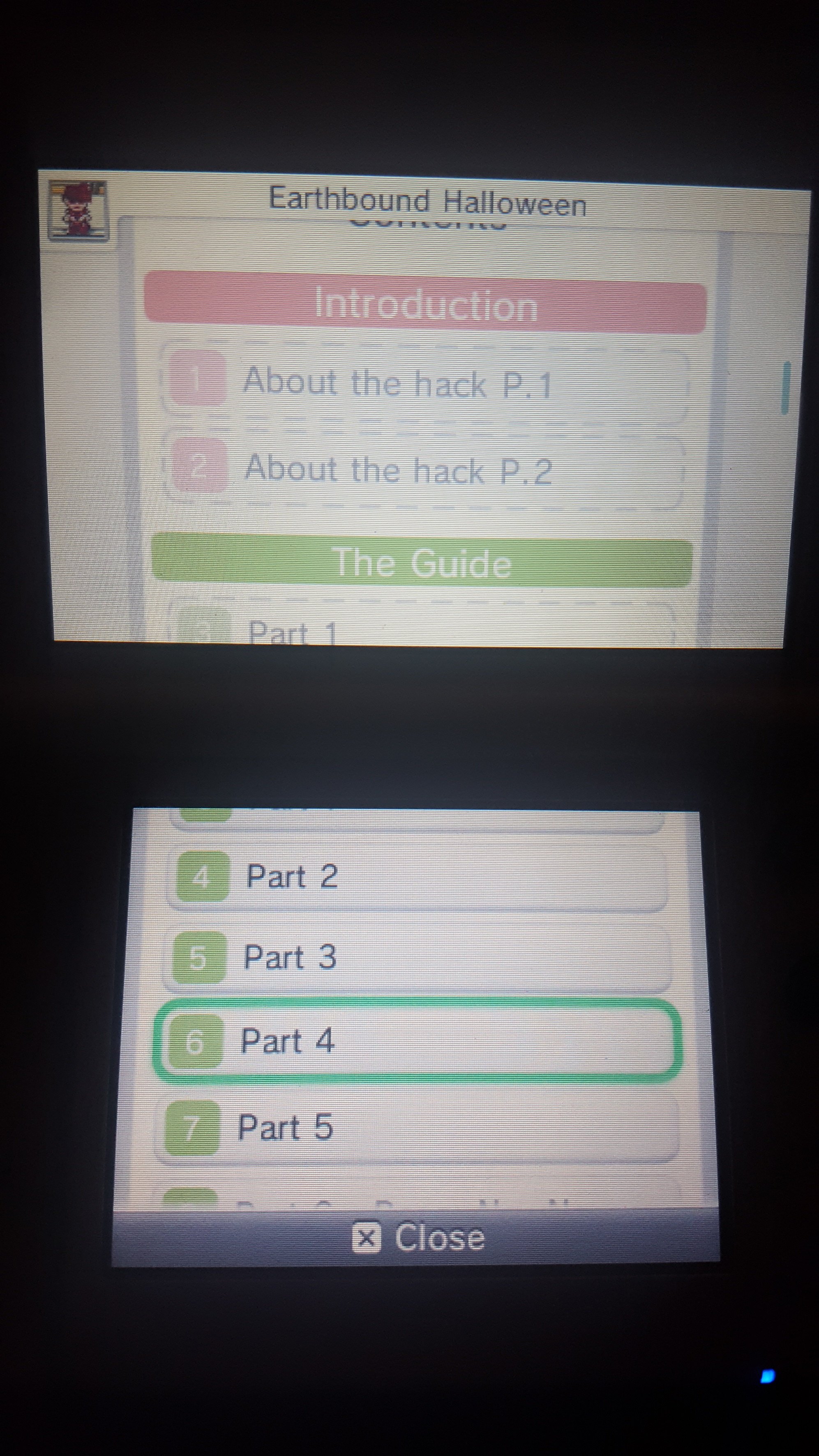

    SUCCESS!!
    Now I can finally play through this rom hack.
    Thank you so much @Asia81 , you're the awesom-est, dood!

    ** It's also in 3D!!

    Last edited by Mr.ButtButt, Jan 5, 2017
  17. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    Wait, I don't undertand. What is this manual?
    What game it is from? Custom?

    Mr.ButtButt likes this.
  18. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    I created the manual completely custom :)
    Ninty dev

  19. Asia81

    Asia81 In my Ecchi World <3

    Member
    5,046
    2,491
    Nov 15, 2014
    France
    Albi
    Then come in mp please, I don't even know how to use the manual editor xD
    Can't find how to export as bcma :(

    Mr.ButtButt likes this.
  20. Mr.ButtButt

    Mr.ButtButt The Cancer Of Gbatemp <3

    Member
    1,461
    599
    Sep 22, 2015
    United States
    what's mp?
