Difficulty injecting Smash Bros 64 to Wii U

I've been stuck for a while trying to get Super Smash Bros. to work on my Wii U.

I've already hacked my Wii U and I've installed many native N64 roms successfully. The only game that's evaded my grasp is Super Smash Bros.

I've followed the instructions on this compatibility list (since I can't post links, googling "Wii U N64 Injection" will yield the list I used) and it hasn't worked for me. The game will remain stuck on the loading screen and will never boot into the rom. To confirm, I've downloaded HxD to modify my rom file to say NALJ and I've used the recommended UNALJ0.354.ini, as well as using Mario Golf (USA) as the base.

I've used Sin and Punishment, but that's also not worked for me. The game will either freeze at the Hal Laboratories screen or freeze early on during the intro.

I'm also using Phacox's Injector 1.1.4 to create the install and I'm using Wii U USB Helper to obtain the bases.

If there's anything I'm missing or any alternate methods to check out, I'm all ears.

PS: I've checked out another thread on this forum as their issue was similar to mine, but their solution was using the Japanese rom. and I'd prefer to not use that version for the game. That may be my only requirement. I'd like to use the USA rom, if at all possible.

PPS: I'd also like to stick without using retroarch, not64, or any other emulator. My goal is to load up Super Smash Bros. as a channel for the Wii U, as if it were a legit vc release for the e-shop.



I would if I could. This is all I can pull up on Wii U USB Helper. I have all filters enabled. I see nothing regarding the original Smash for Wii U.

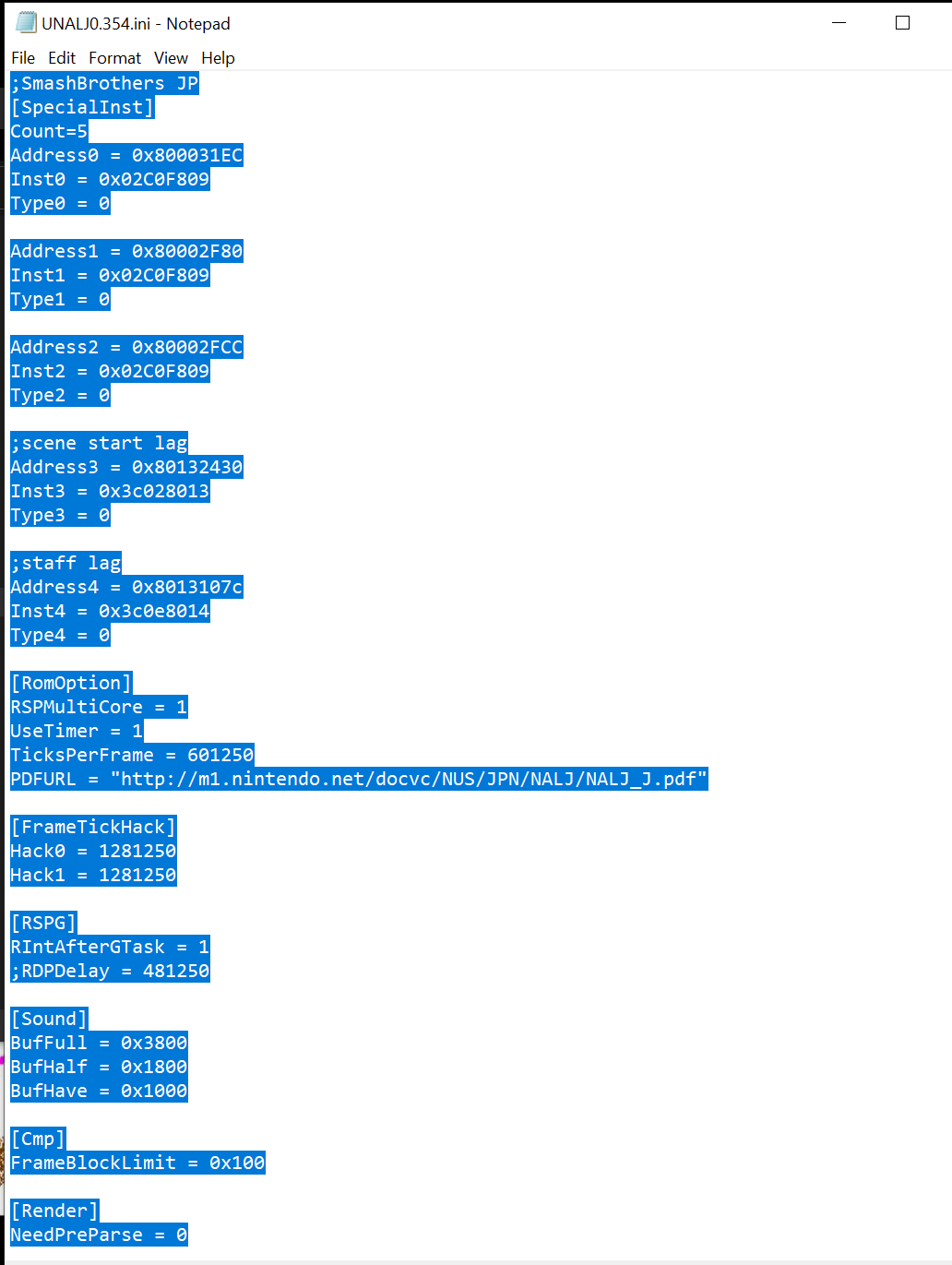

Unfortunately, I have followed those instructions, although the only thing I'm not completely sure on is the ini. I've looked all over the Internet for the ini and the closest I could get was an ini file called "UNALJ0.354."



I'm familiar with the hex editing process as well as the injecting process. I'm pretty sure I did it correctly.



GABO, what rom did you use for your base?

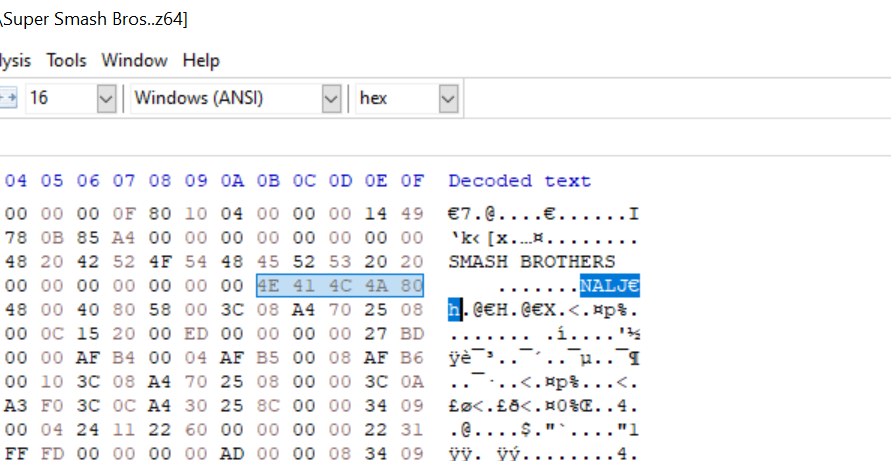

You're my hero. Turns out when I initially edited the file, the changes kept typing over the characters. When I typed in the "J", it typed over the "@" and messed everything up. It's working perfectly now. Thank you!
