[concept] DIY portable/mini Switch dock.

Discussion in 'Switch - Console, Accessories and Hardware' started by Futurdreamz, Mar 8, 2017.

  1. Futurdreamz
    OP

    Futurdreamz GBAtemp Advanced Maniac

    Member
    1,768
    1,005
    Jun 15, 2014
    Canada
    As far as I can tell this would work, but having not bought a switch yet I don't know for sure.

    Step 1: Obtain the official Switch Dock. Either the original or a second one you bought for $100 or whatever.

    Step 2: disassemble the dock, and pull out the circuit board and carefully pull out the USB Type C docking port and it's cable

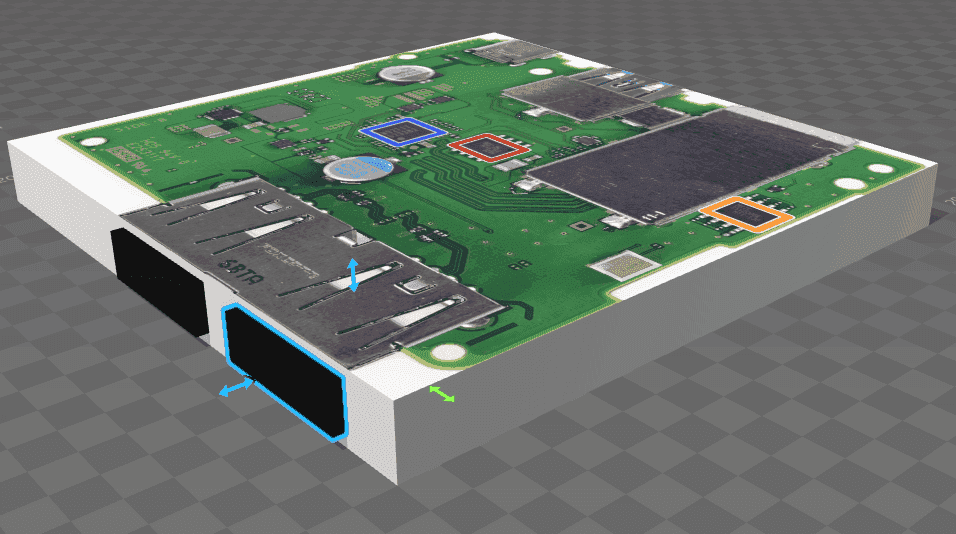

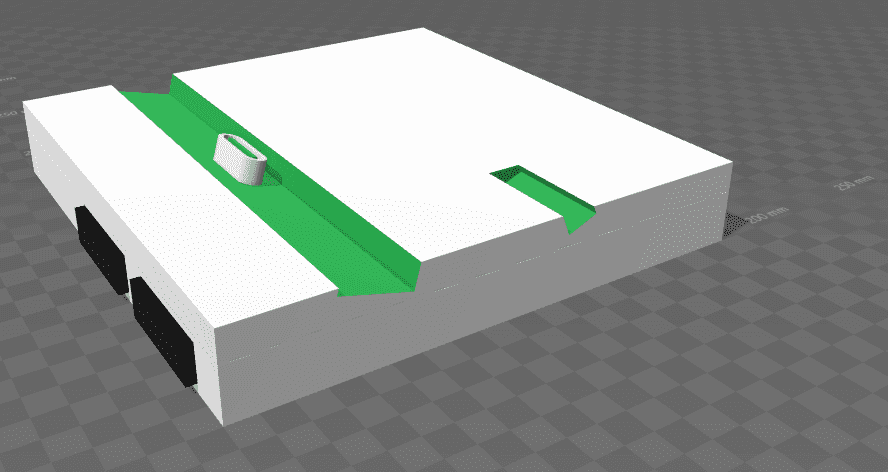

    Step 3: Put the board and the Type-C port into a new ultracompact housing, like a 3d-printed version of the concept below.

    1.png 2.png

  2. TheCyberQuake

    TheCyberQuake Certified Geek

    Member
    3,318
    2,237
    Dec 2, 2014
    United States
    Las Vegas, Nevada
    I plan on eventually modding the dock into a dongle if we don't get any dongle from Nintendo.

  3. Luckkill4u

    Luckkill4u 4 guys in a car ( ͡° ͜ʖ ͡°)

    Member
    1,001
    530
    Jul 13, 2008
    Canada
    Insomnia
    This is a cool idea! I don't even own a switch and this interests me. It would be cool to see a wireless charging mod too.

  4. TheCyberQuake

    TheCyberQuake Certified Geek

    Member
    3,318
    2,237
    Dec 2, 2014
    United States
    Las Vegas, Nevada
    Unfortunately wireless charging probably isn't powerful enough yet to really charge the Switch. It would be similar to trying to charge the switch with a standard phone charger, which doesn't really work.

    Jakic007 likes this.
  5. Bladexdsl

    Bladexdsl ZOMG my posts...it's over 9000!!!

    Member
    16,387
    3,982
    Nov 17, 2008
    Australia
    Queensland
    and what of us who don't have a 3d printer?

  6. Futurdreamz
    OP

    Futurdreamz GBAtemp Advanced Maniac

    Member
    1,768
    1,005
    Jun 15, 2014
    Canada
    Figure it out. Carve it from wood maybe?

    m_babble likes this.
  7. Bladexdsl

    Bladexdsl ZOMG my posts...it's over 9000!!!

    Member
    16,387
    3,982
    Nov 17, 2008
    Australia
    Queensland
    wood....really?

  8. Futurdreamz
    OP

    Futurdreamz GBAtemp Advanced Maniac

    Member
    1,768
    1,005
    Jun 15, 2014
    Canada
    I have access to a CNC mill so I'd probably just use aluminum myself. Really it depends on what you have access to and what you can do, and I'm not psychic. Maybe you can work with clay. maybe you're happy with cardboard and ductape. I simply don't know what your options are. If you wait long enough someone will be selling plastic shells on eBay for all i know.

    m_babble and sarkwalvein like this.
  9. Alkéryn

    Alkéryn Moon Dweller ~

    Member
    1,530
    1,923
    Mar 15, 2015
    France
    Albategnius, Moon
    Yes it is possible if you put a coil and an ac to dc converter in the switch
    But it would void the warranty for sure and would be too technical for most user, i will do it once my warranty ended

  10. TheCyberQuake

    TheCyberQuake Certified Geek

    Member
    3,318
    2,237
    Dec 2, 2014
    United States
    Las Vegas, Nevada
    I didn't research enough I guess. The Qi Medium-Power specification would probably be enough to power the switch wirelessly.

    — Posts automatically merged - Please don't double post! —

    A lot of people make stuff out of wood, even tablet stands. I don't see why wood is so out-of-the-question to you.
    Along with that if anyone really wants a 3d printer it isn't hard to get a good one for around $200 if you are willing to assemble it (which is what I did)

    Alkéryn likes this.
  11. Alkéryn

    Alkéryn Moon Dweller ~

    Member
    1,530
    1,923
    Mar 15, 2015
    France
    Albategnius, Moon
    You might have to build a custom charger ^^

  12. Jiehfeng

    Jiehfeng Wu-Wei

    Member
    4,256
    2,008
    Aug 15, 2012
    United States
    Finding that out myself.
    You can order a print, maybe from thingiverse?

  13. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,226
    5,570
    Jun 29, 2007
    Germany
    Niedersachsen
    Wood would work... why wouldn't it?

    samiam144 likes this.
  14. grossaffe

    grossaffe GBAtemp Addict

    Member
    2,767
    2,145
    May 5, 2013
    United States
    How much work would the wood-worked wood take if the wood-worked wood would work?

    Last edited by grossaffe, Mar 11, 2017
  15. linuxares

    linuxares GBAtemp Psycho!

    Member
    3,249
    1,386
    Aug 5, 2007
    I got to say I like your prototype. I kind of hope third party does something similar since I'm not really good on detail works.

  16. TheGrayShow1467

    TheGrayShow1467 屈折

    Member
    935
    1,204
    Oct 12, 2014
    United States
    May I ask what printer you got? I'm intrigued.

  17. TheCyberQuake

    TheCyberQuake Certified Geek

    Member
    3,318
    2,237
    Dec 2, 2014
    United States
    Las Vegas, Nevada
    Tronxy p802m

  18. JacksonS

    JacksonS GBAtemp Fan

    Member
    390
    139
    Feb 13, 2016
    United States
    Georgia
    It seems nice, but I'm sure you'll need a lot more support to avoid damaging the USB C connector. I think it would be better to make it into a big dongle.

  19. Seliph

    Seliph Scion of Light/Orphan

    Member
    654
    449
    Jul 11, 2016
    United States
    Somewhere in Jugdral
    Looks interesting but what exactly is the point of it if I may ask?

  20. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,226
    5,570
    Jun 29, 2007
    Germany
    Niedersachsen
    I suppose making something that could fit in your pocket for you to carry to a friend's house and connect it to the TV.
