    hey guys,

    I've got several broken nintendo switch boards and I thought I should be possible to move a working cpu, nand, etc.. to another board where the cpu is broken. can you guys tell me which components need to be changed, or which components are tied together? As far as I know the CPU and the NAND are components like these, is there anything else like the wifi ic or something? and where are those components located?

    thanks!

  2. Shadow#1

    Shadow#1 Wii & 3DS Softmod Expert
    Member

    Joined:
    Nov 21, 2005
    Messages:
    7,681
    Country:
    United States
    Nand can't be swaped

  3. seidolino

    OP seidolino Member
    Newcomer

    Joined:
    Jan 29, 2020
    Messages:
    45
    Country:
    Austria
    Why should the NAND can't be swapped? When I swap the CPU as well it should work. If you JUST swap the NAND it won't work.

  4. Shadow#1

    Shadow#1 Wii & 3DS Softmod Expert
    Member

    Joined:
    Nov 21, 2005
    Messages:
    7,681
    Country:
    United States
    Nand is switch mobo locked

  5. seidolino

    OP seidolino Member
    Newcomer

    Joined:
    Jan 29, 2020
    Messages:
    45
    Country:
    Austria
    yeah but this lock has to be stored somewhere and I guess it's like on iPhones, it's locked to the CPU and not to the board itself. So do you know which components are tied together except NAND and CPU?

  6. bombob

    bombob Advanced Member
    Newcomer

    Joined:
    May 4, 2020
    Messages:
    58
    Country:
    United States
    You would also need the wifi module I think

    Sent from my SM-N960U using Tapatalk

  7. Ttm3

    Ttm3 Member
    Newcomer

    Joined:
    May 16, 2020
    Messages:
    33
    Country:
    United States
    I was just thinking about this same thing. I have a board that someone destroyed the USB port but it works perfectly fine with a charged battery. I was thinking I could swap said components to make one that works...

    Very interested to see results here

  8. bombob

    bombob Advanced Member
    Newcomer

    Joined:
    May 4, 2020
    Messages:
    58
    Country:
    United States
    You can run wires from the usb port to points on the motherboard if you have the skills and patience for this. There is a post with alternate vias on the forum

    Sent from my SM-N960U using Tapatalk

  9. seidolino

    OP seidolino Member
    Newcomer

    Joined:
    Jan 29, 2020
    Messages:
    45
    Country:
    Austria
    bombob likes this.
  10. Ttm3

    Ttm3 Member
    Newcomer

    Joined:
    May 16, 2020
    Messages:
    33
    Country:
    United States
    Most of the hidden row
    Good looking out... Thank you

  11. seidolino

    OP seidolino Member
    Newcomer

    Joined:
    Jan 29, 2020
    Messages:
    45
    Country:
    Austria
    hey guys!

    I finished the board swap yesterday. It took me a little bit longer since I had to reinstall 3-5 chips which I took away from the targed board as spare parts for other mainboards.

    Board A (targed board): Had no issues as far as I can tell, except the issue that the caps near the USB chip were shortened even without the USB chip, so --> CPU damaged
    Board B (source board): The only issue was that it didn't changed to the fast charging. No Image and stuck at 0.46 amps charging.

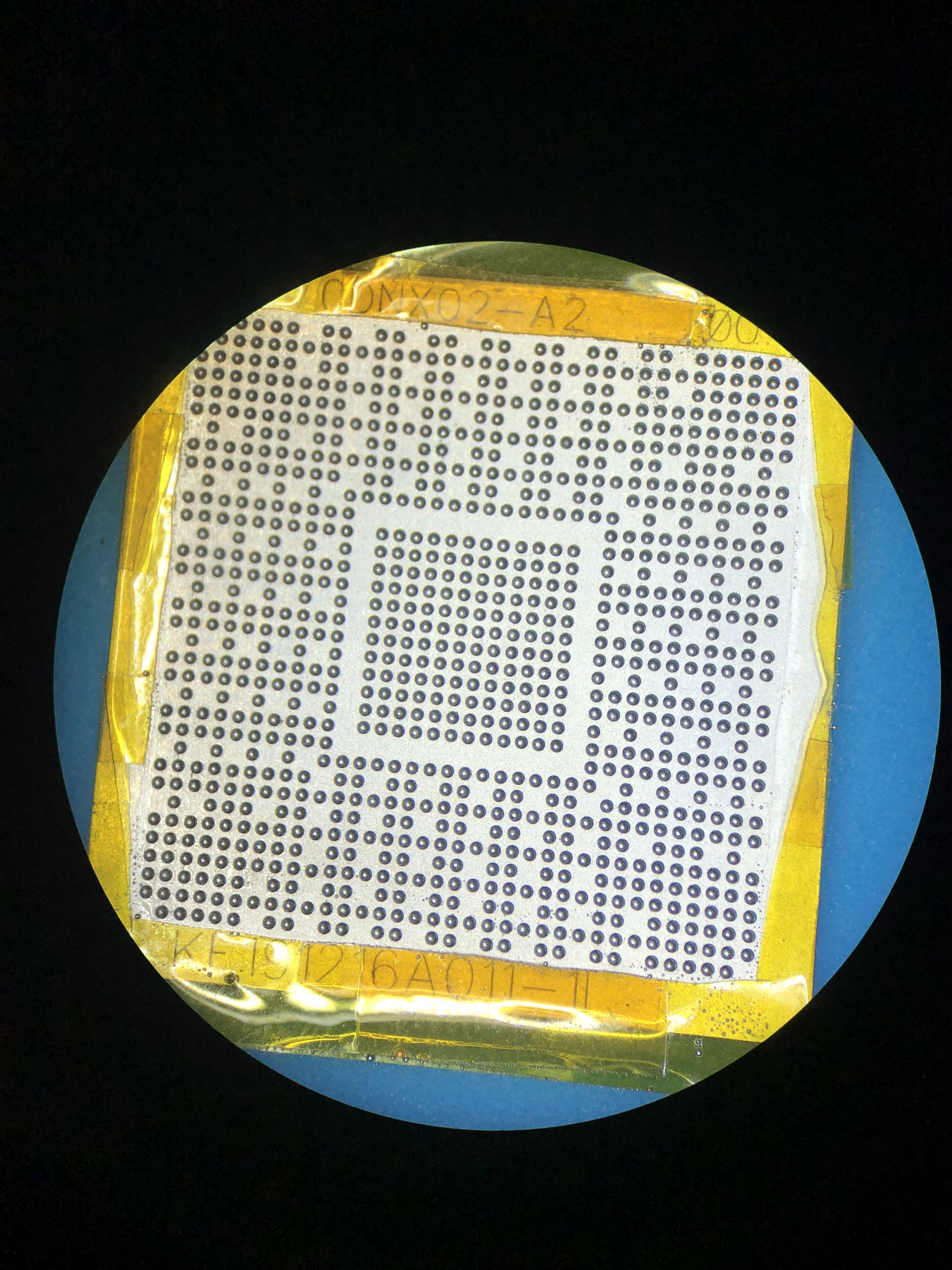

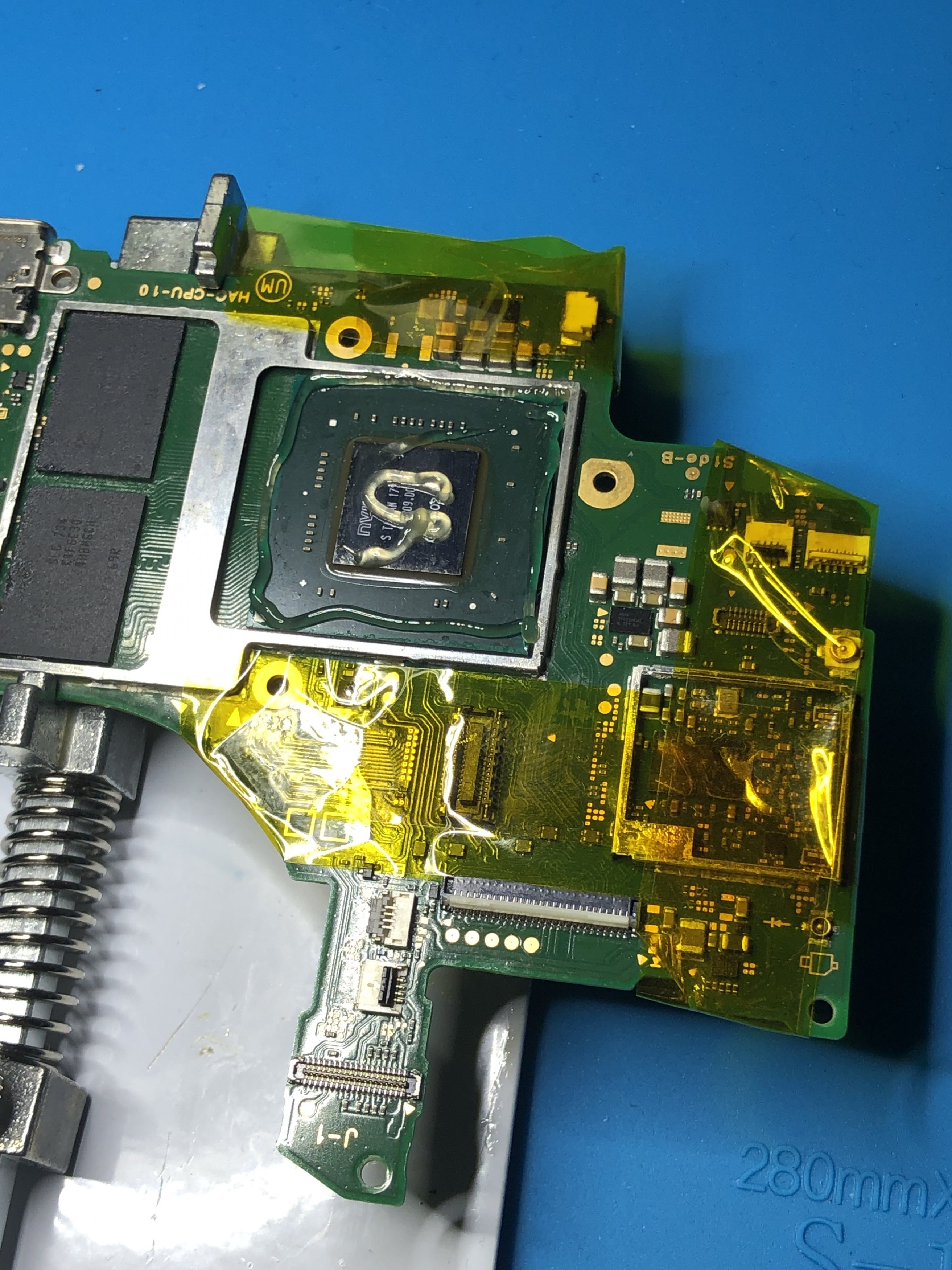

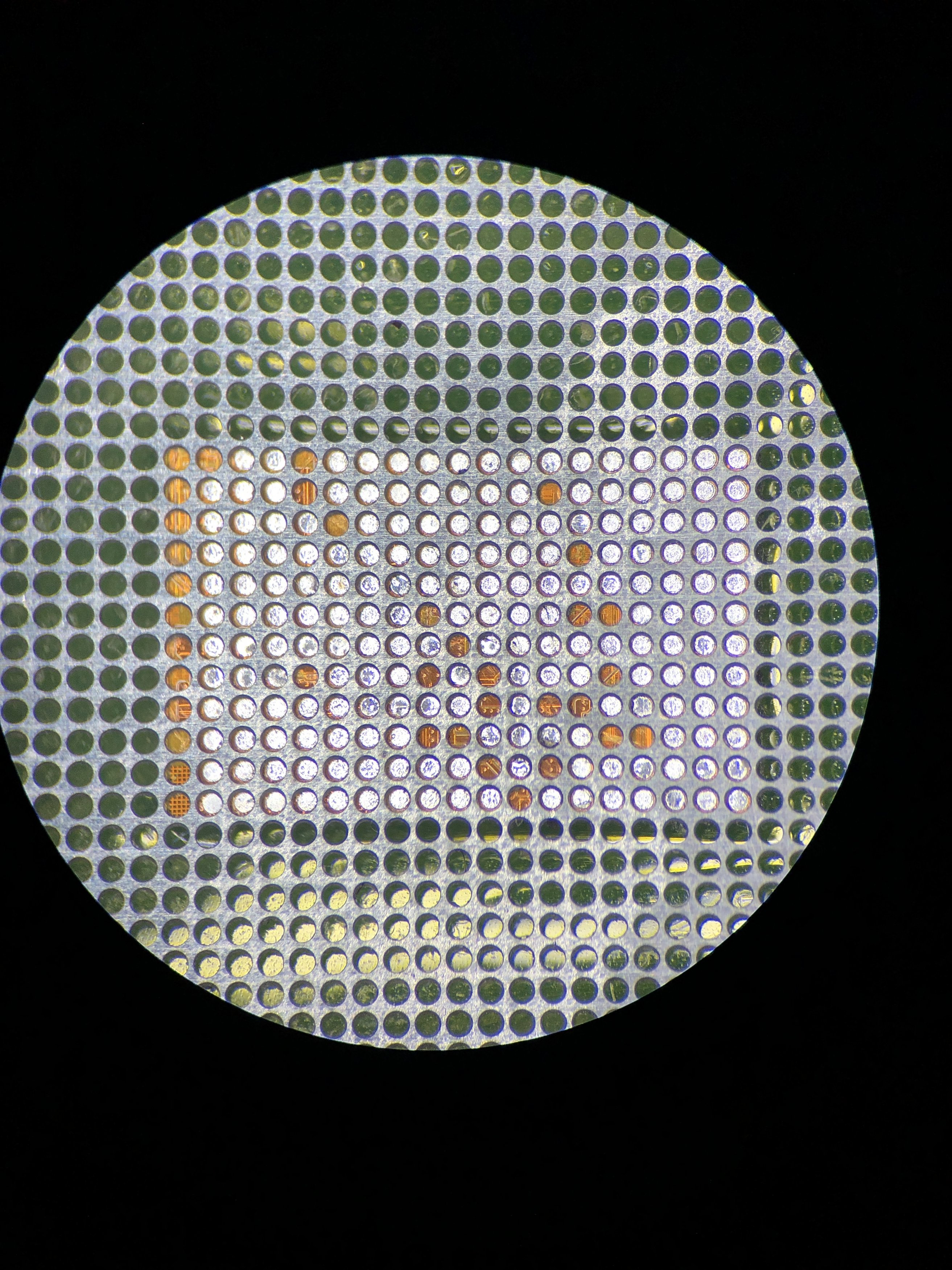

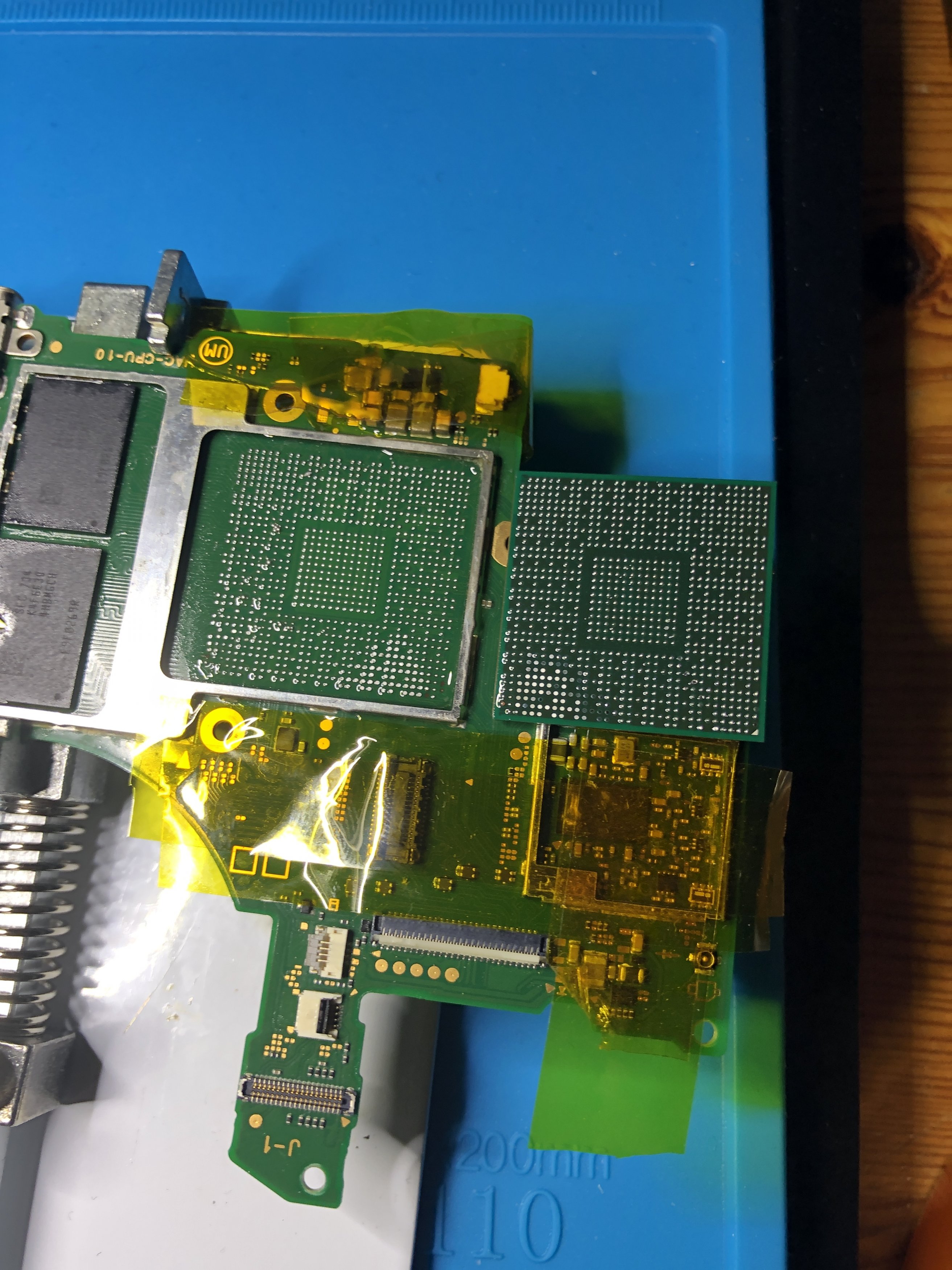

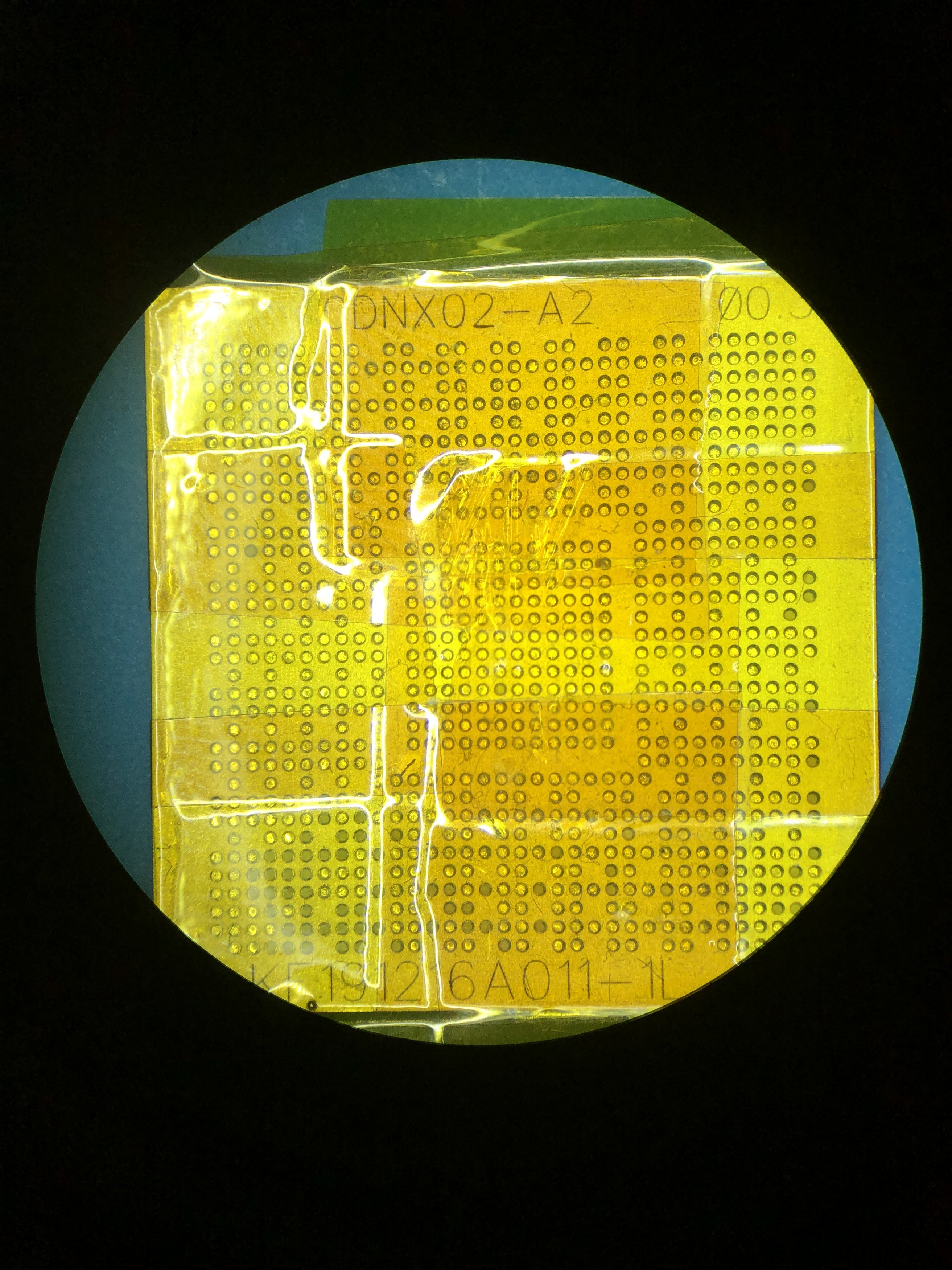

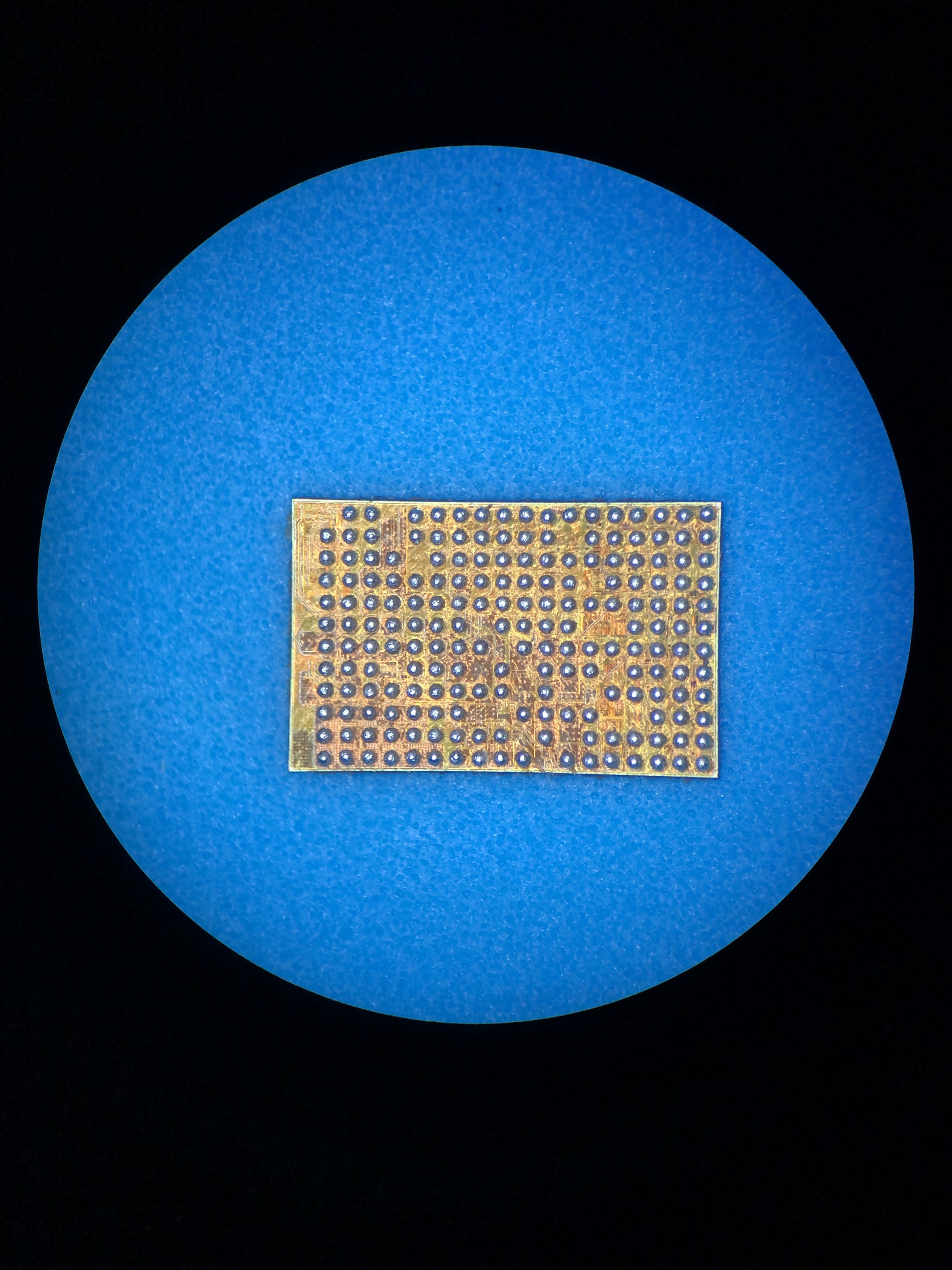

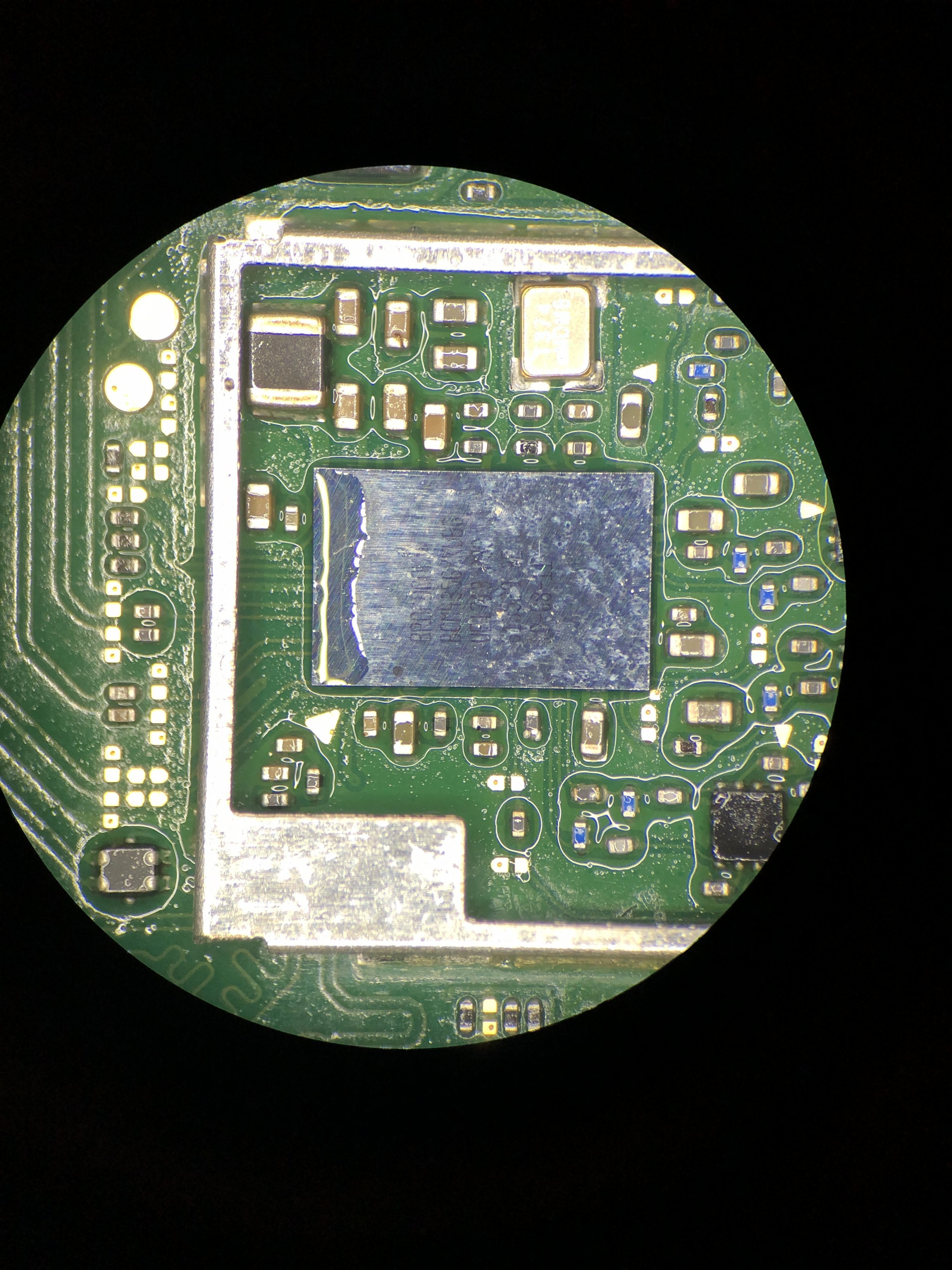

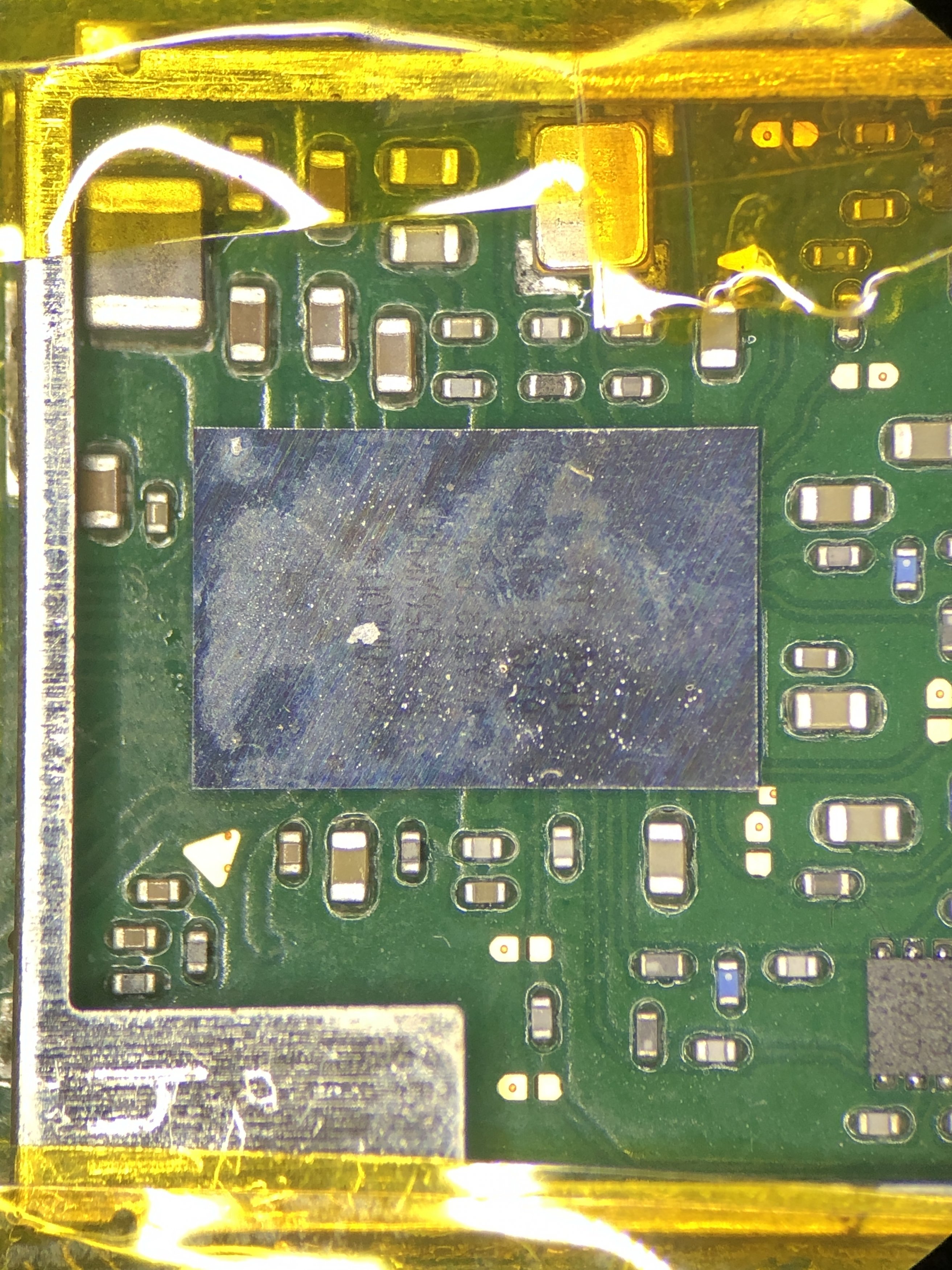

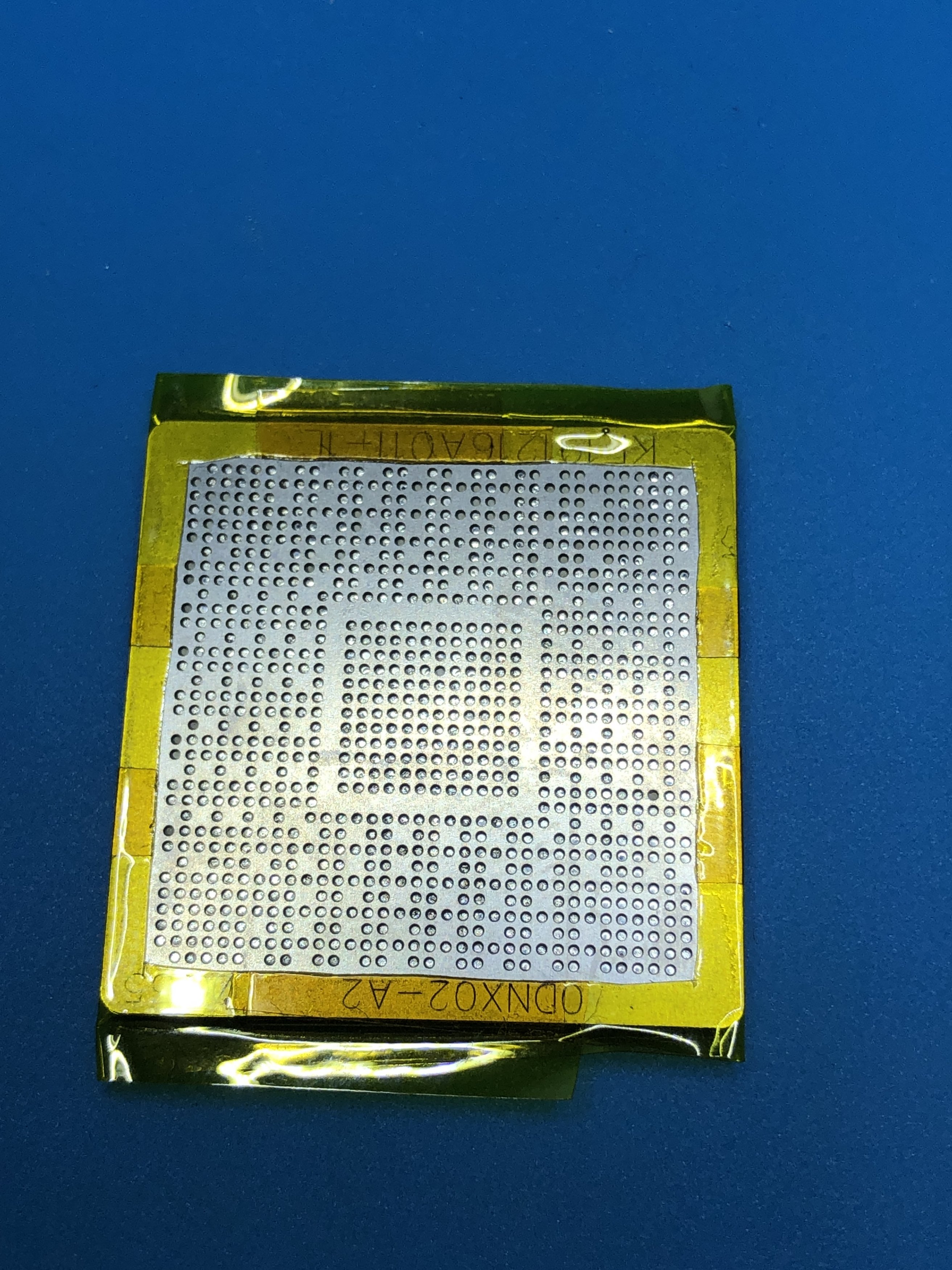

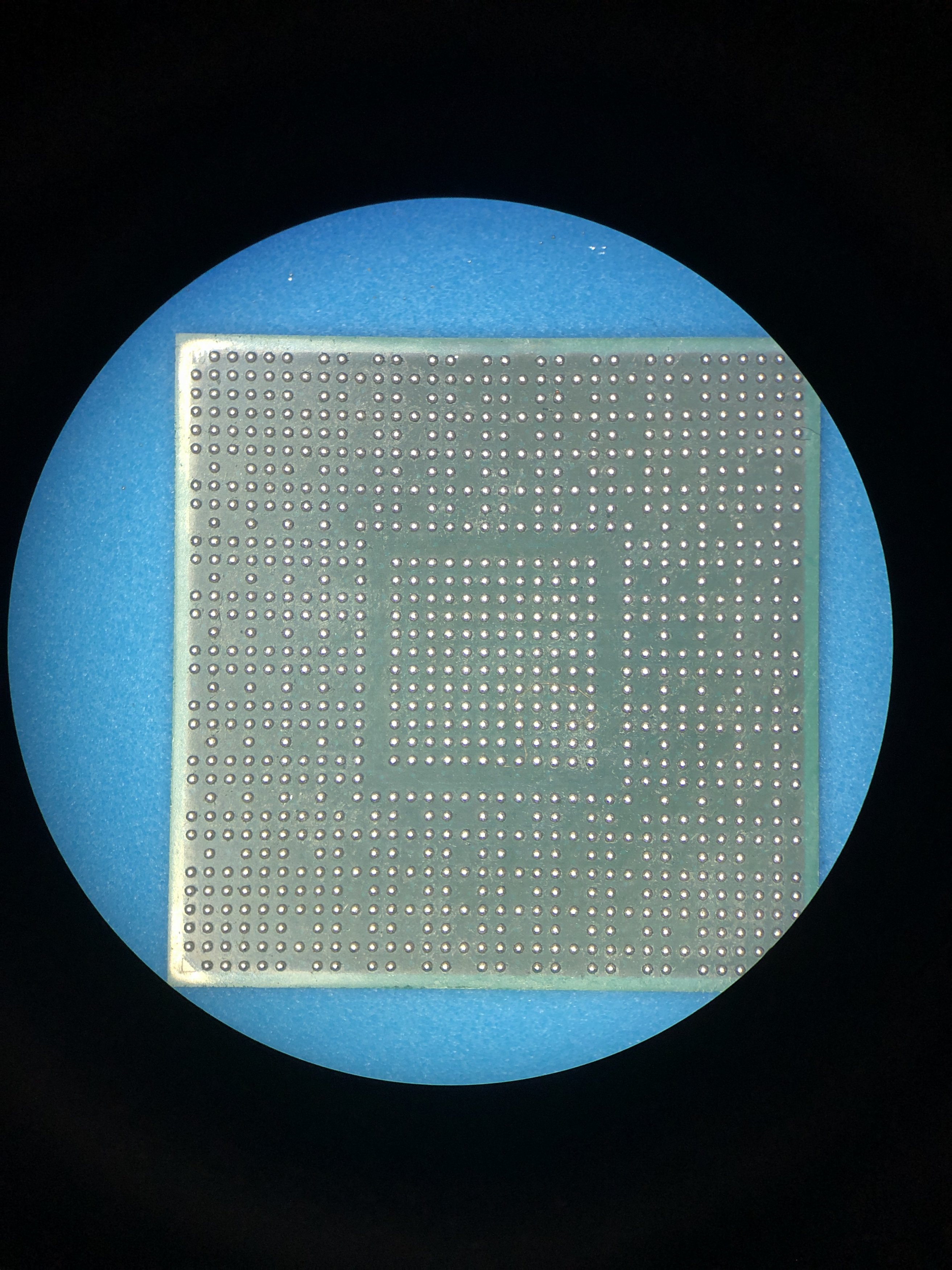

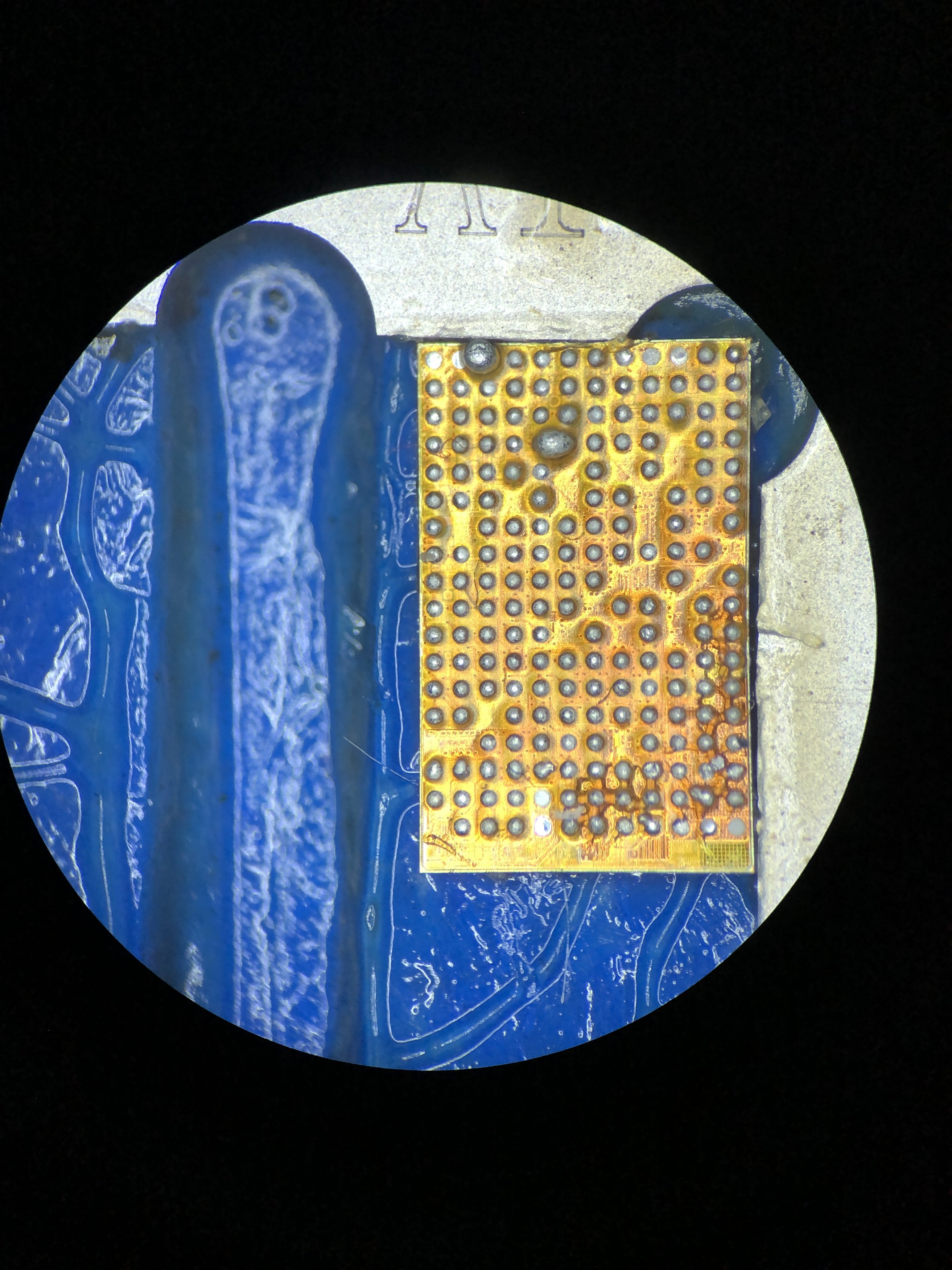

    I thought maybe a component on board B is damaged which prevents charging and booting, therefore I tried the board swap. First I removed the CPU with the big noozle of the heatgun at around 400° for about 2-4min and a certain amount of air flow. Then reballing with the WYLIE WL-200 183° solder paste and reinstalling. Afterwards I removed the WIFI IC and reballed it with an iPhone stencil since I haven't received the stencil for the WIFI IC yet. I used 0.2mm balls instead of the solder paste because some pads must be left free (see images). Last but not least I reinstalled a BQ24193, a P13USB, a USB Port and a few other parts which I removed some time ago.

    I did a check of the M92T36, seems to work as expected, around 3-4V on PIN 5 & 6. The BQ24193 looks also good and I can't find any shorts on caps near the important chips. Even the short near the USB ic was gone which indicates a faulty CPU. When I plug the usb cable in it starts charging at 0.46 amps again and the computer is able to recognize it, but it won't boot. So in my opinion the board swap worked, but I've the same symptoms as on board A since it's an issue with the CPU, or do you guys know how to fix the slow charging issue?

    As soon as I get a working CPU + NAND + WIFI I'll do another board swap to check if it works 100%.


    Attached Files:

    • 1.jpg
      File size:
      1.2 MB
      Views:
      8
    • 2.jpg
      File size:
      1.1 MB
      Views:
      10
    • 3.jpg
      File size:
      1.3 MB
      Views:
      10
    • 4.jpg
      File size:
      1.3 MB
      Views:
      10
    • 5.jpg
      File size:
      1.3 MB
      Views:
      9
    • 6.jpg
      File size:
      1.1 MB
      Views:
      11
    • 7.jpg
      File size:
      1.4 MB
      Views:
      11
    • 8.jpg
      File size:
      1.1 MB
      Views:
      13
    • 9.jpg
      File size:
      1.4 MB
      Views:
      12
    • 10.jpg
      File size:
      953.9 KB
      Views:
      11
    • 11.jpg
      File size:
      1.1 MB
      Views:
      12
    Last edited by seidolino, May 24, 2020 at 12:51 PM
  12. bombob

    bombob Advanced Member
    Newcomer

    Joined:
    May 4, 2020
    Messages:
    58
    Country:
    United States
    Omg awesome work! I really hoped it worked tho. But looking at the pics, you really did a pro job.

    Sent from my SM-N960U using Tapatalk

  13. Ttm3

    Ttm3 Member
    Newcomer

    Joined:
    May 16, 2020
    Messages:
    33
    Country:
    United States
