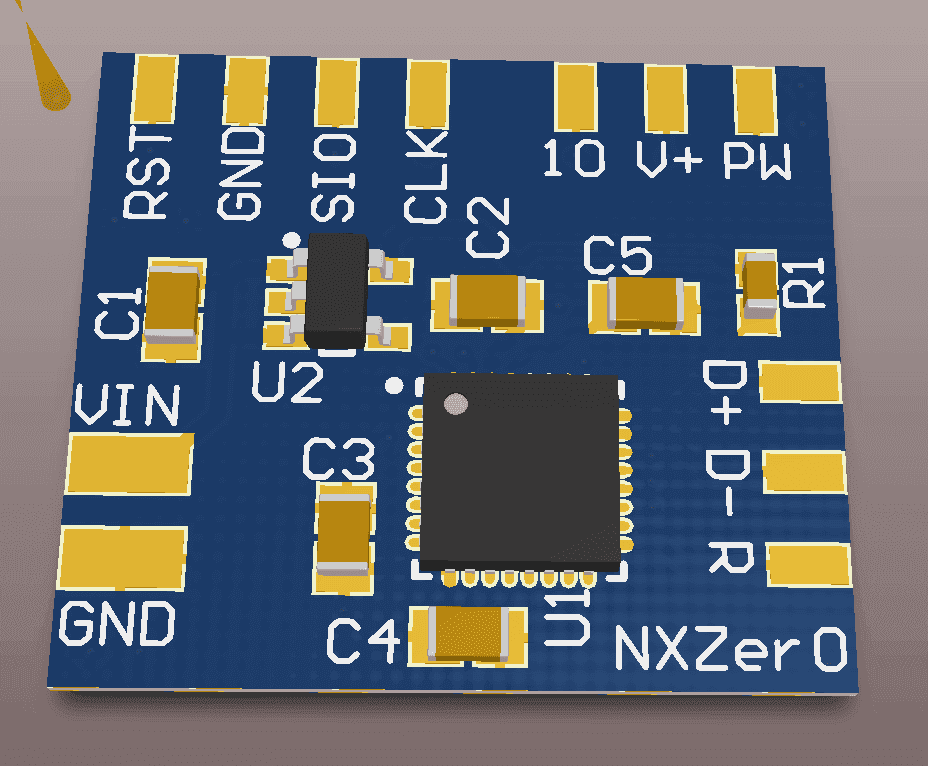

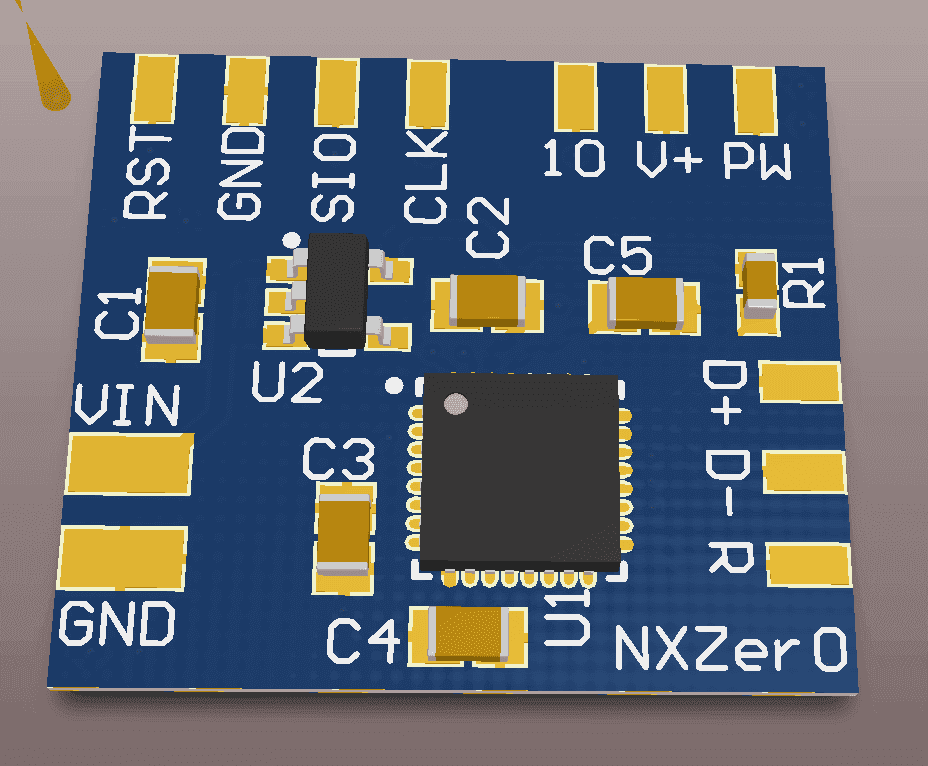

    Hi guys. I'm developing an internally mounted modchip for the switch.
    My goal is to launch directly into RCM without having to corrupt your NAND or push buttons/use jigs. I will make it completely self contained and open source when i finish writing the software. I'm no team rebugged, but i like doing hardware and wanted to make a completely hands off and self contained modchip, since those are features i have yet to see. The design is aimed at people with some soldering experience.
    I will use this thread to post updates and ask/answer questions.




    Have a great day.
    -Goseph

    Last edited: May 28, 2018
  2. SomeGamer

    SomeGamer GBAtemp Guru
    Member

    Joined:
    Dec 19, 2014
    Messages:
    6,761
    Country:
    Antarctica
    Does this mean it will disconnect the NAND or that it will ground pin 10?

    eskinner3742 likes this.
  3. Goseph

    OP Goseph Member
    Newcomer

    Joined:
    May 28, 2018
    Messages:
    16
    Country:
    Denmark
    It will ground pin 10 at boot.

    SomeGamer likes this.
  4. SomeGamer

    SomeGamer GBAtemp Guru
    Member

    Joined:
    Dec 19, 2014
    Messages:
    6,761
    Country:
    Antarctica
    Thanks, that's the least dangerous option IMO.

    Tumoche and realjumy like this.
  5. Goseph

    OP Goseph Member
    Newcomer

    Joined:
    May 28, 2018
    Messages:
    16
    Country:
    Denmark
    Agreed. There is no reason to use any of those methods if it's not explicitly needed.

    SomeGamer likes this.
  6. Frexxos

    Frexxos GBAtemp Fan
    Member

    Joined:
    Apr 27, 2015
    Messages:
    362
    Country:
    Germany
    This looks interesting.
    Or isn't it open source?.

    Last edited: May 28, 2018
  7. SomeGamer

    SomeGamer GBAtemp Guru
    Member

    Joined:
    Dec 19, 2014
    Messages:
    6,761
    Country:
    Antarctica
    It will be.

    Frexxos likes this.
  8. Goseph

    OP Goseph Member
    Newcomer

    Joined:
    May 28, 2018
    Messages:
    16
    Country:
    Denmark
    It is open source. I'm not in this for profit and I will definitely provide all schematics, source code and gerbers when I have it at least semi functional. I am getting some prototypes manufactured right now, but the next month is going to be busy with exams so the amount of work i can do is limited. But if someone really wants the gerbers, i can upload them when i am confident in the designs functionality. It just wouldn't do much without software :)

    Last edited: May 28, 2018
    x3n0, Deathscreton, tecfreak and 3 others like this.
  9. jcrorxp

    jcrorxp Advanced Member
    Newcomer

    Joined:
    May 2, 2018
    Messages:
    56
    Country:
    China
    It means I need a KEY outside switch?

  10. Goseph

    OP Goseph Member
    Newcomer

    Joined:
    May 28, 2018
    Messages:
    16
    Country:
    Denmark
    Not at all. You just have to solder wires to the right pads in the console, the the chip will do the rest.

  11. realjumy

    realjumy Ratkid hunter
    Member

    Joined:
    Apr 24, 2018
    Messages:
    186
    Country:
    United Kingdom
    Which chip are you intending to use?

  12. Goseph

    OP Goseph Member
    Newcomer

    Joined:
    May 28, 2018
    Messages:
    16
    Country:
    Denmark
    ATSAMD21E, since some nicely functional fusee gelee code exists for it. It's also very cheap and has a lot of great features like usb-host built in. Another plus is that I have already worked with atmel chips a couple times, so writing code should be a bit faster. Haven't done much ARM though, that should be interesting.

    Last edited: May 28, 2018
    realjumy and linuxares like this.
  13. Ferris1000

    Ferris1000 GBAtemp Regular
    Member

    Joined:
    Mar 10, 2017
    Messages:
    129
    Country:
    Germany
    I had the same idea for such kind of modchip which is auto pressing the buttons or optional with button pressure which activated the modchip but I’m not sure it will be required for a long time or someone will find a software solution for a coldboot exploit like B9S on the 3DS very soon.
    In my opinion this kind of modchip is the best solution for now because if the modchip stop working your switch will still boot into horizon OS

  14. ry755

    ry755 GBAtemp Advanced Fan
    Member

    Joined:
    Nov 29, 2017
    Messages:
    530
    Country:
    United States
    inb4 TX steals the design and sells it

    But seriously, good job, and it's awesome that it'll be open source!

    Last edited: May 29, 2018
    whateverg1012 likes this.
  15. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,718
    Country:
    United States
    Im using a adafruit trinket m0, they are only like 7usd

    Type_O_Dev likes this.
  16. tecfreak

    tecfreak GBAtemp Regular
    Member

    Joined:
    Apr 24, 2018
    Messages:
    184
    Country:
    Germany
    @Goseph
    Awesome project! That's what I was waiting for.

    I hope your modchip will also be able to trigger RCM and send some payload while sitting in the dock when the switch is powered up.

  17. Xenon Hacks

    Xenon Hacks GBAtemp Guru
    Member

    Joined:
    Nov 13, 2014
    Messages:
    7,411
    Country:
    United States
    its always nice to see something open source, I appreciate your work and charity.

    Last edited: May 29, 2018
  18. aut0mat3d

    aut0mat3d GBAtemp Regular
    Member

    Joined:
    Mar 15, 2017
    Messages:
    212
    Country:
    Australia
    Could you share a link to the source code you mentioned?
    Thanks

  19. tecfreak

    tecfreak GBAtemp Regular
    Member

    Joined:
    Apr 24, 2018
    Messages:
    184
    Country:
    Germany
  20. Soluble

    Soluble GBAtemp Advanced Fan
    Member

    Joined:
    Mar 12, 2017
    Messages:
    609
    Country:
    That's the point of it. A mod will automate the entire process

    fixingmytoys likes this.
