3DS problem with Plailect/Guide: Hourglass9 wont load

Discussion in '3DS - Flashcards & Custom Firmwares' started by Potts, Aug 28, 2016.

  1. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    Hey all, hope to get some help, thought I'd upgrade past a gateway card and use the Plailect/Guide.

    I got as far as the following;

    Completed the downgrade from 10.3 to 9.2.0
    Completed the 2.1.0 ctrtransfer image
    backed up the SysNAND
    completed Section II - Installing arm9loaderhax

    Everything above went through with no noticable glitches.

    When in Section III - Configuring Luma3DS

    Hold select on boot to enter the Luma3DS menu OK
    Make sure to start holding the button before pressing power
    If you get a black screen, follow this troubleshooting guide
    If you boot to SafeA9LHInstaller, follow this troubleshooting guide
    Use the (A) button and the D-Pad to turn on the following:
    "Autoboot SysNAND" OK
    "Show current NAND in System Settings" OK
    "Show GBA boot screen in patched AGB_FIRM" OK
    If you are using a New 3DS, you should also enable the following:
    Toggle "New 3DS CPU" to "Clock+L2(x)" for improved game performance OK
    Press Start to save and reboot OK, but froze as soon as done
    If it freezes, hold the power button until it shuts down, then continue with the instructions, OK done this and rebooted in Luma3DS several times to see if it would save and do something else but it froze everytime. Everytime I reloaded in Luma it had the settings saved, I tried deleting the config file which lost the saved settings and even when tried saving the settings again it still froze everytime.
    For now, booting to a black screen or a message about firmware.bin is normal (Luma3DS cannot boot a 2.1.0 NAND), just continue with the instructionsOK so I continued on.

    Section IV - Restoring the System

    Open Hourglass9 from arm9loaderhax by holding Start on boot loaded blank screen, had to hold power button to shut down
    Go to "SysNAND Backup/Restore..."
    Select "SysNAND Restore"
    Confirm and restore from NANDmin.bin

    Now I could keep holding select to get into Luma, but I looked at the troubleshooting and saw


    Try this test payload (mirror).
    Rename /arm9loaderhax.bin, if it exists, to something else.
    Place the arm9loaderhax.bin from the archive linked above in your SD root.
    Insert your SD card into your 3DS and power on.
    Press (A). Your 3DS should power off; this means arm9loaderhax is working and something else is broken; your device is not bricked. so pressing (A) on blank screen powered down so according to this something else is broken.


    does anyone have any ideas?

    Thanks in advance.

  2. Sykoh

    Sykoh Leader of the Brick Masterrace

    Member
    474
    56
    Aug 21, 2015
    Your Bricked SYSNAND
    do you have hourglass9 in the luma payloads directory with the name start_Hourglass9.bin

  3. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    I put it in /luma/payloads directory, but its filename is "Hourglass9.bin" as per the guide, then I also put it in the /luma directory and parent directory as the same filename just trying to see if it would work

    does it require the "start_" preceding the filename?

    Last edited by Potts, Aug 28, 2016
  4. DavidRO99

    DavidRO99 Average Ryzen user.

    Member
    975
    281
    Jun 11, 2016
    Korea, North
    your back-door
    yes

  5. brigcaster

    brigcaster GBAtemp Regular

    Member
    169
    81
    Mar 17, 2015
    Greece
    Under the Moon
    Yes, it does. In the older guide you did have to add the prefixes "x_" and "y_" for other payloads as well.

  6. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    Thanks Sykoh, worked straight up.

    — Posts automatically merged - Please don't double post! —

    OK,
    1. Open Hourglass9 from arm9loaderhax by holding Start on boot DONE
    2. Go to "SysNAND Backup/Restore..." DONE
    3. Select "SysNAND Restore" DONE
    4. Confirm and restore from NANDmin.bin NO USABLE FILE FOUND, I have the file in the files9 folder as per instruction.
    Should the nand be in a different directory?

  7. brigcaster

    brigcaster GBAtemp Regular

    Member
    169
    81
    Mar 17, 2015
    Greece
    Under the Moon
    Is the .sha file in as well?

  8. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    Yes, both files in /files9 directory.
    NANDmin.bin
    NANDmin.bin.sha

    The countdown timer to reply to a post is a bit annoying.

    — Posts automatically merged - Please don't double post! —

    Should I get my SysNAND backups again, or place them in another directory, or something else?

  9. brigcaster

    brigcaster GBAtemp Regular

    Member
    169
    81
    Mar 17, 2015
    Greece
    Under the Moon
    That's weird :huh:

  10. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    This is all the files in the /files9 directory after my progress so far.


  11. brigcaster

    brigcaster GBAtemp Regular

    Member
    169
    81
    Mar 17, 2015
    Greece
    Under the Moon
    I don't think I can help you further :unsure:
    Hopefully a more experienced member will tune in.

  12. The_Dragons_Mast

    The_Dragons_Mast GBAtemp Advanced Fan

    Member
    613
    19
    Apr 20, 2007
    Egypt

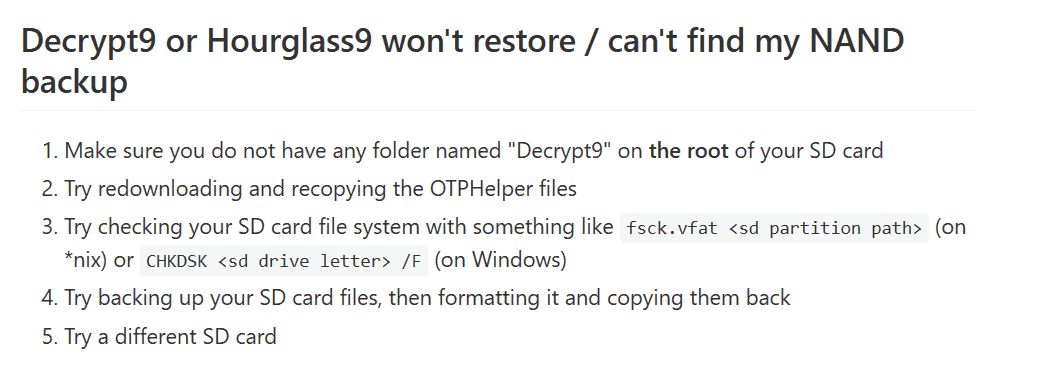

    There is already a part about that in the guide Troubleshooting part

  13. Potts
    OP

    Potts Member

    Newcomer
    14
    0
    Aug 28, 2016
    Thanks Dragon, the checkdisk fixed an error then the SysNAND restore is working now
