Xbox 360 S (Corona) RGH3 no video after XeLL write (xflasher)

[Uiaad]

Hello! You know it's bad when I come asking for help haha.

So I recently bought an Xbox 360 S so that A) I could do some dev on the 360 and B) so my wife can play Viva Piñata again. I'd be happy with BadUpdate/BadAvatar but my wife doesn't get on well with Softmods - Theres a long ass story there but I will leave that to a blog at some point.

So I disassembled the Xbox and installed the SMC_post 1 - Post 1 and SMC_PLL - PLL (with 1k resistor) wires - Checked points with multimeter
Reattached Heatsink and Xclamp
Soldered Xflasher
Reinstalled the front panel connector
Connected power
Connected Xflasher
Dumped NAND x2 and matched
Checked Kernel Version ( 17559 )
Checked Glitch 2 is selected
Checked RGH3 25Mhz is selected
Created XeLL
Wrote XeLL (successful)
Disconnected Xflasher
Connected HDMI and Powered on

And that's where I get a big black screen of nothing. I say black screen, but there is no video output being detected ( used several different cables and Monitors/TVs)

Now, if I flash the original NAND back and power on the Xbox boots just fine

If anyone has any ideas about what's going on here, it would be much appreciated



[Vstromakias]

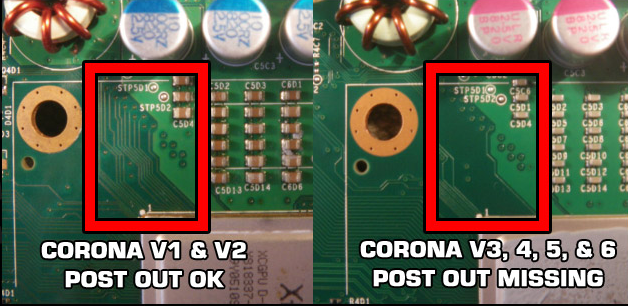

console version? is there a post-out or did you have to install it? corona 3-4-5-6 is missing and you have to install it.



[Uiaad]

console version? is there a post-out or did you have to install it? corona 3-4-5-6 is missing and you have to install it.

Its a v1/v2

Knew I'd miss something on my original post haha



[Vstromakias]

Its a v1/v2

Knew I'd miss something on my original post haha

My console is corona v2 too but it was missing post-out (there are some 4giga). If you are not in this situation, then some cable is not making good contact.



[Uiaad]

I'll take another look first thing in the morning just to make sure I haven't missed anything



[TheStonedModder]

I have a similar issue on an mw2 jasper lmk if you figure it out

I wrote and booted into xell for about 20 seconds and than jt no longer boots or shows video again



[Uiaad]

I have a similar issue on an mw2 jasper lmk if you figure it out

I wrote and booted into xell for about 20 seconds and than jt no longer boots or shows video again

I'll keep you in the loop if I figure anything out. I had to take today off, looking at it due to a flare-up of a frozen shoulder



[Uiaad]

@Vstromakias Thank you for your help, I'm an absolute idiot. This is infact the Second Xbox I've had in the last week. First one I Royall screwed up the PLL but it was 100% a V2... you can see where this is going ... Seems I never bothered to check the second one (because as I said I'm a raging idiot) is infact a V3 :/
I've ordered a postfix and will report back in a couple of days

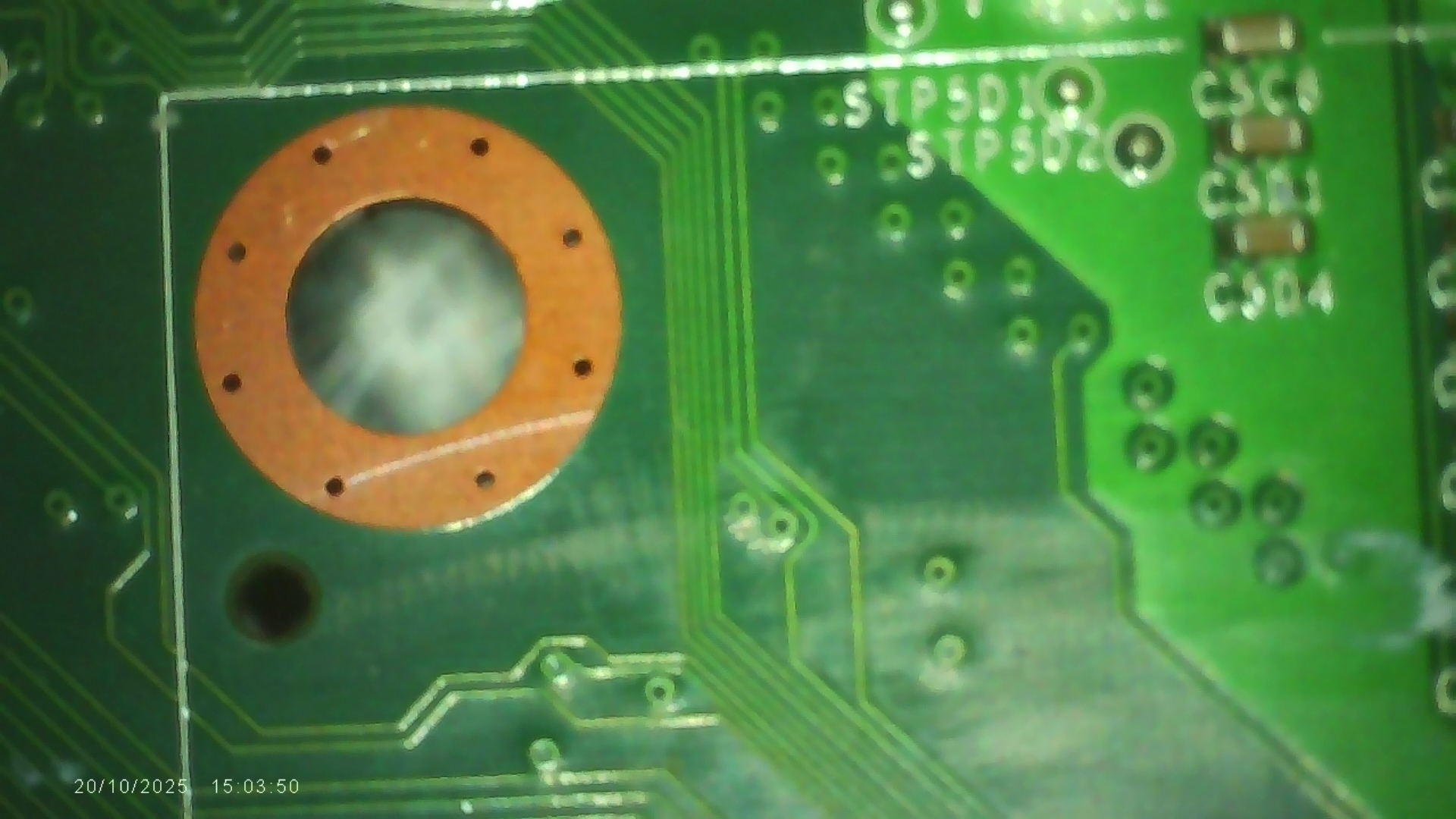

Spoiler: Blurry Pic of shame



[Vstromakias]

@Vstromakias Thank you for your help, I'm an absolute idiot. This is infact the Second Xbox I've had in the last week. First one I Royall screwed up the PLL but it was 100% a V2... you can see where this is going ... Seems I never bothered to check the second one (because as I said I'm a raging idiot) is infact a V3 :/
I've ordered a postfix and will report back in a couple of days

Spoiler: Blurry Pic of shame

View attachment 534568

everything is fine then since it is only post fix. you can use a trimmer to cut the corner and attach a cable to the forth leg.

I have a corona v2 4giga that is missing the post.



[Uiaad]

everything is fine then since it is only post fix. you can use a trimmer to cut the corner and attach a cable to the forth leg.

I have a corona v2 4giga that is missing the post.

I considered doing that but my tools arent what the used to be haha I miss my microscope at my last job :'(

Post automatically merged: Oct 21, 2025

@Vstromakias Don't suppose you have a sacrificial goat I could borrow ? Bloody postfix arrived broken

Spoiler: Broken dreams
