- Run the OSDriver exploit
- Run the Cafiine installer
- Open the Cafiine server
- Start a game
- The server will tell you the ID of the game. Create a folder in cafiine_root and name it like the ID
- Restart the game
- The server will tell you the files that are being loaded from the disc or the folder you created
BFSTM. On the right hand side, there's options for BRSTM, BCSTM, and BFSTM. Take this song, Dancing Mad, for example:
http://brawlcustommusic.com/38760
- Joined
- Jan 7, 2014
- Messages
- 14,523
- Trophies
- 3
- Location
- Another World
- Website
- www.gbatemp.net
- XP
- 24,140
- Country
-
okay so I finally managed to set my local server, and got cafiine on it.
But, I'm hitting a wall now.
If I lauch cafiine, enter my pc ip address, and then attempt to load dk64, the console freezes.
If I load the game before, then load the browser from it, caffine seems to launch, but nothing seems to happen on my pc cafiine server app
I will try withn another and see if I can get it to work.
But, I'm hitting a wall now.
If I lauch cafiine, enter my pc ip address, and then attempt to load dk64, the console freezes.
If I load the game before, then load the browser from it, caffine seems to launch, but nothing seems to happen on my pc cafiine server app
I will try withn another and see if I can get it to work.
I think the site does it behind the scenes because the stream data is encoded in a similar way, so they just grab the loop data and can freely switch between formats at will. I'm not 100% certain of this though, you'd have to get in touch with @soneek.This means an encoder exists somewhere...
Pretty much. Here's a PHP script for going from brstm to bcstm or bfstm. Run it as
Code:
php brstmConv.php "song.brstm" bfstm
Code:
<?php
// Written by soneek [[email protected]][http://github.com/soneek]
function hex2str($hex) { // from http://www.linux-support.com/cms/php-convert-hex-strings-to-ascii-strings/
$str = '';
for($i=0;$i<strlen($hex);$i+=2) $str .= chr(hexdec(substr($hex,$i,2)));
return $str;
}
function read( $handle, $offset, $nbytes, $type/*bin=0 hex=1 dec=2*/, $endianFlag)
{
fseek( $handle, $offset );
if ($endianFlag)
$output = strrev(fread( $handle, $nbytes ));
else
$output = fread( $handle, $nbytes );
if ( $type != "b" ) {
$output = bin2hex($output);
}
if ( $type == "d" ) {
$output = hexdec( $output );
}
else if ($type == "s") {
$output = hex2str($output);
}
return $output;
}
$file = $argv[1];
if ( !file_exists( $file ) ) {
echo "File doesn't exist (" . $file . ")\n";
exit;
}
else {
if (!isset($argv[2]) || ($argv[2] != "bcstm" && $argv[2] != "bfstm"))
$type = "bcstm"; // Default option will be bcstm output
else
$type = $argv[2];
if (isset($argv[3]) && $argv[3] == "fea")
$game = "fea";
else
$game = "";
if ($type == "bcstm")
$endFlag = true;
else
$endFlag = false;
$brstm = fopen($file, "rb");
if (read($brstm, 0, 4, "s", 0) != "RSTM") {
echo "Not a brstm file\n";
fclose($brstm);
exit;
}
else {
echo "BRSTM opened\n";
$rstmSize = read($brstm, 8, 4, "d", $endFlag);
$rstmInfoOffset = read($brstm, 0x10, 4, "d", 0);
$rstmType = read($brstm, 0x60, 1, "d", $endFlag);
if ($rstmType != 2) {
echo "This only supports BRSTMs with the DSP-ADPCM codec\n";
fclose($brstm);
exit;
}
else {
$rstmSize = read($brstm, 0x8, 4, "d", false);
$rstmInfoSize = read($brstm, 0x14, 4, "d", false);
$rstmSeekOffset = read($brstm, 0x18, 4, "d", false);
$rstmSeekSize = read($brstm, 0x1c, 4, "d", false);
$rstmDataOffset = read($brstm, 0x20, 4, "d", false);
$rstmDataSize = read($brstm, 0x24, 4, "d", false);
$rstmLoopFlag = read($brstm, 0x61, 1, "d", false);
$rstmChannelCount = read($brstm, 0x62, 1, "d", false);
$rstmSampleRate = read($brstm, 0x64, 2, "d", false);
$rstmLoopStart = read($brstm, 0x68, 4, "d", false);
$rstmSampleCount = read($brstm, 0x6c, 4, "d", false);
$coeffPtr1 = read($brstm, 0x5c, 4, "d", false);
$coeffPtr2 = read($brstm, $coeffPtr1 + 0x50, 4, "d", false);
$coeffOffset = 0x50 + $coeffPtr2;
// Opening output file
$outfile = fopen(str_replace("brstm", $type, $file), "wb");
if ($type == "bcstm") {
fwrite($outfile, "CSTM" . pack("vvvnVvvvvVVvvVVvvV*", 0xfeff, 0x40, 0, 2, $rstmSize, 3, 0, 0x4000, 0, $rstmInfoOffset, $rstmInfoSize, 0x4001, 0, $rstmSeekOffset, $rstmSeekSize, 0x4002, 0, $rstmDataOffset, $rstmDataSize, 0, 0) . "INFO" . pack("VvvVvvVvvV", $rstmInfoSize, 0x4100, 0, 0x18, 0x101, 0, 0x50, 0x101, 0, 0x54 + ceil($rstmChannelCount / 2) * 8) . pack("CCCCV*", $rstmType, $rstmLoopFlag, $rstmChannelCount, 0, $rstmSampleRate, $rstmLoopStart, $rstmSampleCount));
for ($i = 0; $i < 6; $i++)
fwrite($outfile, read($brstm, 0x74 + $i * 4, 4, "b", $endFlag));
fwrite($outfile, pack("VVvvVV", 4, 0x3800, 0x1f00, 0, 0x18, ceil($rstmChannelCount / 2)));
for ($i = 0; $i < ceil($rstmChannelCount / 2); $i++)
fwrite($outfile, pack("vvV", 0x4101, 0, $rstmChannelCount * 12 + 8 + $i * 0x14));
fwrite($outfile, pack("V", $rstmChannelCount));
for ($i = 0; $i < $rstmChannelCount; $i++)
fwrite($outfile, pack("vvV", 0x4102, 0, 4 + $rstmChannelCount * 8 + ($rstmChannelCount / 2) * 0x14 + $i * 8));
$rstmBlahMetaDataOffset = read($brstm, 0x9c, 4, "d", false);
for ($i = 0; $i < $rstmChannelCount / 2; $i++) {
if ($game == "fea" && $i == 0)
fwrite($outfile, pack("CCvvvVVccv", 0x73, 64, 0, 0x100, 0, 0xc, 2, 2 * $i, 2 * $i + 1, 0));
else
fwrite($outfile, pack("CCvvvVVccv", 127, 64, 0, 0x100, 0, 0xc, 2, 2 * $i, 2 * $i + 1, 0));
}
for ($i = 0; $i < $rstmChannelCount; $i++)
fwrite($outfile, pack("vvV", 0x300, 0, $rstmChannelCount * 8 + $i * 0x26));
// Now to write coefficients and stuff
for ($i = 0; $i < $rstmChannelCount; $i++) {
for ($j = 0; $j < 16; $j++)
fwrite($outfile, read($brstm, $coeffOffset + $i * 0x38 + $j * 2, 2, "b", $endFlag));
for ($j = 0; $j < 7; $j++)
fwrite($outfile, read($brstm, $coeffOffset + $i * 0x38 + $j * 2 + 0x22, 2, "b", $endFlag));
}
// Padding the file
if ((ftell($outfile) % 16) != 0)
$padlength = 16 - (ftell($outfile) % 16);
else
$padlength = 0;
for ($i = 0; $i < $padlength; $i++)
fwrite($outfile, pack("C", 0));
$infoSizeDifference = $rstmInfoSize + $rstmInfoOffset - ftell($outfile);
echo $rstmInfoOffset;
fseek($outfile, 0xc, SEEK_SET);
fwrite($outfile, pack("V", $rstmSize - $infoSizeDifference));
fseek($outfile, 0x1c, SEEK_SET);
fwrite($outfile, pack("V", $rstmInfoSize - $infoSizeDifference));
fseek($outfile, 0x24, SEEK_SET);
fwrite($outfile, pack("V", $rstmSeekOffset - $infoSizeDifference));
fseek($outfile, 0x30, SEEK_SET);
fwrite($outfile, pack("V", $rstmDataOffset - $infoSizeDifference));
fseek($outfile, 0, SEEK_END);
fseek($brstm, $rstmSeekOffset + 0x10, SEEK_SET);
fwrite($outfile, "SEEK" . pack("V*", $rstmSeekSize, 0, 0));
for ($i = 0; $i < ($rstmSeekSize - 16) / 2; $i++)
fwrite($outfile, strrev(fread($brstm, 2)));
fseek($brstm, $rstmDataOffset + 0x20, SEEK_SET);
fwrite($outfile, "DATA" . pack("V*", $rstmDataSize, 0, 0, 0, 0, 0, 0));
}
// Converting BRSTM to BFSTM
else if ($type == "bfstm") {
fwrite($outfile, "FSTM" . pack("nnnnNnnnnNNnnNNnnN*", 0xfeff, 0x40, 3, 0, $rstmSize, 3, 0, 0x4000, 0, $rstmInfoOffset, $rstmInfoSize, 0x4001, 0, $rstmSeekOffset, $rstmSeekSize, 0x4002, 0, $rstmDataOffset, $rstmDataSize, 0, 0) . "INFO" . pack("NnnNnnNnnN", $rstmInfoSize, 0x4100, 0, 0x18, 0x101, 0, 0x50, 0x101, 0, 0x54 + ceil($rstmChannelCount / 2) * 8) . pack("CCCCN*", $rstmType, $rstmLoopFlag, $rstmChannelCount, 0, $rstmSampleRate, $rstmLoopStart, $rstmSampleCount));
for ($i = 0; $i < 6; $i++)
fwrite($outfile, read($brstm, 0x74 + $i * 4, 4, "b", $endFlag));
fwrite($outfile, pack("NNnnNV", 4, 0x3800, 0x1f00, 0, 0x18, ceil($rstmChannelCount / 2)));
for ($i = 0; $i < ceil($rstmChannelCount / 2); $i++)
fwrite($outfile, pack("nnN", 0x4101, 0, $rstmChannelCount * 12 + 8 + $i * 0x14));
fwrite($outfile, pack("N", $rstmChannelCount));
for ($i = 0; $i < $rstmChannelCount; $i++)
fwrite($outfile, pack("nnN", 0x4102, 0, 4 + $rstmChannelCount * 8 + ceil($rstmChannelCount / 2) * 0x14 + $i * 8));
for ($i = 0; $i < $rstmChannelCount / 2; $i++) {
fwrite($outfile, pack("CCnNNNCCn", 127, 64, 0, 0x100, 0xc, 2, 2 * $i, 2 * $i + 1, 0));
}
for ($i = 0; $i < $rstmChannelCount; $i++)
fwrite($outfile, pack("nnN", 0x300, 0, $rstmChannelCount * 8 + $i * 0x26));
for ($i = 0; $i < $rstmChannelCount; $i++) {
for ($j = 0; $j < 16; $j++)
fwrite($outfile, read($brstm, $coeffOffset + $i * 0x38 + $j * 2, 2, "b", $endFlag));
for ($j = 0; $j < 7; $j++)
fwrite($outfile, read($brstm, $coeffOffset + $i * 0x38 + $j * 2 + 0x22, 2, "b", $endFlag));
}
// Padding the file
if ((ftell($outfile) % 16) != 0)
$padlength = 16 - (ftell($outfile) % 16);
else
$padlength = 0;
for ($i = 0; $i < $padlength; $i++)
fwrite($outfile, pack("C", 0));
$infoSizeDifference = $rstmInfoSize + $rstmInfoOffset - ftell($outfile);
echo $rstmInfoOffset;
fseek($outfile, 0xc, SEEK_SET);
fwrite($outfile, pack("N", $rstmSize - $infoSizeDifference));
fseek($outfile, 0x1c, SEEK_SET);
fwrite($outfile, pack("N", $rstmInfoSize - $infoSizeDifference));
fseek($outfile, 0x24, SEEK_SET);
fwrite($outfile, pack("N", $rstmSeekOffset - $infoSizeDifference));
fseek($outfile, 0x30, SEEK_SET);
fwrite($outfile, pack("N", $rstmDataOffset - $infoSizeDifference));
fseek($outfile, 0, SEEK_END);
fseek($brstm, $rstmSeekOffset + 0x10, SEEK_SET);
fwrite($outfile, "SEEK" . pack("N*", $rstmSeekSize, 0, 0));
for ($i = 0; $i < ($rstmSeekSize - 16) / 2; $i++)
fwrite($outfile, fread($brstm, 2));
fseek($brstm, $rstmDataOffset + 0x20, SEEK_SET);
fwrite($outfile, "DATA" . pack("N*", $rstmDataSize, 0, 0, 0, 0, 0, 0));
}
// The DATA portion is exactly the same, between B(R/C/F)STM, so we can copy the rest as is
while(!feof($brstm))
fwrite($outfile, fread($brstm, 1024 * 8));
}
}
fclose($outfile);
fclose($brstm);
}
?>If someone really wanted to, they could write a b*stm to b*stm re-writer. The song data is exactly the same, but the headers and previous sections are structure a little differently.
- Joined
- Jan 7, 2014
- Messages
- 14,523
- Trophies
- 3
- Location
- Another World
- Website
- www.gbatemp.net
- XP
- 24,140
- Country
-
How does save data work? For example, you start a save in Banjo-Kazooie, then load the default VC game, play it, then load Banjo-Kazooie again thru Cafiine. Is the BK save data still intact?
- Joined
- Jan 7, 2014
- Messages
- 14,523
- Trophies
- 3
- Location
- Another World
- Website
- www.gbatemp.net
- XP
- 24,140
- Country
-
I will try
--------------------- MERGED ---------------------------
My save state still work after reloading dk64. then exiting and reloading banjo kazooie
I can't tell about sram, but dk64 sram remained intact it seems.
Thank you, it worked!!!
May I add it to BRSTM/BCSTM Conversion Tool, so that it becomes BRSTM/BCSTM/BFSTM Conversion Tool?
I'll add your name to the button if you let me
Thank you, it worked!!!
May I add it to BRSTM/BCSTM Conversion Tool, so that it becomes BRSTM/BCSTM/BFSTM Conversion Tool?
I'll add your name to the button if you let me
That's fine with me. Also note that this works with BRSTMs of any channel count.
- Joined
- Apr 29, 2011
- Messages
- 31,284
- Trophies
- 2
- Age
- 37
- Location
- Dr. Wahwee's castle
- XP
- 18,941
- Country
-
*Sees attachment, weeps bitterly as I realize how far behind I am*
Any sound? Oh man....I've been missing a lot. No tutorials, no actual guides how to do ROM injections.....*sigh* c'est la vie.
So far behind I don't even know if I can catch up at this point.
- Joined
- Jan 7, 2014
- Messages
- 14,523
- Trophies
- 3
- Location
- Another World
- Website
- www.gbatemp.net
- XP
- 24,140
- Country
-

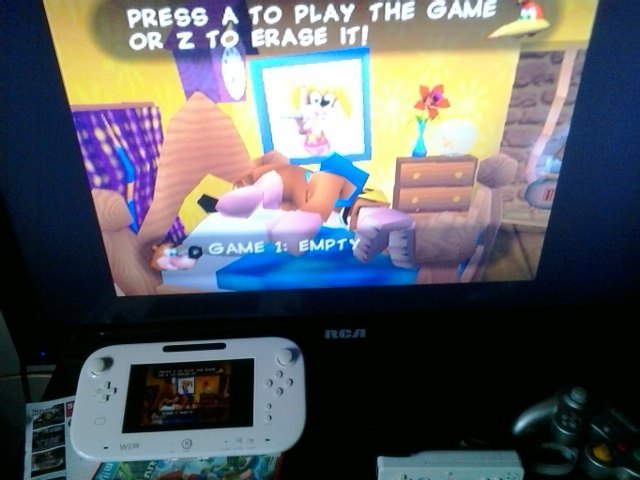

There is sound, save and rumble*Sees attachment, weeps bitterly as I realize how far behind I am*
Any sound? Oh man....I've been missing a lot. No tutorials, no actual guides how to do ROM injections.....*sigh* c'est la vie.
So far behind I don't even know if I can catch up at this point.
Tutorials? I got one (in french) by markus95 at logic-sunrise)
There are tutorials at gbatemp too
