Question Switch wont power on after attempting RCMX86

Discussion in 'Switch - Backup Loaders & Modchips' started by PRAGMA, May 14, 2019.

  1. PRAGMA
    OP

    PRAGMA GBAtemp Addict

    Member
    13
    Dec 29, 2015
    Ireland
    127.0.0.1
    [​IMG]

    As you can see, ive soldered the common points for rcmx86, including under nand, yes not the best job, but regardless this doesnt turn on or show anything on screen and I have no idea why, any ideas, or stuff I should try let me know

    Some closer higher res images of the common pads, under emmc nand the 2 points seem to be a perfect job but if needed I can capture that too.
    https://imgur.com/gallery/UXWoBrH

    Last edited by PRAGMA, May 14, 2019
  2. Kubas_inko

    Kubas_inko "Something funny goes here."

    Member
    14
    Feb 3, 2017
    Czech Republic
    I gues on earth.
    Do you have autorcm? What is your fuse count? Was it working properly with the modchip? Why did you remove it? What actually happened?

  3. Hayato213

    Hayato213 GBAtemp Guru

    Member
    12
    Dec 26, 2015
    United States
    Did you unplug battery before soldering?

    Kubez likes this.
  4. PRAGMA
    OP

    PRAGMA GBAtemp Addict

    Member
    13
    Dec 29, 2015
    Ireland
    127.0.0.1
    Autorcm no, Fuse count last I checked was 7 or 8, 8 i think, It was but remember I was having joycon issues, I removed it to make the wires smaller as they were extremely long and to do a better solder on them in general.
    I have no idea what caused it to stop working, though the last time I did something before the issues arrised was I was messing around with a multimeter to check if gnd near power was sending to stuff on D+/D- and to check if D+/D- was sending to the RCMX86 (which they all were).

    — Posts automatically merged - Please don't double post! —

    I wont lie im pretty sure I forgot to at some points

  5. ModderFokker619

    ModderFokker619 GBAtemp Advanced Fan

    Member
    6
    Oct 2, 2015
    United States
    California

    If you removed ribbon cable next to joycon then reseat it - It doesn't look all the way in. This cable will stop switch from posting.

  6. Hayato213

    Hayato213 GBAtemp Guru

    Member
    12
    Dec 26, 2015
    United States
    I wont lie im pretty sure I forgot to at some points[/QUOTE]

    Well there is your issue, you need to unplug battery when soldering, probably a damaged board now.

  7. PRAGMA
    OP

    PRAGMA GBAtemp Addict

    Member
    13
    Dec 29, 2015
    Ireland
    127.0.0.1
    It does look out a bit but im unable to push it in any further

    — Posts automatically merged - Please don't double post! —

    Well there is your issue, you need to unplug battery when soldering, probably a damaged board now.[/QUOTE]
    If I plug it into my PC it shows up as a malformed USB configuration device, so its fairly odd

    — Posts automatically merged - Please don't double post! —

    I added higher res pics of some areas, perhaps may help

  8. ModderFokker619

    ModderFokker619 GBAtemp Advanced Fan

    Member
    6
    Oct 2, 2015
    United States
    California
    If I plug it into my PC it shows up as a malformed USB configuration device, so its fairly odd

    — Posts automatically merged - Please don't double post! —

    I added higher res pics of some areas, perhaps may help[/QUOTE]


    Just checked mine and yours looks a bit out - That is most likely your issue. Push clip up and try pushing in with tweezers one side at a time and see if it goes in more. I had a brand new switch in that was sensitive there.

  9. PRAGMA
    OP

    PRAGMA GBAtemp Addict

    Member
    13
    Dec 29, 2015
    Ireland
    127.0.0.1

    Just checked mine and yours looks a bit out - That is most likely your issue. Push clip up and try pushing in with tweezers one side at a time and see if it goes in more. I had a brand new switch in that was sensitive there.[/QUOTE]
    Im really trying but it genuinely wont go in any further

  10. ModderFokker619

    ModderFokker619 GBAtemp Advanced Fan

    Member
    6
    Oct 2, 2015
    United States
    California
    Im really trying but it genuinely wont go in any further[/QUOTE]


    K what power point did you use>? If you got any flux on that ribbon cable clean it as best as possible.

  11. PRAGMA
    OP

    PRAGMA GBAtemp Addict

    Member
    13
    Dec 29, 2015
    Ireland
    127.0.0.1

    K what power point did you use>? If you got any flux on that ribbon cable clean it as best as possible.[/QUOTE]
    no flux it seems, power point? as in like VCC for the chip? i used the 2 points under the nand

    — Posts automatically merged - Please don't double post! —

    its most likely a dead board :/
    just gonna buy a new one

  12. jcrorxp

    jcrorxp Advanced Member

    Newcomer
    2
    May 2, 2018
    China
    s20190515134846.

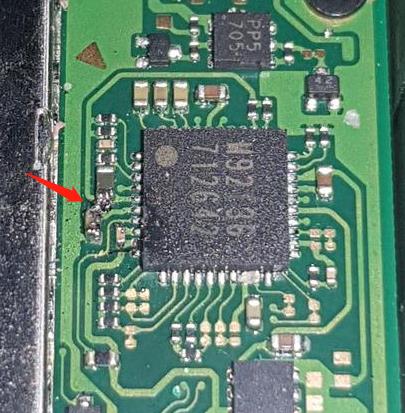

    may be this is the problem. the switch can not power on if m92t36 is broken

  13. iCEQB

    iCEQB GBAtemp Advanced Fan

    Member
    8
    Nov 2, 2013
    United States
    This is also my guess, it looks like a solder bridge.
