Hardware Switch hard mod NAND dump, with Low Voltage eMMC Adapter.

FXDX

Well-Known Member
OP
Member
Joined
Sep 15, 2019
Messages
301
Trophies
0
XP
1,660
Country
Dominican Republic
Hello guys

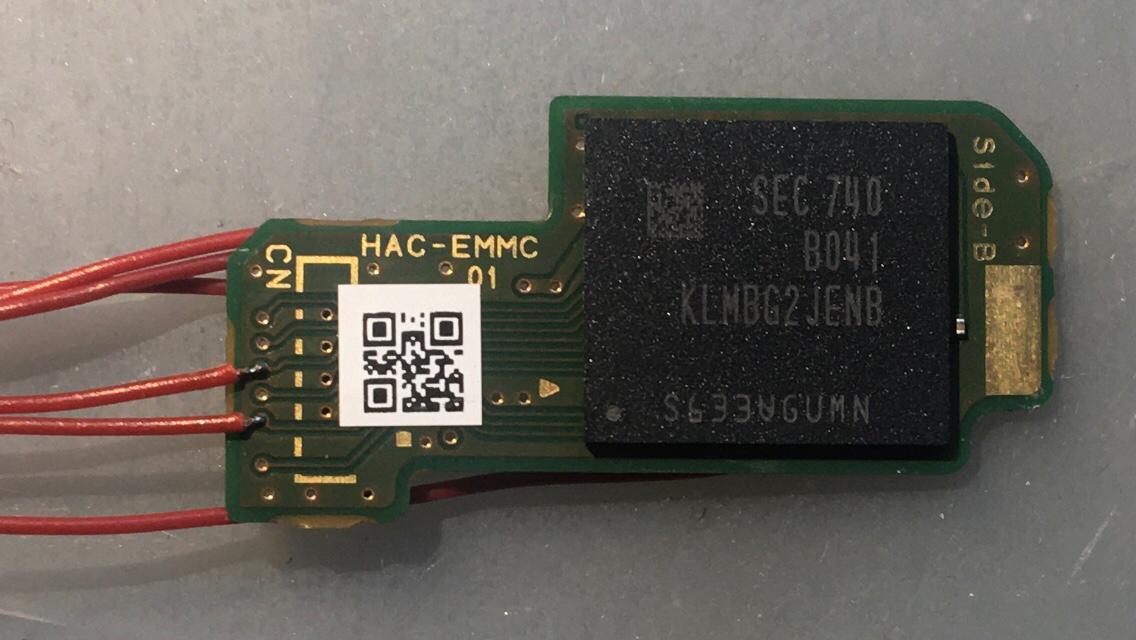

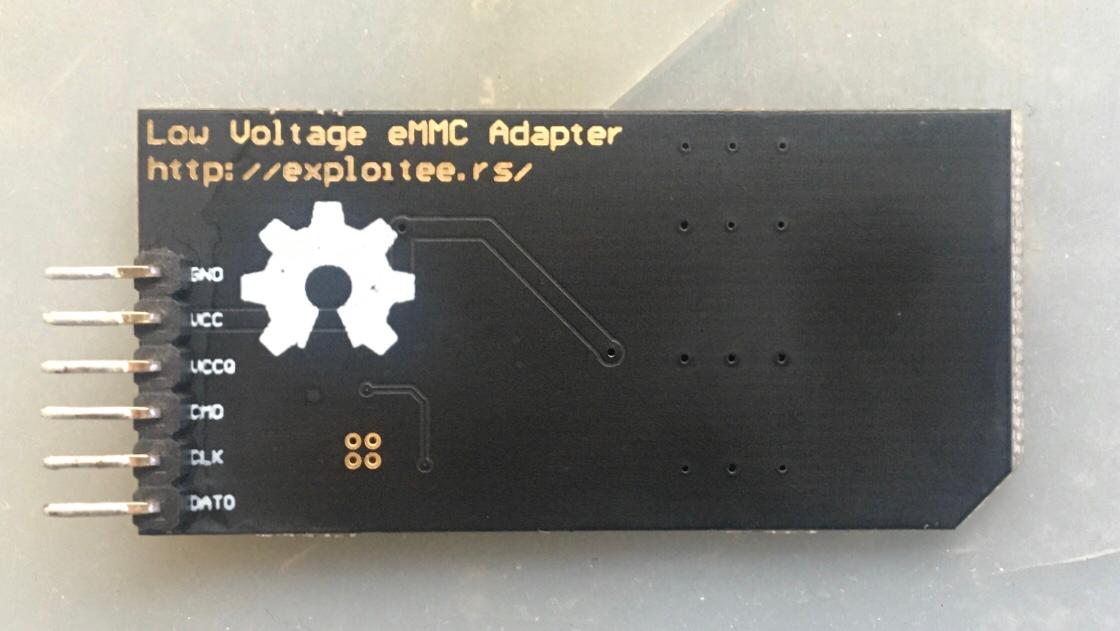

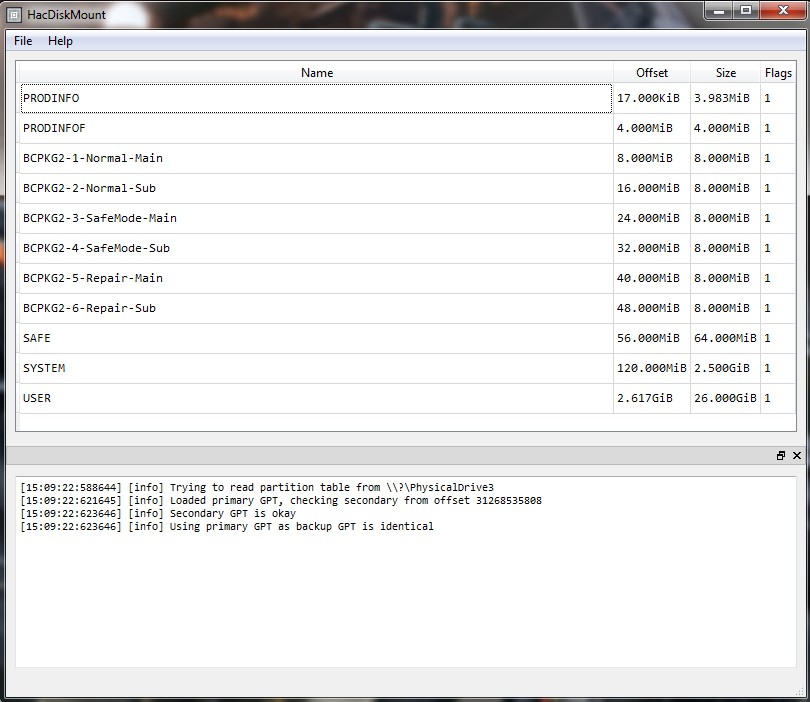

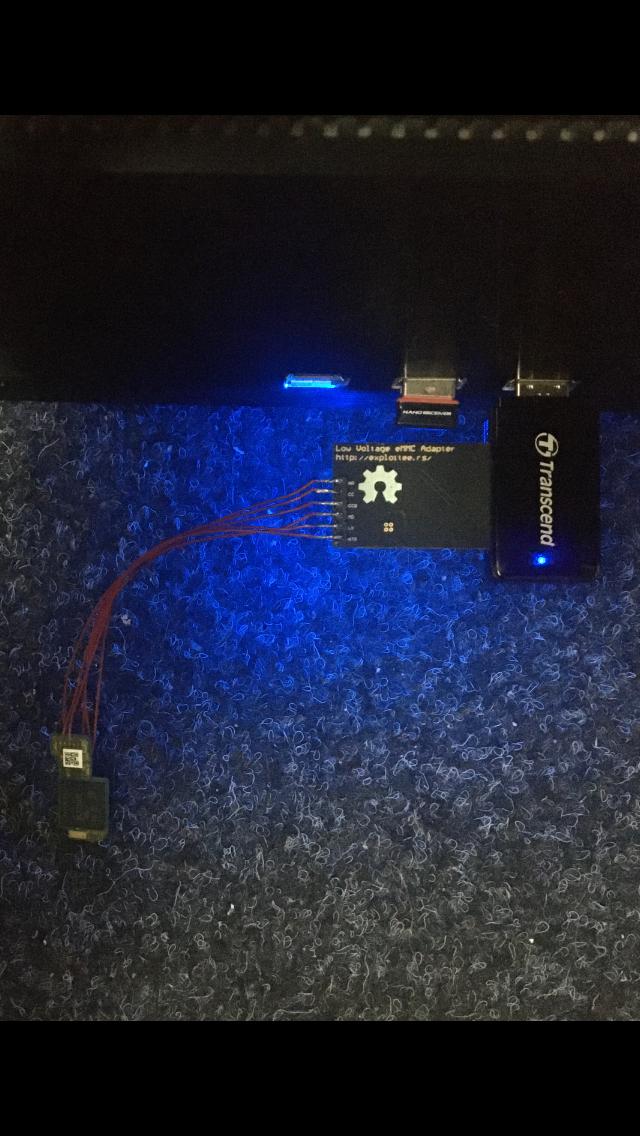

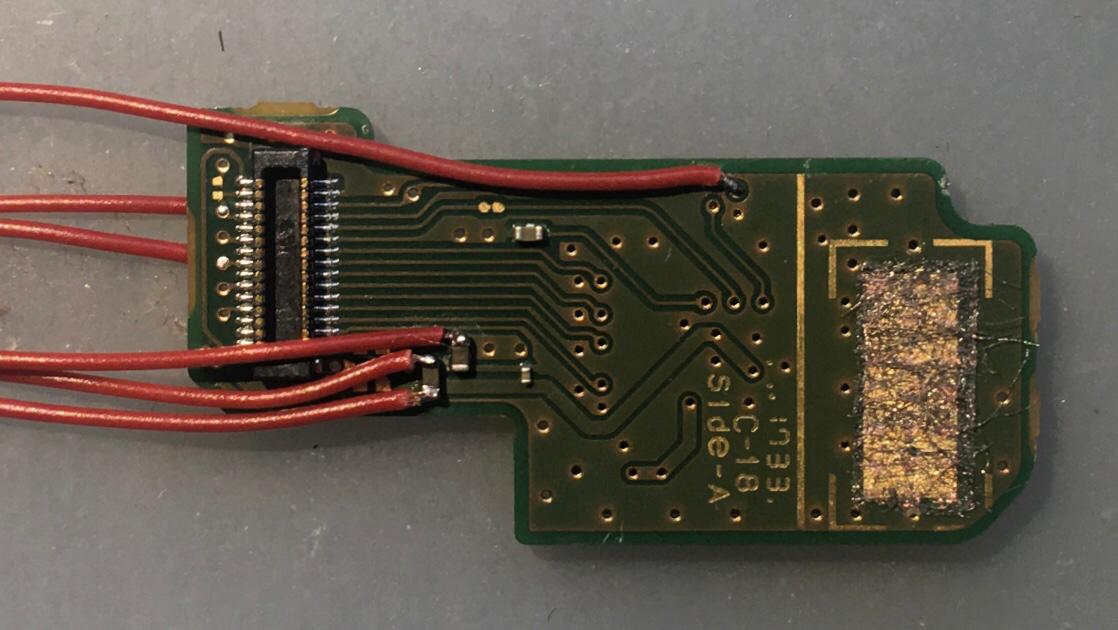

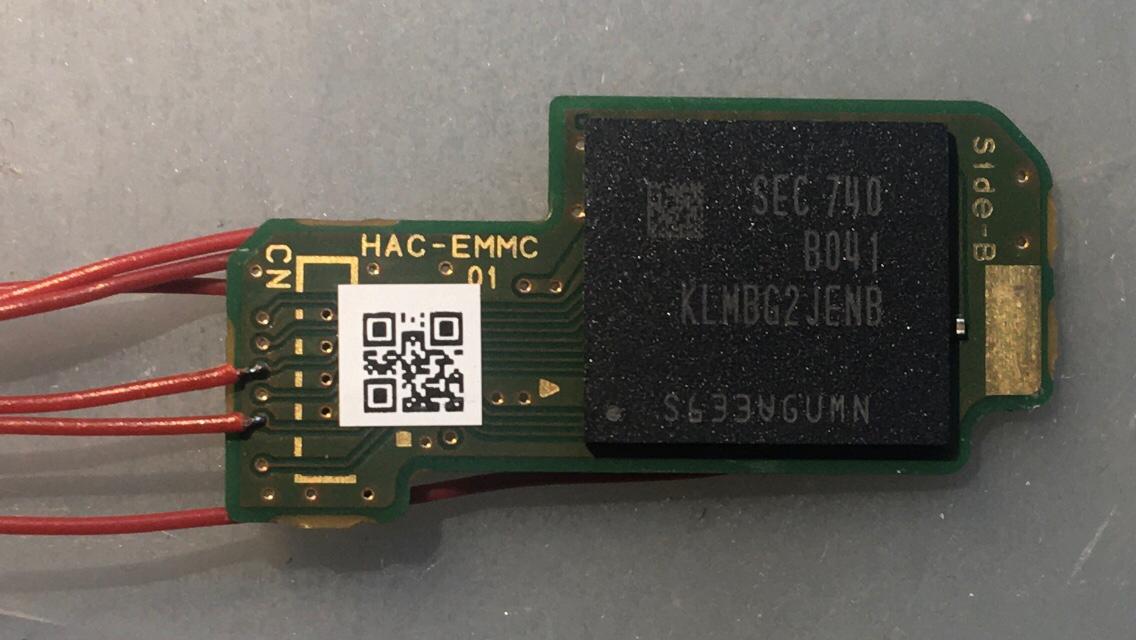

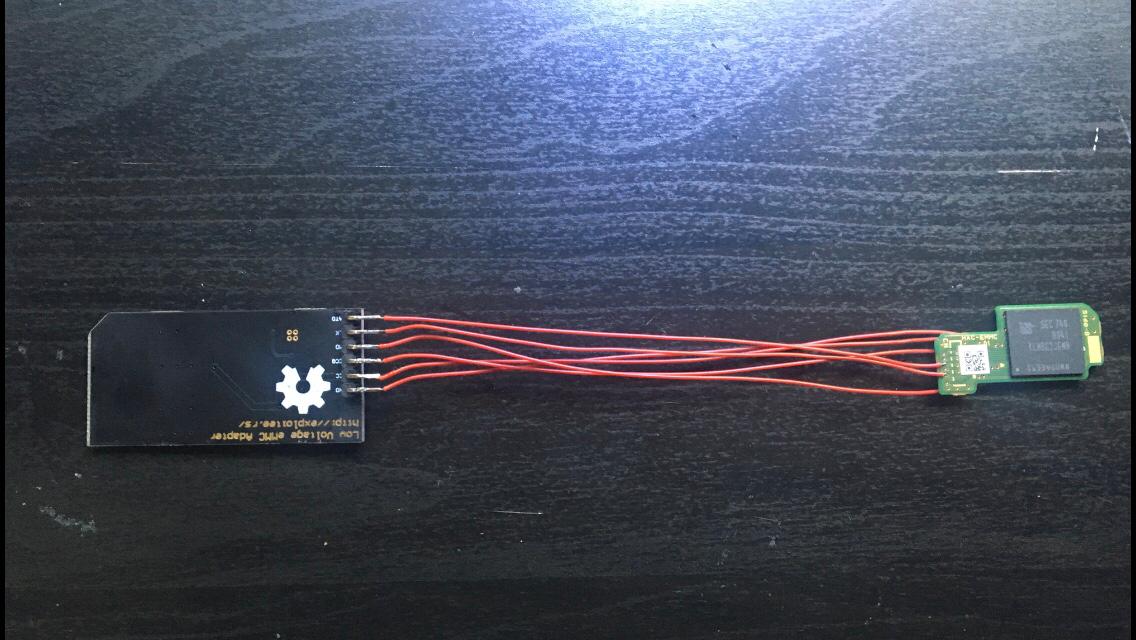

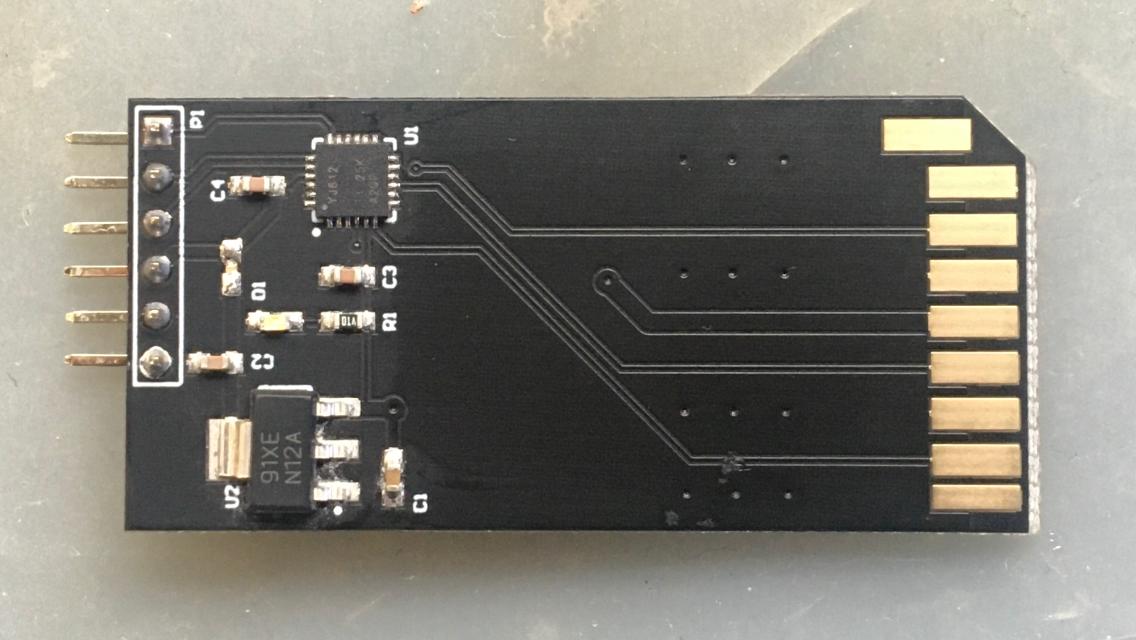

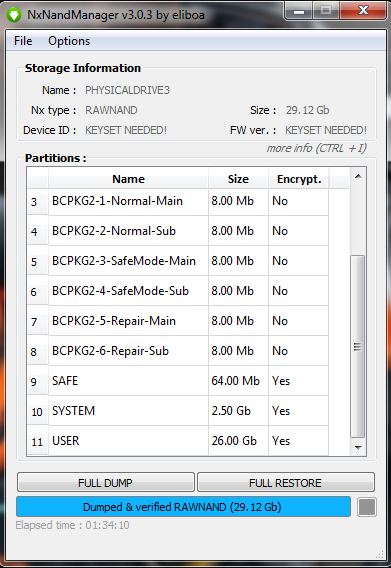

Today i did the rawnand dump, to a corrupted Switch eMMC chip. Console displays Blue Screen of Death. With the help of the Low Voltage eMMC Adapter, Transcend Card Reader and NxNandManager, i managed to do a full dump. I ordered a new 32Gb SanDisk eMMC.
The original eMMC chips also have boot partitions, respectively boot0 and boot1.
I didn't have access to boot partitions with an eMMC Adapter and SD card reader.The controller on SD reader doesn't support eMMC boot mode.
It must be used a SDIO controller, and the eMMC boot partitions they will be visible, but i think i can generate them with ChoiDujour for Pc and then transferred to the new eMMC on the switch, or will i buy one BeagleBone Black, SDIO interface or i'll try a laptop that has SDIO interfaces for SD card reading.
I'll be back with new information in a few days. I apologize for my bad English.
