Switch charging one side 15v other 5v 0amps

By note9, Sep 13, 2020 651 4 0

  1. note9

    OP note9 Newbie
    Newcomer
    Level 1

    Joined:
    Sep 13, 2020
    Messages:
    2
    Country:
    United Kingdom
    Have a Switch that was charging at 5v 0amps both sides of the cable, i replaced the M92T36 and and USB port was soldered back on as the previous owner just held it down with the screws. now it charges on one side at 15v with normal charging Amps, flipping the cable i get 5v 0.00Amps.

    also when connected to charger the D+ and D- become shorted together, when i remove the cable theres no more short. B5/CC2 also shorts with VBUS.

    anyone have any clues?

    thanks

  2. Avinitlarge

    Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom
    Check the 7C/DUG protection diode on the underside of the motherboard. I had one doing this and the diode had failed. If you look back through my posts, you should find a picture

  3. note9

    OP note9 Newbie
    Newcomer
    Level 1

    Joined:
    Sep 13, 2020
    Messages:
    2
    Country:
    United Kingdom
    i actually removed both and got 15v charging on both sides. is it necessary to replace them? ive seen some images of boards with those two cips missing.

  4. Avinitlarge

    Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom
    I didn’t replace it as I didn’t have a spare one

  5. Avinitlarge

    Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom

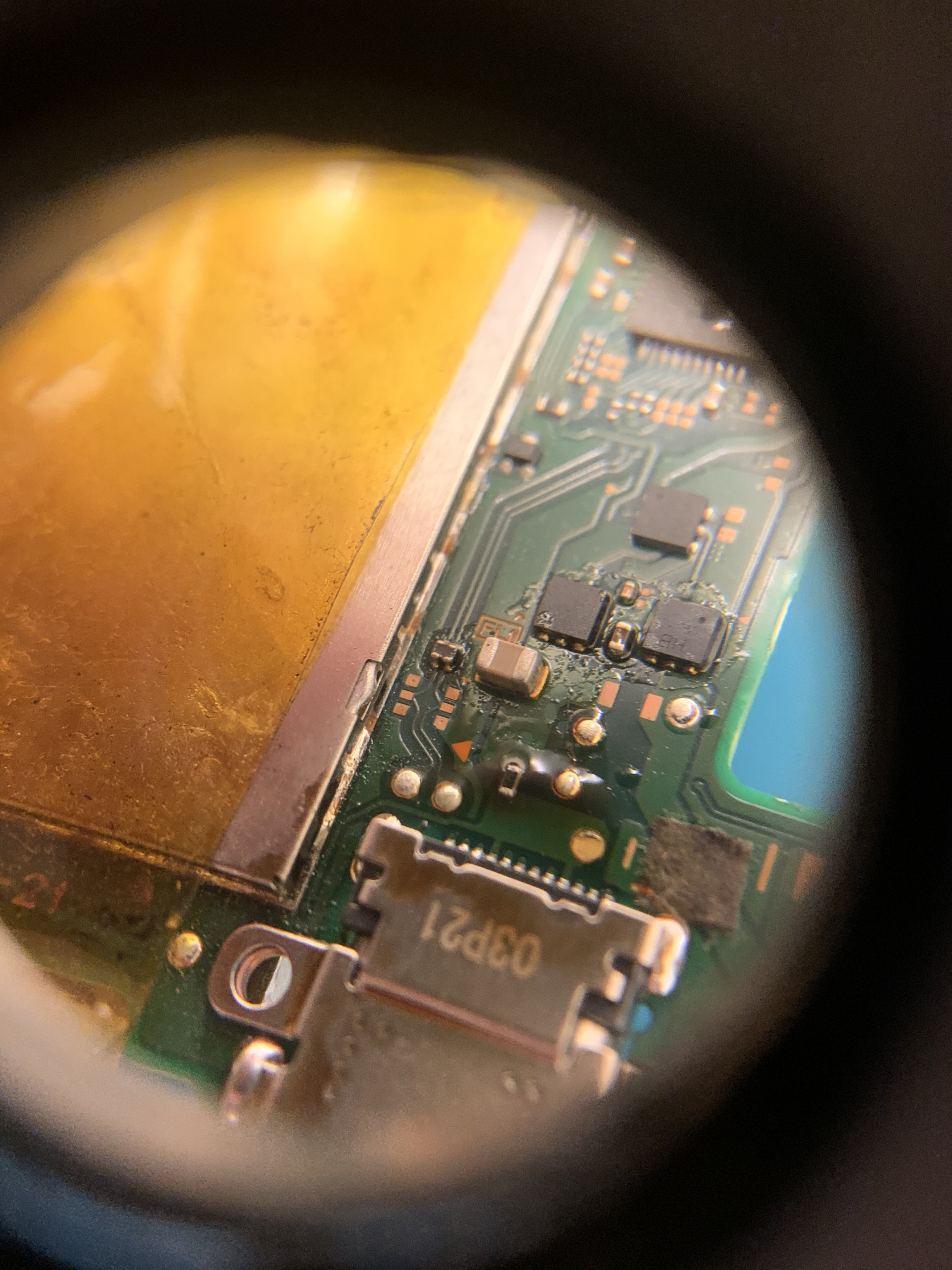

    Had this one in today, looks like some models don’t have either fitted.
