Strange charging issue

By Avinitlarge, Aug 21, 2020 809 5 1

  1. Avinitlarge

    OP Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom
    Hi
    I have a Switch with a strange charging issue. With the charger plugged in one way it charges fine, if I rotate the charger, it shows as not charging, the charger is only at 5v. If I put the switch to sleep then wake it up again it starts charging at 15v.
    I’ve replaced the Port, BQ, M92 and the P13USB twice but it’s no different.
    Does anyone know what could be going off?

    thanks

    Banthors likes this.
  2. Avinitlarge

    OP Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom
    Sorted it. On one CC line it measured open circuit to gnd, on the other it measured 14k. The little dug/7c ESD protection diode was the problem

    Banthors, Ttm3 and susi91 like this.
  3. Banthors

    Banthors Member
    Newcomer
    Level 1

    Joined:
    Aug 4, 2020
    Messages:
    36
    Country:
    United States
    Can you link a picture of that please. I am having a similar issue with usb c working one way and not the other.

  4. Avinitlarge

    OP Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom

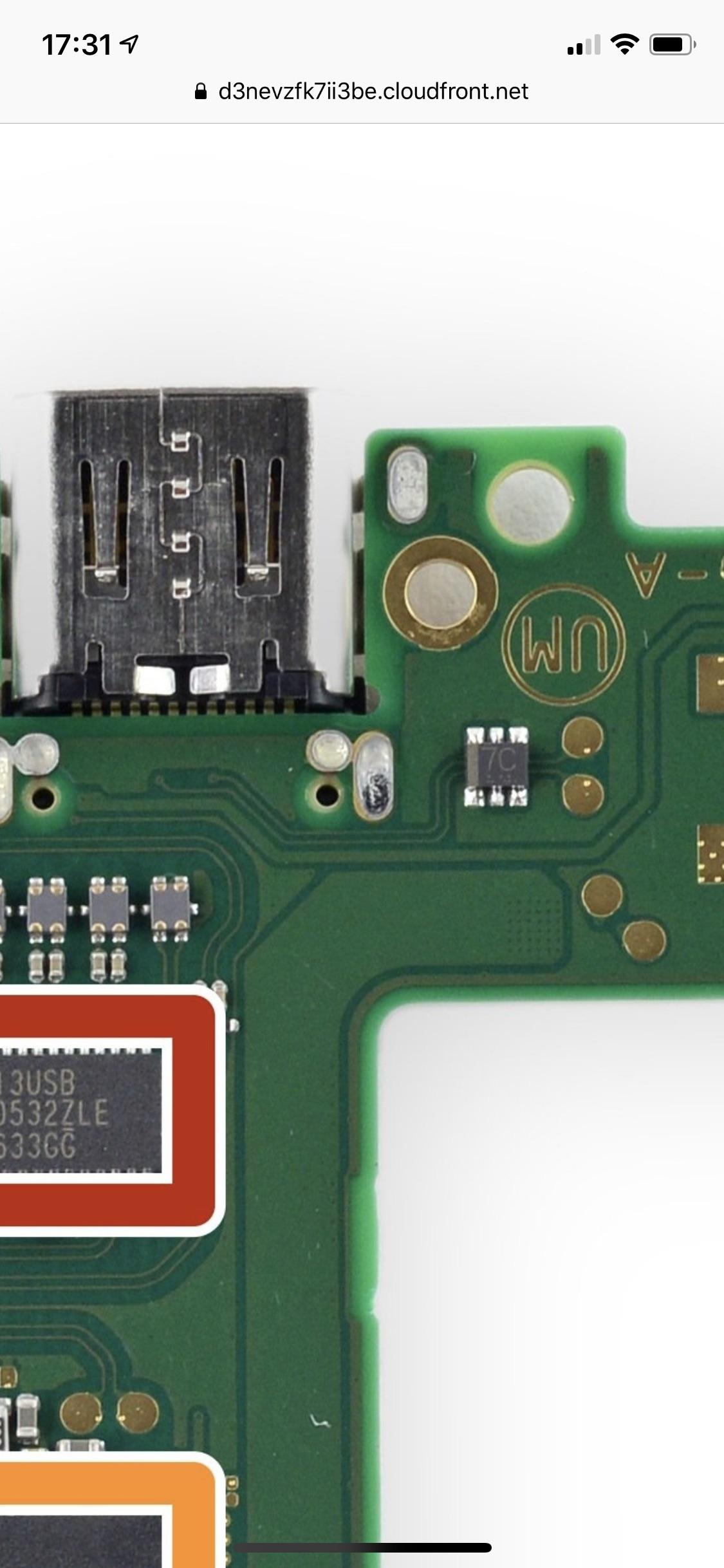

    It’s on the underside of the motherboard near to the USB port

    Banthors likes this.
  5. Banthors

    Banthors Member
    Newcomer
    Level 1

    Joined:
    Aug 4, 2020
    Messages:
    36
    Country:
    United States
    Were you testing based on a good console? You said it shorthed to ground and the other measured 14k did you mean on a second console? Any chance you can post a picture of the component at some point?

  6. Avinitlarge

    OP Avinitlarge Member
    Newcomer
    Level 1

    Joined:
    Aug 21, 2020
    Messages:
    20
    Country:
    United Kingdom
    yes, I checked it against another console. On the faulty console one of the CC lines read 14k to gnd.


    Attached Files:
