    So I got this DualShock 2 controller with a damaged cable, so I ordered a new replacement cable to replace it. The thing is, it only has 8 cables while the original controller has 9, and also, not all colors match. Is there some kind of guide on where to solder the colors that don't match, especially since it only has 8 colors as any other third party controller?

    Edit: Here are some photos:

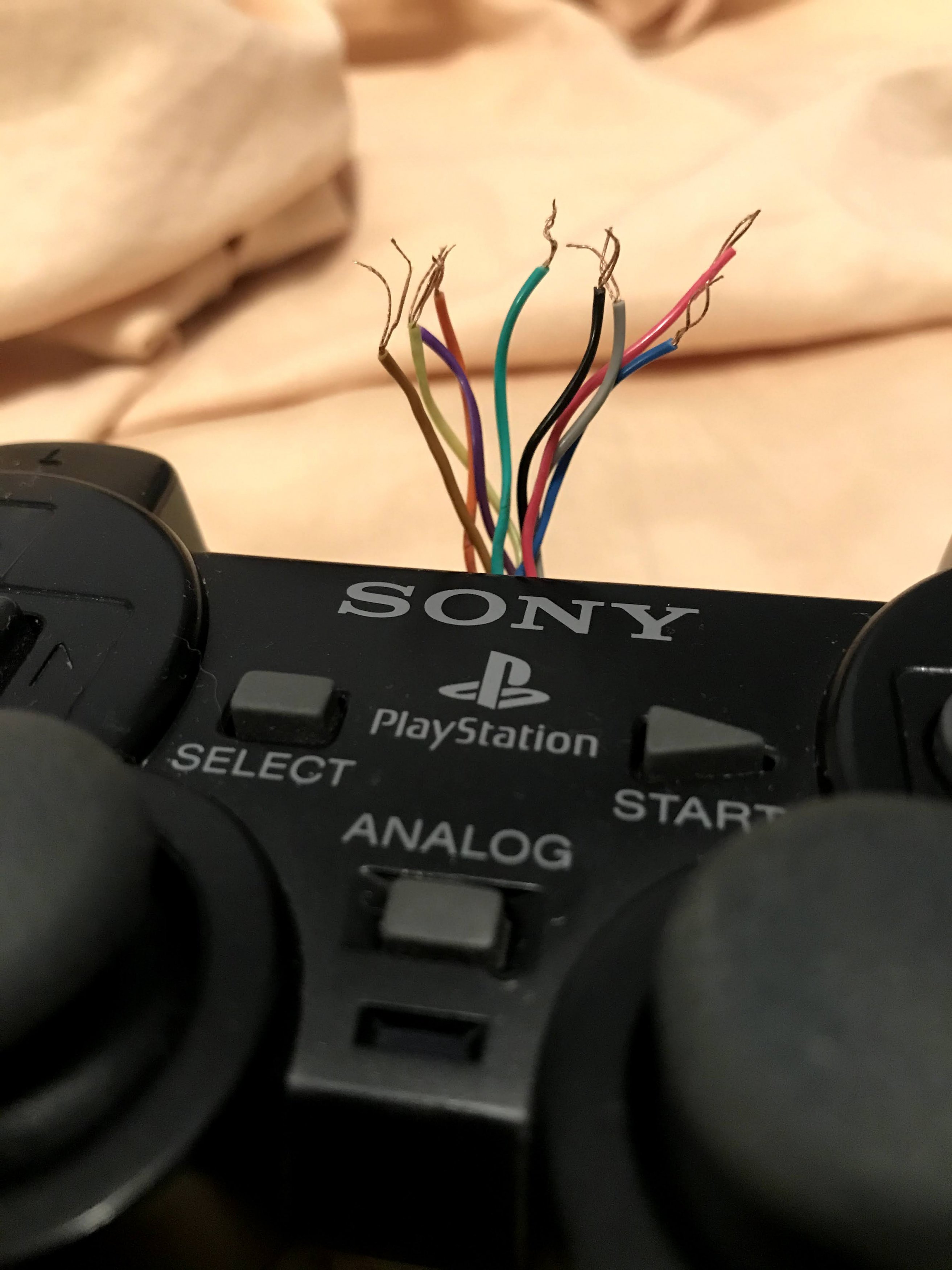

    The original controller's colors:

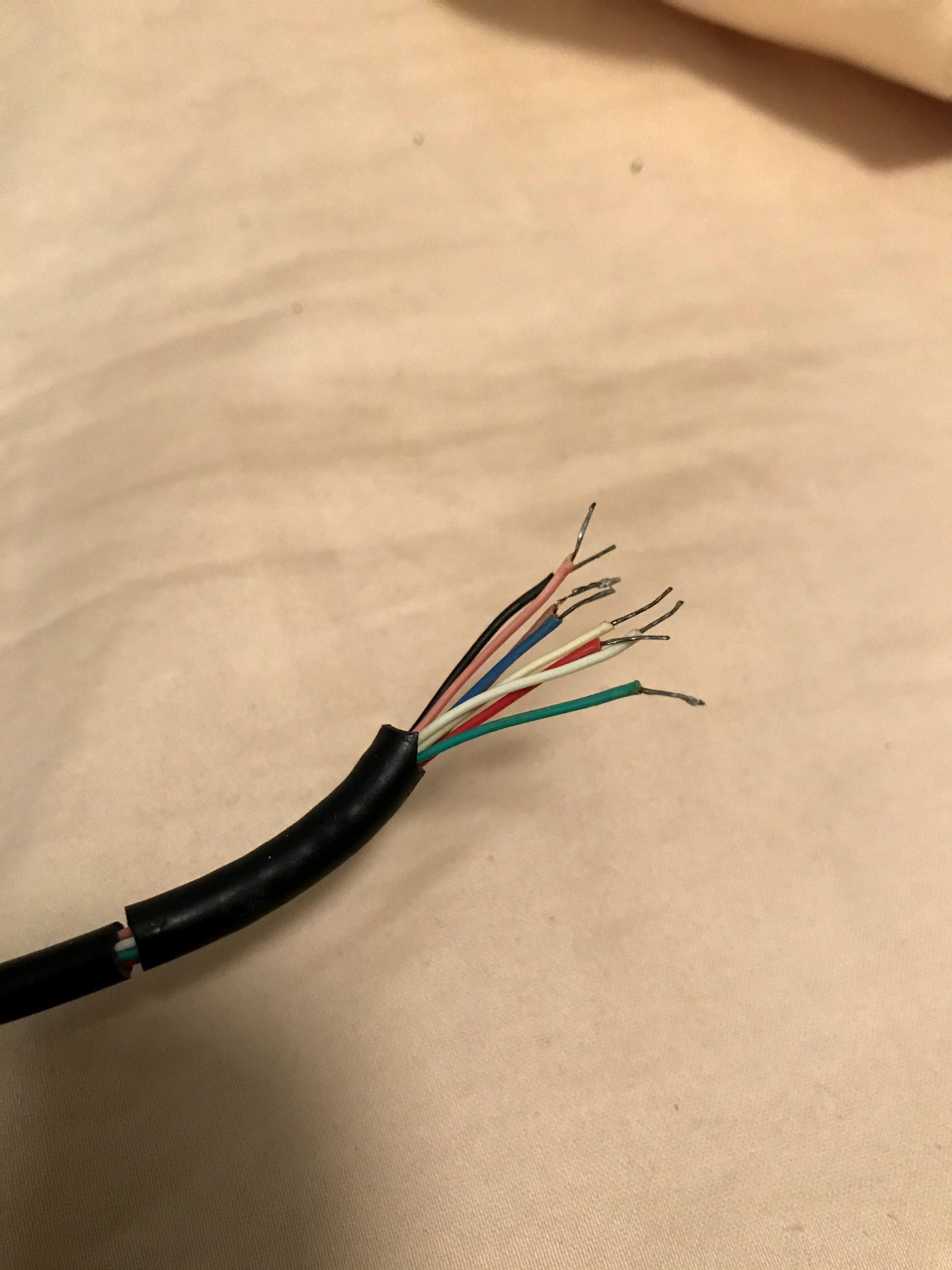

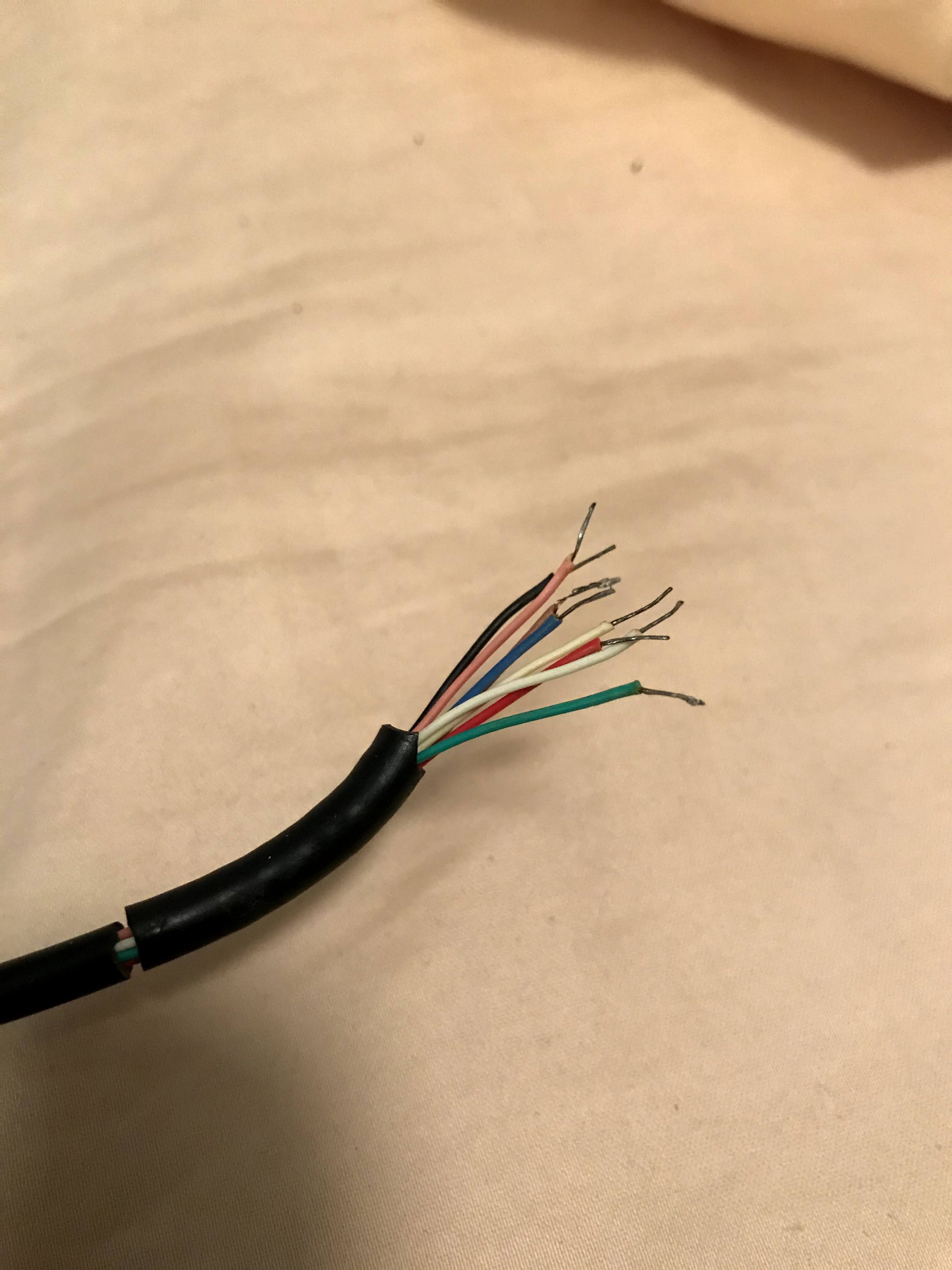

    The replacement cable's colors. Notice the very faint yellow next to white, also one color that's very hard to tell behind blue:

    Upon further inspection, the one color that is missing is purple. Is this cable worth using to solder it to the controller? Thanks in advance.

    Last edited by MushGuy, Sep 3, 2020
  2. Deleted User

    Deleted User Newbie

    Aren't DualShock 2 controllers really cheap these days? I personally prefer MadCatz controllers (wireless, 2x AAA than 3x AAA) to play on PS2 than its official one.

    Looking at it, you may have to solder it. Don't see another way around it.

    Last edited Sep 3, 2020
  3. tglaria

    tglaria GBAtemp Regular
    Member

    Joined:
    Jun 16, 2016
    Messages:
    113
    Country:
    Congo, Democratic Republic of the
    https://store.curiousinventor.com/guides/PS2
    Apparently, there's a wire that's not being used.

    The white.
    Check the pinout.

  4. Necron

    Necron Lurking~
    Member

    Joined:
    Dec 29, 2008
    Messages:
    1,033
    Country:
    Chile
    Do you still have the other parts? (old cable)
    If so, check continuity with a multimeter, so you can label which cable goes with what pin. Then, just translate that to the new cable, done.

  5. tglaria

    tglaria GBAtemp Regular
    Member

    Joined:
    Jun 16, 2016
    Messages:
    113
    Country:
    Congo, Democratic Republic of the
    also, colors don't really matter, it is possible that the thied party controller used a different color for each wire, yoou bwmetter check each wire with the pin in the control plug.

    cearp likes this.
  6. Vali3232

    Vali3232 Newbie
    Newcomer

    Joined:
    Dec 31, 2020
    Messages:
    1
    Country:
    Romania
    so i have the same problem, i soldered without knowing that is has 8 wires instead of nine, i will try to see which cable isnt beeing used to see if i can repair it
