    Hi all hard modders!

    If like me none of the proposed solutions convinced you to enter RCM mode, you might like my job :P

    Pros:
    • Very reliable
    • Easy to use
    • Will not damage connectors
    • Discrete
    • No glue
    • Good button location (no risk to press it unintentionally)

    Cons:
    • Ok, you'll need to tinker, but hey guys, I give you all the keys to succeed

    Requirements:

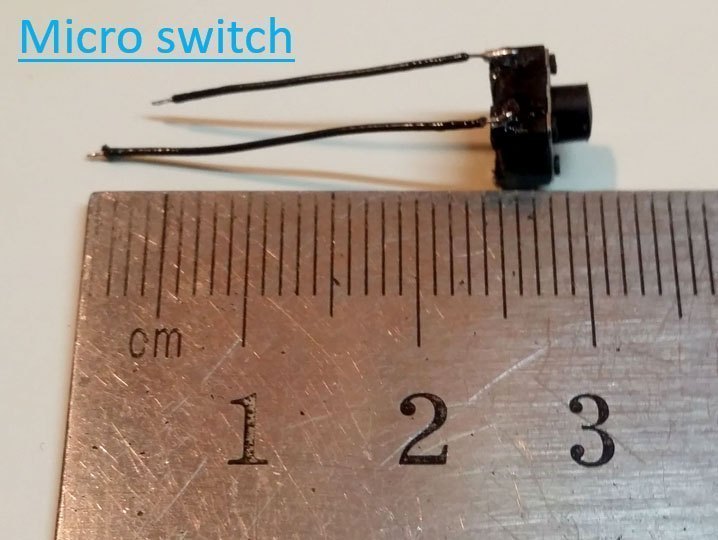

    • A micro switch (google for "micro switch button 6x6x6mm")
    • Thin wire

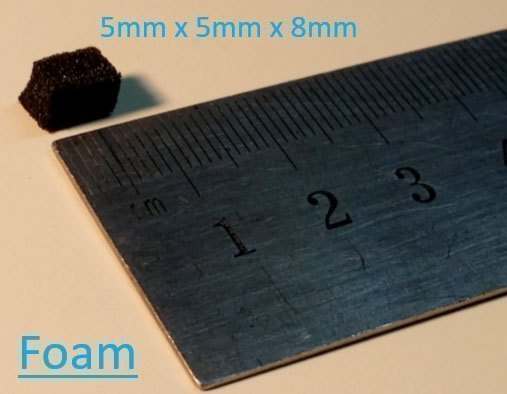

    • A piece of foam (take what you want but just make sure it is not too soft)
    • Special joycon's screwdriver (also google for it)
    • A drilling machine with a 4mm drill bit
    • A soldering iron

    Don't hesitate to leave feedbacks

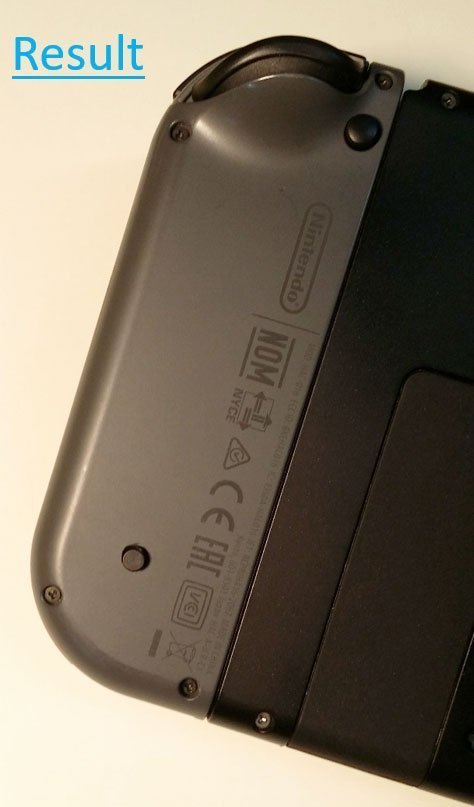

    0_Result.

    1_Positioning_The_Hole.

    2_Button_Wires.

    3_Foam_Dimensions.

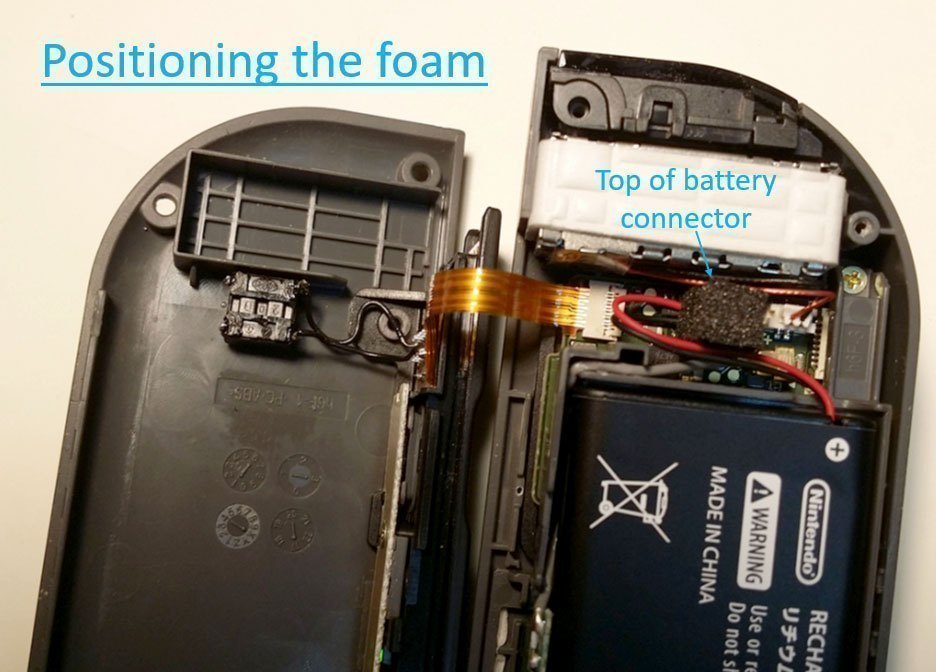

    4_Foam_Positioning.

    5_Welding_Points.

    Last edited by Kino101, Aug 25, 2018
    SupImBirDy, Owenge, bowser and 2 others like this.
    #1 Aug 24, 2018
  2. McWhiters9511

    McWhiters9511 GBAtemp Maniac

    Member
    6
    1,365
    Level 6
    Mar 28, 2016
    United States
    Space
    oh hey look at that its like Team Xecuters tutorial but shorter lol

    Moko, goulien82 and Kino101 like this.
    #2 Aug 25, 2018
  3. PRAGMA

    PRAGMA GBAtemp Advanced Maniac

    Member
    11
    1,968
    Level 11
    Dec 29, 2015
    Ireland
    127.0.0.1
    Does it need to be foam? I get why its there but is that rlly needed to be foam?
    Also, why dont you do magnet method that you put right next to the magnetic reed to enable rcm?

    — Posts automatically merged - Please don't double post! —

    What stops us from directly grounding the pin with the official R button? Couldnt we solder the wire to the R button and rail test-point?

    #3 Aug 25, 2018
  4. Zepman

    Zepman Newbie

    Newcomer
    4
    7
    Level 4
    Oct 28, 2004
    France
    very nice :yay:

    Kino101 likes this.
    #4 Aug 25, 2018
  5. Kino101
    OP

    Kino101 Newbie

    Newcomer
    1
    3
    Level 1
    Aug 24, 2018
    France
    - No, foam is just an easy way to block the button without using glue and without knowing the exact height the piece should be. I would just recommend using non conductive material.

    - The magnet method is nice but I don't like the fact that you need a magnet with you (and might not very good for the console).

    - Concerning grounding the pin with the official R button, we would need the official Nintendo's pinout to determine if it's possible or not, but I don't think it's possible because when I press the button while the console is on, joycon is immediately disconnected.

    #5 Aug 25, 2018
  6. PRAGMA

    PRAGMA GBAtemp Advanced Maniac

    Member
    11
    1,968
    Level 11
    Dec 29, 2015
    Ireland
    127.0.0.1
    Oh right I didnt think about that.
    Could you try find out a way to do this without the need for a drill? As I dont have one but I have EVERYTHING else. (Apart from Soldering Experience kappa)

    — Posts automatically merged - Please don't double post! —

    Perhaps like put the button and wire through a screw slot and just have it hanging out or something kappa

    #6 Aug 25, 2018
  7. nitrozz

    nitrozz GBAtemp Fan

    Member
    4
    337
    Level 4
    May 5, 2009
    Portugal
    very nice idea, thanks

    #7 Aug 25, 2018
  8. goulien82

    goulien82 Newbie

    Newcomer
    2
    6
    Level 2
    Jul 14, 2018
    Germany
    I wasn't aware of TXs "JoyCon-Tutorial", but I did a quick Google search after McWhiters9511 mentioned it... your tut really looks like a watered down copy of their tutorial (no, I'm no "TX fanboy", quite the contrary)... You should really use shrinking tube on the pushbutton like they do. I prefer installing a reed-switch, no need to drill your JoyCon-housing, but that's just my preference.

    #8 Aug 26, 2018
  9. Kino101
    OP

    Kino101 Newbie

    Newcomer
    1
    3
    Level 1
    Aug 24, 2018
    France
    Wahoo, I just searched for the TX tutorial you mentionned and falled on "TX_Joycon_Mod_Tutorial.pdf", trust me or not I never read this tuto before, but you're right guys, my solution is very very similar B-)

    — Posts automatically merged - Please don't double post! —

    Thanks for info, I never watched their tuto before but you're right, it's really close!

    goulien82 likes this.
    #9 Aug 26, 2018
  10. eyeliner

    eyeliner Has an itch needing to be scratched.

    Member
    5
    358
    Level 5
    Feb 17, 2006
    Portugal
    Good job. Concise and easy to follow.

    Kino101 likes this.
