PS1/2 PS2 HDD questions

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
Hi guys,

I bought a PS2 Fat with FMCB, including an 80gb external HDD connected through USB and played the heck out of it. However, one thing that prevents it from being perfect is the FMV cutscenes being choppy and jumpy. I read this is due to PS2 usb port being usb 1.0 so its slow on the read and there is nothing we can do about it.

Then after more research i stumbled upon the HDD thingy at the back of PS2 Fat. Only fat models can have HDD at the back. Anyway, fast forward to my questions.

1 = i will soon acquire a Network Adapter (SATA mod). The external HDD i currently have, do i just take it out of the enclosure then put the HDD on the network adapter and it will work or do i have to format the HDD and redownload all games and transfer via winhip?

2 = if the Network Adapter HDD loader turns out to be good and im able to play games, will i still use the memory card with FMCB? I read i should use OPL rather than HDloader for more compatibility.


Dimensional

Well-Known Member
Member
Joined
Dec 7, 2008
Messages
935
Trophies
1
Age
31
Location
Texas
XP
1,831
Country
United States
1 = i will soon acquire a Network Adapter (SATA mod). The external HDD i currently have, do i just take it out of the enclosure then put the HDD on the network adapter and it will work or do i have to format the HDD and redownload all games and transfer via winhip?

winhip does have a network feature in it, I believe, so you shouldn't have to, though it may be faster in some cases to plug it into PC.
2 = if the Network Adapter HDD loader turns out to be good and im able to play games, will i still use the memory card with FMCB? I read i should use OPL rather than HDloader for more compatibility.

You can install FCMB onto the HDD and from there never need a memory card again to load the mods. FCMB has instructions on how to do it included.

--------------------- MERGED ---------------------------

Also worth noting that yes you should switch to OPL instead, as it has great compatibility with internal HDD installed games, with cheats, loading modes, and other stuff. Also be sure to install the proper file browser, which should come with FCMB.

Last edited by Dimensional,
  • Like
Reactions: nodnyl10

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
winhip does have a network feature in it, I believe, so you shouldn't have to, though it may be faster in some cases to plug it into PC.

The 80gb hdd i have is already loaded with games. Though i always use and play them via FMCB and OPL through USB. When i switch to network adapter, i just plug my external hdd on it and it will read the games too?[/QUOTE]

Last edited by nodnyl10,

switchbricker

Active Member
Newcomer
Joined
Mar 15, 2018
Messages
34
Trophies
0
Age
22
XP
89
Country
United States
The 80gb hdd i have is already loaded with games. Though i always use and play them via FMCB and OPL through USB. When i switch to network adapter, i just plug my external hdd on it and it will read the games too?
No, you need to install games to it. Preferably over network with HDLGI or locally with HDL_DUMB.

Edit: worth noting youll need to either get a SATA upgrade kit for your network adapter, get a cheapo SATA network adapter from China (not recommended) or use a 2.5 inch drive and an IDE2SATA adapter.

Last edited by switchbricker,
  • Like
Reactions: nodnyl10

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country

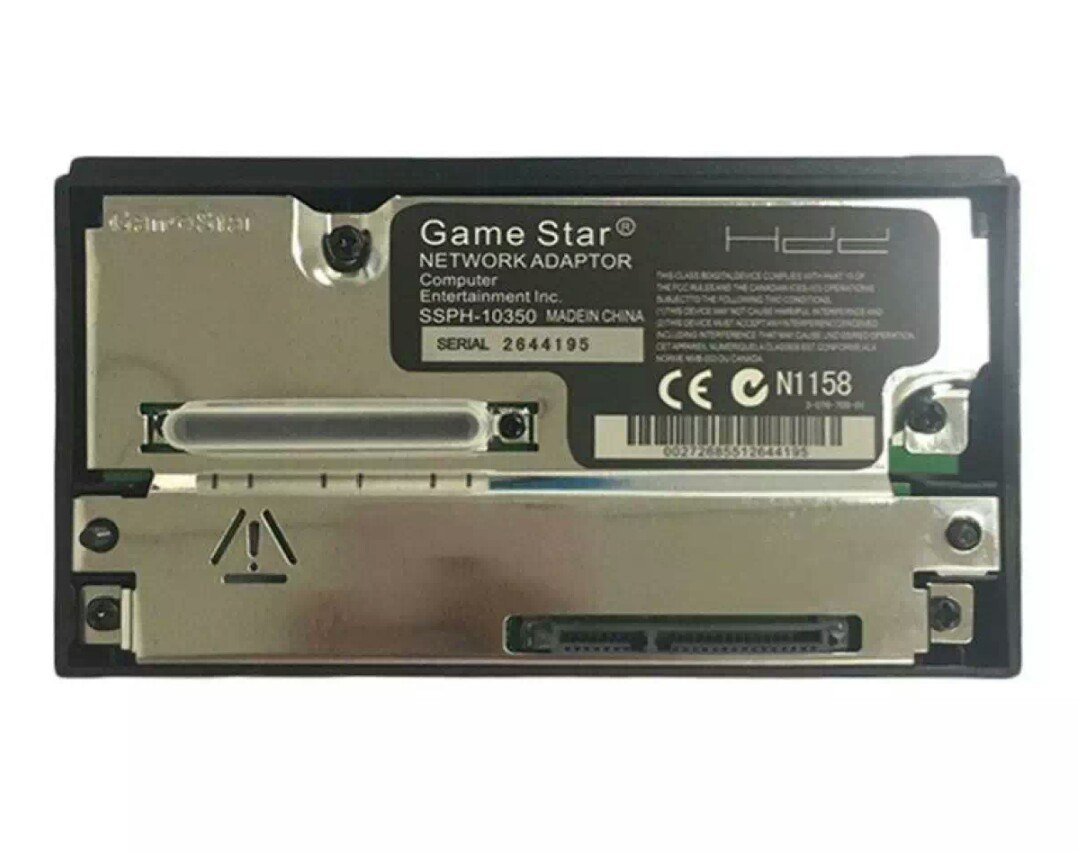

Oh man. It sounds more complicated than i thought. Umm this is the network adapter i plan to buy. Its built so SATA can go in instead of IDE HDD.

So lets say i decided to format that 80gb external HDD using a PC. Then how do i put games on it? I mean, i wanna put games on it on the PC if possible so when i put the HDD to network adapter, it will be awhile before i take it out again. Is that even possible?


Attachments

  • _20180927_103446.JPG
    87.3 KB · Views: 190

uyjulian

Homebrewer
Member
Joined
Nov 26, 2012
Messages
2,552
Trophies
1
Location
United States
Website
sites.google.com
XP
2,889
Country
United States
Oh man. It sounds more complicated than i thought. Umm this is the network adapter i plan to buy. Its built so SATA can go in instead of IDE HDD.

So lets say i decided to format that 80gb external HDD using a PC. Then how do i put games on it? I mean, i wanna put games on it on the PC if possible so when i put the HDD to network adapter, it will be awhile before i take it out again. Is that even possible?
Yes, you can. Format HDD using uLaunchELF, then use SATA to USB adapter on PC, then use HDL_Dumb to insert games onto HDD.

  • Like
Reactions: nodnyl10

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
Yes, you can. Format HDD using uLaunchELF, then use SATA to USB adapter on PC, then use HDL_Dumb to insert games onto HDD.

Im sorry but.. Format HDD using uLaunchELF? Is there an option there? Also, this HDL_Dumb. I just download it on my PC, connect my SATA HDD via USB, insert games using HDL_Dumb, then connect SATA HDD to network adapter, to PS2, and play i go. Is that correct?

EDIT = cant i just format the 80gb HDD on my PC instead of formatting it on uLaunchELF?

EDIT2 = that 80gb, is it gonna be enough or be able to be read by the network adapter SATA without any problems?

Last edited by nodnyl10,

uyjulian

Homebrewer
Member
Joined
Nov 26, 2012
Messages
2,552
Trophies
1
Location
United States
Website
sites.google.com
XP
2,889
Country
United States
Im sorry but.. Format HDD using uLaunchELF? Is there an option there? Also, this HDL_Dumb. I just download it on my PC, connect my SATA HDD via USB, insert games using HDL_Dumb, then connect SATA HDD to network adapter, to PS2, and play i go. Is that correct?

EDIT = cant i just format the 80gb HDD on my PC instead of formatting it on uLaunchELF?

EDIT2 = that 80gb, is it gonna be enough or be able to be read by the network adapter SATA without any problems?
You can format the 80GB HDD on your PC, but the latest version of uLaunchELF included with FMCB is recommended using MISC -> HDD Manager -> Format. That is correct.
80GB is plenty for about 18 games. Up to 2TB HDD is supported.

  • Like
Reactions: nodnyl10

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
You can format the 80GB HDD on your PC, but the latest version of uLaunchELF included with FMCB is recommended using MISC -> HDD Manager -> Format. That is correct.
80GB is plenty for about 18 games. Up to 2TB HDD is supported.

Thank you very much. You answered everything and gave me all the info i needed. Lemme recap for a bit, in a quick way.

- I download the latest uLaunchELF so it have FMCB when formatting HDD (this is recommended)
- Once HDD is formatted, plug HDD to PC to put games using HDL_Dump
- insert HDD to Network Adapter and plug it to back of PS2 fat
- Then i power on PS2, choose OPL and with the right settings, games should appear in there in HDD instead of USB

I still have the option to use my memory card for saving right? Its 128mb so i wanna use it. Is that possible?

I didnt forget anything, did i?


xs4all

Well-Known Member
Member
Joined
Jun 9, 2008
Messages
661
Trophies
1
Location
37°16'55.2"N 115°47'58.6"W
XP
1,870
Country
Australia
Oh man. It sounds more complicated than i thought. Umm this is the network adapter i plan to by. Its built so SATA can go in instead of IDE HDD.

So lets say i decided to format that 80gb external HDD using a PC. Then how do i put games on it? I mean, i wanna put games on it on the PC if possible so when i put the HDD to network adapter, it will be awhile before i take it out again. Is that even possible?

Most likely this is the Chinese knockoff version as the original network adapter with the LAN port is very rare and hard to come by and they are a bit pricey, also the original one only supports IDE HDD which can be modded to accept SATA HDD.
The one in the picture looks like mine, it's SATA and doesn't have LAN, the port is there but has nice yellow sticker covering it saying there is NO LAN port.

As for installing games to the HDD, I use WinHIIP program on the PC, as long as you still have the PS2 ISO's, it's just a simple few mouse clicks and the game will start to install on the HDD, as others has already mentioned, just use a HDD (SATA) to USB adapter to connect to the PC so you can transfer the games across using the app.

Last edited by xs4all,

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
Most likely this is the Chinese knockoff version as the original network adapter with the LAN port is very rare and hard to come buy and they are a bit pricey, also the original one only supports IDE HDD which can be modded to accept SATA HDD.
The one in the picture looks like mine, it's SATA and doesn't have LAN, the port is there but has nice yellow sticker covering it saying there is NO LAN port.

As for installing games to the HDD, I use WinHIIP program on the PC, as long as you still have the PS2 ISO's, it's just a simple few mouse clicks and the game will start to install on the HDD, as others has already mentioned, just use a HDD (SATA) to USB adapter to connect to the PC so you can transfer the games across using the app.

So that chinese knockoff SATA network adapter is reliable? I mean, you have one sir. So that means, its safe to buy these things? I will either use winhiip or HDL_Dump, as long as i can play without any choppy jumpy cutscenes, i am good.


xs4all

Well-Known Member
Member
Joined
Jun 9, 2008
Messages
661
Trophies
1
Location
37°16'55.2"N 115°47'58.6"W
XP
1,870
Country
Australia
So that chinese knockoff SATA network adapter is reliable? I mean, you have one sir. So that means, its safe to buy these things? I will either use winhiip or HDL_Dump, as long as i can play without any choppy jumpy cutscenes, i am good.

My PS2 was collecting dust for a couple of years and that's when the HDD caught my attention recently, I read some reviews/tutorials/youtube about these and I just purchased the cheapest one possible on ebay.
It pretty much worked as intended, booting PS2 games from the HDD :) Installed it a few months ago and haven't had any issues, yep you can use any of those two apps, though I have not used HDL_Dump so I can't comment on this, but WinHIIP worked fine.

Only negative thing I can say about FreeMCBoot is you can't boot PSX games like you do with PS2 games from ISO, not a problem since my PS2 is already chipped so I can always boot from backup CD's but it would be nice to be able to boot PSX ISO's on the HDD. I remember there is a way but it was a long process and probably not worth my while.

Added Notes:
Oh hang on, just noticed something called PS2PSXe which can boot PSX ISO's from USB or Internal HDD, I didn't come across this back when I was searching, so I will now look into this and see what the fuss is about.

Last edited by xs4all,
  • Like
Reactions: nodnyl10

slaphappygamer

Well-Known Member
Member
Joined
Nov 30, 2008
Messages
3,452
Trophies
1
Age
44
Location
California
XP
3,835
Country
United States
My PS2 was collecting dust for a couple of years and that's when the HDD caught my attention recently, I read some reviews/tutorials/youtube about these and I just purchased the cheapest one possible on ebay.
It pretty much worked as intended, booting PS2 games from the HDD :) Installed it a few months ago and haven't had any issues, yep you can use any of those two apps, though I have not used HDL_Dump so I can't comment on this, but WinHIIP worked fine.

Only negative thing I can say about FreeMCBoot is you can't boot PSX games like you do with PS2 games from ISO, not a problem since my PS2 is already chipped so I can always boot from backup CD's but it would be nice to be able to boot PSX ISO's on the HDD. I remember there is a way but it was a long process and probably not worth my while.
Booting a psx iso from the hdd is a pain in theass. You have to first check a compatibility list to make your game will even work, then convert your iso to a vcm file (or whatever it is). The conversion takes about 30-45 minutes. Then you put that on your usb drive to copy it to the hdd, which takes another half hour. Open that vcm file with the elf program and wwwwwoooooooooosssssshhh! Game on! Just boot from disc. You’ll save a frustration that isn’t worth it.

  • Like
Reactions: nodnyl10 and xs4all

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
My PS2 was collecting dust for a couple of years and that's when the HDD caught my attention recently, I read some reviews/tutorials/youtube about these and I just purchased the cheapest one possible on ebay.
It pretty much worked as intended, booting PS2 games from the HDD :) Installed it a few months ago and haven't had any issues, yep you can use any of those two apps, though I have not used HDL_Dump so I can't comment on this, but WinHIIP worked fine.

Only negative thing I can say about FreeMCBoot is you can't boot PSX games like you do with PS2 games from ISO, not a problem since my PS2 is already chipped so I can always boot from backup CD's but it would be nice to be able to boot PSX ISO's on the HDD. I remember there is a way but it was a long process and probably not worth my while.

Added Notes:
Oh hang on, just noticed something called PS2PSXe which can boot PSX ISO's from USB or Internal HDD, I didn't come across this back when I was searching, so I will now look into this and see what the fuss is about.

Quick question since i just started to do things and i decided to use Winhiip.

When i insert my HDD in my PC, and use Winhiip app, it says "The selected hard drive does not have a valid PS2 Master Boot Record"

What does that mean? Will that go away once i format my HDD in uLaunchELF? Because i just tried some things first, i havent formatted my HDD. Just wanna make sure.


uyjulian

Homebrewer
Member
Joined
Nov 26, 2012
Messages
2,552
Trophies
1
Location
United States
Website
sites.google.com
XP
2,889
Country
United States
Quick question since i just started to do things and i decided to use Winhiip.

When i insert my HDD in my PC, and use Winhiip app, it says "The selected hard drive does not have a valid PS2 Master Boot Record"

What does that mean? Will that go away once i format my HDD in uLaunchELF? Because i just tried some things first, i havent formatted my HDD. Just wanna make sure.
You need to format your HDD

  • Like
Reactions: xs4all and nodnyl10

nodnyl10

Well-Known Member
Member
Joined
Jul 17, 2008
Messages
161
Trophies
0
XP
1,097
Country
If it’s easier, you can use winhiip to format your hdd. Here is a nice video guide. Yes I know, ugh a video guide. This guy is good and the PS2 scene hasn’t changed much. His guides are legit.

Thanks a lot. Video guide or not, its better than nothing. I cant wait for the network adapter to be delivered to me

  • Like
Reactions: slaphappygamer

duwen

Old Man Yoshi
Member
Joined
Sep 6, 2013
Messages
2,420
Trophies
1
Location
Bullet Hell
Website
www.exophase.com
XP
2,720
Country
United Kingdom
I can vouch for the cheap Chinese sata adapters being good - I've been using one I bought off of Ali-Express for a couple of years with no problems (and I regularly remove and replace the drive to hook it up to my pc).
As someone else mentioned, FreeHDBoot is an excellent replacement for FreeMcBoot on a memcard, but I would recommend keeping a memcard with FreeMcBoot on it in case you ever have an issue booting directly to the HD.

  • Like
Reactions: nodnyl10
