Greetings gentlemen of GBAtemp.

My name is Axel, im rather new around here, and today i wanted to share my experience with the PS2 Fat power supply unit.

Disclaymer.
I will take for granted that anyone who will follow this instructions has a minimum of electronics knowledge and respects how dangerous it can get if taken lightly. I will not be responsable if you go around playing with high voltages and get hurt or break anything. Also, to make these diagnostics and repairs you have to dissasemble your PS2 in order to take the power board out. If you have issues with your power supply and dont know electronics well enough to feel confident about this, you can just buy a replacement PSU for 15$ aproximately online and avoid this completly. IF anyone is wondering why would i bother repairing these old PSUs instead of buying cheap new ones is simply because i like my hardware to be original, and repairing something that would be otherwise be thrown out is very satisfying to me.


I will be referring to the image to make everything easier and more clear.



Symptoms:
Ps2 console wont turn on, no red light and no reaction to ON or RESET buttons in any way when the console is plugged in and the switch on the back is on.


How to confirm if your PSU is having issues:
We will need a Multimeter or Tester.
Your unit's task is to take in the 120v/240v AC from your home's electricty and turn it into @24V DC.
To test if your unit is doing it's job, place your unit on a non conductive surface (wood,plastic), plug in the unit (please be ware; DO NOT TOUCH Point A , is LIVE with 120v/204v), and switch it on. Now with a multimeter check the 1st socket from the left and the 4th socket from the left for DC Voltage on Point B.
If the multimeter shows around 24 volts DC, then the unit is fine and working propperly, if the multimeter shows 0v DC then we have some work to do.
TURN OFF AND UNPLUG BEFORE CONTINUING


Now that we confirmed that the unit is not working, let us see the possible issues.

Possible issues:
1 - Burned out fuse
2 - Blown capacitors
3 - Capacitors lost capacitance
4 - Octocoupler is not workin
5 - Zener Diodes / Diodes broke
6 - Mosfets broke

The Fuse

The first thing to test is the F1 Fuse (Point C), simply set the multimeter on "continuity" or "resistance (Ω)" and if the multimeter beeps or shows 0 Ω then the fuse is OK and working.
In case the fuse presents no continuity it would mean it is burned and needs to be replaced. In my case, all units i repaired were PAL units and the fuse was 250V 2.5A but these may differ for other regions, so be sure to check your fuse before you buy a replacement, if you don't find the exact same fuse, buy one slightly lower as close to the original as possible.





Blown Capacitors
Most of the time blown capacitors are quite easy to identify as their phisical appearence change and some even smell bad. If a capacitor is showing a "bulge" on top, it means it most certainly needs replacement. To test them with the multimeter, connect one pin to ground or negative (3rd or 4th socket on point B) and test both "legs" of the capacitor on the under side of the board. One leg should give continuity to ground/negative while the other should NOT give continuity (positve "leg" should not). If one capacitor does give continuity in both legs, means is broken and needs to be replaced.
In case you need to replace one of these capacitors, check what is written on them, the Capacitance, the volts, and the temperature. for istance: 680Uf - 16V - 105º.


Capacitors lost capacitance
This is the absolutely most common issue i have encountered with these power boards
.
Mainly C20 and C3 (point D and E) tend to lose capacitance making it impossible for the board to do its job.
To propperly test the capacitance of a capacitor is kind of quirky afaik, so the next best thing is to simply buy one of each online and change them both. I bought 2 packs of 10 each for about 2 euros, and almost finished them due to how common this issue is, so in any case, sooner or later, you may need to replace them so why not now that you are working on it.


Octocoupler.

This spider looking fella only troubled me once, but is worth checking out nontheless.
In my case the OC was a PC123 equivalent.
You can google how to test an octocoupler. Is quite simple.


Zener diodes / Diodes.

Set your multimeter to continuity and test the diodes both way. A working diode gives continuity in only "one way". The diodes have a "direction" in which they block or allow current. Test your diode both ways, in one way it should block the current while in the other it should allow it. If the diode gives continuity both ways, or gives no cintuinity at all, is broken. The most common diode to fail is ZD1 and ZD3. You may also want to check the top left corner diodes D10 D9 D7 D8. Testing all the diodes present in the circuit is not a bad idea, just an extra security and is often among the first things you want to rule out.

Broken mosfets.

I never found an issue with these but i've heard of people that did.
In the picture you will notice 2 heatsinks running vertically near the capacitors on the left and near the Zener diodes. If everything else you have tested up until now is working well and you still have issues, these little guys may be the problem.


If you have any doubts please ask, I am not an expert, but will gladly help in what i can.

Last edited by AxelMad,

Alexander1970

Well-Known Member
Member
GBAtemp Patron
Joined
Nov 8, 2018
Messages
13,687
Trophies
3
Age
51
Location
Austria
XP
1,892
Country
Austria
Greetings gentlemen of GBAtemp.

My name is Axel, im rather new around here, and today i wanted to share my experience with the PS2 Fat power supply unit.

Disclaymer.
I will take for granted that anyone who will follow this instructions has a minimum of electronics knowledge and respects how dangerous it can get if taken lightly. I will not be responsable if you go around playing with high voltages and get hurt or break anything. Also, to make these diagnostics and repairs you have to dissasemble your PS2 in order to take the power board out. If you have issues with your power supply and dont know electronics well enough to feel confident about this, you can just buy a replacement PSU for 15$ aproximately online and avoid this completly. IF anyone is wondering why would i bother repairing these old PSUs instead of buying cheap new ones is simply because i like my hardware to be original, and repairing something that would be otherwise be thrown out is very satisfying to me.


I will be referring to the image to make everything easier and more clear.
View attachment 210059


Symptoms:
Ps2 console wont turn on, no red light and no reaction to ON or RESET buttons in any way when the console is plugged in and the switch on the back is on.


How to confirm if your PSU is having issues:
We will need a Multimeter or Tester.
Your unit's task is to take in the 120v/240v AC from your home's electricty and turn it into @24V DC.
To test if your unit is doing it's job, place your unit on a non conductive surface (wood,plastic), plug in the unit (please be ware; DO NOT TOUCH Point A , is LIVE with 120v/204v), and switch it on. Now with a multimeter check the 1st socket from the left and the 4th socket from the left for DC Voltage on Point B.
If the multimeter shows around 24 volts DC, then the unit is fine and working propperly, if the multimeter shows 0v DC then we have some work to do.
TURN OFF AND UNPLUG BEFORE CONTINUING


Now that we confirmed that the unit is not working, let us see the possible issues.

Possible issues:
1 - Burned out fuse
2 - Blown capacitors
3 - Capacitors lost capacitance
4 - Octocoupler is not workin
5 - Zener Diodes / Diodes broke
6 - Mosfets broke

The Fuse
View attachment 210053

The first thing to test is the F1 Fuse (Point C), simply set the multimeter on "continuity" or "resistance (Ω)" and if the multimeter beeps or shows 0 Ω then the fuse is OK and working.
In case the fuse presents no continuity it would mean it is burned and needs to be replaced. In my case, all units i repaired were PAL units and the fuse was 250V 2.5A but these may differ for other regions, so be sure to check your fuse before you buy a replacement, if you don't find the exact same fuse, buy one slightly lower as close to the original as possible.





Blown Capacitors
Most of the time blown capacitors are quite easy to identify as their phisical appearence change and some even smell bad. If a capacitor is showing a "bulge" on top, it means it most certainly needs replacement. To test them with the multimeter, connect one pin to ground or negative (3rd or 4th socket on point B) and test both "legs" of the capacitor on the under side of the board. One leg should give continuity to ground/negative while the other should NOT give continuity (positve "leg" should not). If one capacitor does give continuity in both legs, means is broken and needs to be replaced.
In case you need to replace one of these capacitors, check what is written on them, the Capacitance, the volts, and the temperature. for istance: 680Uf - 16V - 105º.
View attachment 210049


Capacitors lost capacitance
This is the absolutely most common issue i have encountered with these power boards
.
Mainly C20 and C3 (point D and E) tend to lose capacitance making it impossible for the board to do its job.
To propperly test the capacitance of a capacitor is kind of quirky afaik, so the next best thing is to simply buy one of each online and change them both. I bought 2 packs of 10 each for about 2 euros, and almost finished them due to how common this issue is, so in any case, sooner or later, you may need to replace them so why not now that you are working on it.


Octocoupler.

This spider looking fella only troubled me once, but is worth checking out nontheless.
In my case the OC was a PC123 equivalent.
You can google how to test an octocoupler. Is quite simple.
View attachment 210055


Zener diodes / Diodes.

Set your multimeter to continuity and test the diodes both way. A working diode gives continuity in only "one way". The diodes have a "direction" in which they block or allow current. Test your diode both ways, in one way it should block the current while in the other it should allow it. If the diode gives continuity both ways, or gives no cintuinity at all, is broken. The most common diode to fail is ZD1 and ZD3. You may also want to check the top left corner diodes D10 D9 D7 D8. Testing all the diodes present in the circuit is not a bad idea, just an extra security and is often among the first things you want to rule out.
View attachment 210057

Broken mosfets.

I never found an issue with these but i've heard of people that did.
In the picture you will notice 2 heatsinks running vertically near the capacitors on the left and near the Zener diodes. If everything else you have tested up until now is working well and you still have issues, these little guys may be the problem.
View attachment 210058


If you have any doubts please ask, I am not an expert, but will gladly help in what i can.

Hello and welcome to GBAtemp.:D

Thank you for this great and good explained Step by Step Tutorial.

Considering the Age from the PlayStation 2 we will maybe need it......in the next Time.:(
Thank you for your Contribution and have a great Time here.

Thank you.:)

  • Like
Reactions: KleinesSinchen

debilausaure

New Member
Newbie
Joined
Jun 29, 2017
Messages
1
Trophies
0
Age
29
XP
25
Country
Algeria
Hi :)! I recently took my ps2 out of its box and there was no standby redlight when plugged in.

(I happen to have the exact same power supply board as you do, so hopefully I will be able to make sense ^_^)

I followed your post (which is really helpful for a newbie like me, thank you !), and figured that at least one diode is obviously defective as it is shorted (ZD1). I tested the other diodes as well, and some of them were not shorted but gave continuity in both ways (~530 ohms in forward bias which looks ok, but between 800 and 1200 ohms in reverse bias). The said diodes are ZD2, ZD3, ZD51 and D4.

I am really unsure about whether these are indeed defective or if that is to be expected. Hence I am unsure about if I should replace them or not. Do you have any idea ?

Besides, I really don't know how to identify the diodes either :ph34r: How do you know which replacements to buy ? Do you have a datasheet of the board and its components or is it written on the components once you unsolder them ?

Once again great post, it really was helpful to me :yay:. Thank you !

  • Like
Reactions: Alexander1970

MushGuy

Well-Known Member
Member
Joined
Feb 11, 2010
Messages
1,203
Trophies
0
XP
1,891
Country
United States
Funny that this thread popped up. Just today, my PS2 stopped working due to a power outage. Is it OK to get a new power supply from eBay? How good is one from China?

  • Like
Reactions: Alexander1970

AxelMad

New Member
OP
Newbie
Joined
May 19, 2020
Messages
4
Trophies
0
Age
32
XP
81
Country
Spain
Funny that this thread popped up. Just today, my PS2 stopped working due to a power outage. Is it OK to get a new power supply from eBay? How good is one from China?
Hi, if you don't know what you are doing the cheap power supplies are the best option. Do not be affraid. i bought one before and it is working fine 3 years now under moderate use. Sadly i don't have much time as i had before for gaming :P

Hello gentlemen. Sorry i was absent for a while.

If you don't know what you are doing the cheap power supplies are the best option. Do not be affraid. i bought one before and it is working fine 3 years now under moderate use. Sadly i don't have much time as i had before for gaming :P

I prefer to test my diodes out of the circuit and in this spefic board ZD1 and ZD3 can look like are shorted while they actually are not. If you like electronics i would suggest using one of those cheap microscopes to check pshisical appearance of the diode itself as well as many times you can clearly see if it is or not actually broken. I remember i had to change ZD1 or ZD3 in one case but i honestly do not remember the values of it. Im sorry i can't help much more.

Best regards.

--------------------- MERGED ---------------------------

Hi :)! I recently took my ps2 out of its box and there was no standby redlight when plugged in.

(I happen to have the exact same power supply board as you do, so hopefully I will be able to make sense ^_^)

I followed your post (which is really helpful for a newbie like me, thank you !), and figured that at least one diode is obviously defective as it is shorted (ZD1). I tested the other diodes as well, and some of them were not shorted but gave continuity in both ways (~530 ohms in forward bias which looks ok, but between 800 and 1200 ohms in reverse bias). The said diodes are ZD2, ZD3, ZD51 and D4.

I am really unsure about whether these are indeed defective or if that is to be expected. Hence I am unsure about if I should replace them or not. Do you have any idea ?

Besides, I really don't know how to identify the diodes either :ph34r: How do you know which replacements to buy ? Do you have a datasheet of the board and its components or is it written on the components once you unsolder them ?

Once again great post, it really was helpful to me :yay:. Thank you !

Hi, Im still trying to figure out how to multi-quote and apparently is not working how i believed it did. I answered what i could in my other comment. hopefully it was of any help. Best regards!

  • Like
Reactions: Alexander1970

Eiren73

New Member
Newbie
Joined
Sep 18, 2020
Messages
1
Trophies
0
Age
48
XP
23
Country
Spain
Set your multimeter to continuity and test the diodes both way. A working diode gives continuity in only "one way". The diodes have a "direction" in which they block or allow current. Test your diode both ways, in one way it should block the current while in the other it should allow it. If the diode gives continuity both ways, or gives no cintuinity at all, is broken. The most common diode to fail is ZD1 and ZD3. You may also want to check the top left corner diodes D10 D9 D7 D8. Testing all the diodes present in the circuit is not a bad idea, just an extra security and is often among the first things you want to rule out.


hello thank you very much for your post; I have a problem this zener diode broke when I removed it and I do not know its value

DIODE ZD1 ------PLEASE

Can someone help me and tell me the value to buy it.
thank you

--------------------- MERGED ---------------------------

Hi :)! I recently took my ps2 out of its box and there was no standby redlight when plugged in.

(I happen to have the exact same power supply board as you do, so hopefully I will be able to make sense ^_^)

I followed your post (which is really helpful for a newbie like me, thank you !), and figured that at least one diode is obviously defective as it is shorted (ZD1). I tested the other diodes as well, and some of them were not shorted but gave continuity in both ways (~530 ohms in forward bias which looks ok, but between 800 and 1200 ohms in reverse bias). The said diodes are ZD2, ZD3, ZD51 and D4.

I am really unsure about whether these are indeed defective or if that is to be expected. Hence I am unsure about if I should replace them or not. Do you have any idea ?

Besides, I really don't know how to identify the diodes either :ph34r: How do you know which replacements to buy ? Do you have a datasheet of the board and its components or is it written on the components once you unsolder them ?

Once again great post, it really was helpful to me :yay:. Thank you !





hello thank you very much for your post; I have a problem this zener diode broke when I removed it and I do not know its value

Can someone help me and tell me the value to buy it.
thank you

--------------------- MERGED ---------------------------

Hi :)! I recently took my ps2 out of its box and there was no standby redlight when plugged in.

(I happen to have the exact same power supply board as you do, so hopefully I will be able to make sense ^_^)

I followed your post (which is really helpful for a newbie like me, thank you !), and figured that at least one diode is obviously defective as it is shorted (ZD1). I tested the other diodes as well, and some of them were not shorted but gave continuity in both ways (~530 ohms in forward bias which looks ok, but between 800 and 1200 ohms in reverse bias). The said diodes are ZD2, ZD3, ZD51 and D4.

I am really unsure about whether these are indeed defective or if that is to be expected. Hence I am unsure about if I should replace them or not. Do you have any idea ?

Besides, I really don't know how to identify the diodes either :ph34r: How do you know which replacements to buy ? Do you have a datasheet of the board and its components or is it written on the components once you unsolder them ?

Once again great post, it really was helpful to me :yay:. Thank you !
hello thank you very much for your post; I have a problem this zener diode broke when I removed it and I do not know its value

Can someone help me and tell me the value to buy it.
thank you

Diode break is ZD1

Last edited by Eiren73,
  • Like
Reactions: Alexander1970

Gradius2

New Member
Newbie
Joined
Apr 18, 2021
Messages
2
Trophies
0
Age
50
XP
2
Country
Chile
PS2 isn't 24V. Is DUAL 12V, check the service manual if you don't believe me.

Like this: |+12V|+12V|GND|GND|

Also, I need the DIMENSIONS of PSU, specially the HIGH in mm.

Edit:

Hmm, the very photo you posted says what I'm telling you.

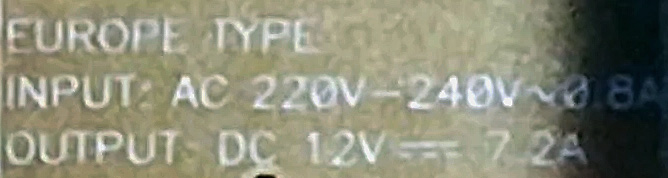

Europe Type
Input: 220V~240VAC @ 0,8A
Output: 12VDC @ 7,2A


Attachments

  • psu.jpg
    52.2 KB · Views: 136
Last edited by Gradius2,

Gradius2

New Member
Newbie
Joined
Apr 18, 2021
Messages
2
Trophies
0
Age
50
XP
2
Country
Chile
American Type (also made by Delta)
Input : 120VAC @ 1,5A
Output: 12VDC @ 6,2A


Attachments

  • 19.jpg
    212.2 KB · Views: 134

roundpix

New Member
Newbie
Joined
Oct 8, 2021
Messages
1
Trophies
0
Age
30
XP
13
Country
United States

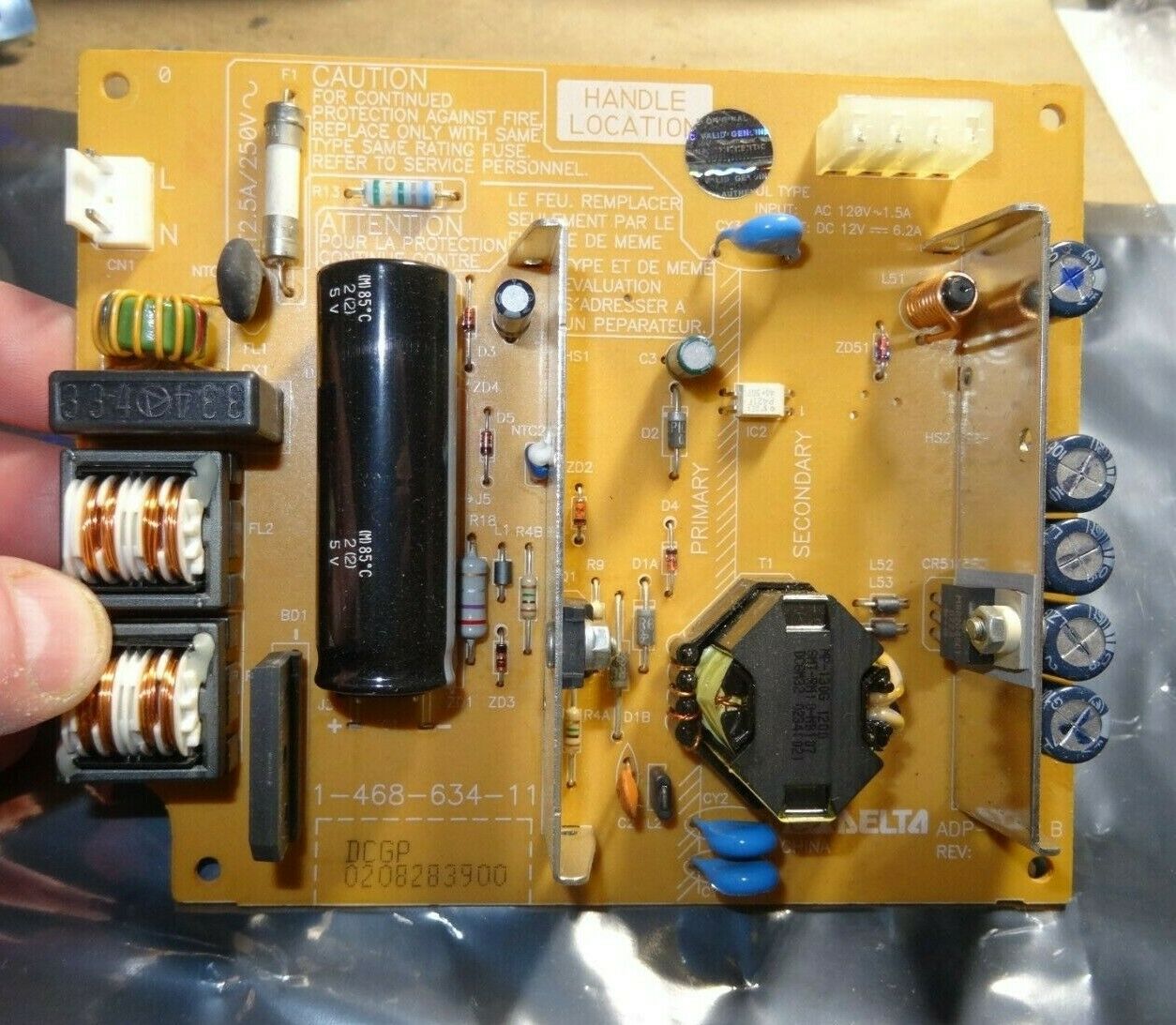

Hi! I was looking for a schematic of the same board shown in the first post and found this thread

I've got a PS2 that doesn't turn on, no red light at all, I've recently opened it and tested the power supply which unfortunately doesn't seem to be working (no 12V output)

I tested the main fuse and made sure there is continuity from the 2 prongs in the back of the console to the board, now before I start to test the other components I figured it would be a good idea to check C20 and C3 since apparently they often fail and replace them if necessary

I removed them from the board and quickly tested them with my multimeter in capacitance mode, the actual values of both caps seem quite close to what they should be, but since I don't own an ESR tester or more sophisticated equipment I can't be 100% sure that they are good

Unfortunately I don't have many electrolytic capacitors on hand so I was wondering if I can replace both with 100uF / 50V caps instead, just to see if they are in fact the issue or not, of course I will eventually order exact replacements

The voltage rating should be fine since it's higher than the original value (C20 should be 22uF 50V and C3 33uF 35V) but will the higher capacitance hurt anything?

General chit-chat
Help Users
  • DinohScene @ DinohScene:
    Open a thread in the respective section, you'll get more help there.
    Gift
  • The Real Jdbye @ The Real Jdbye:
    what is an "illustrated address"
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    I suspect wants to either extract graphics data or is a bad translation for trying to figure out cheats
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    Or maybe change a palette
    Gift
  • selever @ selever:
    im kinda confused? are u talking about title IDs video games have or something like that? as dinohscene suggested i think ur best off making a thread there tho
    Gift
  • Coto @ Coto:
    you need to decompile whatever the source you're trying to read. First identify if it's wether a compiled program section, an ELF or an asset. Check out tutorials on how to do it
    Gift
  • Coto @ Coto:
    there's a billion of them
    Gift
  • Coto @ Coto:
    if it's a compiled program section, it has an entrypoint (jump to init code), a base stack address and a base program address.
    Gift
  • Coto @ Coto:
    but yeah the mods have already spoken
    Gift
  • DinohScene @ DinohScene:
    sup coto!
    Gift
  • Coto @ Coto:
    dinoh
    ! how's life going bro
    Gift
  • DinohScene @ DinohScene:
    shite but still alive haha
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    Well that's a good thing (the alive part) lol
    Gift
  • DinohScene @ DinohScene:
    I know things are gonna be better come 2024
    Gift
  • DinohScene @ DinohScene:
    but still, the mere fact of knowing that until 2024, things remain shit is depressing to say the least
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    Yeah that's when Trump will be president again! Lol
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    Make America great again again lol
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    I feel like things are better than we give credit for all things considered
    Gift
  • Coto @ Coto:
    indeed dino, the whole point of this tactic is demoralization
    Gift
  • Coto @ Coto:
    that's where we gotta stay moralized and help the others.
    Gift
  • Coto @ Coto:
    it acts as some kind of sect, you get all the weirdos to go against you for no reason
    Gift
  • Coto @ Coto:
    if you don't follow the agenda
    Gift
  • SG854 @ SG854:
    I have $60,000 to spare what should I spend it on?
    Gift
  • Sicklyboy @ Sicklyboy:
    stonks
    Gift
  • SG854 @ SG854:
    Going to the 89 cents store. Be back in a cool min.
    Gift
    SG854 @ SG854: Going to the 89 cents store. Be back in a cool min.
