Permanently bricked 3ds xl?

Discussion in '3DS - Homebrew Development and Emulators' started by 3dsboi123, Nov 12, 2016.

  1. 3dsboi123
    OP

    3dsboi123 Newbie

    Newcomer
    5
    1
    Nov 12, 2016

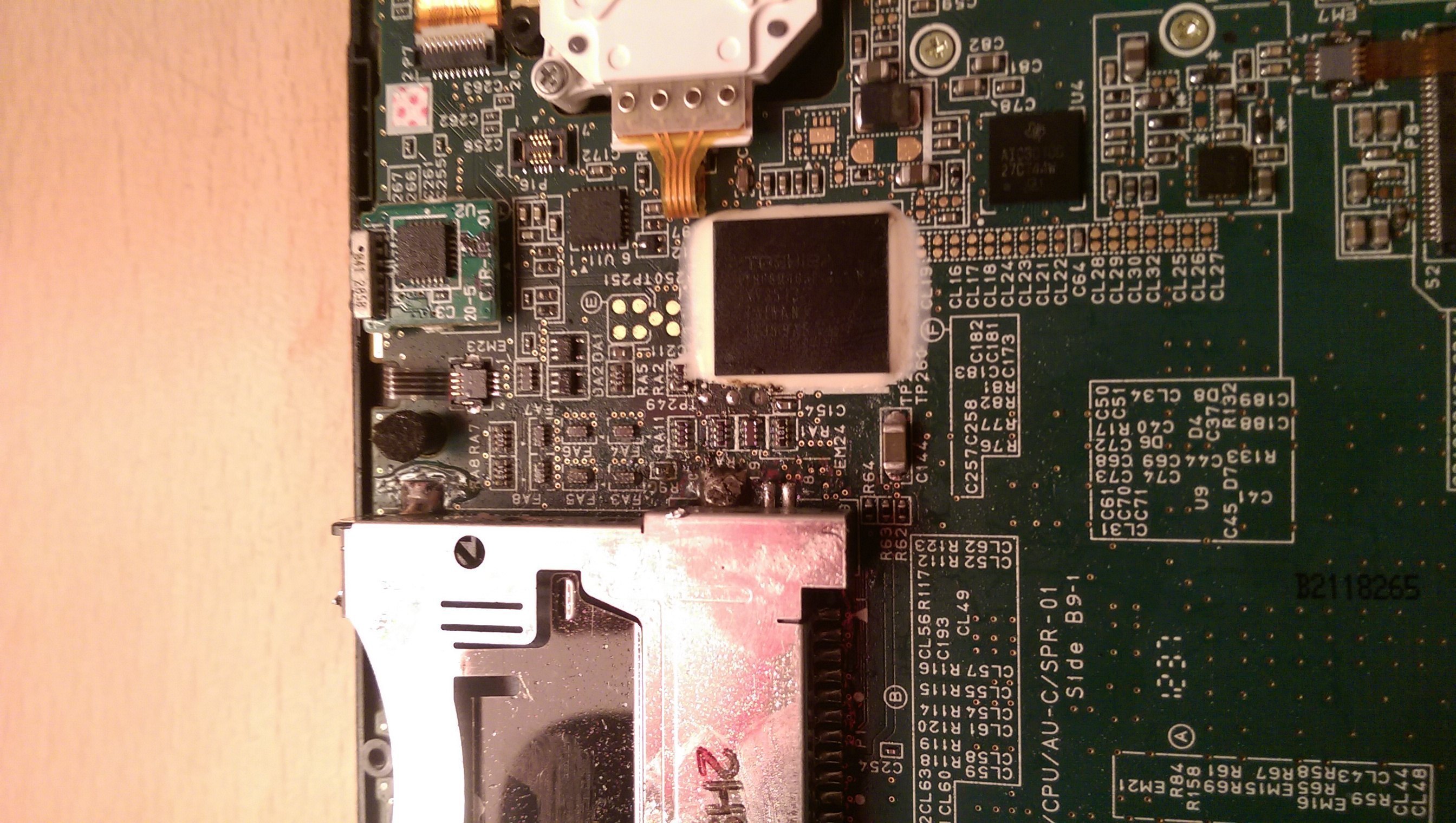

    Not sure if right place to post this, but basically I attempted a hard mod of my 3ds but got cold feet and removed the solder - now it won't boot, I get a blue screen with BOOTROM 8046. It looks like the problem may lie with the bottom connector- did I burn it out? Any help would be appreciated.


    Attached Files:

    Last edited by 3dsboi123, Nov 12, 2016
  2. nooby89

    nooby89 A normal member with a stupid alias

    Member
    1,614
    223
    Aug 18, 2015
    Canada
    The image is really blurry.

  3. bobfacemoo

    bobfacemoo GBAtemp Fan

    Member
    350
    62
    Feb 21, 2016
  4. 3dsboi123
    OP

    3dsboi123 Newbie

    Newcomer
    5
    1
    Nov 12, 2016

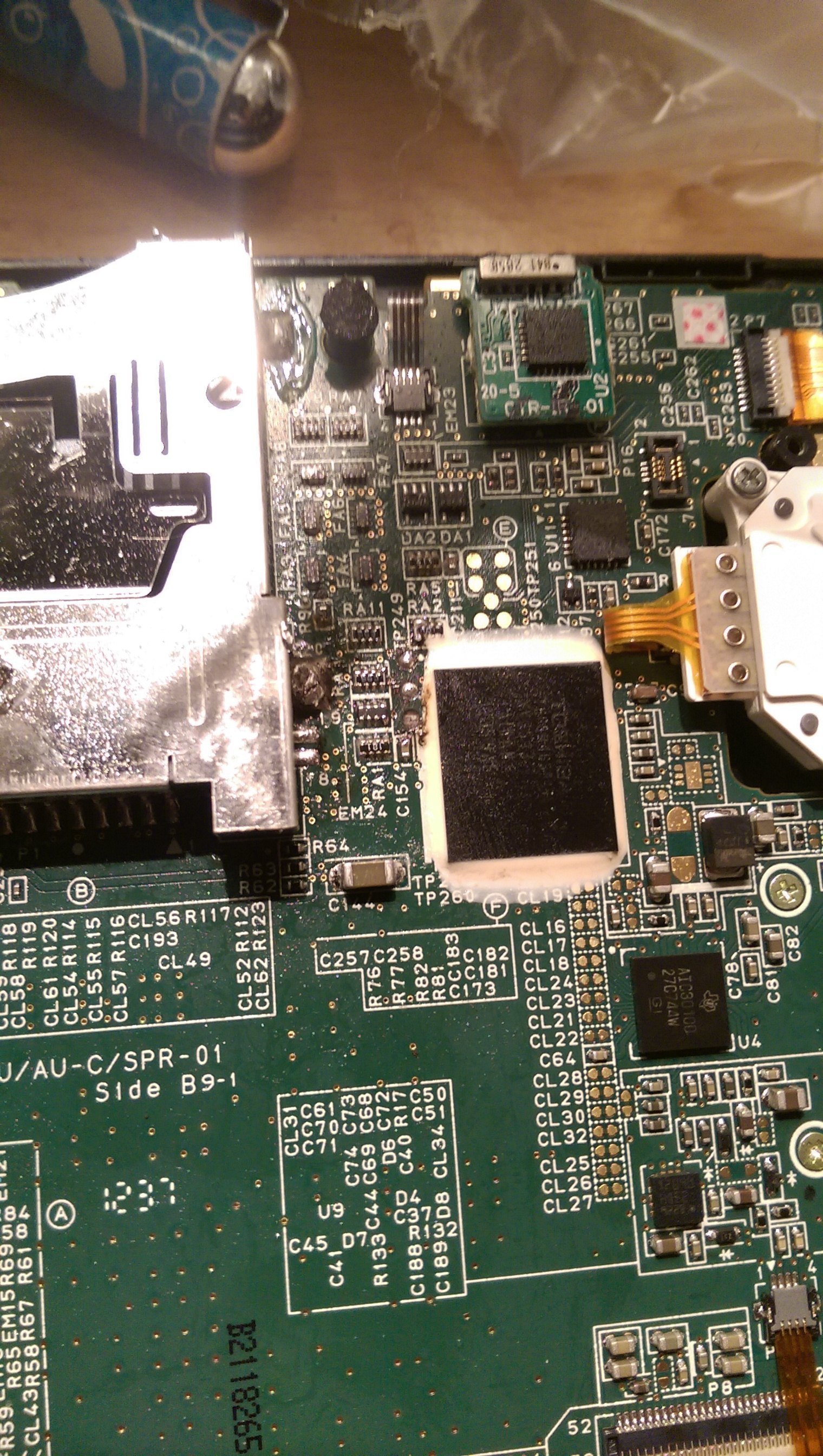

    Uploaded a new image

    nooby89 likes this.
  5. mashers

    mashers Stubborn ape

    Member
    3,837
    5,155
    Jun 10, 2015
    Kongo Jungle
    The whole area looks pretty scorched, and it looks as though you've actually melted a resistor. If that is the case, then this is most likely beyond repair.

  6. 3dsboi123
    OP

    3dsboi123 Newbie

    Newcomer
    5
    1
    Nov 12, 2016
    Wait hang on I'll upload a better image, I'll attempt to get a perfectly lighted picture.

    Last edited by 3dsboi123, Nov 12, 2016
  7. mashers

    mashers Stubborn ape

    Member
    3,837
    5,155
    Jun 10, 2015
    Kongo Jungle

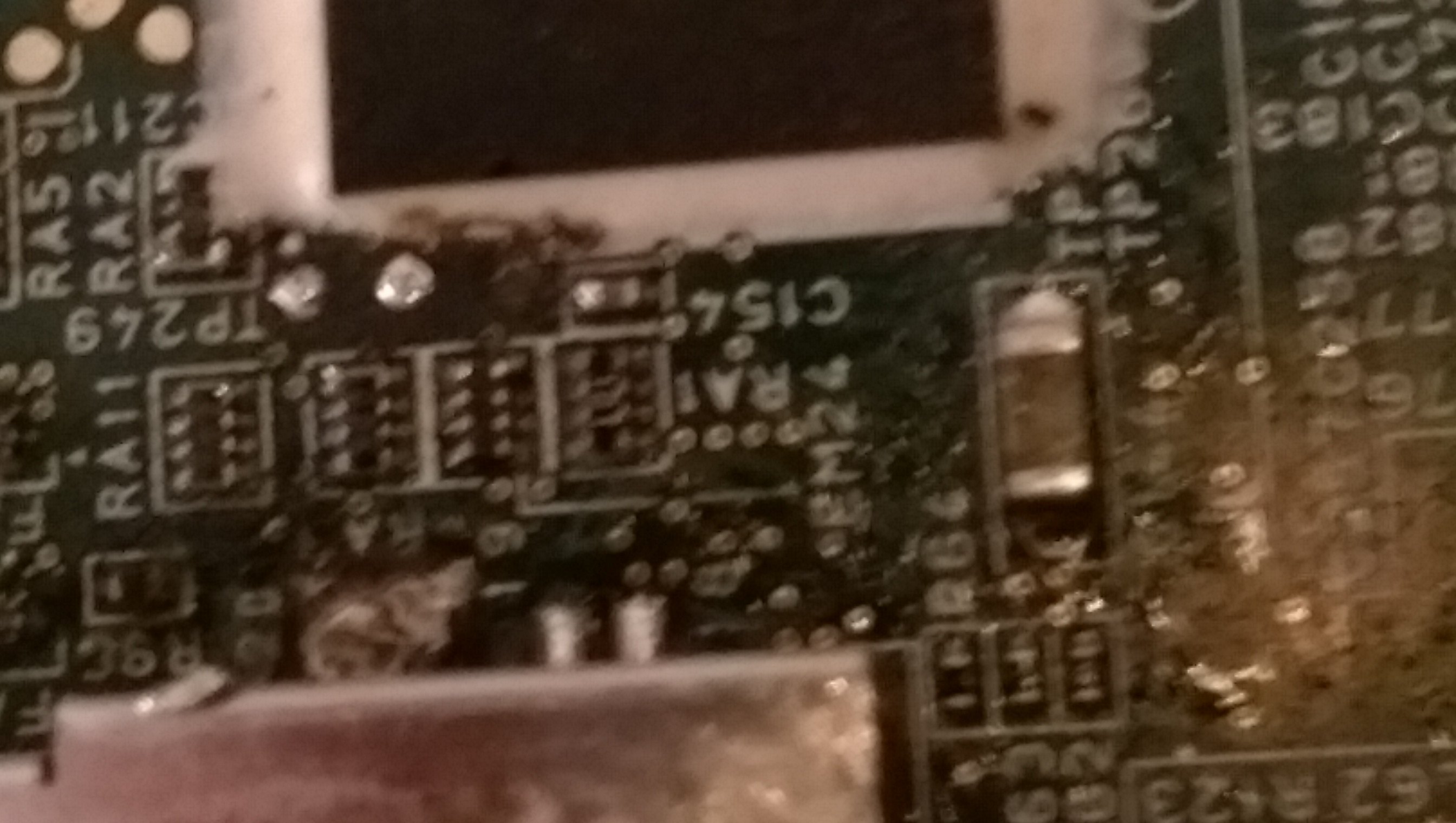

    The resistor next to the C154 text looks melted.

  8. 3dsboi123
    OP

    3dsboi123 Newbie

    Newcomer
    5
    1
    Nov 12, 2016
    Hmm. If this is the case is there any way it can be repaired? Couldn't I just replace the resistor?

  9. mashers

    mashers Stubborn ape

    Member
    3,837
    5,155
    Jun 10, 2015
    Kongo Jungle
    It's a surface mount component. Replacing it would require specialist equipment. Your best bet for repair would be gamesquest1 on this site, but I'm not sure even he would be able to do it.

  10. 3dsboi123
    OP

    3dsboi123 Newbie

    Newcomer
    5
    1
    Nov 12, 2016
    I think what I'm going to do is attempt to fix it somehow, then if it doesn't work I'll replace for entire board.
