Only 9.3 gigabytes free when formating CFW

[Italo007]

I saw that my OLED switch had low free space. So I decided to create a Sysnand based install (my switch is banned). I removed my SD card and formated my switch, but I only have 9.3 gigs free with nothing installed (18.1.0 btw)



[BigOnYa]

If your switch is banned already, no reason really to create a Sysnand/Emunand.



[Italo007]

.

Post automatically merged: Sep 25, 2024

If your switch is banned already, no reason really to create a Sysnand/Emunand.

Idk if I got it wrong but sysnand is the other one without he emummc right? I want the base 64 + 128 gb, no emummc. I booted without any sd card by pressing volume keys and I only have 9.3 gigs free. Is this normal???



[BigOnYa]

.

Post automatically merged: Sep 25, 2024

Idk if I got it wrong but sysnand is the other one without he emummc right? I want the base 64 + 128 gb, no emummc. I booted without any sd card by pressing volume keys and I only have 9.3 gigs free. Is this normal???

It sounds like you have a emunand using up storage. I don't use a emunand, sorry, but bet @impeeza can help you.



[Italo007]

It sounds like you have a emunand using up storage. I don't use a emunand, sorry, but bet @impeeza can help you.

I'll try to contact him



[BigOnYa]

I'll try to contact him

I just called for him by using his name, but he may be sleeping now. Maybe you can delete your emunand in the hekate menu, not sure to be honest. @Hayato213 you around?



[The Real Jdbye]

It sounds like you have a emunand using up storage. I don't use a emunand, sorry, but bet @impeeza can help you.

He booted it without a SD card so it wouldn't be the emuNAND.



[Italo007]

He booted it without a SD card so it wouldn't be the emuNAND.

Yeahh. 9.3 is low, right?



[BigOnYa]

He booted it without a SD card so it wouldn't be the emuNAND.

Isn't there a partition and a file based emunand tho? 2 different types.



[impeeza]

I saw that my OLED switch had low free space. So I decided to create a Sysnand based install (my switch is banned). I removed my SD card and formated my switch, but I only have 9.3 gigs free with nothing installed (18.1.0 btw)

Where do you have only 9.3 GB free?


Can you share with us a screen shot please.



[Italo007]

It sounds like you have a emunand using up storage. I don't use a emunand, sorry, but bet @impeeza can help you.

I'll try to contact him tnx

Post automatically merged: Sep 25, 2024

Where do you have only 9.3 GB free?


Can you share with us a screen shot please.

Booted without SD card by pressing volume buttons



[RealYoti]

He booted it without a SD card so it wouldn't be the emuNAND.

It is. SXOS emu inside the eMMC.

Post automatically merged: Sep 25, 2024

Booted without SD card by pressing volume buttons

Firmware version photo?



[ScarletDreamz]

do you mind inserting the card into the pc, and sharing a photo of the partitions?
if using windows, these can be found writing partitions on the start menu of your PC.



[Italo007]

do you mind inserting the card into the pc, and sharing a photo of the partitions?
if using windows, these can be found writing partitions on the start menu of your PC.

Here it is. The problem is mostly nand based tho.



[RyanTheArchivist]

Here it is. The problem is mostly nand based tho.

View attachment 460757

Latter partition is very likely an emunand. However that wouldnt explain why the system is low



[Italo007]

Latter partition is very likely an emunand. However that wouldnt explain why the system is low

Would that make a difference even with me booting without the SD card at all??



[impeeza]

I'll try to contact him tnx

Post automatically merged: Sep 25, 2024

Booted without SD card by pressing volume buttons

do you mind inserting the card into the pc, and sharing a photo of the partitions?
if using windows, these can be found writing partitions on the start menu of your PC.

Here it is. The problem is mostly nand based tho.

View attachment 460757

Lets no mix up things here.

the SD Card, is no the main issue here.


if you see the Console screen shoot shows the main storage EMMC as only 9.3 GB free, sadly HOS do not show TOTAL EMMC size.


can you boot on Hekate and mount the eMMC, going to the tab «tools» then selecting the button «USB Tools» and then selecting «eMMC RAW GPP» and please connect the console to PC and let see the usb disk pressented to windows, should be something like:

(mine is V1 so only have 32GB eMMC)

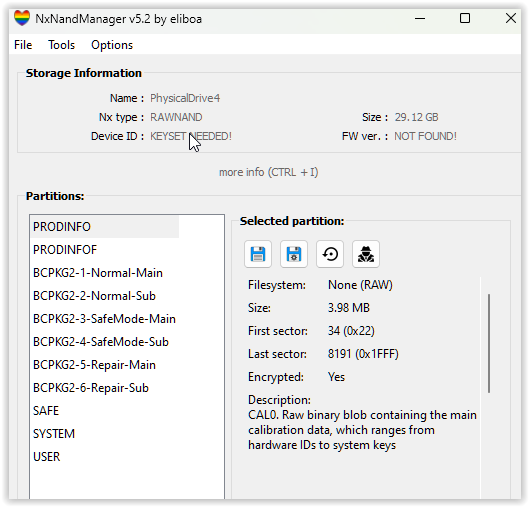

After that run NXNandManager https://github.com/eliboa/NxNandManager and select open drive:

select your console

share this same screenshots with us please.



[randy_w]

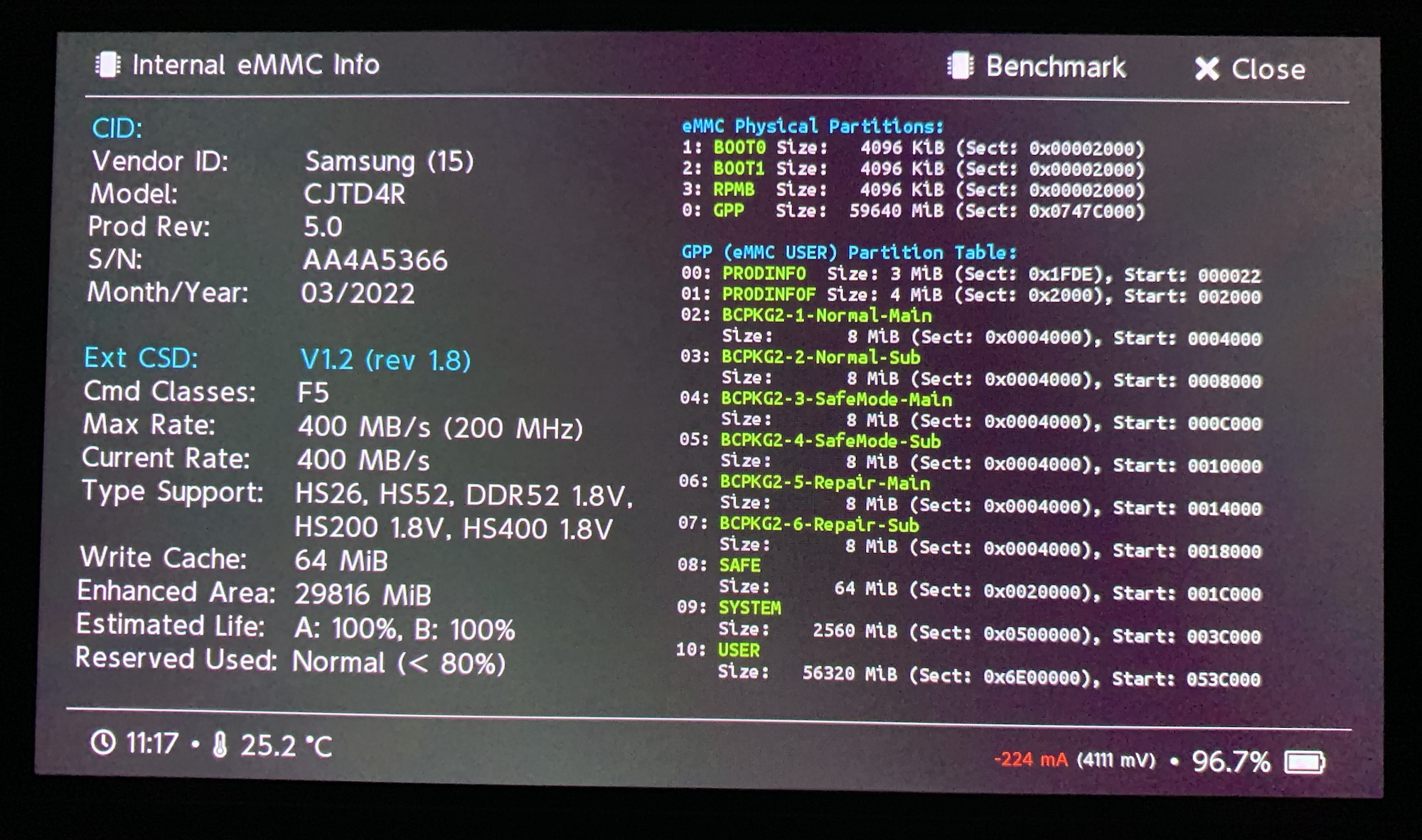

boot to hekate, go to console info, emmc and take a screenshot, like this one:

probably you messed up your emmc gpp partition table by restoring a 12GB emunand backup into emmc before. You can mount the raw emmc via usb and expand the user partition in nxnandmanager



[impeeza]

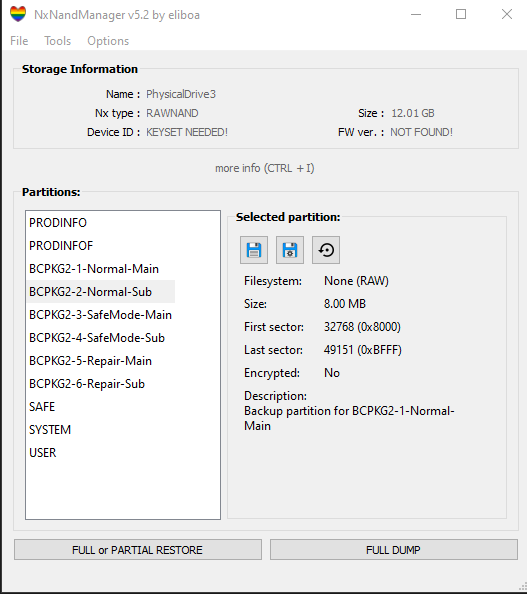

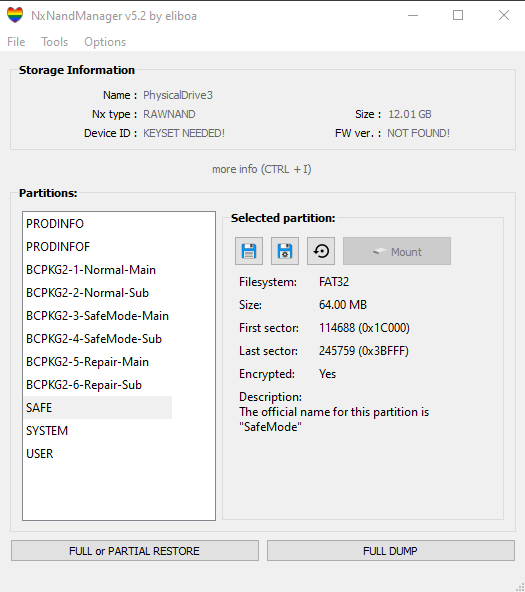

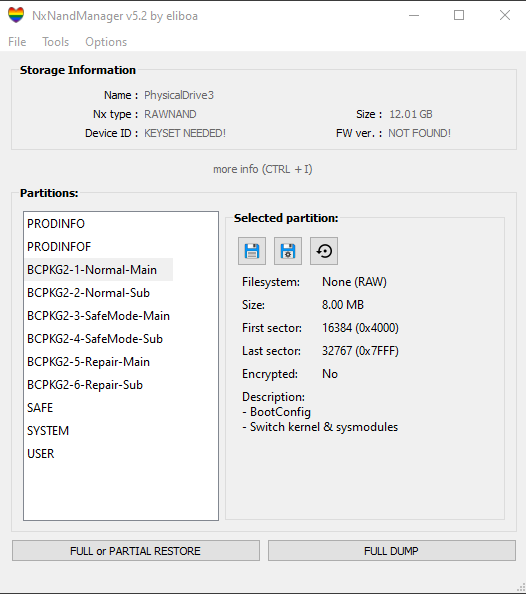

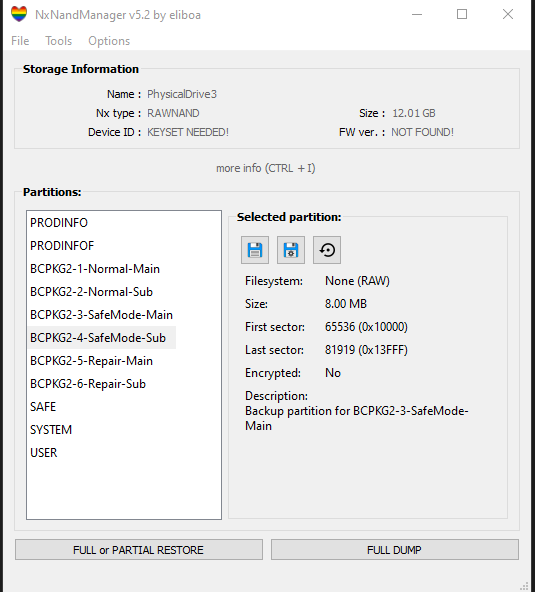

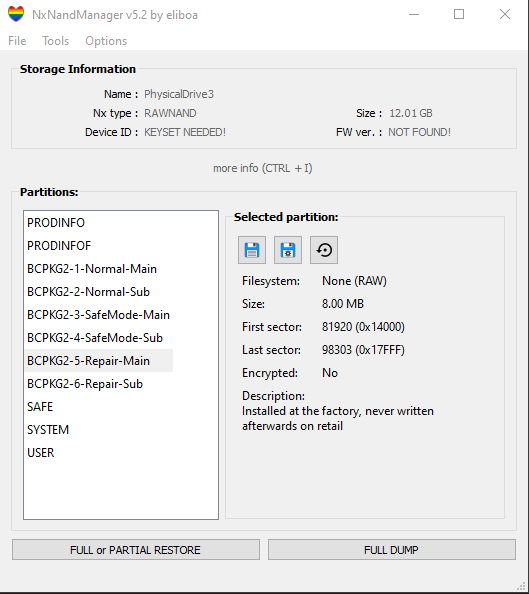

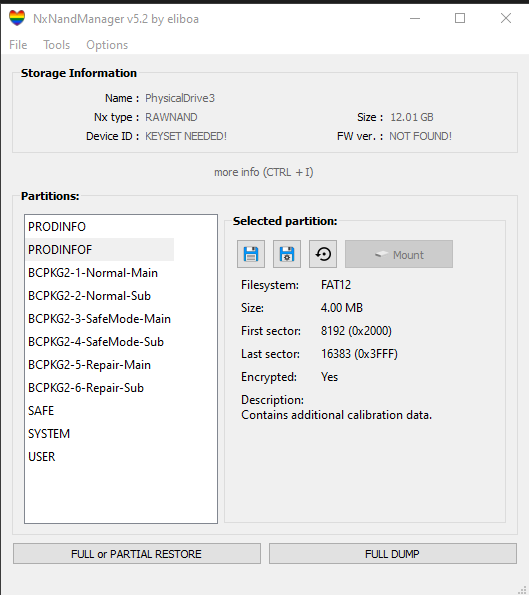

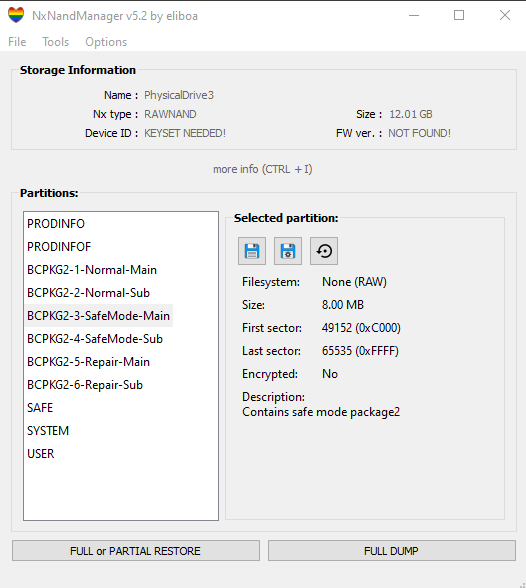

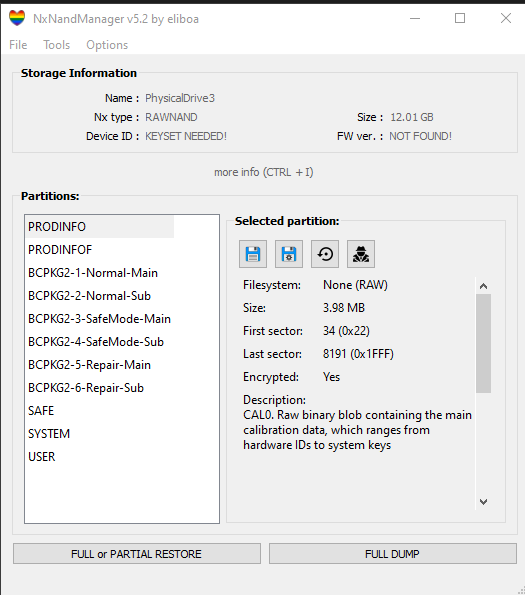

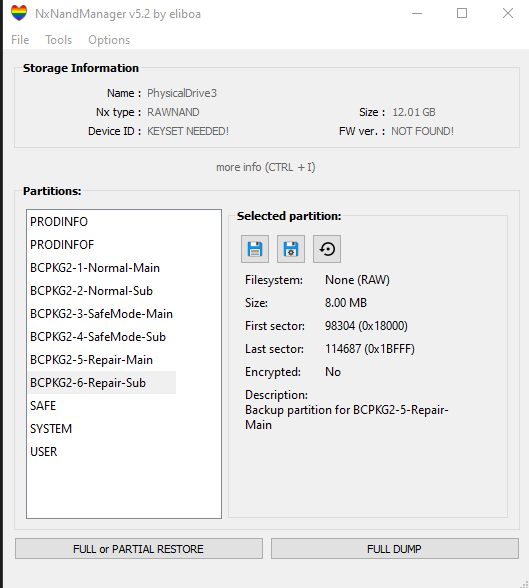

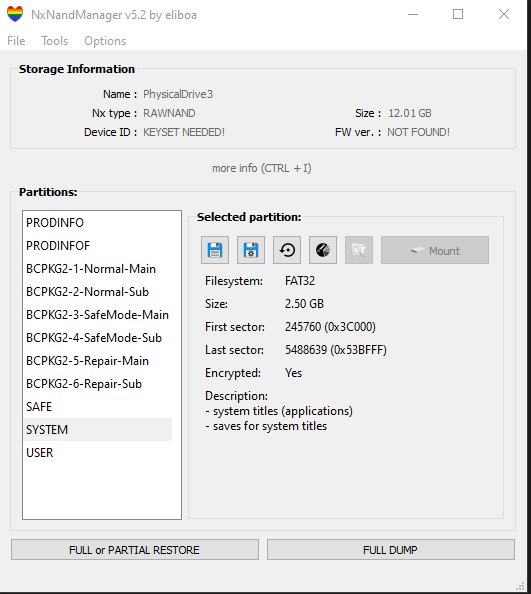

please take screenshots of each item on the left.



[Italo007]

please take screenshots of each item on the left.

Post automatically merged: Sep 25, 2024

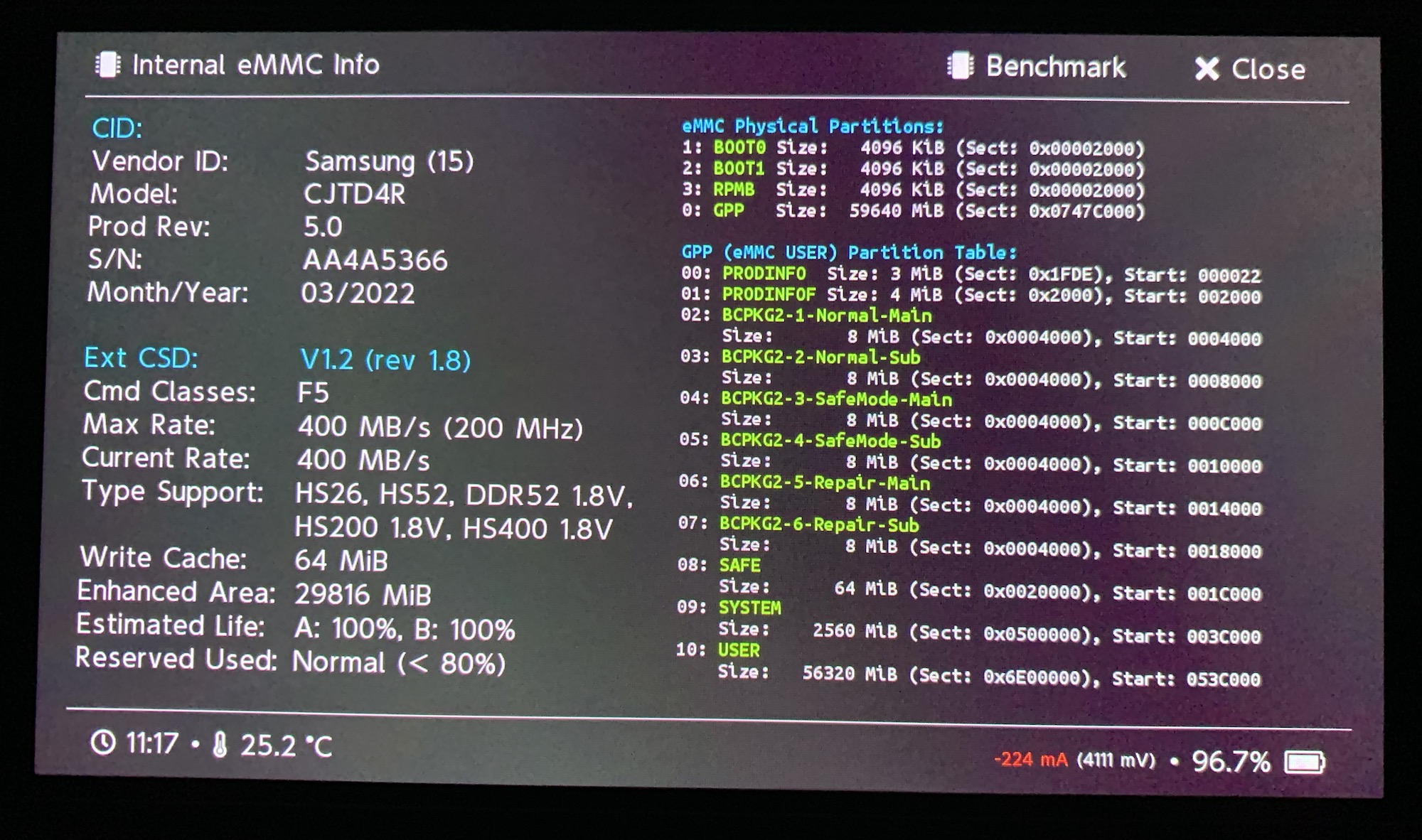

boot to hekate, go to console info, emmc and take a screenshot, like this one:
View attachment 460760

probably you messed up your emmc gpp partition table by restoring a 12GB emunand backup into emmc before. You can mount the raw emmc via usb and expand the user partition in nxnandmanager
