Hardware Nintendo Switch Short Circuit No Power

zayd_ould

New Member
OP
Newbie
Joined
Jun 30, 2022
Messages
1
Trophies
0
Age
20
Location
Indiana
XP
8
Country
United States
Hi,

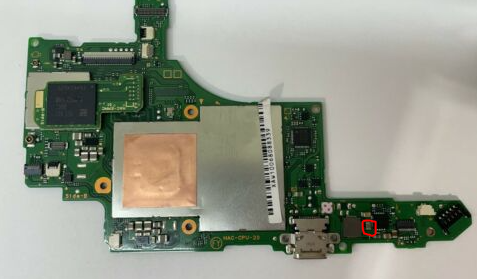

I have a Nintendo Switch that has no power. When I use a charging meter, it draws 0.05a, but also sometimes momentarily jumps to 0.07a. Upon testing the capacitor next to the BQ24193 chip (circled in red) , it seems to be shorted. I'm thinking about replacing the chip, but I wanted to get some input before I did so. If someone could help me out, that would be great, thanks!
