NINTENDO SWITCH HELP-Black screen Missing warmboot.bin / secmon.bin

[Killa_kelvv]

So this error occured after attempting to inject the fusee payload after updating atmosphere after 13.0 switch update that included the bluetooth compatibility
The following screenshots is what i have in the SD card, i even formatted it after backing up on an external drive,
and afterwards added the updated atmosphere/hekate files & still nothing.
Also included a screenshot of what my system settings ipl looks like.



[Killa_kelvv]

Bump



[Flame]

Bump

bro you just created the thread. wait my man. im sure you will get help.



[Killa_kelvv]

Bump



[Flame]

somebody help this poor guy.



[wiiNinja]

Somethings to look at:
* Did you have EmuNand on a partition? I don't see anything that shows emuMMC. Were you using CFW sysNand?
* If you had emuNand on a partition, and reformatted the card, then copy over the files, that's not going to work - You wiped your emuNand.
* Have you ever booted stock firmware using this SD card? I don't see the Nintendo folder if you did.
* If you upgraded to 13, you need the latest Atmosphere and Hekate. If you uncompress Hekate zip correctly, you should see a file named hekate_ctcaer_5.6.2.bin at the root of the SD card. It's not important that the file has to be there, but instructions says you decompress Hekate zip file to the root of the SD card, and something tells me that you may not have unzip the Atmosphere and Hekate files correctly
* What does the content of the Atmosphere folder look like?
* Have you tried booting into Hekate?

Just try to wipe the SD card clean (hope you had backups - saves and NAND), then start fresh. Get the latest Atmosphere, Hekate, ITotalJustice patches. Then try to boot into Hekate to see if you can get that far.



[Killa_kelvv]

Somethings to look at:
* Did you have EmuNand on a partition? I don't see anything that shows emuMMC. Were you using CFW sysNand?
* If you had emuNand on a partition, and reformatted the card, then copy over the files, that's not going to work - You wiped your emuNand.
* Have you ever booted stock firmware using this SD card? I don't see the Nintendo folder if you did.
* If you upgraded to 13, you need the latest Atmosphere and Hekate. If you uncompress Hekate zip correctly, you should see a file named hekate_ctcaer_5.6.2.bin at the root of the SD card. It's not important that the file has to be there, but instructions says you decompress Hekate zip file to the root of the SD card, and something tells me that you may not have unzip the Atmosphere and Hekate files correctly
* What does the content of the Atmosphere folder look like?
* Have you tried booting into Hekate?

Just try to wipe the SD card clean (hope you had backups - saves and NAND), then start fresh. Get the latest Atmosphere, Hekate, ITotalJustice patches. Then try to boot into Hekate to see if you can get that far.

The guys at the Atmosphere discord solved it , they’re legends , regardless I appreciate you taking the time to look into my thread .
The problem was that atmosphere came out with fusee.bin & i went along and replaced payload.bin in my rcmloader to fusee.bin , it caused that error . I added payload.bin back in



[Killa_kelvv]

What I was supposed to do was rename the fusee.bin to payload.bin for it to boot straight to atmosphere, it boots to hekate now but regardless i can access the fusee through the payload list . I did in fact format my sd card of course after backing up all my files .



[wiiNinja]

Alright. Glad it's sorted out.



[kaska78]

Hello, could you tell me in which folder you have changed the names of fusee.bin to payload.bin? I have the same error as you with the latest update. Thanks

What I was supposed to do was rename the fusee.bin to payload.bin for it to boot straight to atmosphere, it boots to hekate now but regardless i can access the fusee through the payload list . I did in fact format my sd card of course after backing up all my files .



[canichegotico]

having the same problem now, so is th sd card that need to be replace fusee bin to payload bon? or into the rcm loader?
Anybody knows why that happens and how can be avoid it?



[Hayato213]

having the same problem now, so is th sd card that need to be replace fusee bin to payload bon? or into the rcm loader?
Anybody knows why that happens and how can be avoid it?

Try hekate.bin as payload.bin instead of fusee.bin



[Caniche]

Ok in which folder exactly i'm
bit lost really , thanks for replying

Post automatically merged: Sep 20, 2023



[whisky9]

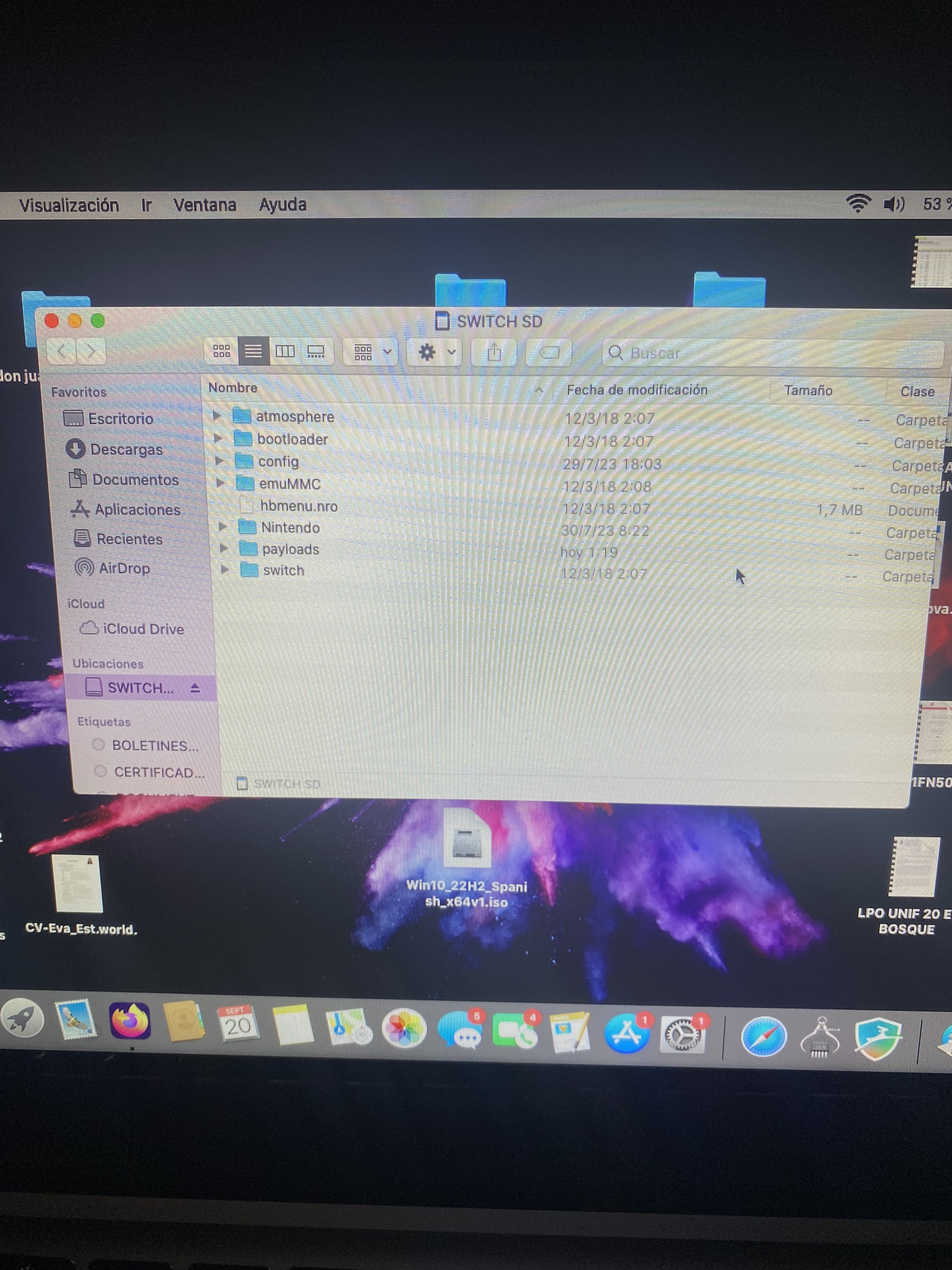

View attachment 394799
Ok in which folder exactly i'm
bit lost really , thanks for replying

Post automatically merged: Sep 20, 2023

MacOS user must do archive bit fix: https://gbatemp.net/threads/how-to-fix-archive-bit-for-all-sd-files-and-folders.515258/



[Caniche]

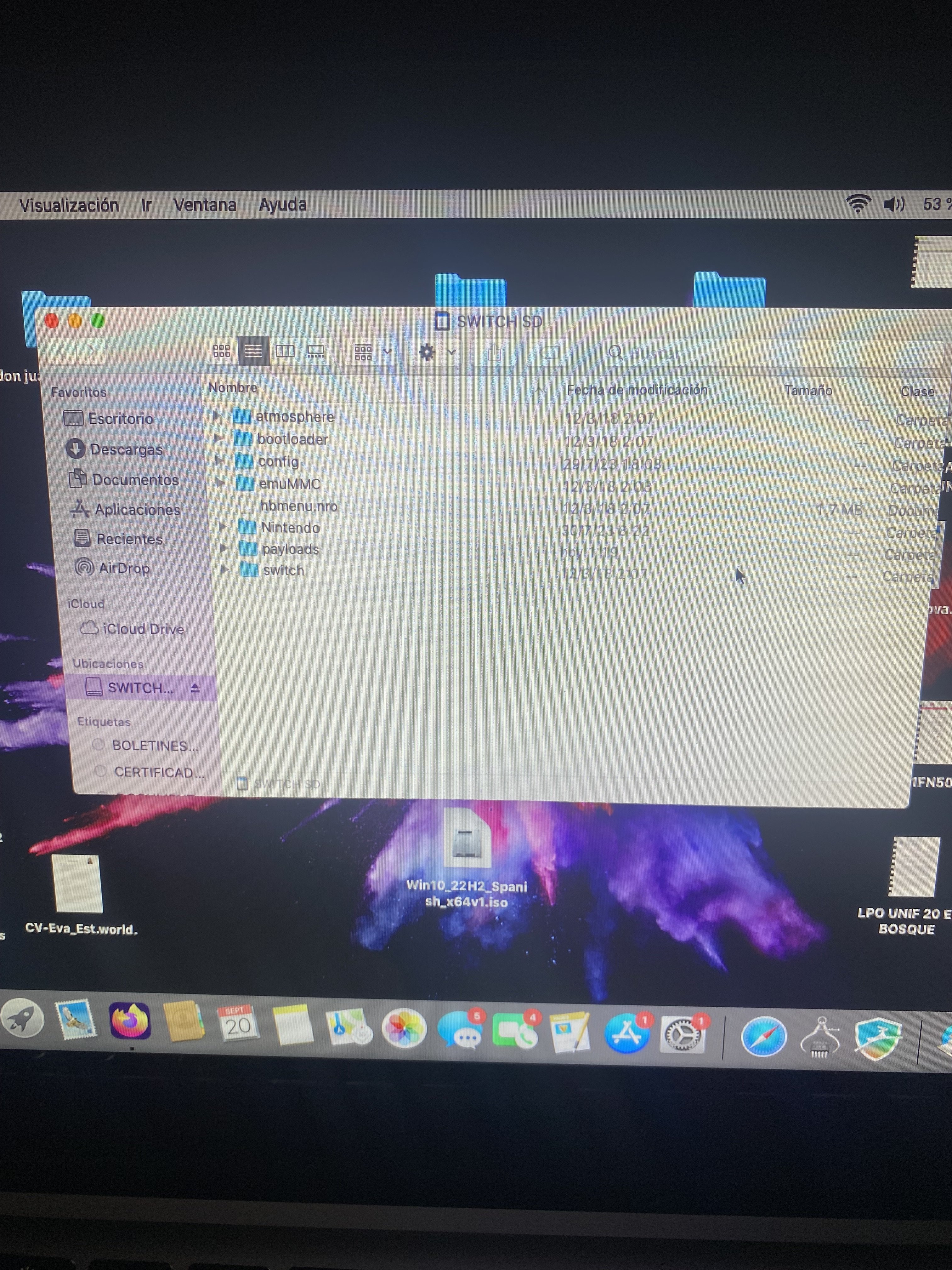

View attachment 394799
Ok in which folder exactly i'm
bit lost really , thanks for replying

Post automatically merged: Sep 20, 2023

Try hekate.bin as payload.bin instead of fusee.bin

but where ?please i can't use anytjing atm and i have 30hours flight back to Australia

Post automatically merged: Sep 21, 2023

The guys at the Atmosphere discord solved it , they’re legends , regardless I appreciate you taking the time to look into my thread .
The problem was that atmosphere came out with fusee.bin & i went along and replaced payload.bin in my rcmloader to fusee.bin , it caused that error . I added payload.bin back in

Could you explain how to do it please?
i don't know folder exactly or if is injecting a payload with the rcmloder etc , losing the hope.



[linuxares]

https://github.com/CTCaer/hekate/releases/download/v6.0.6/hekate_ctcaer_6.0.6_Nyx_1.5.5.zip - download this, extract the zip file and rename hekate_ctcaer_6.0.6.bin to payload.bin and put it in the root of the sd card.



[sudeki300]

Bump

don't be bumping as it's frowned upon, check out the rules when you get a chance it'll help you. also there's a dedicated thread for these types of switch issues where you'll get quicker help instead of making new threads.

https://gbatemp.net/threads/switch-noob-paradise-ask-questions-here.488277/page-2068#post-10246294
