Hardware need a component reference

[ddp72]

bonjour à tout les membres .
je suis nouveau sur le forum .

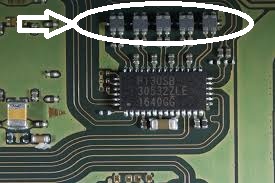

j'ai besoin de vos connaissances pour avoir la référence exacte du composant que j'ai entourer en blanc sur la photo
Cordialement.



[ddp72]

hello to all members.
i am new to the forum.
I need your knowledge to have the exact reference of the component that I have surrounded in white on the photo
cordially
View attachment 225025



[yaum]

Hi, there is a full thread existing for parts reference there:
https://gbatemp.net/threads/compone...stly-the-motherboard-and-main-console.525026/

Nevertheless, the components you're searching for are Panasonic EXC24CS or equivalent. In case you'd like to know what are the ones between these and the PI3USB, it's 100nF 0201 6.3v MLCC.

Credits to @mattytrog .



[ddp72]

Thank you
but these are the EXC-24CS that I have to buy and where to order because there are several I have two reference EXC-24CS350 and EXC-24CS900U but there are 6 points to solder and on the switch there are only 4 so it must not be the right ones
cordially



[ddp72]

Thank you
but these are the EXC-24CS that I have to buy and where to order because there are several I have two reference EXC-24CS350 and EXC-24CS900U but there are 6 points to solder and on the switch there are only 4 so it must not be the right ones
cordially



[ddp72]

bonjour à tous
qui pourrais me vendre 10 composants EXC-24CS pour nintento switch.
cordilement
Good morning all
who could sell me 10 EXC-24CS components for nintento switch.
cordially



[ppzikos]

hello
search " nintendo switch inductor" on aliexpress , for 12€ there is a lot of 50.
j'ai pas mieux.



[ddp72]

hello
search " nintendo switch inductor" on aliexpress , for 12€ there is a lot of 50.
j'ai pas mieux.

hello can you give me the link
cordially



[ppzikos]

https://fr.aliexpress.com/item/4001036287300.html?spm=a2g0o.cart.0.0.269a3c00jhBfUQ&mp=1

et voila.

But all your inductor (filter) are dead?
if the inductor is short circuit it means it is good,
when the inductor is dead, there is no continuity.

by.



[ddp72]

https://fr.aliexpress.com/item/4001036287300.html?spm=a2g0o.cart.0.0.269a3c00jhBfUQ&mp=1

et voila.

But all your inductor (filter) are dead?
if the inductor is short circuit it means it is good,
when the inductor is dead, there is no continuity.

by.

non c'est pas ça qui c"est passer mais en réparant les pistes du connecteur de charge
j'ai mis des fils trop gros et en remontant la carte mère les fils se sont pliés et on casser les pattes du composant.
cordialement.
no that's not what it is but by repairing the tracks of the charging connector
I put wires that were too big and when reassembling the motherboard the wires bent and we broke the legs of the component.
cordially.
