Hi all, ive bought a new 3ds xl couple of days ago from a guy on marketplace. He said he tried to install some kind of CFW but now the console have the blue light and both black screen. Ive followed the guide to boot into B9S with NTRboot but nothing. Ive flashed NTRboot onto my R4i 3Ds rts following the guide on 3ds.hacks.guide with my old ds lite and checked also on an old 2ds. On both console the bootanimation glitch so i think the cartridge is flashed correctly. Formatted multiple times the sd before installing all the files listed on the site. The magnet im using is ripped from a dead hdd.
I dont know if its necessary but i dont have the original microsd so...
What should i do? Its been 2 days im trying to do the trick but still black screen, sigh. Any help is appreciated, thanks :)


wormdood

pirate booty inspector
Member
Joined
Jan 3, 2014
Messages
5,170
Trophies
0
Age
35
Location
behind a parental advisory sticker
XP
3,551
Country
United States
What you should do is practice. take your working DS turn it on and hold the battery near the button pad to see where the proper positioning for the magnet placement is and if your magnet is powerful enough once you're sure where the proper position is try it again on your broken system because honestly I have never heard of ntrboot failing


BaamAlex

S̶̥͝l̷̹̀͗e̶̼̖̩̅͊e̷̛̦͉̦p̷̘͌͝i̵͇̠̞̿̌n̷̰͚͌̓͝g̷̦̲̍̆͝
Member
Joined
Jul 23, 2018
Messages
4,194
Trophies
1
Age
26
XP
3,504
Country
Germany
proper positioning for the magnet placement is and if your magnet is powerful enough
First of all, the position is on every model a bit different iirc. Second, the old 2ds doesn't need a magnet ;)
The magnet should be put on the new 3ds xl under the b button.


IC_

Cossus cossus
Member
Joined
Aug 24, 2017
Messages
1,469
Trophies
1
Location
The Forest
XP
3,159
Country
Poland
Does the blue light flash briefly and then fade out again?
Like this post says, does the blue light turn off immediately after turning on, or does it stay on forever until you force it to power off by holding the power button for some time? If it stays on like that then it is most likely a hardware issue with the 3DS, even ntrboot usually wouldn't help in this case. Does the yellow wireless status light ever turn or do you ever hear anything from the speakers other than a pop when powering off?

If the previous owner made the most obvious mistake, you could still try putting the latest Luma boot files on any FAT32-formatted SD card and trying that in the 3DS: https://github.com/LumaTeam/Luma3DS/releases


nalex7752

Member
OP
Newcomer
Joined
Jul 27, 2019
Messages
9
Trophies
0
Age
23
XP
82
Country
Italy
Does the blue light flash briefly and then fade out again?
nope, when i turn on the console the led keep being solid blue, no matter if i have the ntr cartridge inserted or the microsd.


What you should do is practice. take your working DS turn it on and hold the battery near the button pad to see where the proper positioning for the magnet placement is and if your magnet is powerful enough once you're sure where the proper position is try it again on your broken system because honestly I have never heard of ntrboot failing
its a neodymium magnet, it should cover the whole ABXY area even if i dont put into the correct position btw ill keep trying.

--------------------- MERGED ---------------------------

Like this post says, does the blue light turn off immediately after turning on, or does it stay on forever until you force it to power off by holding the power button for some time? If it stays on like that then it is most likely a hardware issue with the 3DS, even ntrboot usually wouldn't help in this case. Does the yellow wireless status light ever turn or do you ever hear anything from the speakers other than a pop when powering off?

If the previous owner made the most obvious mistake, you could still try putting the latest Luma boot files on any FAT32-formatted SD card and trying that in the 3DS:

the led stay blue until i force it to power off, also no wireless led or any type of sound. Ill give a shot at the link.


You can try luma3ds 7.0.5 maybe he used A9LH,

Got it, ill check also that.

Thanks guys


_____________________________________________________________________________________

UPDATE: i wasnt able to boot with the x+start+select so i tried to enter into the bootrom error creating the fakesd card and it worked. entered the bootrom and booted b9s. currently restoring the image with ctrtrasfer on godmode9. thanks for the help guys ❤

UPDATE2: lol, just finished to restore the image but when i restart the console i got the same error:" unable to mount ctrnand or load the ctrnand firm", any suggestion?

Last edited by nalex7752,
  • Like
Reactions: IC_

wormdood

pirate booty inspector
Member
Joined
Jan 3, 2014
Messages
5,170
Trophies
0
Age
35
Location
behind a parental advisory sticker
XP
3,551
Country
United States
UPDATE2: lol, just finished to restore the image but when i restart the console i got the same error:" unable to mount ctrnand or load the ctrnand firm", any suggestion?
looks like your nand is Really dead, rare indeed... you will need to use b9s to create an emunand and boot exclusively from that


wormdood

pirate booty inspector
Member
Joined
Jan 3, 2014
Messages
5,170
Trophies
0
Age
35
Location
behind a parental advisory sticker
XP
3,551
Country
United States
It's such a rare thing that there likely is no guide but before we go down that route it looks like you were using gm9 for the ctrtransfer. gm9 has some brick protections built into it so it won't replace system titles that have the latest or most relevant version installed even if the system title in question is damaged or corrupt ... try a d9 ctrtransfer d9 will rewrite the entire system nand despite file integrity (as such it also has higher brick potential as well so make sure you have a nand backup ...woot double edged sword)
btw by d9 I mean decrypt9

  • Like
Reactions: IC_ and nalex7752

nalex7752

Member
OP
Newcomer
Joined
Jul 27, 2019
Messages
9
Trophies
0
Age
23
XP
82
Country
Italy
It's such a rare thing that there likely is no guide but before we go down that route it looks like you were using gm9 for the ctrtransfer. gm9 has some brick protections built into it so it won't replace system titles that have the latest or most relevant version installed even if the system title in question is damaged or corrupt ... try a d9 ctrtransfer d9 will rewrite the entire system nand despite file integrity (as such it also has higher brick potential as well so make sure you have a nand backup ...woot double edged sword)
btw by d9 I mean decrypt9

Ok, i think we ( I ) have a problem: yesterday i was able to boot and everything else because i had still connected the fakesd adapter. Ive just removed it and the console acts weird again, no boot and black screen BUT now i dont need to force the shutdown by pressing the button but after few seconds she does it. if i press the start button and power on the console, the blue led light up for half a second and dies. even the ntrboot doesnt work anymore, just like before


nalex7752

Member
OP
Newcomer
Joined
Jul 27, 2019
Messages
9
Trophies
0
Age
23
XP
82
Country
Italy
Ok, i think we ( I ) have a problem: yesterday i was able to boot and everything else because i had still connected the fakesd adapter. Ive just removed it and the console acts weird again, no boot and black screen BUT now i dont need to force the shutdown by pressing the button but after few seconds she does it. if i press the start button and power on the console, the blue led light up for half a second and dies. even the ntrboot doesnt work anymore, just like before


EDIT: ok, idk what happened but it worked, i was able to boot decrypt9 and reflash the nand, it took a while but now it works :D
Thank you all :grog:

  • Like
Reactions: IC_ and wormdood

monkzeng223

New Member
Newbie
Joined
Jul 13, 2021
Messages
1
Trophies
0
Age
29
XP
14
Country
United States
Ok, i think we ( I ) have a problem: yesterday i was able to boot and everything else because i had still connected the fakesd adapter. Ive just removed it and the console acts weird again, no boot and black screen BUT now i dont need to force the shutdown by pressing the button but after few seconds she does it. if i press the start button and power on the console, the blue led light up for half a second and dies. even the ntrboot doesnt work anymore, just like before

What do you mean by fakesd adapter? I have a 3ds with the same problem but I'm having trouble following your posts and how you fixed it. You said something about entering into the bootrom in one of your other posts but I'm confused


nalex7752

Member
OP
Newcomer
Joined
Jul 27, 2019
Messages
9
Trophies
0
Age
23
XP
82
Country
Italy
What do you mean by fakesd adapter? I have a 3ds with the same problem but I'm having trouble following your posts and how you fixed it. You said something about entering into the bootrom in one of your other posts but I'm confused

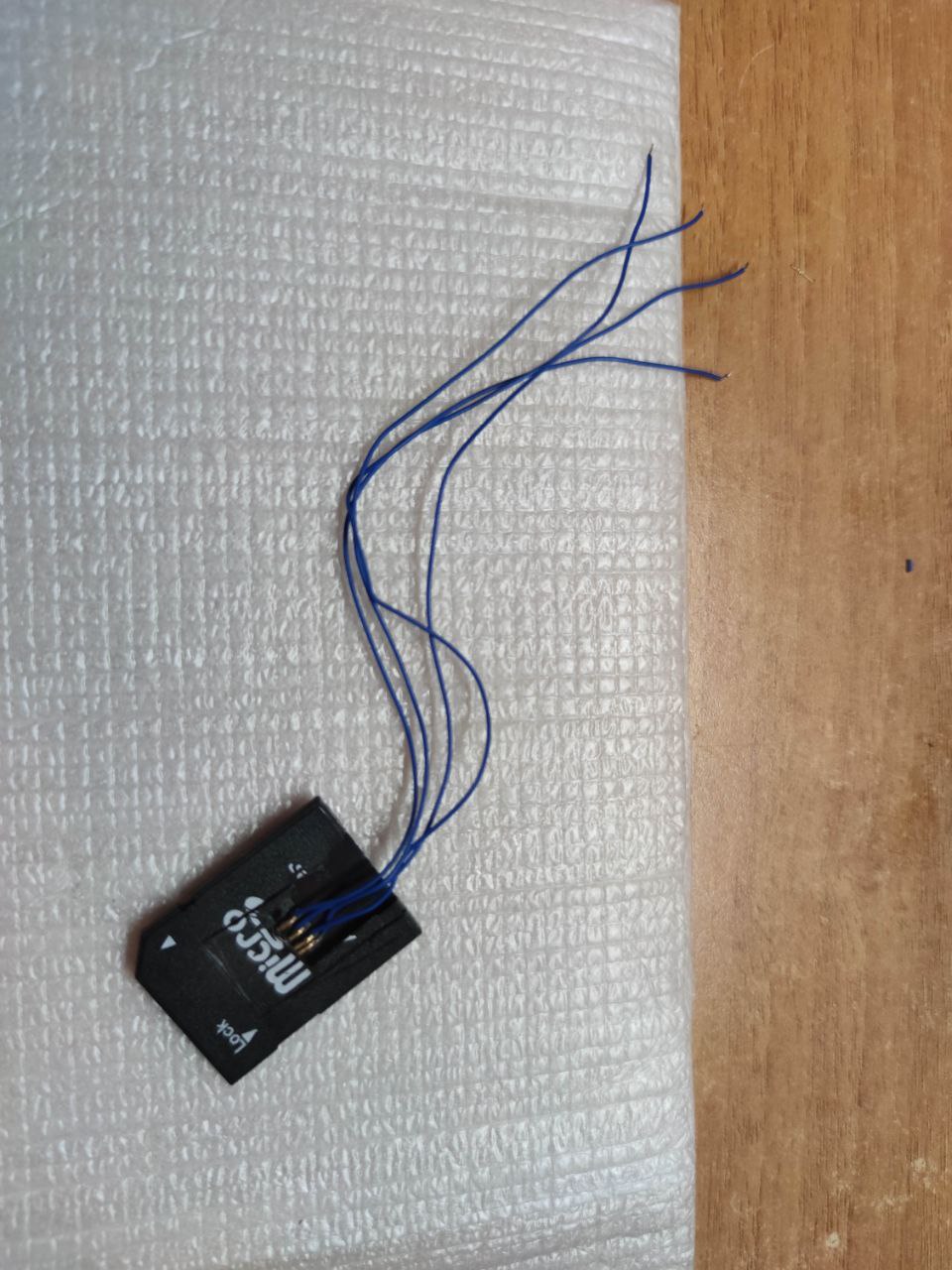

You should create another thread but with fakesd i mean this *check image*, i know, its pretty crude but it worked :)
Ive found the schematic on an italian forum but idk if i can post the link however i think you can find them here as well


Attachments

  • photo1626202790.jpeg
    191.9 KB · Views: 63

wormdood

pirate booty inspector
Member
Joined
Jan 3, 2014
Messages
5,170
Trophies
0
Age
35
Location
behind a parental advisory sticker
XP
3,551
Country
United States
Ive found the schematic on an italian forum but idk if i can post the link however i think you can find them here as well
as long as the page are linking to follow the rules that gbatemp sets forward as in isn't going to link you to a rom site or porn or anything malicious

also on that SD where do you solder those wires to? It looks like people's old hard mod SD cards from back in the day


nalex7752

Member
OP
Newcomer
Joined
Jul 27, 2019
Messages
9
Trophies
0
Age
23
XP
82
Country
Italy
as long as the page are linking to follow the rules that gbatemp sets forward as in isn't going to link you to a rom site or porn or anything malicious

also on that SD where do you solder those wires to? It looks like people's old hard mod SD cards from back in the day

What do you mean by fakesd adapter? I have a 3ds with the same problem but I'm having trouble following your posts and how you fixed it. You said something about entering into the bootrom in one of your other posts but I'm confused


Here's the link https://www.reboot.ms/forum/threads...3ds-xl-nand-dump-ripristino-via-hardware.207/ the rules are tight even on the other side so no porn or anything protected by copyright.
Ive followed only the first part on how to create the fakesd and the bootrom loading, then i proceeded as you told me, decrypt9 and so on
