Hardware Micro SD Card Reader connector missing a pin

ethangraham456

Member
OP
Newcomer
Joined
Jun 26, 2018
Messages
11
Trophies
0
Age
22
XP
120
Country
United States

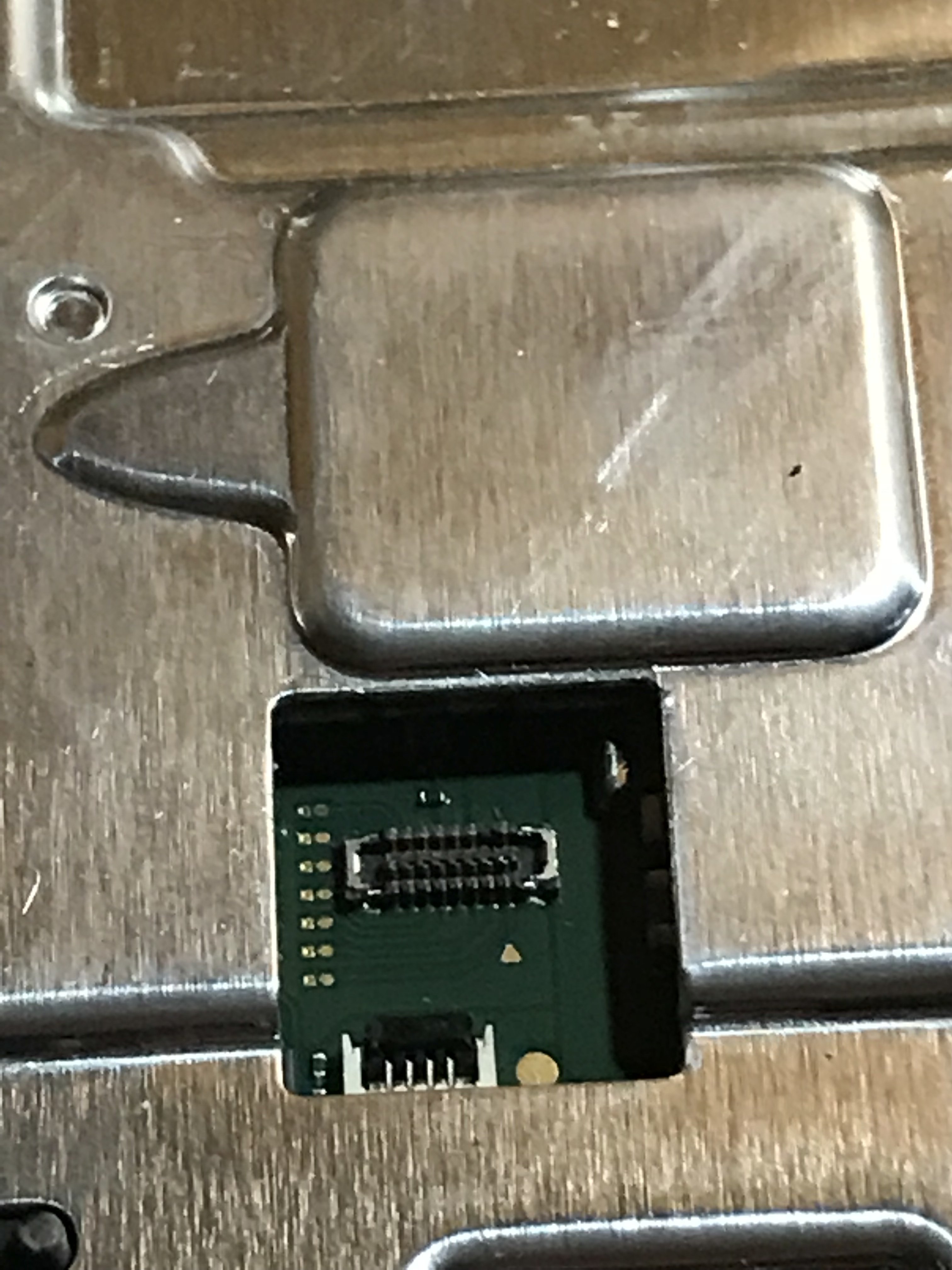

I accidentally broke the connector for the SD card Reader while recalibrating the battery and idk what route I should take to fix it. Horizon OS detects it, but games like Rocket League are having trouble going online (error 42). RCM stuff like Hekate and SX OS flat out doesn’t detect the SD card at all. I’ve tried finding a desoldered one online to solder onto mine to no avail. The reader itself is fine.


Attachments

  • E1DF2F0E-891F-4E47-BD5D-10EF0CC9EED6.jpeg
    844.8 KB · Views: 408
Last edited by ethangraham456,

fragged

Well-Known Member
Member
Joined
Jun 19, 2018
Messages
229
Trophies
0
Age
38
XP
1,249
Country
United States
I accidentally broke the connector for the SD card Reader while recalibrating the battery and idk what route I should take to fix it. Horizon OS detects it, but games like Rocket League are having trouble going online (error 42). RCM stuff like Hekate and SX OS flat out doesn’t detect the SD card at all. I’ve tried finding a desoldered one online to solder onto mine to no avail. The reader itself is fine.
It would take a good deal of soldering, but it looks like those pads on the right side are large enough to remove the connector (probably remove it on the reader as well to make room for the wires) and wire up the SD reader directly to the main board. Pretty major surgery, but I'd imagine it would work.

  • Like
Reactions: ethangraham456

ethangraham456

Member
OP
Newcomer
Joined
Jun 26, 2018
Messages
11
Trophies
0
Age
22
XP
120
Country
United States
It would take a good deal of soldering, but it looks like those pads on the right side are large enough to remove the connector (probably remove it on the reader as well to make room for the wires) and wire up the SD reader directly to the main board. Pretty major surgery, but I'd imagine it would work.
Hmmm that might actually work. I just need to buy or find a bunch of wires haha. Or what I could do is solder one wire from the broken pin to the corresponding pin on the reader.

Last edited by ethangraham456,

fragged

Well-Known Member
Member
Joined
Jun 19, 2018
Messages
229
Trophies
0
Age
38
XP
1,249
Country
United States
Hmmm that might actually work. I just need to buy or find a bunch of wires haha. Or what I could do is solder one wire from the broken pin to the corresponding pin on the reader.
I would buy proper wire for a fix like that, anything you scrounge up would probably be to large and make sure it's insulated.

  • Like
Reactions: ethangraham456

guily6669

GbaTemp is my Drug
Member
Joined
Jun 3, 2013
Messages
2,291
Trophies
1
Age
34
Location
Doomed Island
XP
2,050
Country
United States
Maybe you can also try creating a kinda soldering pad that acts as a pin... I have done in a phone with a very similar super small connector, its not easy to do and its better to use a fan for fast drying and touch for a very small amount of time or the plastic melts fast too.

  • Like
Reactions: ethangraham456

ethangraham456

Member
OP
Newcomer
Joined
Jun 26, 2018
Messages
11
Trophies
0
Age
22
XP
120
Country
United States
Maybe you can also try creating a kinda soldering pad that acts as a pin... I have done in a phone with a very similar super small connector, its not easy to do and its better to use a fan for fast drying and touch for a very small amount of time or the plastic melts fast too.
Nice suggestion!
Do you have micro electronics soldering tools? Or can you get access to one?
Yep, I can get some if I can’t do it without them.
