Hardware looking for switch lite component

  • Thread starter Thread starter needles
  • Start date Start date
  • Views Views 995
  • Replies Replies 2

needles

Active Member
Newcomer
Joined
Feb 22, 2021
Messages
26
Reaction score
3
Trophies
0
Age
46
XP
144
Country
United States
this little component here was crushed. a SOT-23 package.

is anyone able to supply me the value or numbers on it? or even a nice zoomed in photo of it?

It would be much appreciated.

It controls battery charging and should be a voltage regulator.


Attachments

  • switch-lite.png
    1.8 MB · Views: 164
Last edited by needles,

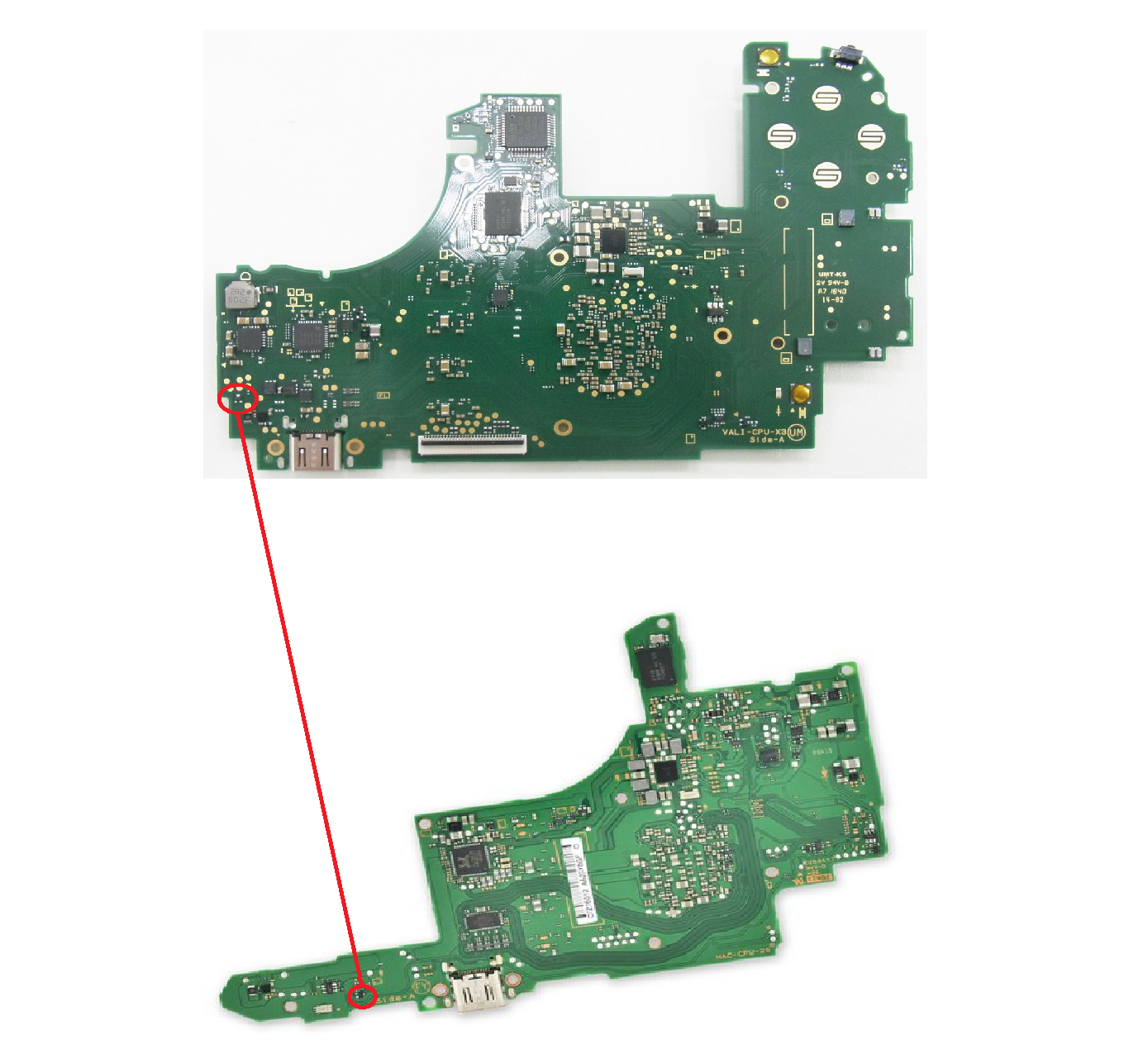

i was able to successfully find the replacement by poking around on regular Switch Console. i just swapped it and i have charge working. will point out part on switch board I used to replace, will perhaps help someone else in future. would be nice to find out what part # this is. #'s on it show 42. but doesn't mean much. i'll upload photo after full test.

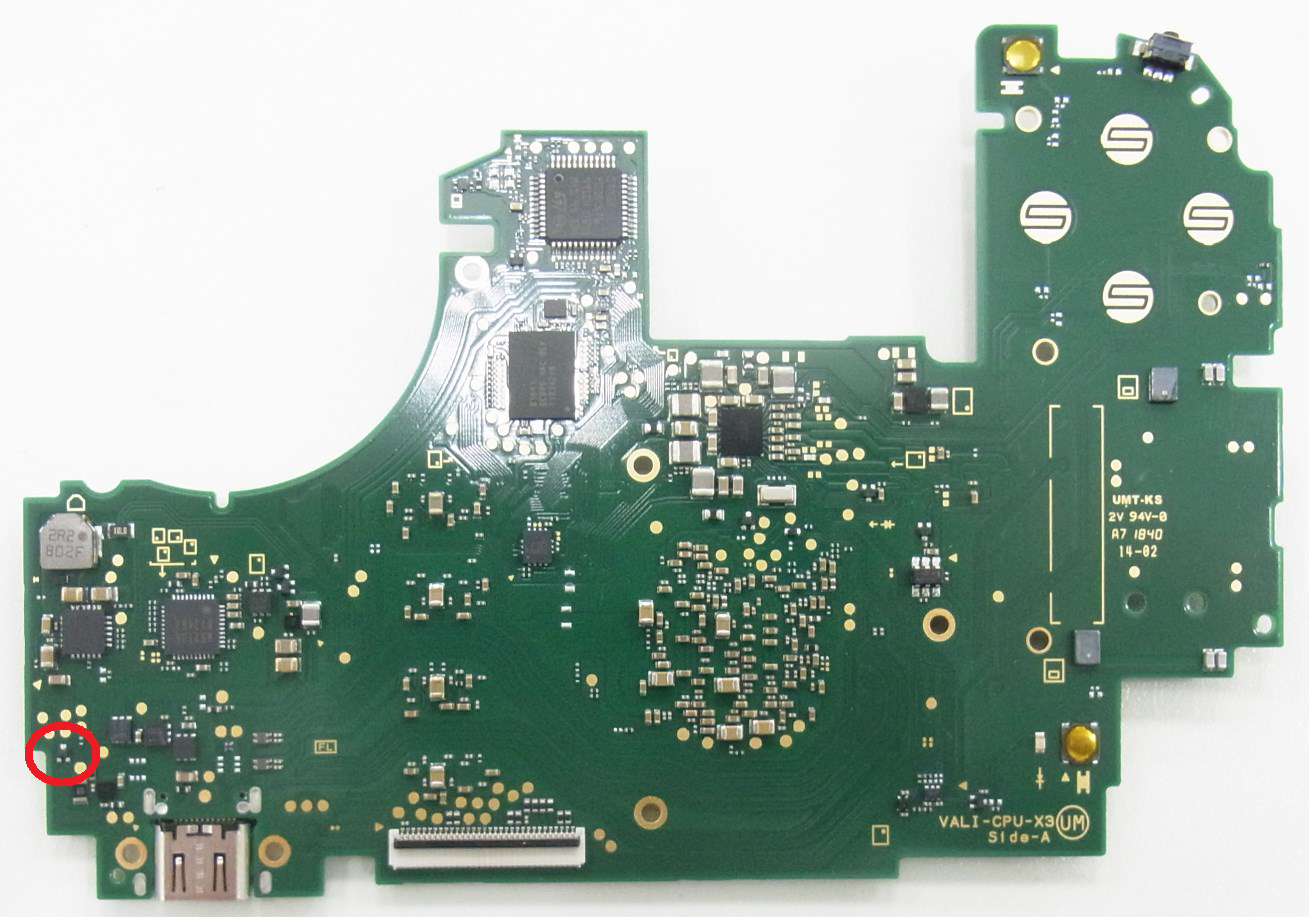

here it is, be interesting to know if anyone could find a part # for it. #'s on the regulator are 42 with no other real markings that i can see. hope this helps someone one day if they are looking for it.


Attachments

  • switch-voltage-reg.png
    1.1 MB · Views: 166
