WIP libusbhsfs - USB Mass Storage Class Host + Filesystem Mounter static library.

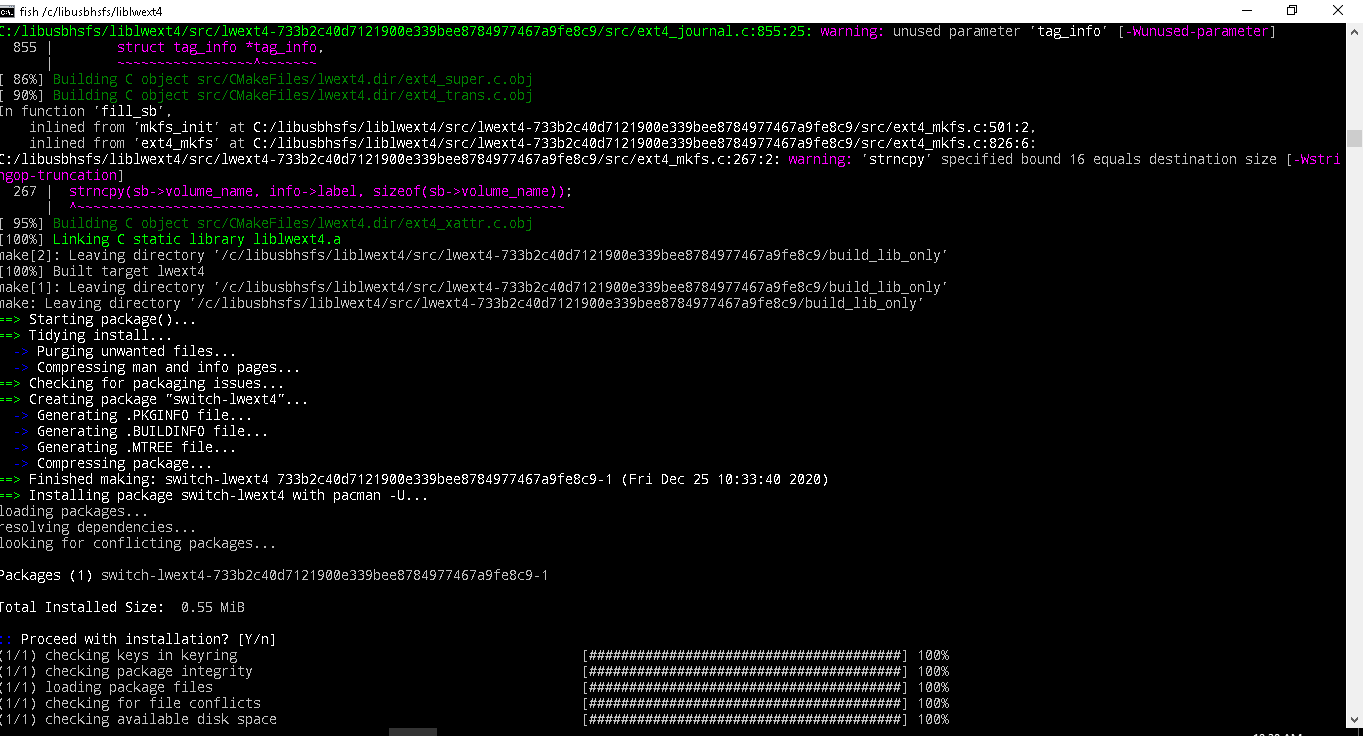

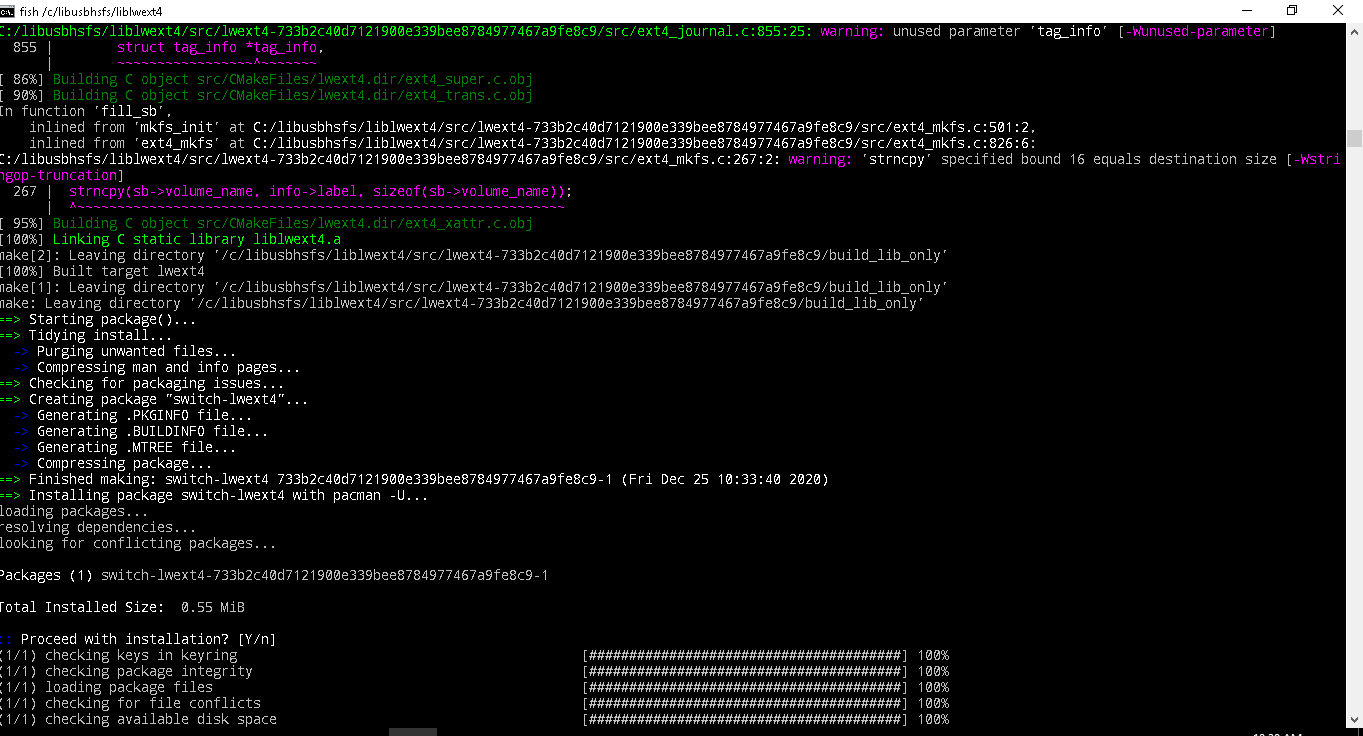

Looks good to me. The warnings highlighted in magenta are harmless.



@ShroomKing Got a stack dump of that crash?



Just released v0.2.2 to change the default mount behaviour for NTFS volumes. Should reduce the number of people complaining for NTFS volumes not being mounted if they weren't properly unmounted in the first place.

Developers, please keep in mind you can override the default mount flags at runtime before calling usbHsFsInitialize(), should you ever need to do so.



There should at least be some Atmosphère crash report logs in your SD card. You can use that information with addr2line and the ELF binary from your pplay build to build a stack dump, so to speak.



Not at all.



I haven't forgotten about this project just yet. I have been pretty busy since January, so I haven't been able to work on this and nxdumptool as much as I did last year.

That being said, I have been slowly working on improving libusbhsfs and squashing some nasty bugs in the process. Some of these changes include:

• A reimplementation of usbHsEpPostBuffer() to make it possible to use timeouts instead of indefinitely waiting for endpoint transfers to take place - which is pretty bad if an endpoint suddenly becomes stalled, resulting in those dreaded softlocks some of you guys have been experiencing.
• Thanks to the previous point, the Bulk-Only Transport driver could also be updated to accurately follow some small error correction guidelines that weren't being met.
• PKGBUILD scripts for NTFS-3G and lwext4 were updated as well to fix build issues experienced by some users under specific Linux distros.
• More data about each drive and mounted volume is now made available to homebrew applications using the library (VID, PID, mount flags and USB string descriptors).

Next up, here comes something I'm sure some people will be excited about: I have been working on a way to reenable USB 3.0 support under HOS 9.0.0+.

Some time ago, it was possible to use the "usb30_force_enabled" flag in Atmosphère's system_settings.ini to achieve this. However, HOS 9.0.0 introduced a hard dependency on the USB sysmodule in FS services, which means the USB sysmodule is now launched before Atmosphère is capable of parsing the INI file, rendering this flag completely useless.

Using ExeFS IPS patches is totally out of the question for the very same reason. And modifying Atmosphère to make it enable the "usb30_force_enabled" flag on its own doesn't work because SD card access is required at that point.

Looking for an alternate solution, I decided to modify Atmosphère to make it capable of hot-patching the USB sysmodule to override the flag check in its NSO before it's launched. And it worked! USB 3.0 access is again a possibility. Here's a dump of a raw UsbHsInterface element obtained from a USB 3.0 drive (HOS 11.0.2, AMS 0.18.1):

Spoiler

Code:

UsbHsInterface:
    (UsbHsInterfaceInfo) inf:
        (s32) ID: 0x50010000
        (u32) deviceID_2: 0x00000003
        (u32) unk_x8: 0x00000002
        (usb_interface_descriptor) interface_desc:
            (u8) bLength: 0x09
            (u8) bDescriptorType: 0x04
            (u8) bInterfaceNumber: 0x00
            (u8) bAlternateSetting: 0x00
            (u8) bNumEndpoints: 0x02
            (u8) bInterfaceClass: 0x08
            (u8) bInterfaceSubClass: 0x06
            (u8) bInterfaceProtocol: 0x50
            (u8) iInterface: 0x00
        (usb_endpoint_descriptor) input_endpoint_descs[0]:
            (u8) bLength: 0x07
            (u8) bDescriptorType: 0x05
            (u8) bEndpointAddress: 0x81
            (u8) bmAttributes: 0x02
            (u16) wMaxPacketSize: 0x0400
            (u8) bInterval: 0x00
        (usb_endpoint_descriptor) output_endpoint_descs[1]:
            (u8) bLength: 0x07
            (u8) bDescriptorType: 0x05
            (u8) bEndpointAddress: 0x02
            (u8) bmAttributes: 0x02
            (u16) wMaxPacketSize: 0x0400
            (u8) bInterval: 0x00
        (usb_ss_endpoint_companion_descriptor) input_ss_endpoint_companion_descs[0]:
            (u8) bLength: 0x06
            (u8) bDescriptorType: 0x30
            (u8) bMaxBurst: 0x0F
            (u8) bmAttributes: 0x00
            (u16) wBytesPerInterval: 0x0000
        (usb_ss_endpoint_companion_descriptor) output_ss_endpoint_companion_descs[1]:
            (u8) bLength: 0x06
            (u8) bDescriptorType: 0x30
            (u8) bMaxBurst: 0x0F
            (u8) bmAttributes: 0x00
            (u16) wBytesPerInterval: 0x0000
    (char) pathstr: "SsDevice3-/T2/P1/A01"
    (u32) busID: 0x00000004
    (u32) deviceID: 0x00000003
    (usb_device_descriptor) device_desc:
        (u8) bLength: 0x12
        (u8) bDescriptorType: 0x01
        (u16) bcdUSB: 0x0300
        (u8) bDeviceClass: 0x00
        (u8) bDeviceSubClass: 0x00
        (u8) bDeviceProtocol: 0x00
        (u8) bMaxPacketSize0: 0x09
        (u16) idVendor: 0x0BC2
        (u16) idProduct: 0x231A
        (u16) bcdDevice: 0x0708
        (u8) iManufacturer: 0x01
        (u8) iProduct: 0x02
        (u8) iSerialNumber: 0x03
        (u8) bNumConfigurations: 0x01
    (usb_config_descriptor) config_desc:
        (u8) bLength: 0x09
        (u8) bDescriptorType: 0x02
        (u16) wTotalLength: 0x0079
        (u8) bNumInterfaces: 0x01
        (u8) bConfigurationValue: 0x01
        (u8) iConfiguration: 0x00
        (u8) bmAttributes: 0x80
        (u8) MaxPower: 0x70
    (u64) timestamp: 0x0000000884CC1EDD

Pay special attention to the bcdUSB and wMaxPacketSize fields, as well as the availability of SuperSpeed endpoint companion descriptors.

Preliminary tests using the random reads carried out by NTFS-3G while getting filesystem stats from a mounted NTFS volume look very promising:

Spoiler

Code:

USB 2.1 (unmodified Atmosphère build):
[2021-03-01 01:11:36,7639944] -> statvfs() start.
[2021-03-01 01:11:42,135820152] -> statvfs() end.
Result: 5,371825752 seconds.

USB 3.0 (modified Atmosphère build):
[2021-03-01 01:13:19,911078844] -> statvfs() start.
[2021-03-01 01:13:22,876405504] -> statvfs() end.
Result: 2,96532666 seconds.

Furthermore, the current BOT driver works perfectly fine with BOT interfaces provided by USB 3.0 drives. I have yet to test sequential reads and writes, but judging by these small, random reads, I'm sure it'll be awesome.

Even though transfers already are faster than before, BOT doesn't support command queuing, so my endgoal is to implement a USB Attached SCSI (UAS) driver in libusbhsfs to fully take advantage of USB 3.0 speeds. Let me know what you think.



As far as I know, nothing is being done at this moment to provide an easy way to patch services launched before FS. I think Scires said he would try to come up with a solution, but he's currently busy with the tma2 reimplementation, so I'm sure it's hard for him to provide an ETA.

Both solutions would probably work fine btw. I don't think a full FS reimplementation is needed - dedicating a consistent/well-known RAM area to hold IPS patches for these services would be good enough for fusee-secondary, I guess.



Patch locations 0x8718 and 0x87A8 in the uncompressed NSO with 05000014 (unconditional branch).

This will make the "usb30_force_enabled" checks always return 1.
