instinct v6 , OLED Black Screen , Corrupt EMMC Help!

[Ferz1984]

Hello guys!!

It all began like this

I modded my Oled Switch (3 months ago) with INSTINCT NX V6 and it was working fine... as I was playing it froze and gave me an atmosphere error screen... I turned it off and after that, I had a black screen…. After some attempts, I finally booted to Heakte and restored the EMMC successfully, tested and seemed okay without errors...

I installed some games and as I was playing Mario Kart and again after 2-3 hours atmosphere error screen.

Since then the switch has been on a black screen and the chip is blinking white…

I am sure that the emmc again is corrupted.

Is there any way to restore it with INSTINCT NX? (I have read that with hwfly_nx you can boot Hekate with corrupted emmc)

What else can I do to restore it? Only remove it and restore it with programmer? (which I don't have )

Why is this happening?

I am sure that the chip is installed correctly... at first, it was installed with wires, I had tested all the points, and were okay...
Just for testing, I removed it and tried to boot the switch without the modchip, and again black screen...
Now I have installed it with the flex cable and not enameled wires...(I don't like it... think I will remove it and use the enameled wires again)... I have tested all the points with a multimeter and everything seems ok...

What else should I have to check? I am stuck now...

Any suggestions are welcome

Post automatically merged: Sep 18, 2023

The last error, before black screen...



[Hayato213]

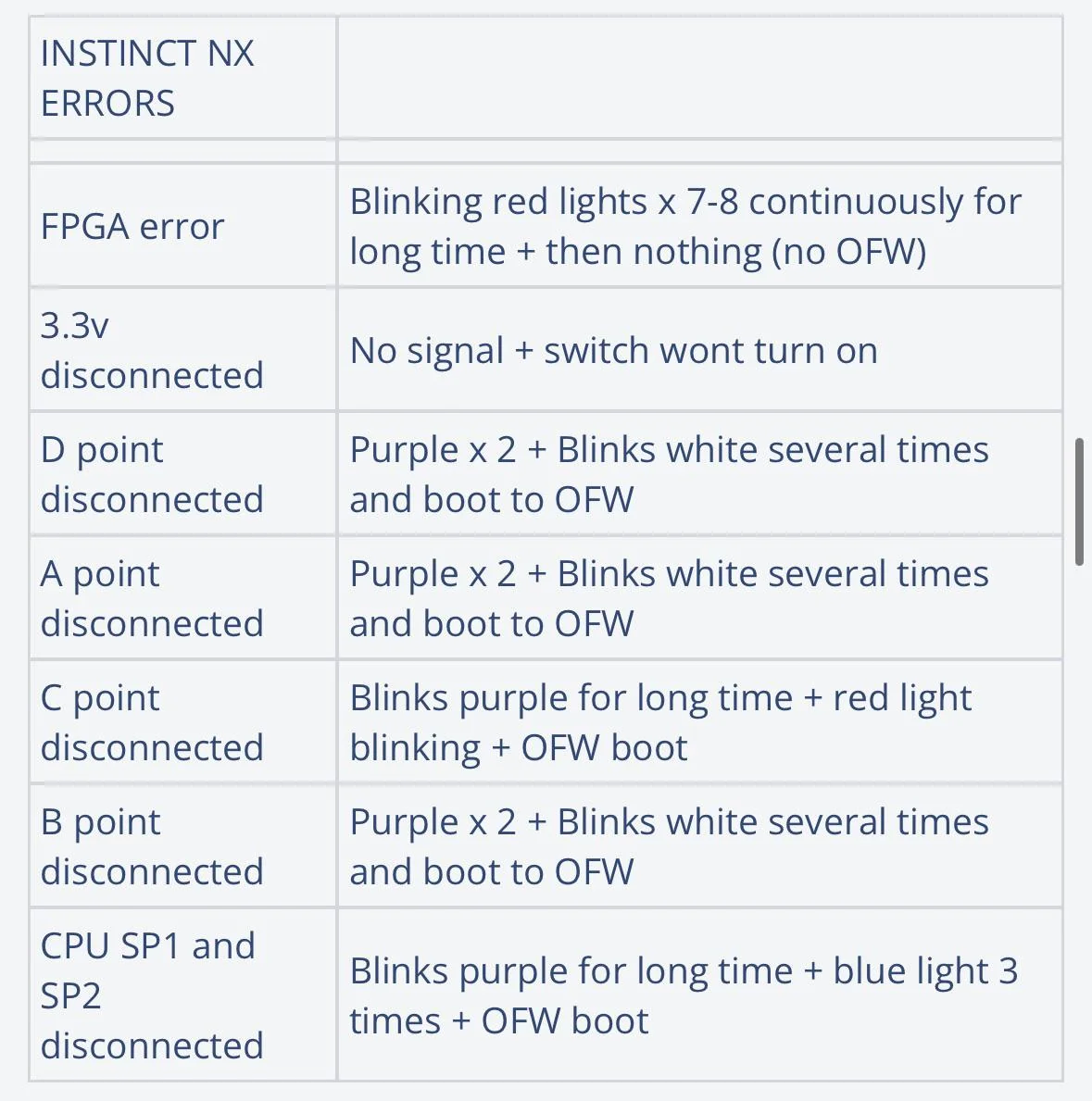

You can use this for reference, do you know the light it give you ?



[Ferz1984]

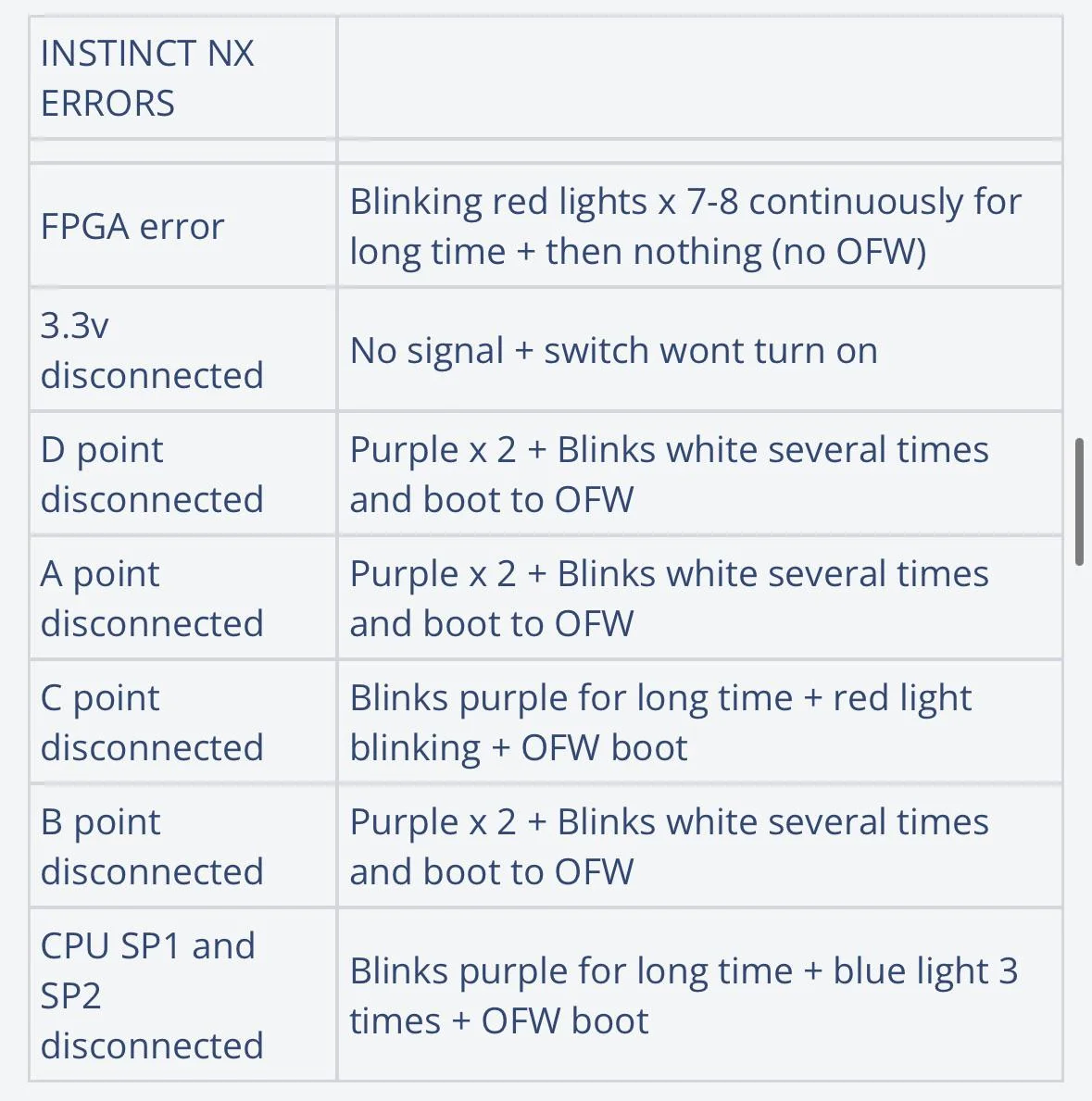

View attachment 394591

You can use this for reference, do you know the light it give you ?

None of this ... it blinks white light and it stops..



[Hayato213]

None of this ... it blinks white light and it stops..

It shows one flash of red, then purple and then rest is all white, hopefully someone who is more knowledge can help you with this.



[Ferz1984]

Will the Switch with Instinct nx boot to Hekate or other payloads if it has a corrupt emmc chip?



[jkage]

None of this ... it blinks white light and it stops..

Did you manage to sort this out? I've sent mine to a guy for the mod and it was giving the same issue, blinking white lights with Instinct. He determined the EMMC was corrupt because without the chip it wasn't booting stock FW.

AFAIK with Instinct/hwfly you cannot boot into hekate with a corrupt emmc, but an RP2040 one can.



[Ferz1984]

Did you manage to sort this out? I've sent mine to a guy for the mod and it was giving the same issue, blinking white lights with Instinct. He determined the EMMC was corrupt because without the chip it wasn't booting stock FW.

AFAIK with Instinct/hwfly you cannot boot into hekate with a corrupt emmc, but an RP2040 one can.

Since i have a backup of my NAND, I bought a new chip to replace the corrupt one... I also bought an RP2040...
I have changed the NAND I have soldered the new empty NAND chip but the RP2040 cannot boot with an empty emmc chip...
I have read that to glitch it needs BOOT 0 and BOOT 1 partition.... in error codes it gives me this -> (=** eMMC init failure during glitch process)..

Maybe my solder is not good? I don't know... (I so it should boot in hekate...)
Are you sure that RP2040 can boot hekate with an empty emmc chip?



[SnackTec]

In some thread here someone could yes. Seems I cant post links yet.
