I need help finding a solder point on the Pro controller

Discussion in 'Switch - Console, Accessories & Hardware' started by RadDude McCoolguy, Sep 6, 2018.

  1. RadDude McCoolguy
    OP

    RadDude McCoolguy GBAtemp Regular

    Member
    3
    Jan 4, 2015
    United States
    So I picked up a broken Pro controller on ebay for cheap, I've got everything fixed, except the left trigger. The ribbon cable for the L/R/LZ/RZ buttons is torn at the bend before the LZ button. I can't solder it back together because the plastic melts before the solder does, and no one sells replacements of this part. My only option is to find a point on the board to activate LZ.
    I followed the trace from LZ, to the connector, to a via on the board. I soldered a wire and grounded it, and that does activate LZ just fine, but it also activates X and up for some reason.
    IMG_20180905_185406.

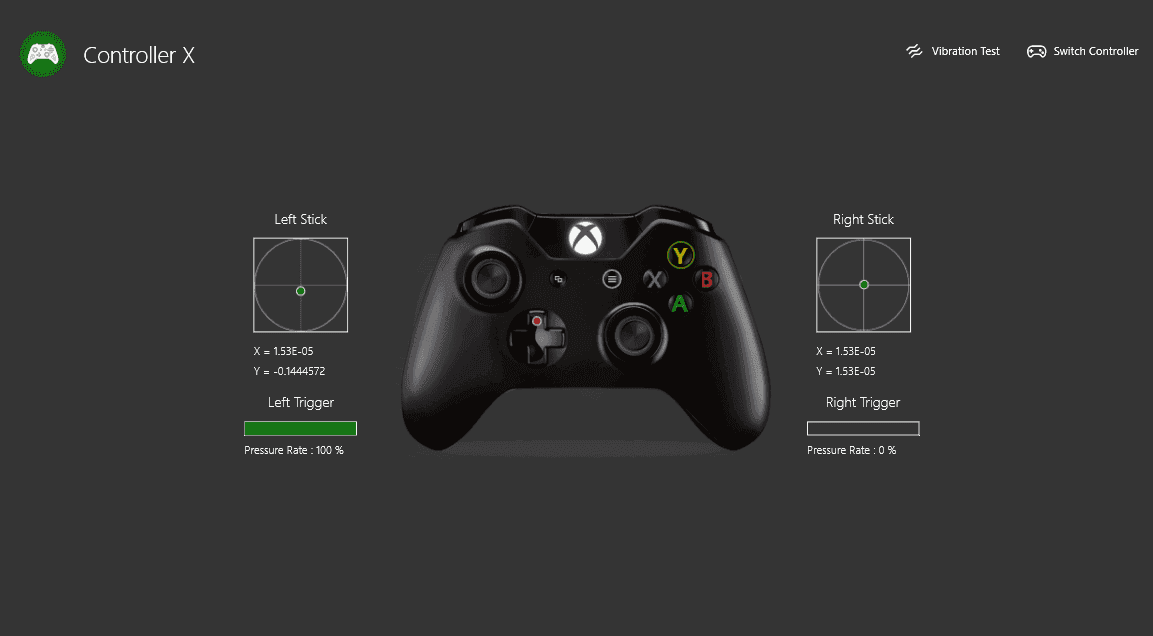

    Untitled-1. (Y is actually X, because Nintendo)
    Does anyone know why X and up are being activated? Or a better way to trigger LZ?
