Hardmoded new 3ds xl - maybe bricked? Help please

Discussion in '3DS - Flashcards & Custom Firmwares' started by Cava, Jun 15, 2016.

  1. Cava
    OP

    Cava GBAtemp Advanced Fan

    Member
    609
    201
    Jan 26, 2016
    Hungary
    Hi my new 3ds xl after soldered everything and put every cable back and turned on just show the blue light and turning off. If i connect to the sd card reader the blue error screen show up but same thing happen just turning off. What is the problem?

    Now just soldered off all of the wires and assembly back the 3ds and same thing happen what i wrote above..

    Can someone please help me? Thank you.

    Here is the video: https://www.dropbox.com/s/4jdrs82qqh18ozu/2016.06.15_16.10.51.mp4?dl=0

    Last edited by Cava, Jun 15, 2016
  2. mudassirul

    mudassirul GBAtemp Fan

    Member
    326
    107
    Jan 13, 2010
    Maybe you've made a short somewhere or left a bead of solder in there

  3. trigao

    trigao GBAtemp Tiger

    Member
    690
    89
    Nov 21, 2008
    Brazil
    double check ribbon cables... specially top screen ones

  4. Cava
    OP

    Cava GBAtemp Advanced Fan

    Member
    609
    201
    Jan 26, 2016
    Hungary
    Which one is that? There are 3 in the same place.. the middle one is the ..... of all of them. Grrr.

  5. LinkSoraZelda

    LinkSoraZelda GBAtemp Advanced Maniac

    Member
    1,980
    627
    Aug 12, 2015
    United States
    Land of the Rising Orange
    I'm sure you accidentally disconnected something. It's not a brick. Is the top screen gold cable in place? It's around the left hinge. OR, try checking the bottom's. It's the big gold cable on the L shaped board.

    Cava likes this.
  6. trigao

    trigao GBAtemp Tiger

    Member
    690
    89
    Nov 21, 2008
    Brazil
    All of them.... Double check all ribbon cables

    Good luck

    Cava likes this.
  7. Cava
    OP

    Cava GBAtemp Advanced Fan

    Member
    609
    201
    Jan 26, 2016
    Hungary

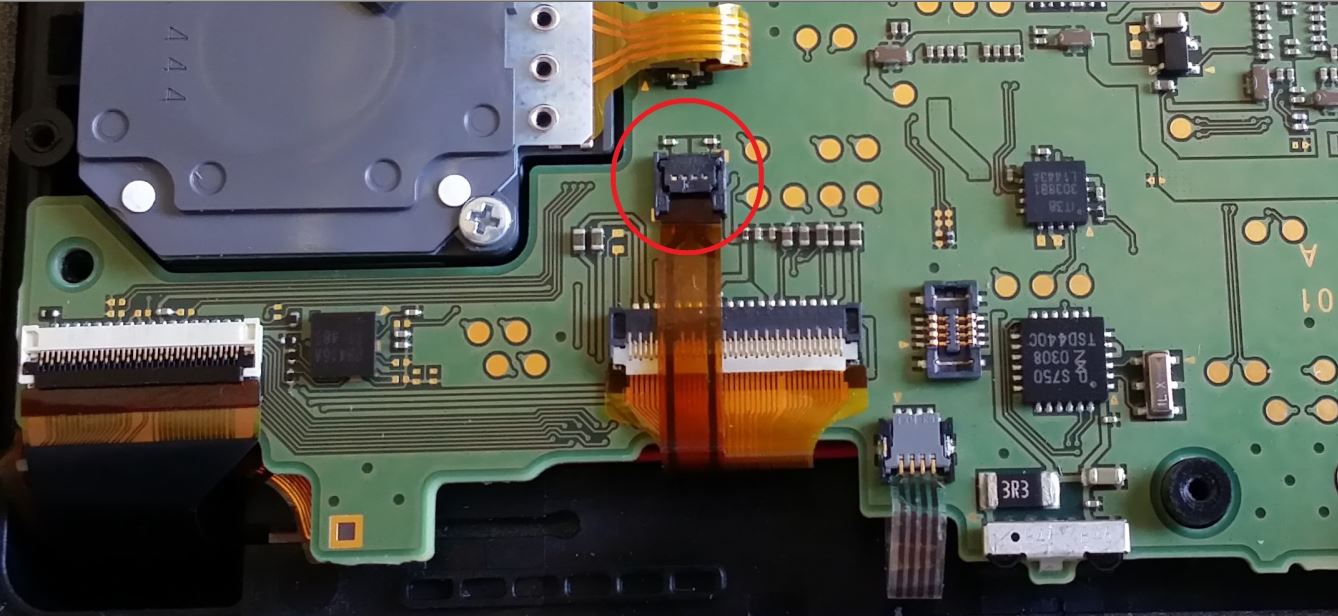

    Okay i figured out.. this one is the problem because the small plastic plug is not completely off the presses (sry my english...) also can someone tell me witch one is the touch screen cable?

    new 3ds xl.JPG

  8. metaljay

    metaljay GBAtemp Regular

    Member
    172
    46
    Jan 10, 2012
    See the last picture on my thread here https://gbatemp.net/threads/thoughts-on-new-3ds-xl-nand-out-location.375806/
    I had the exact same problem on my N3DS XL, in the end I had to replace the console :(
    Hope you get around it
    It was the home button for me

    Last edited by metaljay, Jun 16, 2016
  9. Cava
    OP

    Cava GBAtemp Advanced Fan

    Member
    609
    201
    Jan 26, 2016
    Hungary
    Ouch thats bad :( Mine is still on the board but it needs to be pushed so this way i can turn on the console. I need to figure out what things needed for fix.

    Last edited by Cava, Jun 16, 2016
