Hacking Game card reader pin mapping?

Thread starter TheStonedModder
Start date Jan 18, 2024
Views 524
Replies 4

TheStonedModder

Well-Known Member

Member

Level 9

Jan 18, 2024

Hey all, I was wondering if anyone happened to know the pin map for the game card reader. I’m working on some shenanigans and it would be very helpful instead of waiting for Aliexpress and manually probing ha

Micolash

Member

Newcomer

Level 1

Jan 18, 2024

https://switchbrew.org/wiki/Gamecard

Reactions: BigOnYa and TheStonedModder

TheStonedModder

Well-Known Member

Member

Level 9

Jan 18, 2024

Micolash said:
https://switchbrew.org/wiki/Gamecard

That is helpful thank you. I must have glanced over it.

Do you happen to know the pitch of the pins of the reader? That I don’t believe is in there unless I am blind

Micolash

Member

Newcomer

Level 1

Jan 18, 2024

TheStonedModder said:
That is helpful thank you. I must have glanced over it.

Do you happen to know the pitch of the pins of the reader? That I don’t believe is in there unless I am blind

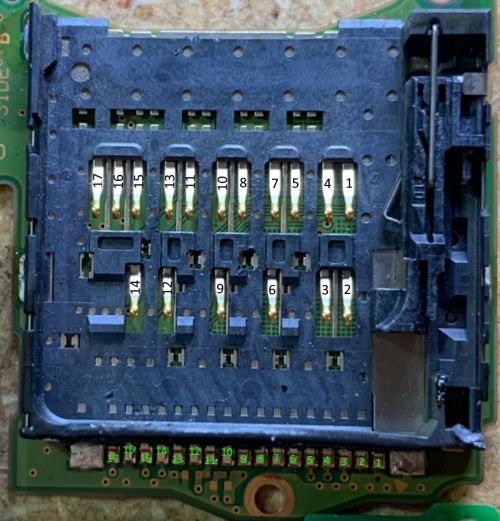

this?

TheStonedModder

Well-Known Member

Member

Level 9

Jan 18, 2024

Micolash said:
this?

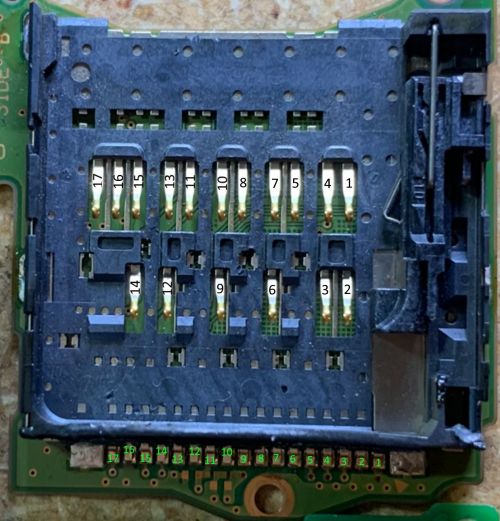

View attachment 414657

Close, the pitch is the spacing between those pins

I can order one from Aliexpress and measure manually but that’s gonna take a minute to come in the mail lol
