Hi guys! I’ve got a Nintendo DSi which doesn’t seem to be charging
I don’t have a spare battery on me but I think the battery is dead (and I think I should not try to charge it since it’s at 0volts). But I wanted to make sure the ds circuits could charge (The port works) .I remember it worked well until someday it stopped, so I wanted to check that it was working before changing the battery

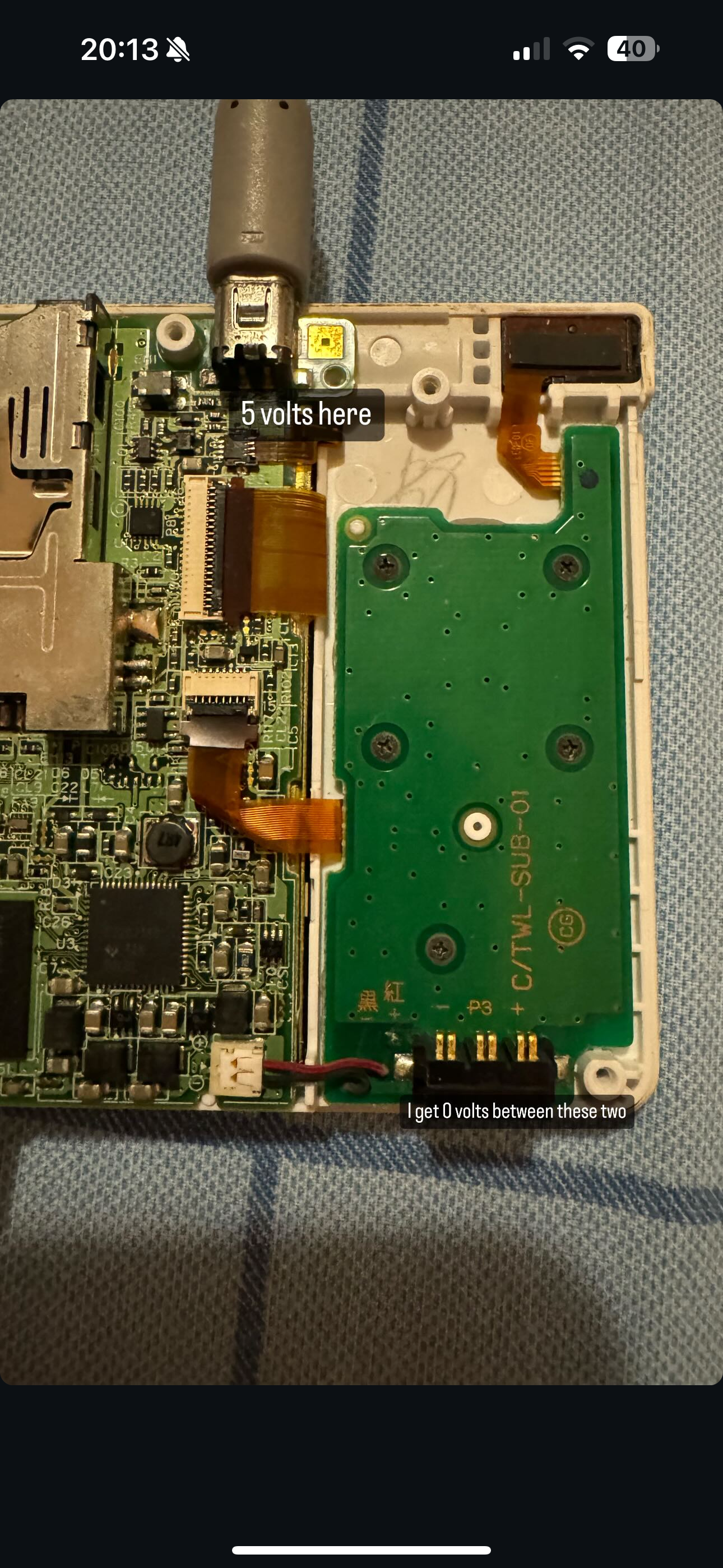

I tried measuring with a multimeter if I had any tension on charging connectors that the battery connects to while the charger is attached but I’m not sure if it’s even supposed to show tension when a battery is not attached
Do you have any clues or things I can check?
I already checked continuity on the F1 fuse and its working
I don’t have a spare battery on me but I think the battery is dead (and I think I should not try to charge it since it’s at 0volts). But I wanted to make sure the ds circuits could charge (The port works) .I remember it worked well until someday it stopped, so I wanted to check that it was working before changing the battery
I tried measuring with a multimeter if I had any tension on charging connectors that the battery connects to while the charger is attached but I’m not sure if it’s even supposed to show tension when a battery is not attached
Do you have any clues or things I can check?
I already checked continuity on the F1 fuse and its working
