Digitizer source?

[Hayato213]

whoah. what's this "dark green cartridge slot"? I don't have one. If I do, it's by accident and I don't know that I have it.

this explain it a bit

https://gbatemp.net/threads/switch-...n-spots-on-the-digitizer.565222/#post-9197065



[binkinator]

this explain it a bit

https://gbatemp.net/threads/switch-...n-spots-on-the-digitizer.565222/#post-9197065

Wow! Thanks for sharing. Very interesting information.

I didn't run into that with the version I bought. Mine was a direct replacement and just worked immediately once I plugged it in. Maybe they have improved the product over time?



[Hayato213]

Wow! Thanks for sharing. Very interesting information.

I didn't run into that with the version I bought. Mine was a direct replacement and just worked immediately once I plugged it in. Maybe they have improved the product over time?

You probably got lucky, as there are multiple version digitizer and multiple version cartridge slot. I tried one cartridge slot from one unit before on another it didn't work.



[randy_w]

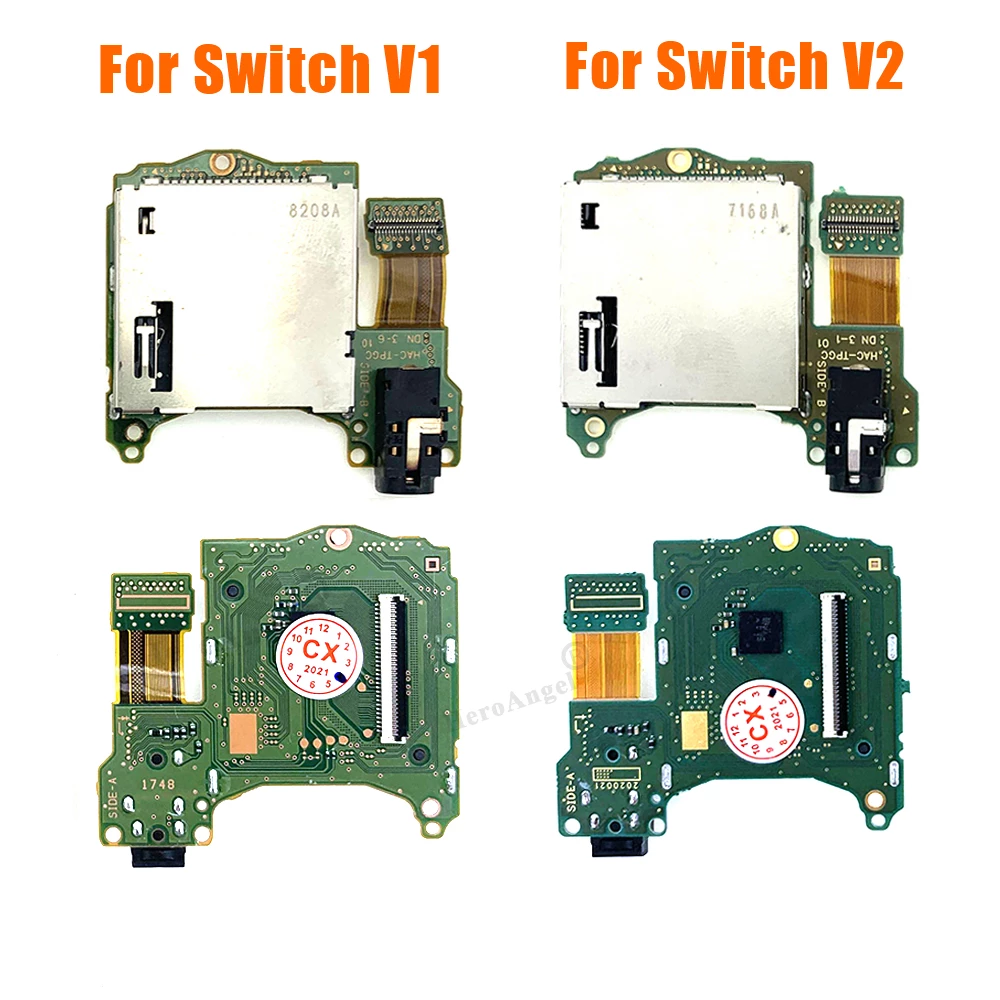

Yeah you need to match the touch screen with the card reader daughter board. Here's a comparison picture from aliexpress:

And for touch screen I think the one with QR code is v2, and the one without is v1.
I think someone mentioned before you can re-program the chip by using touch screen calibration function in hekate and solve the compatibility issue, didn't try that myself.

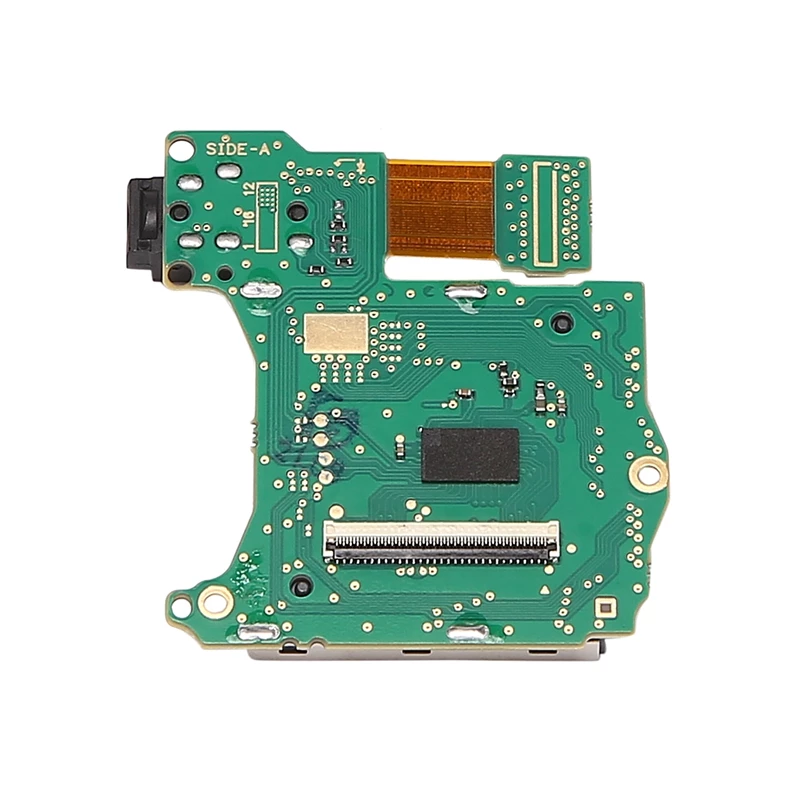

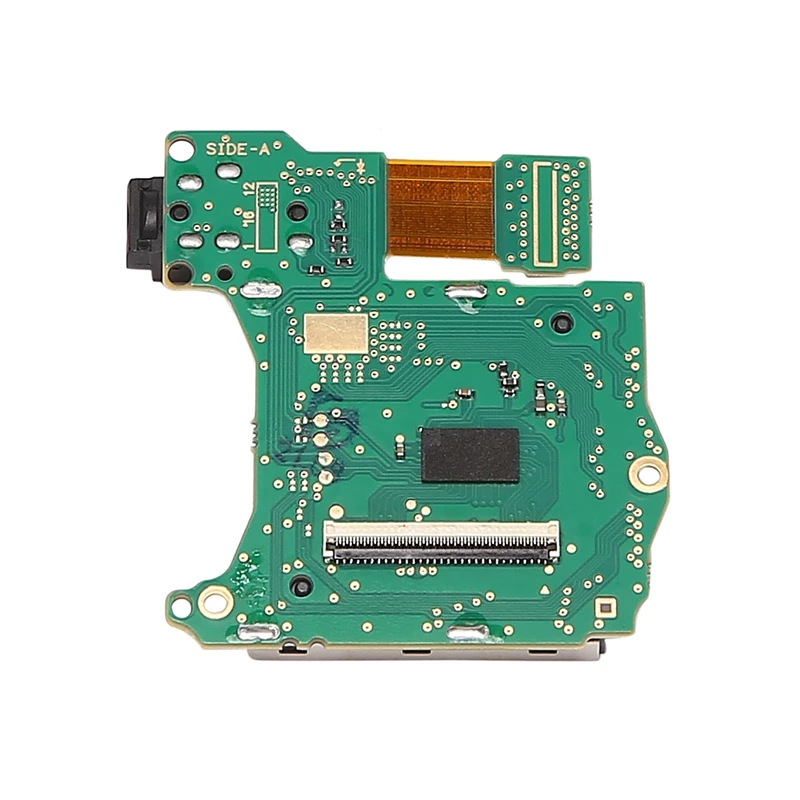

Also if anyone's replacing this daughter board, you can use this board with a rectangular chip. It's an after market part but it supports all types of touch screen. Used it to repair a v1 before, works perfectly fine.



[binkinator]

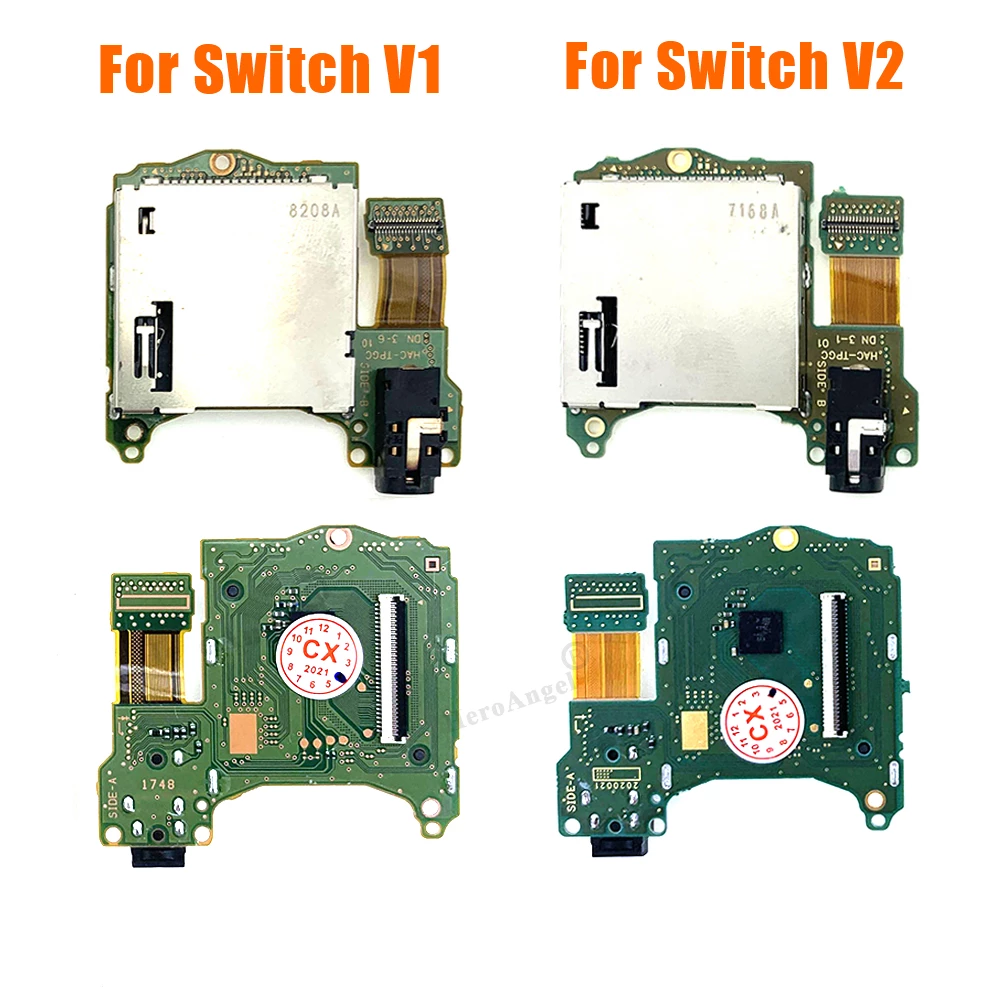

Yeah you need to match the touch screen with the card reader daughter board. Here's a comparison picture from aliexpress:
View attachment 334521

And for touch screen I think the one with QR code is v2, and the one without is v1.
I think someone mentioned before you can re-program the chip by using touch screen calibration function in hekate and solve the compatibility issue, didn't try that myself.
Also if anyone's replacing this daughter board, you can use this board with a rectangular chip. It's an after market part but it supports all types of touch screen. Used it to repair a v1 before, works perfectly fine.
View attachment 334522

Ahh, but this would be remedied by purchasing the correct screen for your V1 or V2 Switch, no?



[Soler37]

If you need to stuff your cart and you‘re already going to have your switch open…

https://www.aliexpress.com/wholesale?catId=0&initiative_id=AS_20221028150740&SearchText=rcmx86

Trinket M0 Hardware — The @mattytrog Bible for installing the Trinket M0
Trinket M0 Software — The @mattytrog encyclopedia of Trinket M0 software (source here https://github.com/mattytrog/FUSEE_SUITE)

I don’t recommend it unless you’re experienced with a soldering iron. It’s easy to brick your switch messing with the internals…

I meant stuff for the Amazon cart since shipping to Israel requires a minimum 49$ for free eligibility, on specific items only, in any case, I got a K552 keyboard so it all worked out, the LCD + DIGI will be ordered in a couple of days when the 11.11 sale kicks in and the thermal paste was picked up today, one heck of a project lays ahead, I just wish it all works out, I also intend on a smaller project of replacing the shell of the joycons for a clear one, but that's later on.

Post automatically merged: Oct 30, 2022

Yeah you need to match the touch screen with the card reader daughter board. Here's a comparison picture from aliexpress:
View attachment 334521

And for touch screen I think the one with QR code is v2, and the one without is v1.
I think someone mentioned before you can re-program the chip by using touch screen calibration function in hekate and solve the compatibility issue, didn't try that myself.
Also if anyone's replacing this daughter board, you can use this board with a rectangular chip. It's an after market part but it supports all types of touch screen. Used it to repair a v1 before, works perfectly fine.
View attachment 334522

I am only replacing the full-screen bundle with the one that was offered here, I am using Hekate so I guess that EVEN if for some reason it wouldn't be compatible, ill be able to calibrate it, correct me if I'm wrong.

Post automatically merged: Oct 30, 2022

Ahh, but this would be remedied by purchasing the correct screen for your V1 or V2 Switch, no?

My thoughts as well, though when reading in various places, it only got me confused which is why I took my time with actually buying the piece, am going to buy the one you suggested anyway, shouldn't be an issue.



[binkinator]

I meant stuff for the Amazon cart since shipping to Israel requires a minimum 49$ for free eligibility, on specific items only, in any case, I got a K552 keyboard so it all worked out, the LCD + DIGI will be ordered in a couple of days when the 11.11 sale kicks in and the thermal paste was picked up today, one heck of a project lays ahead, I just wish it all works out, I also intend on a smaller project of replacing the shell of the joycons for a clear one, but that's later on.

Whatever you do, do NOT check out the ExtremeRate Store on Amazon:
https://www.amazon.com/stores/page/3A776671-8172-46AF-8B37-ED47018555B1



[Soler37]

Whatever you do, do NOT check out the ExtremeRate Store on Amazon:
https://www.amazon.com/stores/page/3A776671-8172-46AF-8B37-ED47018555B1

ahhhh shit, I checked the store



[ZachyCatGames]

Touchscreen/card reader stuff isn't as simple as 'v1 vs v2'. Icosa and Iowa both have multiple touchscreen types and there is overlap between them, you just kinda gotta hope you get a card reader that matches your touchscreen.
Same with screens themselves btw.



[binkinator]

Touchscreen/card reader stuff isn't as simple as 'v1 vs v2'. Icosa and Iowa both have multiple touchscreen types and there is overlap between them, you just kinda gotta hope you get a card reader that matches your touchscreen.
Same with screens themselves btw.

Absolutely no mention of this in their advertisement.
https://www.aliexpress.us/item/3256802841267734.html
I guess I just got lucky!



[Soler37]

Touchscreen/card reader stuff isn't as simple as 'v1 vs v2'. Icosa and Iowa both have multiple touchscreen types and there is overlap between them, you just kinda gotta hope you get a card reader that matches your touchscreen.
Same with screens themselves btw.

providing the one you get doesn't match, is it a simple case of calibrating through Hekate or worse?



[randy_w]

EVEN if for some reason it wouldn't be compatible, ill be able to calibrate it, correct me if I'm wrong.

I've seen people here reporting calibrating in hekate somehow re-programs the digitizer controller chip on the card reader and that solves the incompatibility issue. Didn't try that myself as my old switch had a broken card reader so I just replaced the daughter board with a universal one.

Anyway, try to get a screen assembly with a digitizer that matches your current model. If your current digitizer has a QR code on its ribbon cable, get one with QR code. If it doesn't, get one without. Ask the seller if you are not sure which version they are selling.

If you need to stuff your cart and you‘re already going to have your switch open…

https://www.aliexpress.com/wholesale?catId=0&initiative_id=AS_20221028150740&SearchText=rcmx86

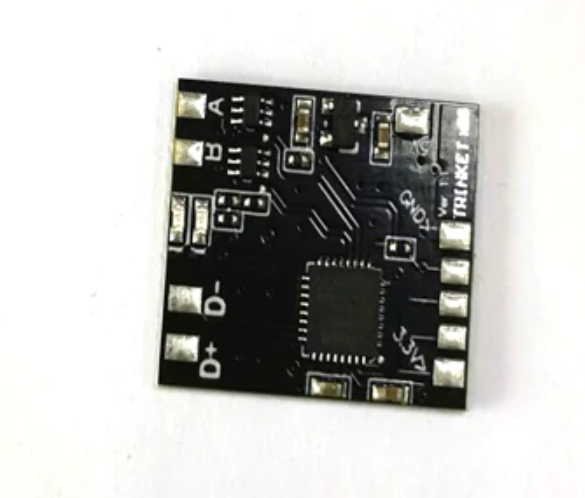

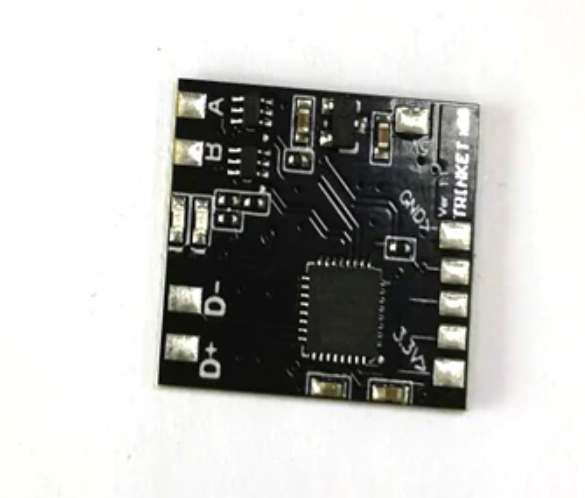

It seems like they are now selling a new version of the rcmx86 chip called trinket x86. The new version removed 3 pads and added 2 LEDs. The microcontroller also changed, but I think it's the old samd21 in a new package. Have you seen anyone installed this chip? Is it pin-compatible with the original rcm x86 chip?



[binkinator]

I've seen people here reporting calibrating in hekate somehow re-programs the digitizer controller chip on the card reader and that solves the incompatibility issue. Didn't try that myself as my old switch had a broken card reader so I just replaced the daughter board with a universal one.

Anyway, try to get a screen assembly with a digitizer that matches your current model. If your current digitizer has a QR code on its ribbon cable, get one with QR code. If it doesn't, get one without. Ask the seller if you are not sure which version they are selling.


It seems like they are now selling a new version of the rcmx86 chip called trinket x86. The new version removed 3 pads and added 2 LEDs. The microcontroller also changed, but I think it's the old samd21 in a new package. Have you seen anyone installed this chip? Is it pin-compatible with the original rcm x86 chip?
View attachment 334913

With a name like TrinketX86 it would be a gosh darn shame if it weren’t exactly what you need to chip a V1 Switch. Looks very clean. I think we discussed this one in the mattytrog thread a while back.

Post automatically merged: Oct 30, 2022

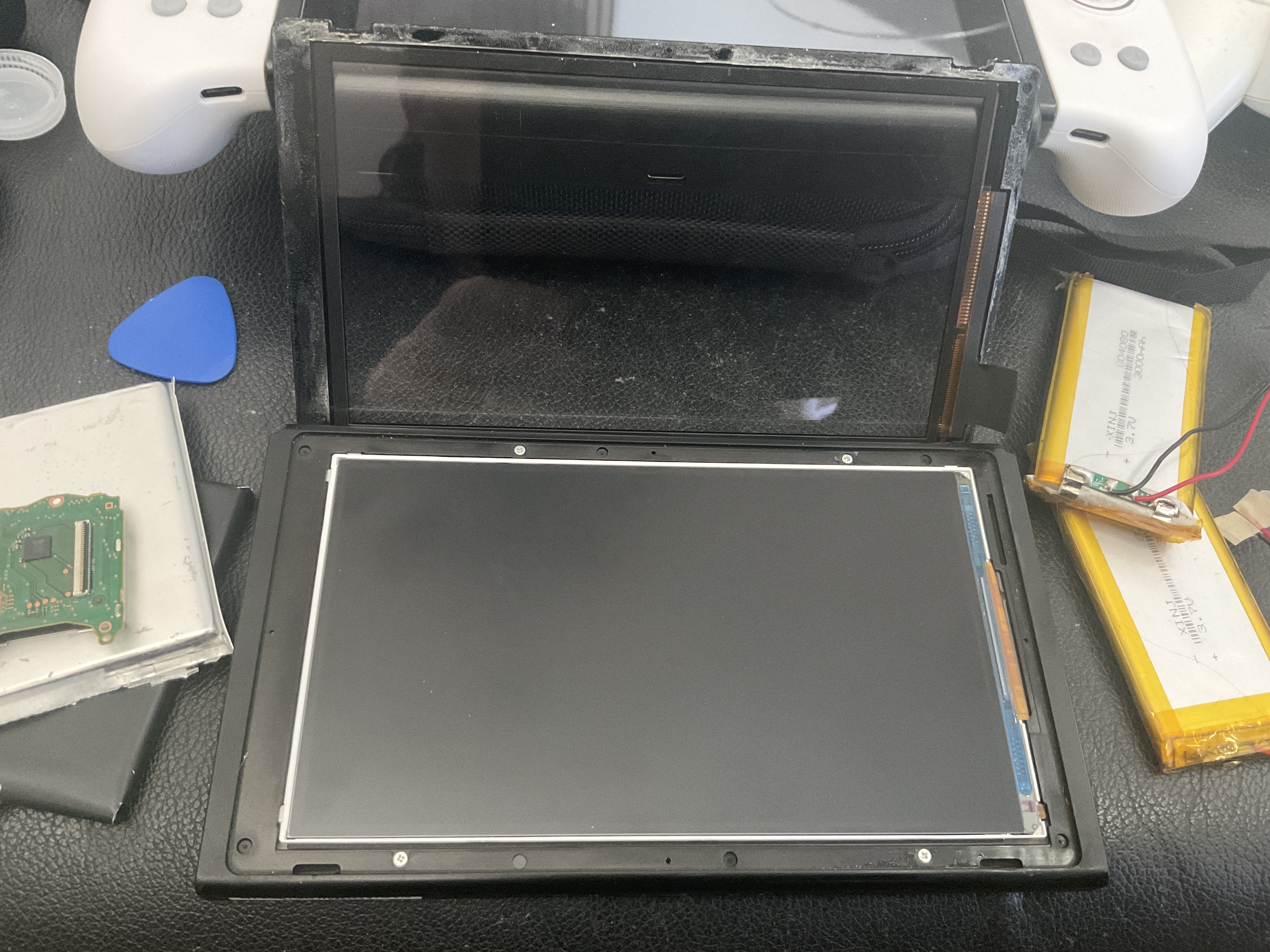

I‘m doing another V1 for a friend. Here’s the digitizer freshly removed. Be careful of the cables on the right hand of the screen while you’re wrenching the glass of the front BTW. All told it takes about 5 mins to remove cleanly at 300 degrees.

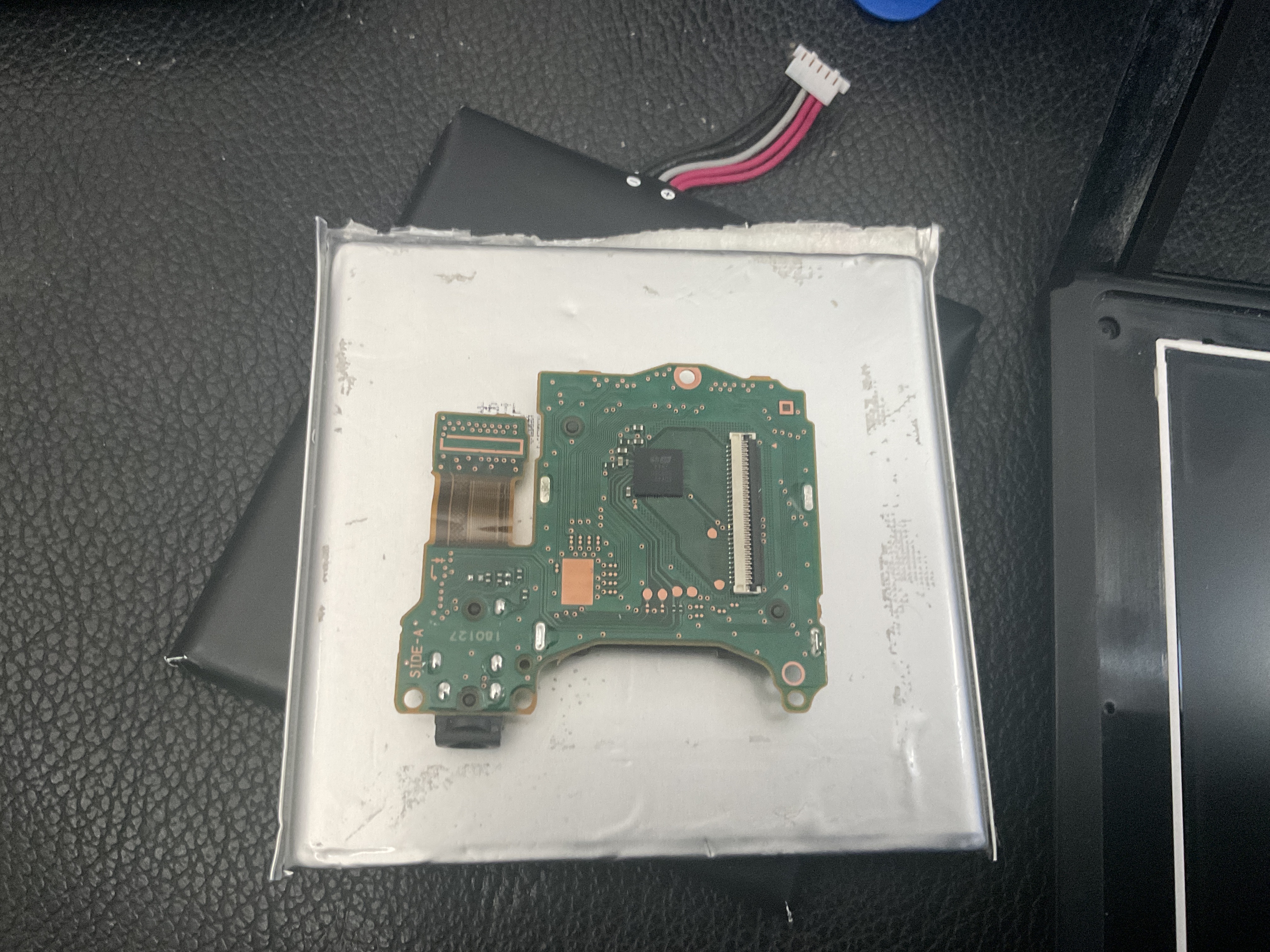

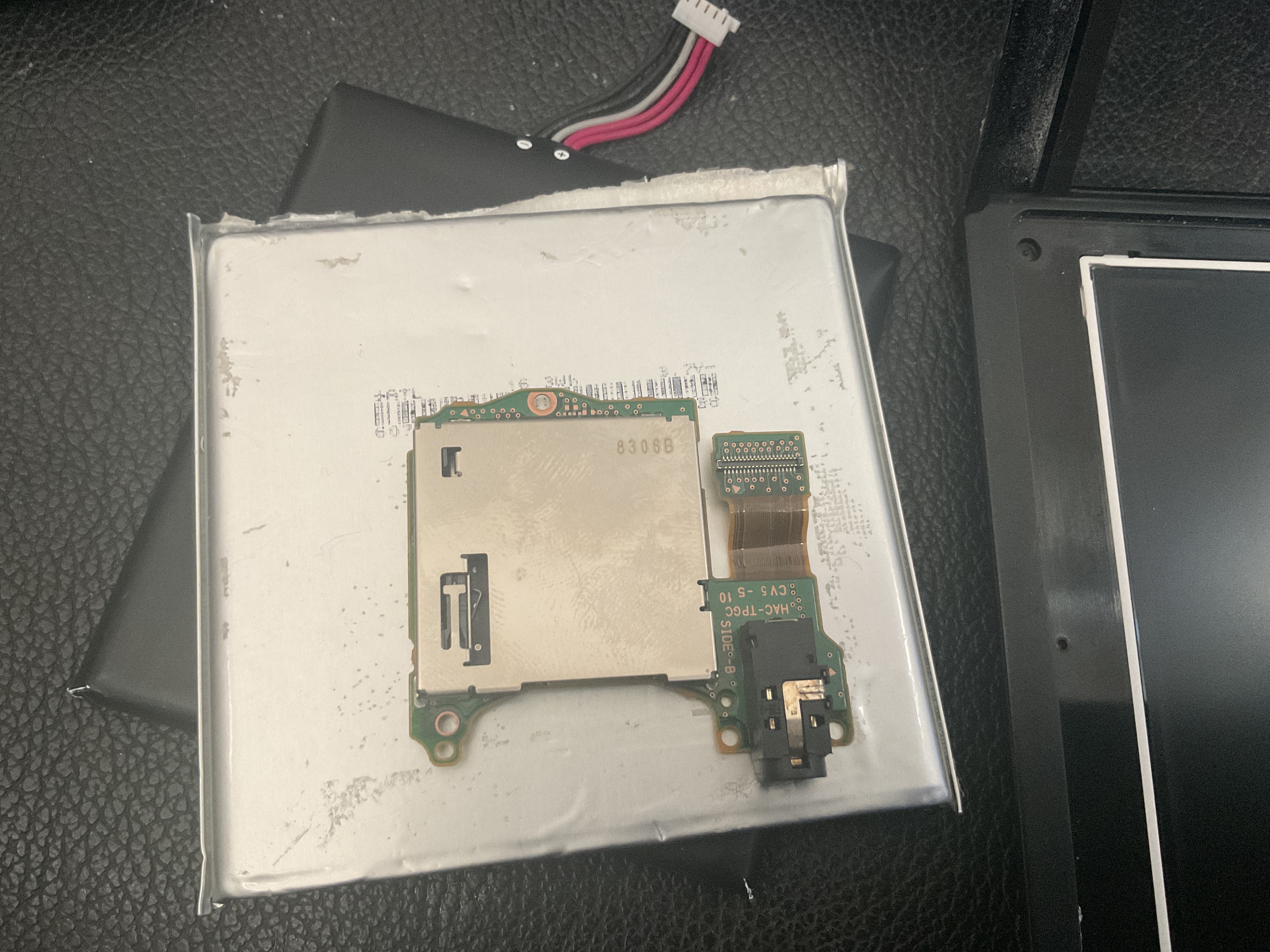

It‘s a V1 too, so here’s what the daughter card looks like.






@randy_w we have his mid frame out, various batteries and a Dremel. Shit’s about to get medieval…will let you know how it goes.



[randy_w]

I think we discussed this one in the mattytrog thread a while back.

Ahh haven't followed that thread in a while and just saw it. Yeah I think it should be compatible with matty's fusee suite.

Shit’s about to get medieval…

Good luck man!



[Hayato213]

I've seen people here reporting calibrating in hekate somehow re-programs the digitizer controller chip on the card reader and that solves the incompatibility issue. Didn't try that myself as my old switch had a broken card reader so I just replaced the daughter board with a universal one.

Anyway, try to get a screen assembly with a digitizer that matches your current model. If your current digitizer has a QR code on its ribbon cable, get one with QR code. If it doesn't, get one without. Ask the seller if you are not sure which version they are selling.


It seems like they are now selling a new version of the rcmx86 chip called trinket x86. The new version removed 3 pads and added 2 LEDs. The microcontroller also changed, but I think it's the old samd21 in a new package. Have you seen anyone installed this chip? Is it pin-compatible with the original rcm x86 chip?
View attachment 334913

Look like just another revision of rcm-x86.



[Soler37]

With a name like TrinketX86 it would be a gosh darn shame if it weren’t exactly what you need to chip a V1 Switch. Looks very clean. I think we discussed this one in the mattytrog thread a while back.

Post automatically merged: Oct 30, 2022

I‘m doing another V1 for a friend. Here’s the digitizer freshly removed. Be careful of the cables on the right hand of the screen while you’re wrenching the glass of the front BTW. All told it takes about 5 mins to remove cleanly at 300 degrees.

Oh I'm sure it will take me much more than 5 mins, this would be my first time doing this sort of thing, I'm kind of nervous as i don't want to ruin my newly purchased device, I am only doing this because the screen is really scratched and taking it to a shop here is way too expensive, more than half the price I purchased my 2nd hand Switch,

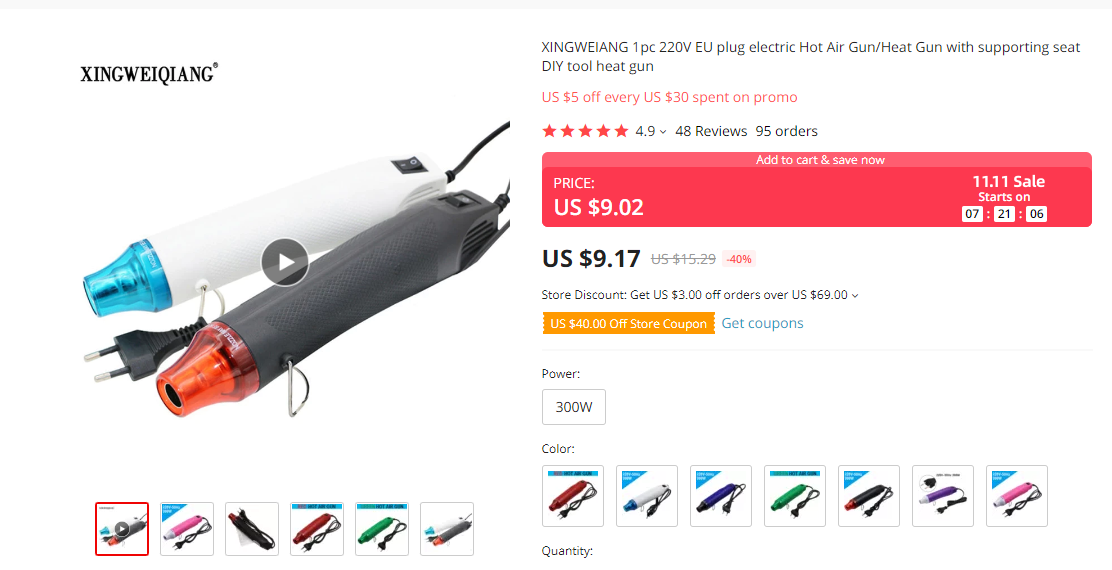

Would you recommend using a heat gun or a heated pillow? the heat gun is from AliExpress.

Regarding the heated pillow, I mean something like what iFixit has with their iOpener but not that, instead, one of those filled with grains:



[binkinator]

Oh I'm sure it will take me much more than 5 mins, this would be my first time doing this sort of thing, I'm kind of nervous as i don't want to ruin my newly purchased device, I am only doing this because the screen is really scratched and taking it to a shop here is way too expensive, more than half the price I purchased my 2nd hand Switch,
Would you recommend using a heat gun or a heated pillow? the heat gun is from AliExpress.
View attachment 335090View attachment 335092

Regarding the heated pillow, I mean something like what iFixit has with their iOpener but not that, instead, one of those filled with grains:
View attachment 335093

I would get the air gun. That one is really low end but for this single use it will probably do. You’re just melting double sided tape and if you jack it up it’s on a screen you don’t want to keep anyway so there’s that.
