"DevkitPro -> libnds" or "how to create my own game?".

AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia
Hi friends!
I recently decided to try writing a game for the legendary Nintendo DS. And since I'm new to this area, I decided to write the simplest game that I only know. Game "Guess the number". The player is given the opportunity to guess the number in a certain range (for example, up to 1 to 100). If the entered number is greater, then the message "TOO MUCH" pops up, if the number is less, then "TOO SMALL". If the player wins, we must also notify him of the successful completion of the game.
The first thing I started with was the installation of "DevkitPro" and the "libnds" library. Next, I installed "Visual Studio Code" and inserted one of the examples provided in the "libnds" library into it.
Everything was successfully opened, the project was assembled, and at the output I received a file with the *nds extension.

I started creating my game, for this I changed the text from the example, it's simple. Next, I decided to insert funny images with a notification about "too large" or too small value entered by the player. But I don't understand how to insert images.
I found an example with the name "backgrounds -> 256_color_bmp", there is a demonstration of a picture from a folder, but it's so incomprehensible. The picture is called as "#include mypicture.h". And where exactly does the image conversion from png to .h take place, I still don’t understand.
Unfortunately, all links to instructions for the library are dead for a long time, and I could not find any understandable documentation. And I would like to have a description of all the functions available in this library, and how to use them. I could not even write such a simple game, and I can’t even imagine how to do something more difficult without documentation.

Friends, if someone has information on how to use this library, I would be very grateful to you. Maybe this tool is already outdated and there is something more relevant for game development on Nintendo DS? I would also be happy to hear from you good advice.
Thanks a lot.

  • Like
Reactions: Tarmfot

elhobbs

Well-Known Member
Member
Joined
Jul 28, 2008
Messages
960
Trophies
0
XP
2,162
Country
United States
Take a look at this example. It is uses grit to convert image files.
https://github.com/devkitPro/nds-examples/tree/master/Graphics/gl2d/sprites

This example uses the 3D hardware to display sprites/images. But you could also use the 2d engine, or use bitmap mode.

You don’t have to use grit for images. You could read file from the file system. Write your own file parser and image converter or use a library.

  • Like
Reactions: AKOTb and godreborn

godreborn

Welcome to the Machine
Member
Joined
Oct 10, 2009
Messages
30,073
Trophies
2
XP
19,741
Country
United States
I'm not really an expert at this stuff, but I think there's a libpng library with devkitpro. it may be what you need. :)


Technicmaster0

Well-Known Member
Member
Joined
Oct 22, 2011
Messages
4,295
Trophies
1
Website
www.flashkarten.tk
XP
2,927
Country
Gambia, The
The easiest way to make 2D games with the DS is to use NFLib. It has premade functions to use the 2D engine of the DS and simplifies many things (like memory bank management etc). The other 2D lib that's officially included in devkitpro is libgl2d. You can find examples in the examples/nds/Graphics/gl2d folder. It can use more graphical effects because the 3D engine is beeing used to render 2d graphics


AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia
Thanks a lot for your answers! I have already started to study the NFlib library on your advice with this very detailed instruction: gbatemp.net/threads/ds-programming-for-newbies.322106/
Downloaded the library from github /knightfox75/nds_nflib

But I have a problem with running the example program. After starting I see the following error:

> Executing task: & 'make.exe' '-f' 'c:\devkitPro\nds_nflib-master\examples\text\text16\Makefile' <

make.exe": make: Command not found
make.exe": *** [build] Error 127
The terminal process "C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -Command & 'make.exe' '-f' 'c:\devkitPro\nds_nflib-master\examples\text\text16\Makefile' terminated with exit code: 1.

Can you please tell me how to fix this error?


godreborn

Welcome to the Machine
Member
Joined
Oct 10, 2009
Messages
30,073
Trophies
2
XP
19,741
Country
United States
Thanks a lot for your answers! I have already started to study the NFlib library on your advice with this very detailed instruction: gbatemp.net/threads/ds-programming-for-newbies.322106/
Downloaded the library from github /knightfox75/nds_nflib

But I have a problem with running the example program. After starting I see the following error:

> Executing task: & 'make.exe' '-f' 'c:\devkitPro\nds_nflib-master\examples\text\text16\Makefile' <

make.exe": make: Command not found
make.exe": *** [build] Error 127
The terminal process "C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -Command & 'make.exe' '-f' 'c:\devkitPro\nds_nflib-master\examples\text\text16\Makefile' terminated with exit code: 1.

Can you please tell me how to fix this error?
I just tested it on my laptop. no issues compiling:



try running pacman -Syu nds-dev


NotImpLife

Member
Newcomer
Joined
Mar 9, 2021
Messages
21
Trophies
0
Age
22
Website
github.com
XP
195
Country
Romania
The images are converted to a DS understandable binary format via grit from the Makefile. if you place a "mypicture.png" file along with "mypicture.grit" (which tells grit how to convert your image) and the build your ROM, in the "build/" folder you'll se two "human-readable" files:
  • Code:
    mypicture.s
    , an assembly file containing the raw DS bitmap data and the used palette (if bmp8 is used)
  • Code:
    mypicture.h
    , the header which makes the data from
    Code:
    mypicture.s
    accessbible through some arrays like mypictureBitmap or mypicturePal.
The "*.grit" file contains some command line arguments which decides how your png is encoded in your DS's memory (I mean, an image is not necessarily a bitmap, it can be a tiled map, a sprite or anything else). If you only want static 256 color images in your game, it is enough to just copy-paste the grit file from the example. To explain its content, there are two argument options:
Code:
-gb
(tells grit to convert the image to bitmap),
Code:
-gB8
(specifies the number of bits per pixel: 4-bit and 8-bit pictures also generate a color palette, 16-bit pictures aka "true color mode" do not).

Note that each png file you have in the graphics folder must have its own grit file with the same name, otherwise the build will fail.

Now to display the image you just need to copy the palette to the BG_PALETTE slot and the picture data to the VRAM region reserved for your bitmap background (you can give it a raw address if you know it like 0x06000000, or trust bgGetGfxPtr(bgid) function to get it for you). Remember to enable a bitmap supporting video mode (Mode 4 - background 3 or Mode 5 - background 2 or background 3 can be bitmapped).

In your case, it would be (briefly) like this:

C++:
#include "pic_msg_greater.h"
#include "pic_msg_less.h"


...
int bg3 = bgInit(3, BgType_Bmp8, BgSize_B8_256x256, 0,0);
...
while(1) {
    swiWaitForVBlank();
    // do the game loop
    if(chosen_number < number_to_guess) {
        dmaCopy(pic_msg_lessBitmap, bgGetGfxPtr(bg3), 256*192);
        dmaCopy(pic_msg_lessPal, BG_PALETTE, 256*sizeof(u16));
    } else if(chosen_number > number_to_guess) {
        dmaCopy(pic_msg_greaterBitmap, bgGetGfxPtr(bg3), 256*192);
        dmaCopy(pic_msg_greaterPal, BG_PALETTE, 256*sizeof(u16));
    }
}

  • Like
Reactions: AKOTb

AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia
I just tested it on my laptop. no issues compiling:

I just tried to build a project from the standard ndslib examples, and also met the same error. make.exe": make: Command not found make.exe": *** [build] Error 127 Can you please tell me where can I find the setting for the location of the makefile?

Note that each png file you have in the graphics folder must have its own grit file with the same name, otherwise the build will fail
Mega thank you for such a detailed description of adding an image to the project! I really appreciate the information, because I haven't been able to find any documentation for the library. Whereas the documentation for the Palib and Nightfox libraries is present, and it is very detailed.

  • Like
Reactions: NotImpLife

godreborn

Welcome to the Machine
Member
Joined
Oct 10, 2009
Messages
30,073
Trophies
2
XP
19,741
Country
United States
I just tried to build a project from the standard ndslib examples, and also met the same error. make.exe": make: Command not found make.exe": *** [build] Error 127 Can you please tell me where can I find the setting for the location of the makefile?


Mega thank you for such a detailed description of adding an image to the project! I really appreciate the information, because I haven't been able to find any documentation for the library. Whereas the documentation for the Palib and Nightfox libraries is present, and it is very detailed.
Sounds like an environmental variable problem then. Check if the bin folder is listed in path.


AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia
I think I understand what is wrong. The program displays the following error message:
/bin/sh: /c/devkitPro/examples/nds/hello_world/c:/devkitPro/msys/bin/make.exe: No such file or directory
make.exe": *** [build] Error 127
The terminal process "C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -Command & 'make.exe' '-f' 'c:\devkitPro\examples\nds\hello_world\Makefile'" terminated with exit code: 1.
This address looks weird:
/bin/sh: /c/devkitPro/examples/nds/hello_world/c:/devkitPro/msys/bin/make.exe

Of course this is a mistake, but I do not understand where this can be corrected? Maybe someone knows?


AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia
No, I have an old version of Devkitpro 1.5 installed. It was not msys2 but just msys. Here is a screenshot of the folder:



NotImpLife

Member
Newcomer
Joined
Mar 9, 2021
Messages
21
Trophies
0
Age
22
Website
github.com
XP
195
Country
Romania
/c/devkitPro/examples/nds/hello_world/c:/devkitPro/msys/bin/make.exe
Possibly the makefile has been modified? Looks like it's trying to do $(CURDIR)/$(MAKE)... Can you send an archive of your project? It may also woth trying to run make in another terminal if you have installed (like git bash).


AKOTb

Member
OP
Newcomer
Joined
May 10, 2022
Messages
14
Trophies
0
Age
35
Location
Home
XP
28
Country
Russia

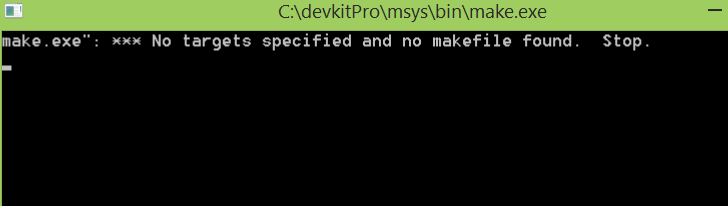

Does make work in another directory?
yes, it works



Possibly the makefile has been modified? Looks like it's trying to do $(CURDIR)/$(MAKE)... Can you send an archive of your project?

I'm not writing my project yet, but just trying to run projects from the "examples" folder.
I attached an archive with all the projects in the "examples" folder to the message, now I'm trying to run the "hello world" project, but the error is the same with the rest of the projects.


Attachments

  • nds.zip
    1.5 MB · Views: 5

NotImpLife

Member
Newcomer
Joined
Mar 9, 2021
Messages
21
Trophies
0
Age
22
Website
github.com
XP
195
Country
Romania
From which path do you run your makefile?
Have you tried this:
Code:
cd C:\devkitPro\examples\nds\hello_world
make -f Makefile

Also try open cmd and run this just to make sure the make command is found:
Code:
where make
